Каталог

Европа

Модель

TOYOACE

VIN

Дата

1984/09

Двигатель

1,6 литра

Кузов

LOW FLAT DECK OPENING ON THREE SIDES (JUST LOW)

Фрейм

RY30

КПП

МКПП, 4 ступени, на руле

Опции

правый руль DOUBLE TIRE 1.5 TONNE COMPLETED VEHICLE GENERAL COUNTRIES

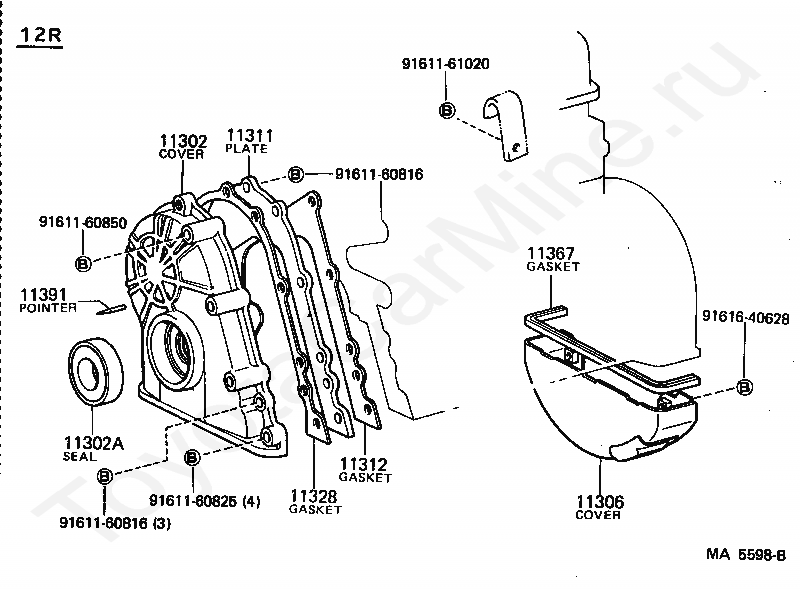

TIMING GEAR COVER & REAR END PLATE TOYOTA TOYOACE

Код

Описание

11302

COVER SUB-ASSY, TIMING CHAIN OR BELT

11302A

SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

11306

COVER SUB-ASSY, FLYWHEEL HOUSING UNDER

11311

PLATE, FRONT END

11312

GASKET, FRONT END PLATE

11328

GASKET, TIMING GEAR OR CHAIN COVER

11367

GASKET, FLYWHEEL HOUSING UNDER

11391

POINTER, TIMING

9161160816

Крепеж

9161160816

Крепеж

9161160825

Крепеж

9161160850

Крепеж

9161161020

Крепеж

9161640628

Крепеж

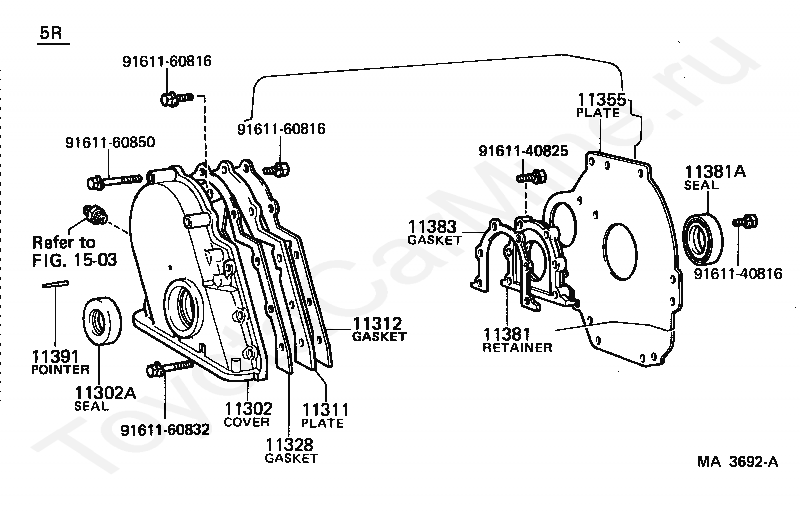

Код

Описание

11302

COVER SUB-ASSY, TIMING CHAIN OR BELT

11302A

SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

11311

PLATE, FRONT END

11312

GASKET, FRONT END PLATE

11328

GASKET, TIMING GEAR OR CHAIN COVER

11355

PLATE, REAR END

11381

RETAINER, ENGINE REAR OIL SEAL

11381A

SEAL, ENGINE REAR OIL

11383

GASKET, ENGINE REAR OIL SEAL RETAINER

11391

POINTER, TIMING

1503

переход к группе запчастей

9161140816

Крепеж

9161140825

Крепеж

9161160816

Крепеж

9161160816

Крепеж

9161160832

Крепеж

9161160850

Крепеж

TIMING GEAR COVER & REAR END PLATE TOYOTA TOYOACE
