Каталог

Европа

Модель

TOYOACE

VIN

Дата

1971/09

Двигатель

1,6 литра

Кузов

LOW DECK (STANDARD DECK)

Фрейм

RY12

Опции

правый руль STEEL-MADE DECK 1.5 TONNE

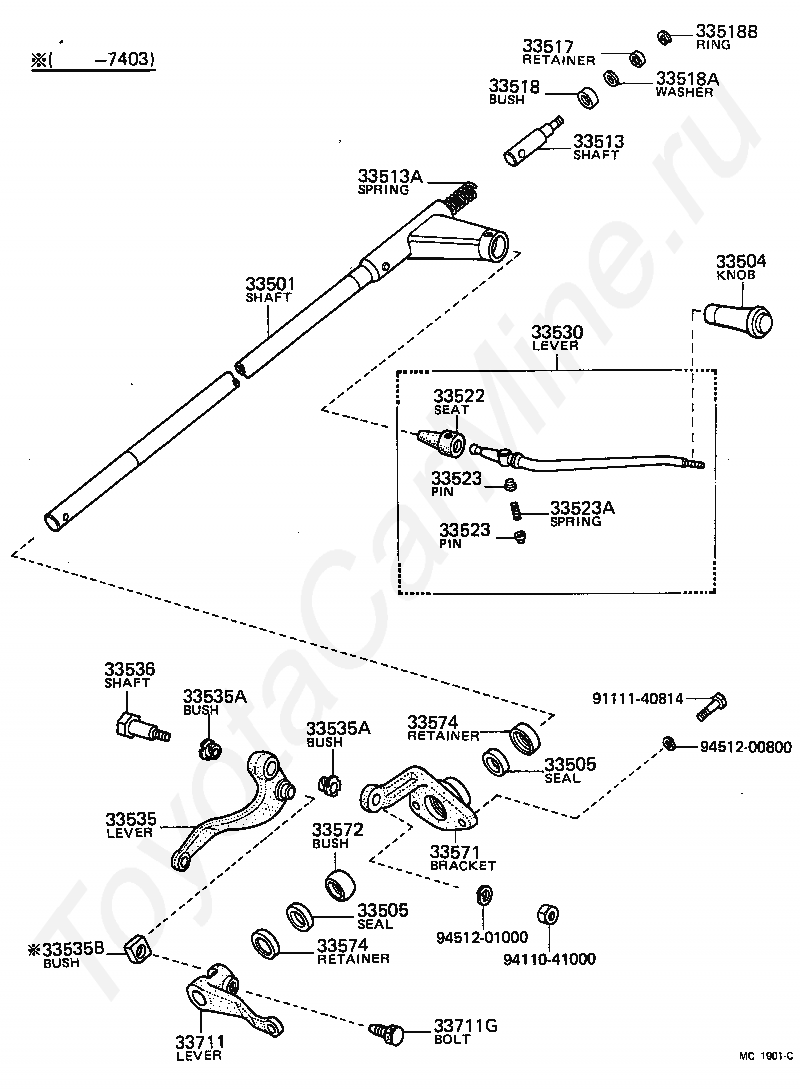

CONTROL SHAFT & CROSSSHAFT TOYOTA TOYOACE

Код

Описание

33501

SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)

33504

KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)

33505

SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT)

33513

SHAFT, CONTROL SHAFT BRACKET, UPPER

33513A

SPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)

33518

BUSH, UPPER CONTROL SHAFT PIECE

33518A

WASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH)

33518B

RING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)

33522

SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)

33523

PIN, SHIFT LEVER (FOR COLUMN SHIFT)

33523

PIN, SHIFT LEVER (FOR COLUMN SHIFT)

33523A

SPRING, COMPRESSION

33530

LEVER ASSY, SHIFT (FOR COLUMN SHIFT)

33535

LEVER, CONTROL SELECT (FOR COLUMN SHIFT)

33535A

BUSH (FOR CONTROL SELECT LEVER)

33535A

BUSH (FOR CONTROL SELECT LEVER)

33535B

BUSH, CONTROL SHIFT LEVER

33536

SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT)

33571

BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT)

33572

BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)

33573

COVER, CONTROL SHAFT DUST, LOWER

33574

RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT)

33711

LEVER, CONTROL SHAFT (FOR COLUMN SHIFT)

33711G

BOLT, CONTROL SHAFT LEVER LOCK

9020108135

Крепеж

9161160835

Крепеж

9411041000

Крепеж

9451201000

Крепеж

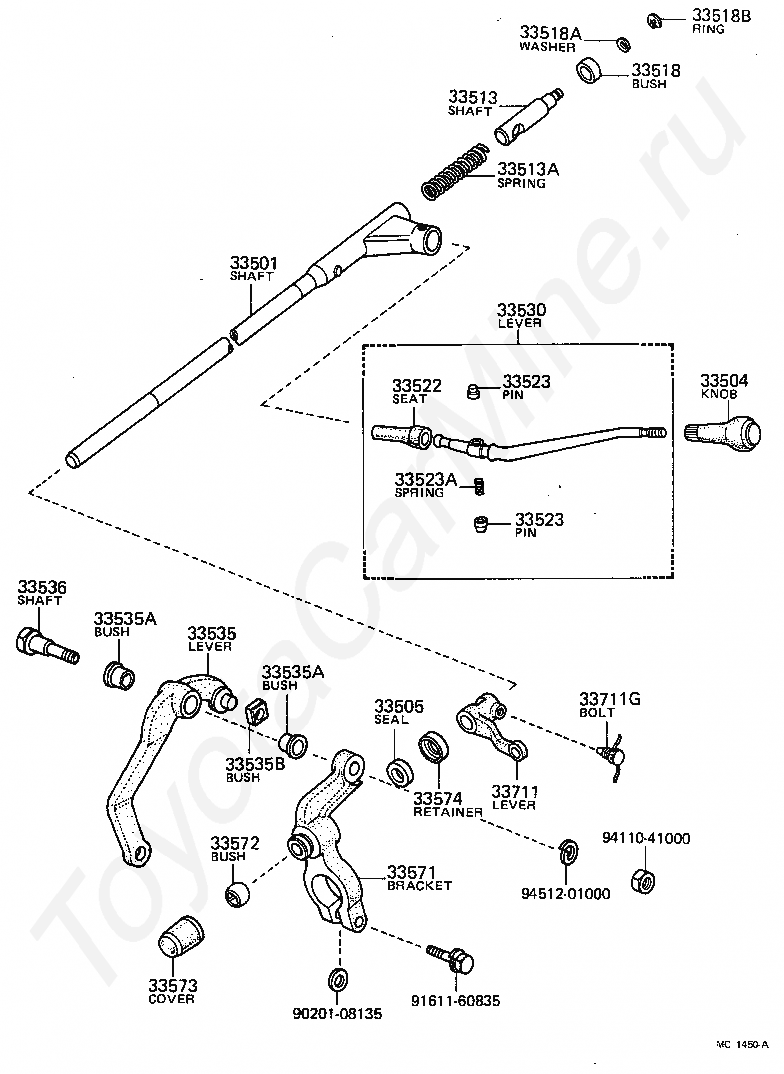

Код

Описание

33501

SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)

33504

KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)

33505

SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT)

33505

SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT)

33513

SHAFT, CONTROL SHAFT BRACKET, UPPER

33513A

SPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)

33517

RETAINER, CONTROL SHAFT UPPER SPRING

33518

BUSH, UPPER CONTROL SHAFT PIECE

33518A

WASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH)

33518B

RING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)

33522

SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)

33523

PIN, SHIFT LEVER (FOR COLUMN SHIFT)

33523

PIN, SHIFT LEVER (FOR COLUMN SHIFT)

33523A

SPRING, COMPRESSION

33530

LEVER ASSY, SHIFT (FOR COLUMN SHIFT)

33535

LEVER, CONTROL SELECT (FOR COLUMN SHIFT)

33535A

BUSH (FOR CONTROL SELECT LEVER)

33535A

BUSH (FOR CONTROL SELECT LEVER)

33535B

BUSH, CONTROL SHIFT LEVER

33536

SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT)

33571

BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT)

33572

BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)

33574

RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT)

33574

RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT)

33711

LEVER, CONTROL SHAFT (FOR COLUMN SHIFT)

33711G

BOLT, CONTROL SHAFT LEVER LOCK

9111140814

Крепеж

9411041000

Крепеж

9451200800

Крепеж

9451201000

Крепеж

Код

Описание

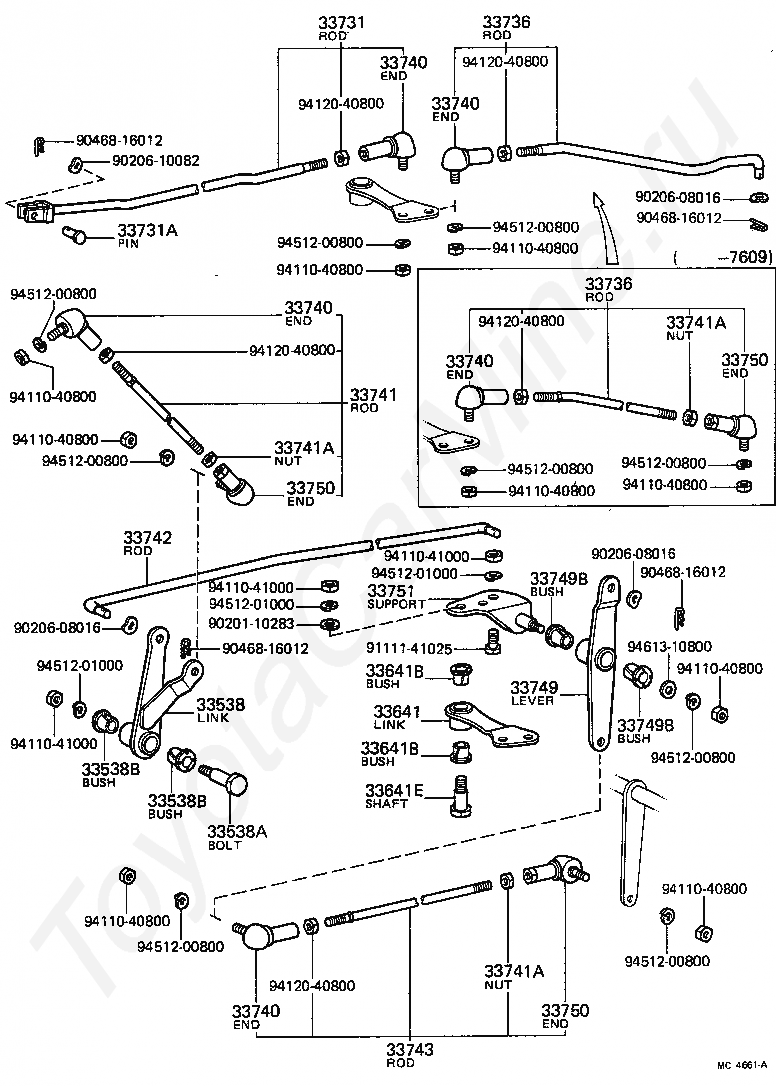

33538

LINK, SHIFTING LEVER

33538A

BOLT (FOR SHIFTING LEVER LINK SETTING)

33538B

BUSH (FOR SHIFTING LEVER LINK)

33538B

BUSH (FOR SHIFTING LEVER LINK)

33641

LINK, SELECTING (FOR COLUMN SHIFT)

33641B

BUSH (FOR SELECTING LINK)

33641B

BUSH (FOR SELECTING LINK)

33641E

SHAFT, SELECTING LINK

33731

ROD, GEAR SELECTING, NO.1 (FOR COLUMN SHIFT)

33731A

PIN, W/HOLE (FOR COLUMN SHIFT GEAR SELECTING ROD)

33736

ROD, GEAR SELECTING, NO.2(FOR COLUMN SHIFT)

33736

ROD, GEAR SELECTING, NO.2(FOR COLUMN SHIFT)

33740
