Каталог

Европа

Модель

TOYOACE

VIN

Дата

1971/09

Двигатель

1,6 литра

Кузов

LOW DECK (STANDARD DECK)

Фрейм

RY12

Опции

правый руль STEEL-MADE DECK 1.5 TONNE

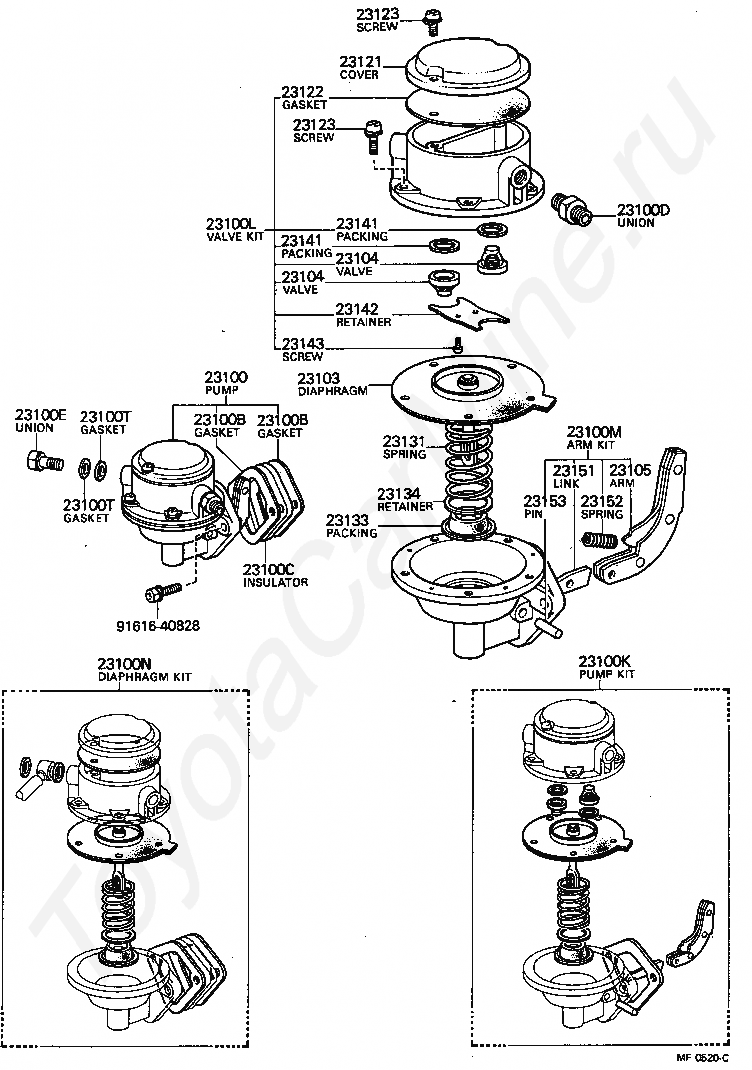

Топливная помпа TOYOTA TOYOACE

Код

Описание

23100

PUMP ASSY, FUEL

23100B

GASKET, FUEL PUMP

23100B

GASKET, FUEL PUMP

23100C

INSULATOR, FUEL PUMP

23100D

UNION, NIPPLE(FOR FUEL OUTLET)

23100E

UNION, NIPPLE(FOR FUEL INLET)

23100K

PUMP KIT, FUEL

23100L

VALVE KIT, FUEL PUMP

23100M

ARM KIT, FUEL PUMP ROCKER

23100N

DIAPHRAGM KIT, FUEL PUMP

23100T

GASKET, NIPPLE UNION(FOR FUEL INLET)

23100T

GASKET, NIPPLE UNION(FOR FUEL INLET)

23103

DIAPHRAGM SUB-ASSY

23104

VALVE SUB-ASSY

23104

VALVE SUB-ASSY

23105

ARM SUB-ASSY, ROCKER

23121

COVER, FUEL PUMP

23122

GASKET, FUEL PUMP COVER

23123

SCREW, COVER SET, NO.1

23123

SCREW, COVER SET, NO.1

23131

SPRING, DIAPHRAGM(FOR FUEL PUMP)

23133

PACKING, OIL SEAL(FOR FUEL PUMP)

23134

RETAINER, OIL SEAL PACKING(FOR FUEL PUMP)

23141

PACKING, VALVE

23141

PACKING, VALVE

23142

RETAINER, VALVE

23143

SCREW, VALVE RETAINER SET

23151

LINK, ROCKER ARM

23152

SPRING, ROCKER ARM

23153

PIN, ROCKER ARM

9161640828

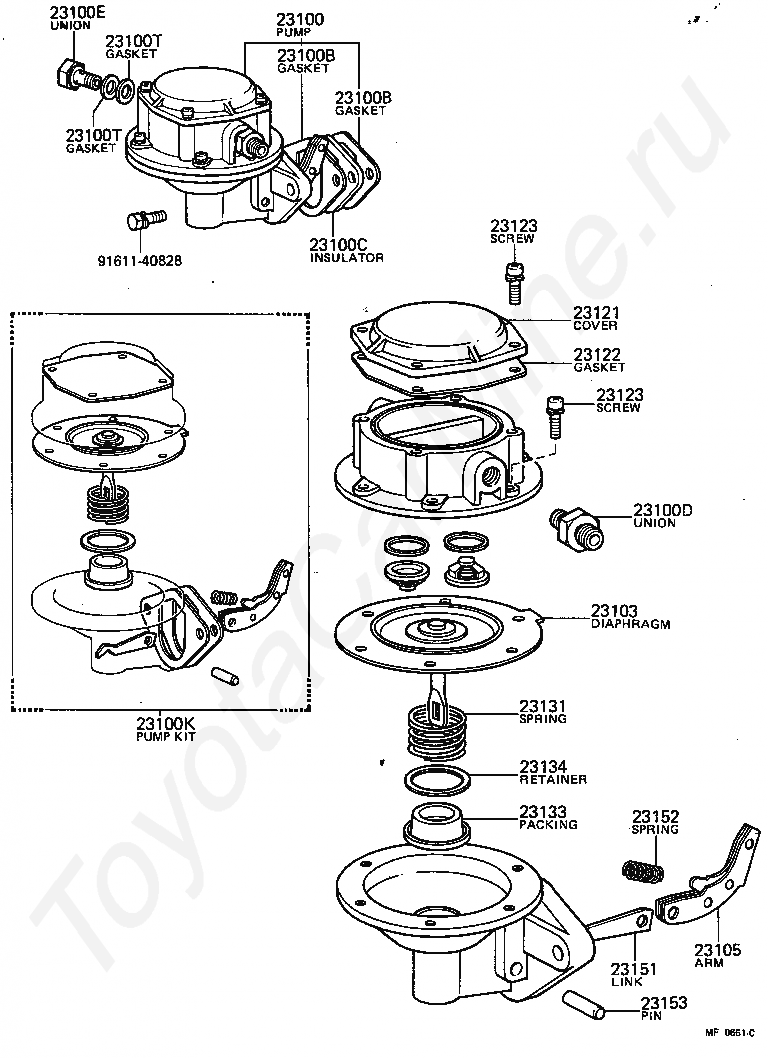

Крепеж

Код

Описание

23100

PUMP ASSY, FUEL

23100B

GASKET, FUEL PUMP

23100B

GASKET, FUEL PUMP

23100C

INSULATOR, FUEL PUMP

23100D

UNION, NIPPLE(FOR FUEL OUTLET)

23100E

UNION, NIPPLE(FOR FUEL INLET)

23100K

PUMP KIT, FUEL

23100T

GASKET, NIPPLE UNION(FOR FUEL INLET)

23100T

GASKET, NIPPLE UNION(FOR FUEL INLET)

23103

DIAPHRAGM SUB-ASSY

23105

ARM SUB-ASSY, ROCKER

23121

COVER, FUEL PUMP

23122

GASKET, FUEL PUMP COVER

23123

SCREW, COVER SET, NO.1

23123

SCREW, COVER SET, NO.1

23131

SPRING, DIAPHRAGM(FOR FUEL PUMP)

23133

PACKING, OIL SEAL(FOR FUEL PUMP)

23134

RETAINER, OIL SEAL PACKING(FOR FUEL PUMP)

23151

LINK, ROCKER ARM

23152

SPRING, ROCKER ARM

23153

PIN, ROCKER ARM

9161140828

Крепеж

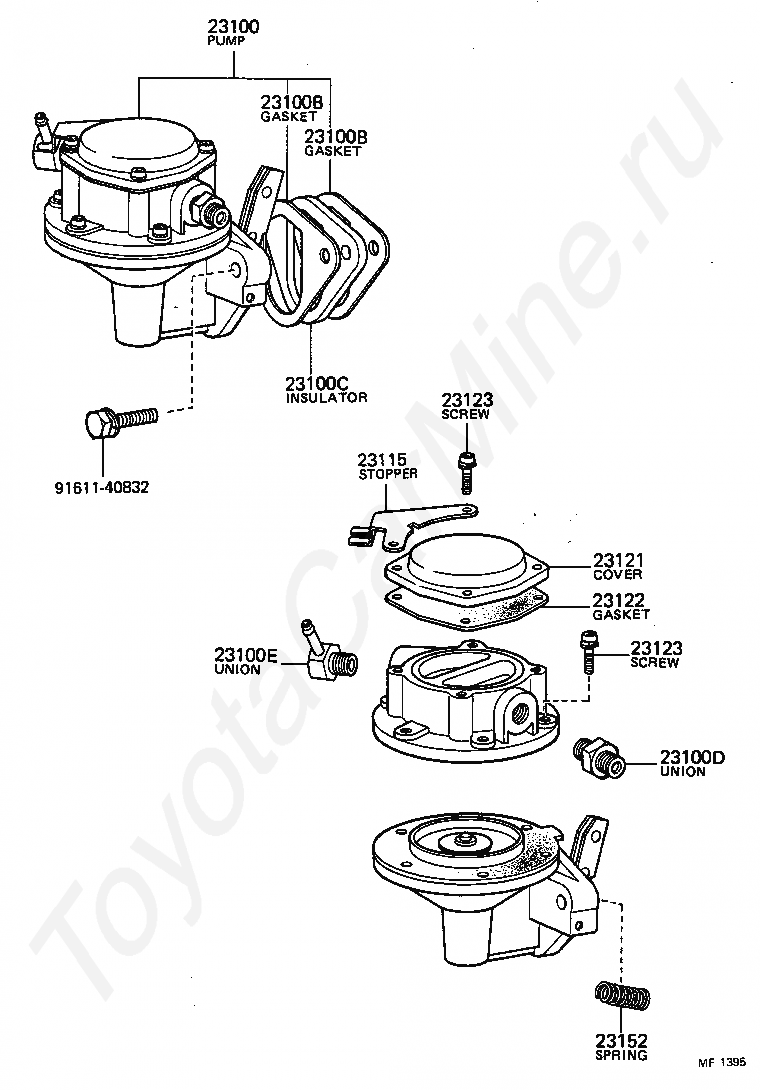

Код

Описание

23100

PUMP ASSY, FUEL

23100B

GASKET, FUEL PUMP

23100B

GASKET, FUEL PUMP

23100C

INSULATOR, FUEL PUMP

23100D

UNION, NIPPLE(FOR FUEL OUTLET)

23100E

UNION, NIPPLE(FOR FUEL INLET)

23115

STOPPER, UNION NIPPLE

23121

COVER, FUEL PUMP

23122

GASKET, FUEL PUMP COVER

23123

SCREW, COVER SET, NO.1

23123

SCREW, COVER SET, NO.1

23152

SPRING, ROCKER ARM

9161140832

Крепеж
