Каталог

Европа

Модель

TOYOACE

VIN

Дата

1971/09

Двигатель

1,6 литра

Кузов

LOW DECK (STANDARD DECK)

Фрейм

RY12

Опции

правый руль STEEL-MADE DECK 1.5 TONNE

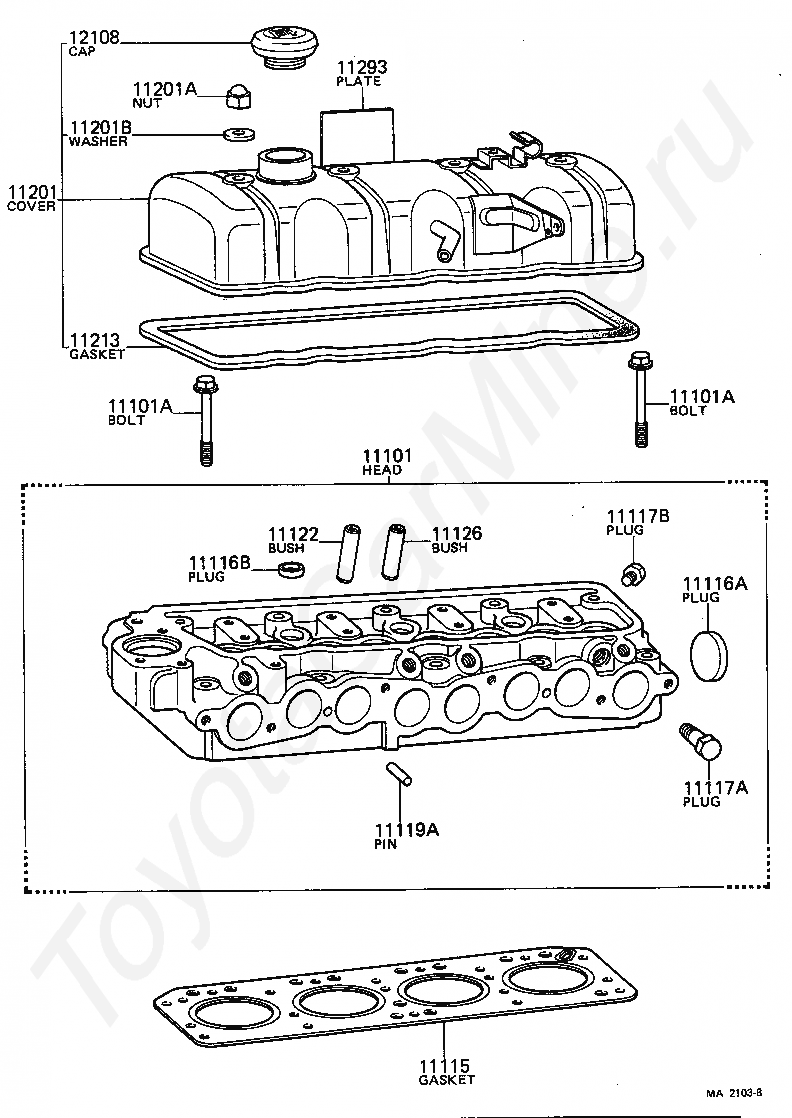

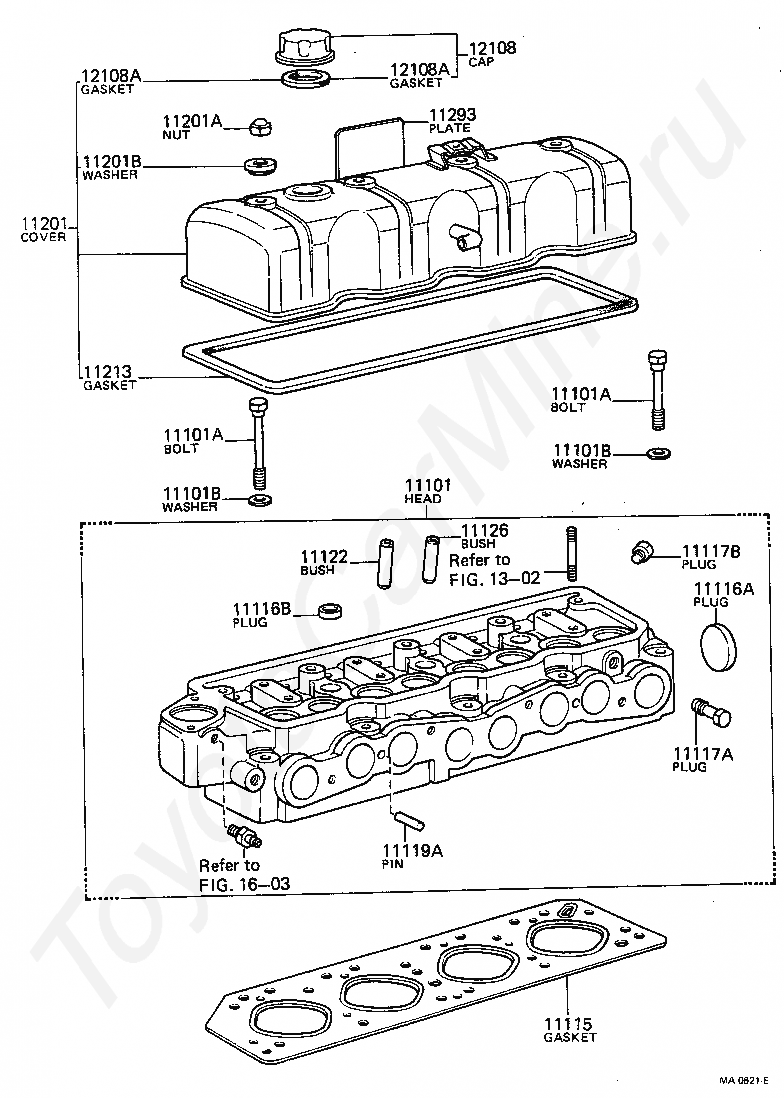

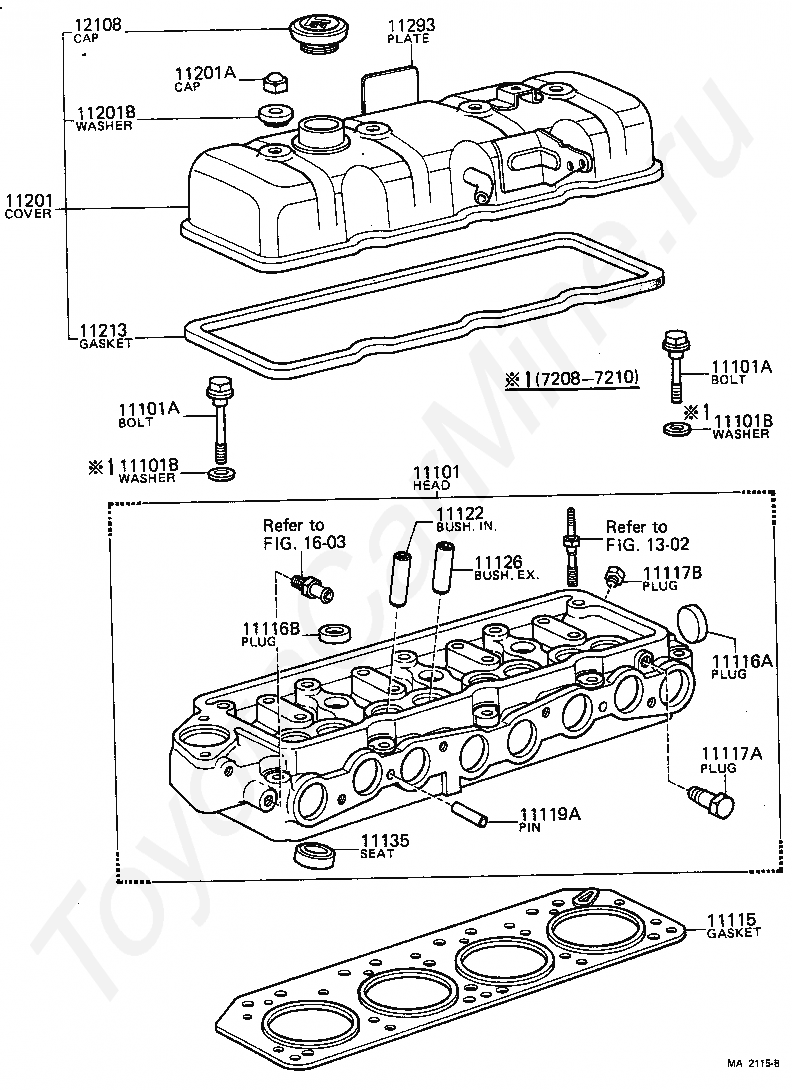

Головка блока цилиндров TOYOTA TOYOACE

Код

Описание

11101

HEAD SUB-ASSY, CYLINDER

11101A

BOLT(FOR CYLINDER HEAD SET)

11101A

BOLT(FOR CYLINDER HEAD SET)

11101B

WASHER, PLATE(FOR CYLINDER HEAD SET)

11101B

WASHER, PLATE(FOR CYLINDER HEAD SET)

11115

GASKET, CYLINDER HEAD

11116A

PLUG, TIGHT, NO.1

11116B

PLUG, TIGHT, NO.2

11117A

PLUG, W/HEAD TAPER SCREW, NO.1

11117B

PLUG, W/HEAD TAPER SCREW, NO.2

11119A

PIN, STRAIGHT, NO.1

11122

BUSH, INTAKE VALVE GUIDE

11126

BUSH, EXHAUST VALVE GUIDE

11201

COVER SUB-ASSY, CYLINDER HEAD

11201A

NUT, CAP(FOR CYLINDER HEAD COVER)

11201B

WASHER, SEAL(FOR CYLINDER HEAD COVER)

11213

GASKET, CYLINDER HEAD COVER

11293

PLATE, ENGINE CAUTION & ENGINE NAME

12108

CAP SUB-ASSY, OIL FILLER

12108A

GASKET(FOR OIL FILLER CAP)

12108A

GASKET(FOR OIL FILLER CAP)

1302

переход к группе запчастей

1603

переход к группе запчастей

Код

Описание

11101

HEAD SUB-ASSY, CYLINDER

11101A

BOLT(FOR CYLINDER HEAD SET)

11101A

BOLT(FOR CYLINDER HEAD SET)

11101B

WASHER, PLATE(FOR CYLINDER HEAD SET)

11101B

WASHER, PLATE(FOR CYLINDER HEAD SET)

11115

GASKET, CYLINDER HEAD

11116A

PLUG, TIGHT, NO.1

11116B

PLUG, TIGHT, NO.2

11117A

PLUG, W/HEAD TAPER SCREW, NO.1

11117B

PLUG, W/HEAD TAPER SCREW, NO.2

11119A

PIN, STRAIGHT, NO.1

11122

BUSH, INTAKE VALVE GUIDE

11126

BUSH, EXHAUST VALVE GUIDE

11135

SEAT, EXHAUST VALVE

11201

COVER SUB-ASSY, CYLINDER HEAD

11201A

NUT, CAP(FOR CYLINDER HEAD COVER)

11201B

WASHER, SEAL(FOR CYLINDER HEAD COVER)

11213

GASKET, CYLINDER HEAD COVER

11293

PLATE, ENGINE CAUTION & ENGINE NAME

12108

CAP SUB-ASSY, OIL FILLER

1302

переход к группе запчастей

1603

переход к группе запчастей

Код

Описание

11101

HEAD SUB-ASSY, CYLINDER

11101A

BOLT(FOR CYLINDER HEAD SET)

11101A

BOLT(FOR CYLINDER HEAD SET)

11115

GASKET, CYLINDER HEAD

11116A

PLUG, TIGHT, NO.1

11116B

PLUG, TIGHT, NO.2

11117A

PLUG, W/HEAD TAPER SCREW, NO.1

11117B

PLUG, W/HEAD TAPER SCREW, NO.2

11119A

PIN, STRAIGHT, NO.1

11122

BUSH, INTAKE VALVE GUIDE

11126

BUSH, EXHAUST VALVE GUIDE

11201

COVER SUB-ASSY, CYLINDER HEAD

11201A

NUT, CAP(FOR CYLINDER HEAD COVER)

11201B

WASHER, SEAL(FOR CYLINDER HEAD COVER)

11213

GASKET, CYLINDER HEAD COVER

11293

PLATE, ENGINE CAUTION & ENGINE NAME

12108

CAP SUB-ASSY, OIL FILLER
