6765
переход к группе запчастей

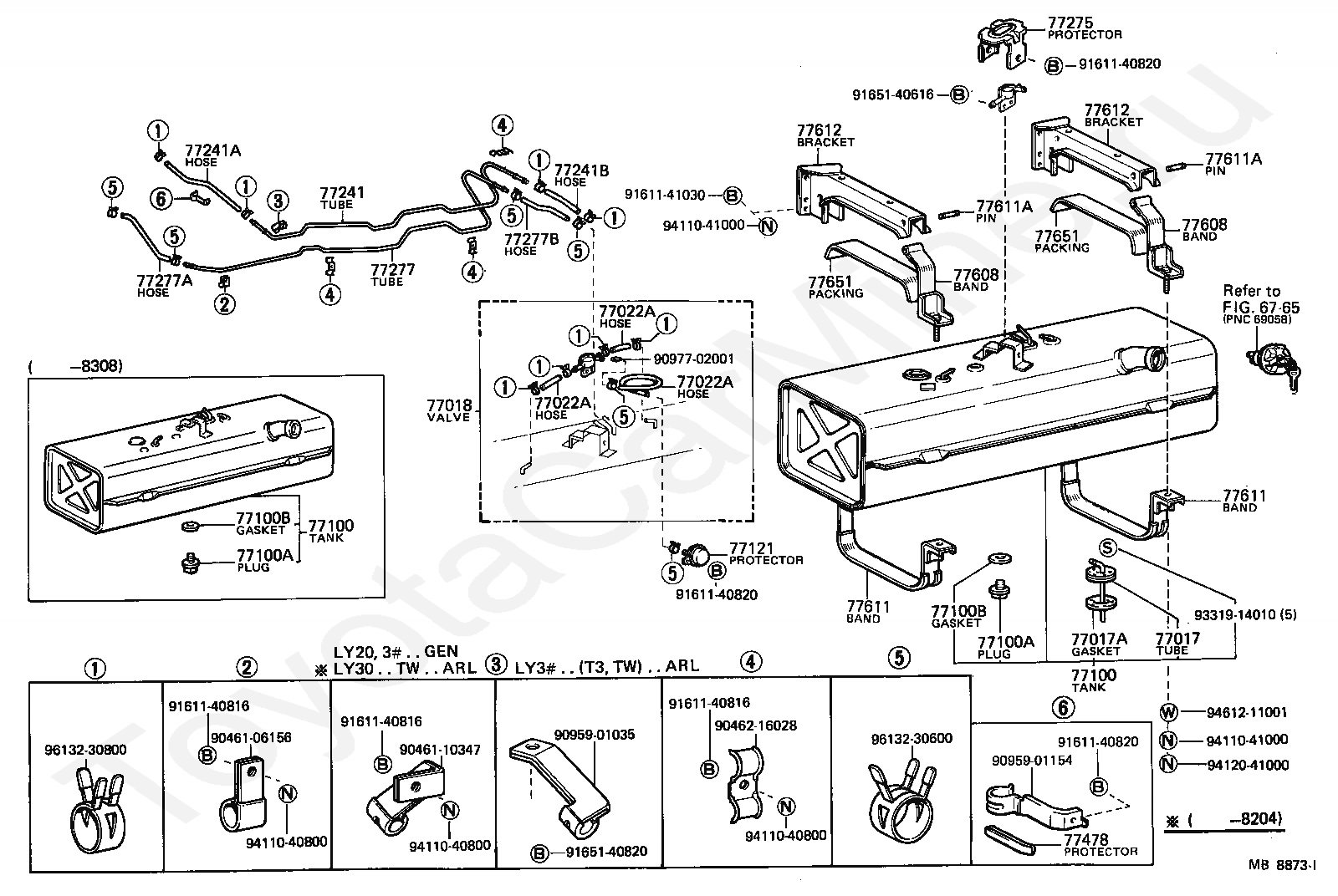

77017
TUBE SUB-ASSY, FUEL AND EVAPORATION VENT
77017A
GASKET, FUEL TANK VENT
77018
VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77022A
HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
77022A
HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
77022A
HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
77100A
PLUG(FOR FUEL TANK)
77100A
PLUG(FOR FUEL TANK)
77100B
GASKET(FOR FUEL TANK)
77100B
GASKET(FOR FUEL TANK)
77121
PROTECTOR, FUEL TUBE
77241
TUBE, FUEL MAIN, NO.1
77241A
HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
77241B
HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
77275
PROTECTOR, FUEL EVAPORATIVE SEPARATOR
77277
TUBE, FUEL RETURN, NO.1
77277A
HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
77277B
HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
77478
PROTECTOR, FUEL HOSE CLAMP
77608
BAND SUB-ASSY, FUEL TANK, NO.2
77608
BAND SUB-ASSY, FUEL TANK, NO.2
77611A
PIN (FOR FUEL TANK BAND)
77611A
PIN (FOR FUEL TANK BAND)
77612
BRACKET SUB-ASSY, FUEL TANK
77612
BRACKET SUB-ASSY, FUEL TANK
77651
PACKING, FUEL TANK BRACKET
77651
PACKING, FUEL TANK BRACKET
