Каталог

Европа

Модель

TOYOACE

VIN

Дата

1983/08

Двигатель

2,4 литра, дизель

Кузов

DOUBLE CAB TRUCK

Фрейм

LY31

КПП

МКПП, 5 скоростей, на руле

Опции

правый руль SINGAPORE TAXI ENGINE NO.=0XXXXXX-5XXXXXX COMPLETED VEHICLE Австралия

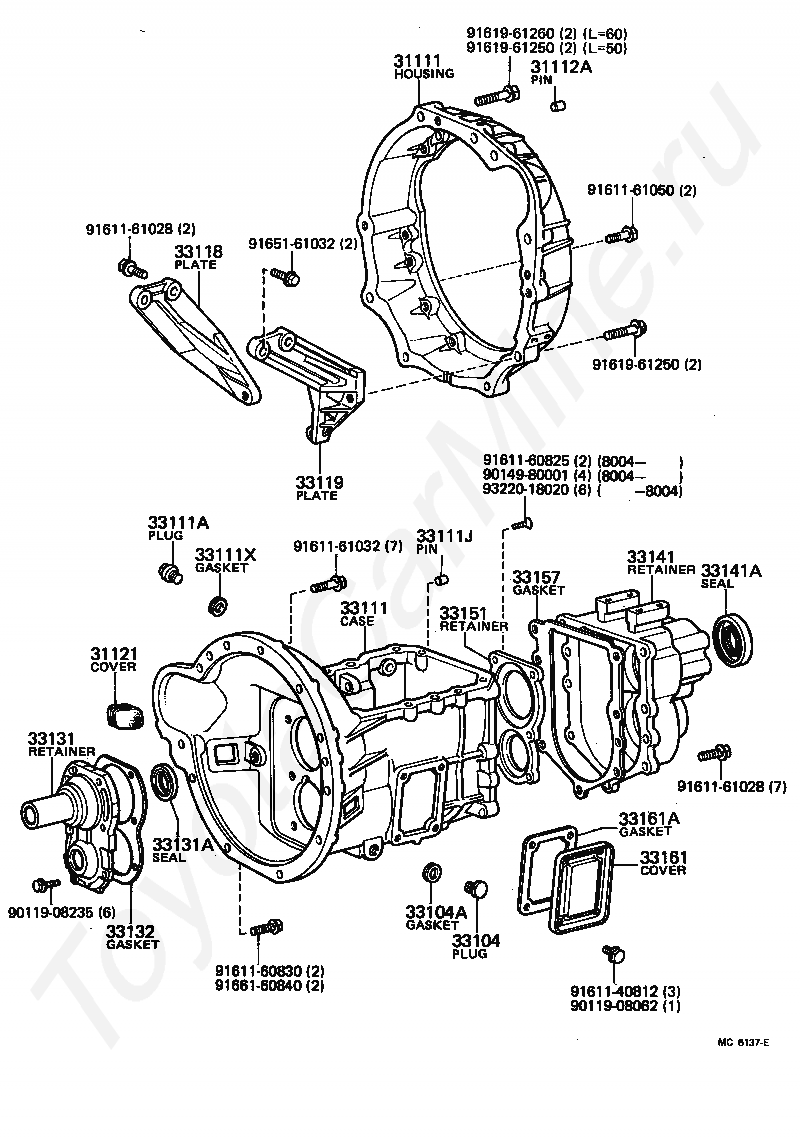

CLUTCH HOUSING & TRANSMISSION CASE (MTM) TOYOTA TOYOACE

Код

Описание

31111

HOUSING, CLUTCH

31112A

PIN, DOWEL CLUTCH HOUSING

31121

COVER, CLUTCH HOUSING, NO.1

33104

PLUG SUB-ASSY, DRAIN(MTM)

33104A

GASKET, DRAIN PLUG(MTM)

33111

CASE, MANUAL TRANSMISSION

33111A

PLUG, MANUAL TRANSMISSION CASE

33111J

PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

33111X

GASKET, TRANSMISSION CASE PLUG

33118

PLATE, STIFFENER, RH(MTM)

33119

PLATE, STIFFENER, LH(MTM)

33131

RETAINER, BEARING, FRONT(MTM)

33131A

SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

33132

GASKET, FRONT BEARING RETAINER(MTM)

33141

RETAINER, TRANSMISSION BEARING, REAR

33141A

SEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER)

33151

RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

33157

GASKET, TRANSMISSION CASE, NO.2

33161

COVER, MANUAL TRANSMISSION POWER TAKE-OFF

33161A

GASKET, TRANSMISSION POWER TAKE-OFF COVER(MTM)

9011908062

Крепеж

9011908235

Крепеж

9014980001

Крепеж

9161140812

Крепеж

9161160825

Крепеж

9161160830

Крепеж

9161161028

Крепеж

9161161028

Крепеж

9161161032

Крепеж

9161161050

Крепеж

9161961250

Крепеж

9161961250

Крепеж

9161961260

Крепеж

9165161032

Крепеж

9166160840

Крепеж

9322018020

Крепеж
