Ближний Восток

Модель

TOWNACE/LITEACE

VIN

Дата

1996/11

Двигатель

1,5 литра

Кузов

VAN

Фрейм

KR41

КПП

механика

Опции

правый руль 5 дверей 6-местный GENERAL COUNTRIES STANDARD CARBURETOR SPECIFICATION

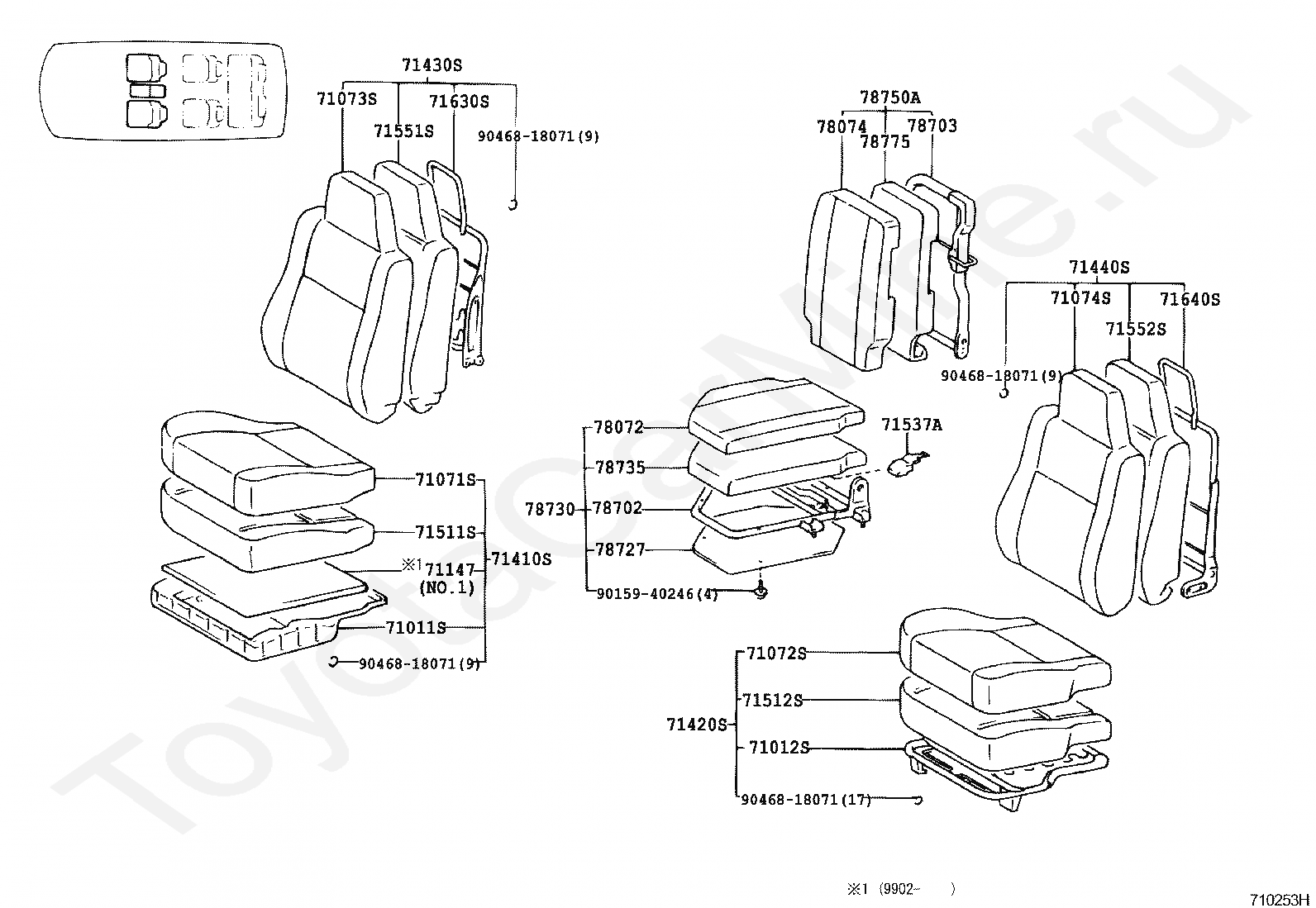

Кресла TOYOTA TOWNACE/LITEACE







Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71147

SILENCER, SEAT SPRING

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

9046818071

Крепеж

9046818071

Крепеж

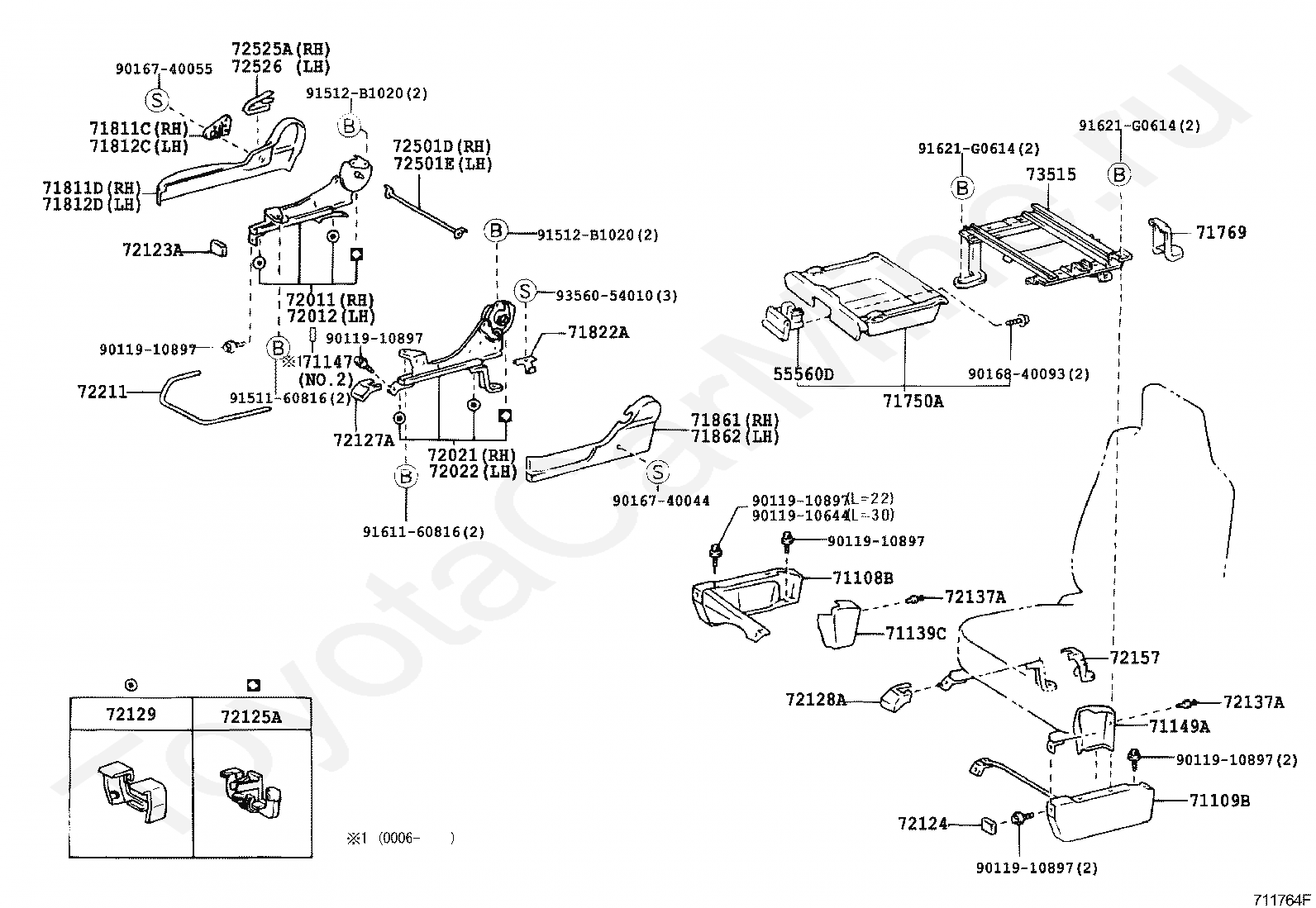

Код

Описание

55560D

LOCK ASSY, SEAT UNDER TRAY

71108B

LEG SUB-ASSY, FRONT SEAT, RH

71109B

LEG SUB-ASSY, FRONT SEAT, LH

71139C

COVER, FRONT SEAT LEG, RH

71147

SILENCER, SEAT SPRING

71149A

COVER, FRONT SEAT LEG, LH

71750A

TRAY ASSY, FRONT SEAT UNDER

71769

COVER, FRONT SEAT UNDER TRAY BRACKET

71811C

COVER, RECLINING ADJUSTER, RH

71811D

SHIELD, FRONT SEAT CUSHION, RH

71812C

COVER, RECLINING ADJUSTER, LH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71822A

BRACKET, FRONT SEAT SHIELD SET, NO.1 LH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

72011

ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH

72012

ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH

72021

ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH

72022

ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72125A

COVER, SEAT TRACK, UPPER REAR

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72128A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72137A

CLIP (FOR SEAT TRACK COVER)

72137A

CLIP (FOR SEAT TRACK COVER)

72157

COVER, SEAT TRACK BRACKET, INNER

72211

HANDLE, SEAT TRACK ADJUSTING

72501D

PIPE SUB-ASSY, RECLINING CONNECTING, RH

72501E

PIPE SUB-ASSY, RECLINING CONNECTING, LH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

73515

RAIL, FRONT SEAT UNDER TRAY, NO.1

9011910644

Крепеж

9011910897

Крепеж

9011910897

Крепеж

9011910897

Крепеж

9011910897

Крепеж

9011910897

Крепеж

9011910897

Крепеж

9016740044

Крепеж

9016740055

Крепеж

9016840093

Крепеж

9151160816

Крепеж

91512B1020

Крепеж

91512B1020

Крепеж

9161160816

Крепеж

91621G0614

Крепеж

91621G0614

Крепеж

9356054010

Крепеж

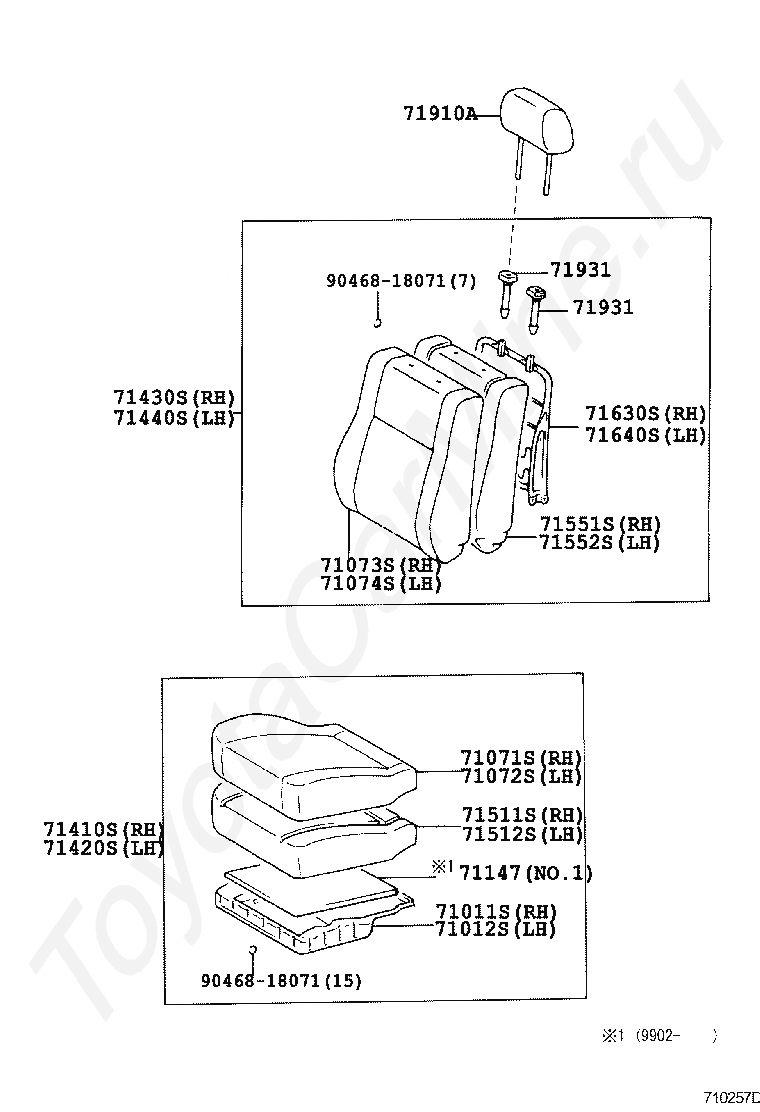

Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71147

SILENCER, SEAT SPRING

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71537A

PROTECTOR, FRONT SEAT CUSHION

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

78072

COVER SUB-ASSY, SUB SEAT CUSHION, LH

78074

COVER SUB-ASSY, SUB SEAT BACK, LH

78702

FRAME SUB-ASSY, SUB SEAT CUSHION, LH

78703

FRAME SUB-ASSY, SUB SEAT BACK

78727

BOARD, SUB SEAT CUSHION

78730

CUSHION ASSY, SUB SEAT, LH

78735

PAD, SUB SEAT CUSHION

78750A

BACK ASSY, SUB SEAT, LH

78775

PAD, SUB SEAT BACK

9015940246

Крепеж

9046818071

Крепеж

9046818071

Крепеж

9046818071

Крепеж

9046818071

Крепеж

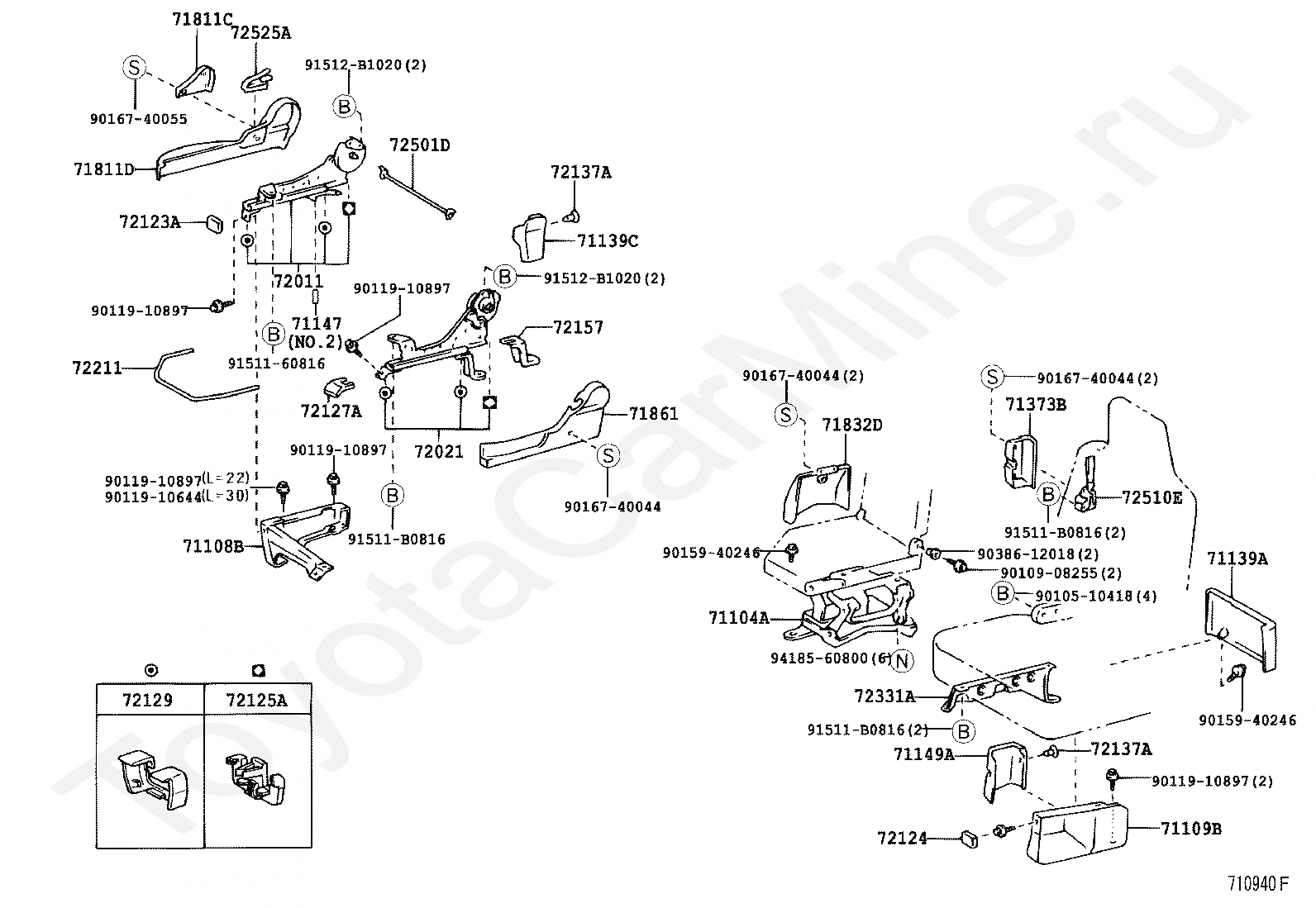

Код

Описание

71104A

HINGE, FRONT SUB SEAT

71108B

LEG SUB-ASSY, FRONT SEAT, RH

71109B

LEG SUB-ASSY, FRONT SEAT, LH

71139A

COVER, FRONT SEAT LEG, NO.1

71139C

COVER, FRONT SEAT LEG, RH

71149A

COVER, FRONT SEAT LEG, LH

71373B

COVER, FRONT SEAT BACK LOCK

71811C

COVER, RECLINING ADJUSTER, RH

71811D

SHIELD, FRONT SEAT CUSHION, RH

71832D

COVER, FRONT SEAT HINGE, LH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

72011

ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH

72021

ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72125A

COVER, SEAT TRACK, UPPER REAR

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72137A

CLIP (FOR SEAT TRACK COVER)

72137A

CLIP (FOR SEAT TRACK COVER)

72157

COVER, SEAT TRACK BRACKET, INNER

72211

HANDLE, SEAT TRACK ADJUSTING

72331A

BOARD, ASSISTANT SEAT, BACK

72501D

PIPE SUB-ASSY, RECLINING CONNECTING, RH

72510E

LOCK ASSY, FRONT SEAT BACK

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

9010510418

Крепеж

9010908255

Крепеж

9011910644

Крепеж

9011910897

Крепеж

9011910897

Крепеж

9011910897

Крепеж

9011910897

Крепеж

9011910897

Крепеж

9015940246

Крепеж

9015940246

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740055

Крепеж

9038612018

Крепеж

9151160816

Крепеж

91511B0816

Крепеж

91511B0816

Крепеж

91511B0816

Крепеж

91512B1020

Крепеж

91512B1020

Крепеж

9418560800

Крепеж

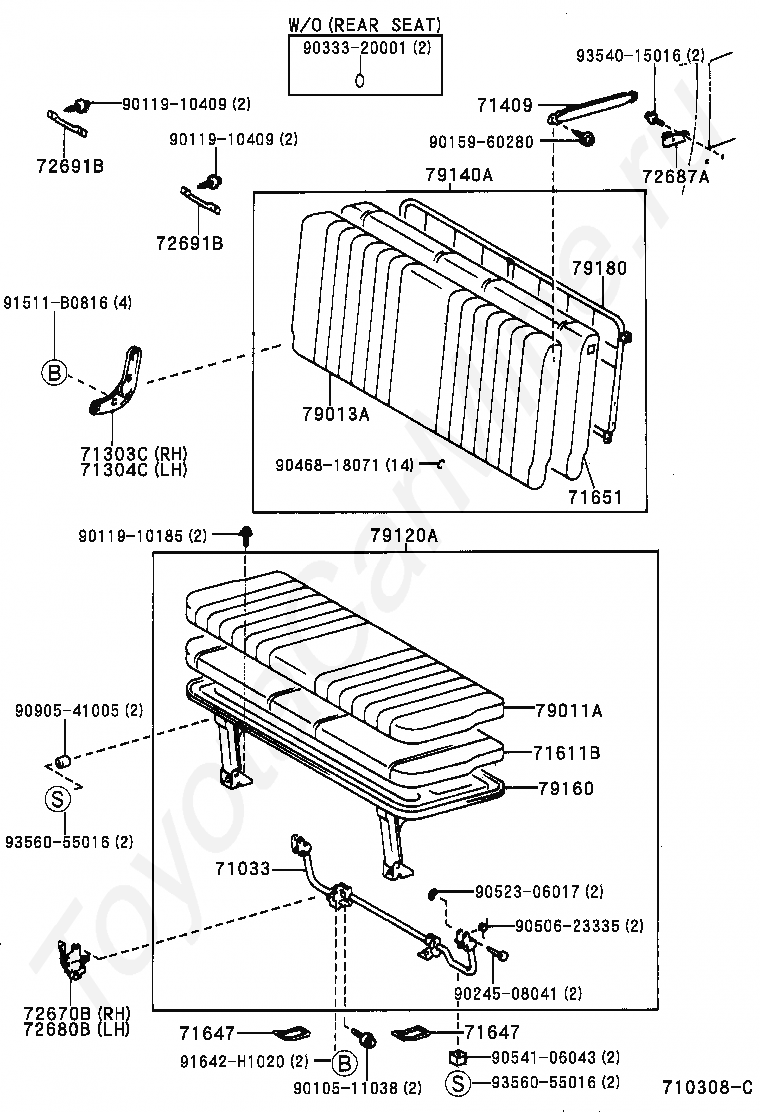

Код

Описание

71033

LEG SUB-ASSY, REAR SEAT CUSHION

71303C

HINGE SUB-ASSY, REAR SEAT BACK, RH

71304C

HINGE SUB-ASSY, REAR SEAT BACK, LH

71409

STOPPER SUB-ASSY, REAR SEAT BACK

71611B

PAD, REAR NO.1 SEAT CUSHION

71647

PROTECTOR, REAR SEAT CUSHION EDGE

71647

PROTECTOR, REAR SEAT CUSHION EDGE

71651

PAD, REAR NO.1 SEAT BACK

72670B

LOCK ASSY, REAR SEAT CUSHION, RH

72680B

LOCK ASSY, REAR SEAT CUSHION, LH

72687A

HOLDER, REAR SEAT BACK LOCK

72691B

STRIKER, REAR SEAT CUSHION LOCK

72691B

STRIKER, REAR SEAT CUSHION LOCK

79011A

COVER SUB-ASSY, NO.1 SEAT CUSHION

79013A

COVER SUB-ASSY, NO.1 SEAT BACK

79120A

CUSHION ASSY, NO.1 SEAT

79140A

BACK ASSY, NO.1 SEAT

79160

SPRING ASSY, NO.1 SEAT CUSHION

79180

SPRING ASSY, NO.1 SEAT BACK

9010511038

Крепеж

9011910185

Крепеж

9011910409

Крепеж

9011910409

Крепеж

9015960280

Крепеж

9024508041

Крепеж

9033320001

Крепеж

9046818071

Крепеж

9050623335

Крепеж

9052306017

Крепеж

9054106043

Крепеж

9090541005

Крепеж

91511B0816

Крепеж

91642H1020

Крепеж

9354015016

Крепеж

9356055016

Крепеж

9356055016

Крепеж
