Каталог

Япония

Модель

TOWN/MASTERACE V,WG

VIN

Дата

1984/08

Двигатель

1,8 литра, дизель

Кузов

V(MODEL MARK)

Класс

N(MODEL MARK)

Фрейм

CR26

КПП

механика МКПП, 5 скоростей

Опции

4-дверный вэн STANDARD ROOF 5-местный

Кресла TOYOTA TOWN/MASTERACE V,WG

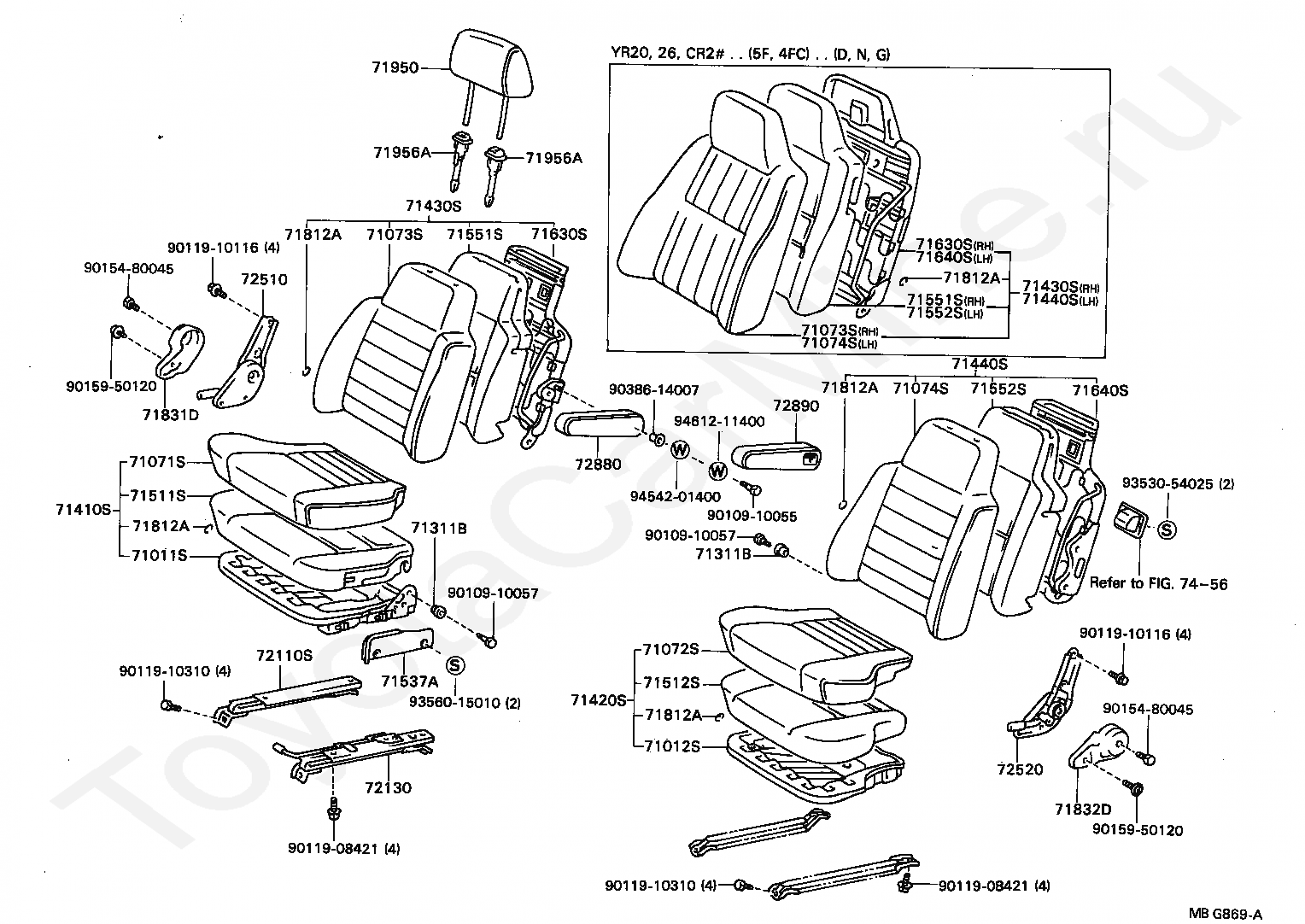

Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71311B

BUSH (FOR FRONT SEAT HINGE PIN)

71311B

BUSH (FOR FRONT SEAT HINGE PIN)

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71537A

PROTECTOR, FRONT SEAT CUSHION

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71812A

RING, HOG, SMALL (FOR FRONT SEAT)

71812A

RING, HOG, SMALL (FOR FRONT SEAT)

71812A

RING, HOG, SMALL (FOR FRONT SEAT)

71812A

RING, HOG, SMALL (FOR FRONT SEAT)

71812A

RING, HOG, SMALL (FOR FRONT SEAT)

71831D

COVER, FRONT SEAT HINGE, RH

71832D

COVER, FRONT SEAT HINGE, LH

71950

HEADREST ASSY, FRONT SEAT

71956A

SUPPORT, FRONT SEAT HEADREST

71956A

SUPPORT, FRONT SEAT HEADREST

72110S

TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

72130

TRACK ASSY, RH SEAT, INNER

72510

ADJUSTER ASSY, RECLINING SEAT BACK, RH

72520

ADJUSTER ASSY, RECLINING SEAT BACK, LH

72880

ARMREST ASSY, SEAT, C RH

72890

ARMREST ASSY, SEAT, C LH

7456

переход к группе запчастей

9010910055

Крепеж

9010910057

Крепеж

9010910057

Крепеж

9011908421

Крепеж

9011908421

Крепеж

9011910116

Крепеж

9011910116

Крепеж

9011910310

Крепеж

9011910310

Крепеж

9015480045

Крепеж

9015480045

Крепеж

9015950120

Крепеж

9015950120

Крепеж

9038614007

Крепеж

9353054025

Крепеж

9356015010

Крепеж

9454201400

Крепеж

9461211400

Крепеж

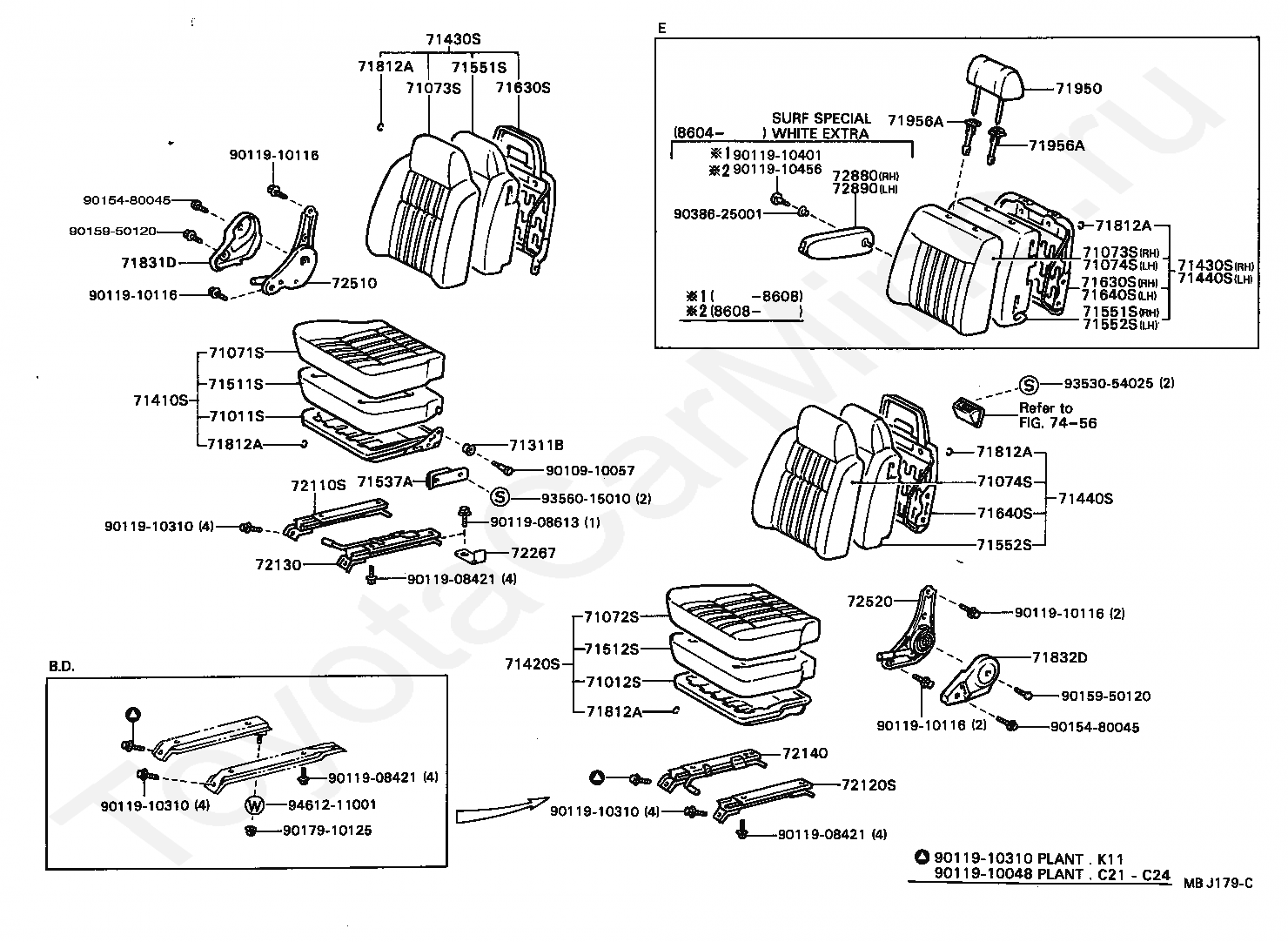

Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71311B

BUSH (FOR FRONT SEAT HINGE PIN)

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71537A

PROTECTOR, FRONT SEAT CUSHION

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71812A

RING, HOG, SMALL (FOR FRONT SEAT)

71812A

RING, HOG, SMALL (FOR FRONT SEAT)

71812A

RING, HOG, SMALL (FOR FRONT SEAT)

71812A

RING, HOG, SMALL (FOR FRONT SEAT)

71812A

RING, HOG, SMALL (FOR FRONT SEAT)

71831D

COVER, FRONT SEAT HINGE, RH

71832D

COVER, FRONT SEAT HINGE, LH

71950

HEADREST ASSY, FRONT SEAT

71956A

SUPPORT, FRONT SEAT HEADREST

71956A

SUPPORT, FRONT SEAT HEADREST

72110S

TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

72120S

TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)

72130

TRACK ASSY, RH SEAT, INNER

72140

TRACK ASSY, LH SEAT, INNER

72267

PLATE, SEAT TRACK STOP

72510

ADJUSTER ASSY, RECLINING SEAT BACK, RH

72520

ADJUSTER ASSY, RECLINING SEAT BACK, LH

72880

ARMREST ASSY, SEAT, C RH

72890

ARMREST ASSY, SEAT, C LH

7456

переход к группе запчастей

9010910057

Крепеж

9011908421

Крепеж

9011908421

Крепеж

9011908421

Крепеж

9011908613

Крепеж

9011910048

Крепеж

9011910116

Крепеж

9011910116

Крепеж

9011910116

Крепеж

9011910116

Крепеж

9011910310

Крепеж

9011910310

Крепеж

9011910310

Крепеж

9011910310

Крепеж

9011910401

Крепеж

9011910456

Крепеж

9015480045

Крепеж

9015480045

Крепеж

9015950120

Крепеж

9015950120

Крепеж

9017910125

Крепеж

9038625001

Крепеж

9353054025

Крепеж

9356015010

Крепеж

9461211001

Крепеж

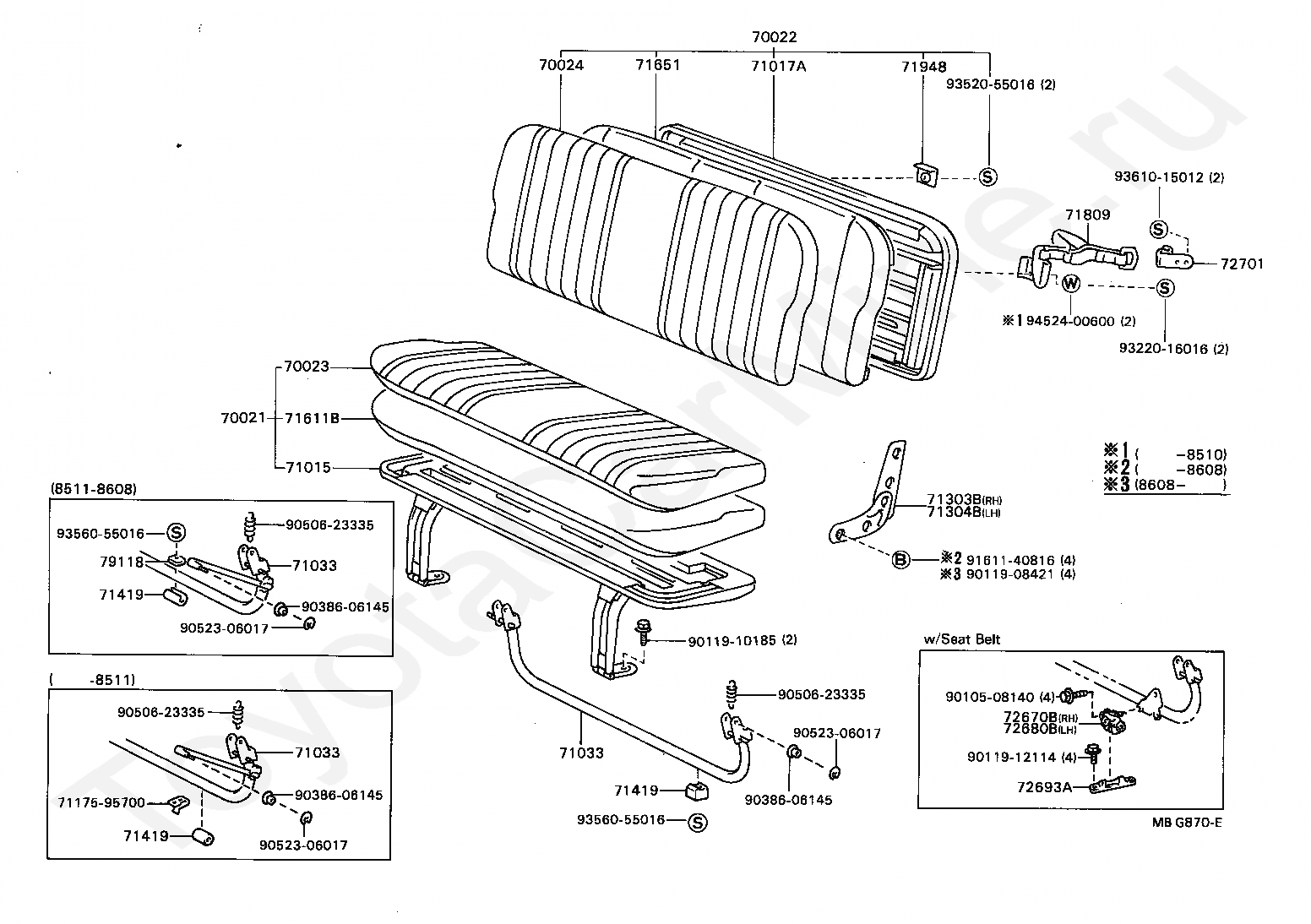

Код

Описание

70021

CUSHION ASSY, NO.2 SEAT

70022

BACK ASSY, NO.2 SEAT

70023

COVER ASSY, NO.2 SEAT CUSHION

70024

COVER ASSY, NO.2 SEAT BACK

71015

FRAME SUB-ASSY, REAR SEAT CUSHION

71017A

FRAME SUB-ASSY, REAR SEAT BACK

71033

LEG SUB-ASSY, REAR SEAT CUSHION

71033

LEG SUB-ASSY, REAR SEAT CUSHION

71033

LEG SUB-ASSY, REAR SEAT CUSHION

7117595700

Крепеж

71303B

HINGE SUB-ASSY, REAR NO.2 SEAT, RH

71304B

HINGE SUB-ASSY, REAR NO.2 SEAT, LH

71419

CUSHION (FOR REAR SEAT LEG)

71419

CUSHION (FOR REAR SEAT LEG)

71419

CUSHION (FOR REAR SEAT LEG)

71611B

PAD, REAR NO.1 SEAT CUSHION

71651

PAD, REAR NO.1 SEAT BACK

71809

STOPPER SUB-ASSY, REAR SEAT BACK, LH

71948

PROTECTOR, PASSENGER SEAT BACK

72670B

LOCK ASSY, REAR SEAT CUSHION, RH

72680B

LOCK ASSY, REAR SEAT CUSHION, LH

72693A

STRIKER, REAR SEAT CUSHION LOCK, NO.3

72701

BRACKET SUB-ASSY, REAR SEAT BACK STOPPER

79118

BRACKET, NO.1 SEAT LEG

9010508140

Крепеж

9011908421

Крепеж

9011910185

Крепеж

9011912114

Крепеж

9038606145

Крепеж

9038606145

Крепеж

9038606145

Крепеж

9050623335

Крепеж

9050623335

Крепеж

9050623335

Крепеж

9052306017

Крепеж

9052306017

Крепеж

9052306017

Крепеж

9161140816

Крепеж

9322016016

Крепеж

9352055016

Крепеж

9356055016

Крепеж

9356055016

Крепеж

9361015012

Крепеж

9452400600

Крепеж
