Каталог

Япония

Модель

TOWN/MASTERACE V,WG

VIN

Дата

1984/08

Двигатель

1,8 литра, дизель

Кузов

V(MODEL MARK)

Класс

N(MODEL MARK)

Фрейм

CR26

КПП

механика МКПП, 5 скоростей

Опции

4-дверный вэн STANDARD ROOF 5-местный

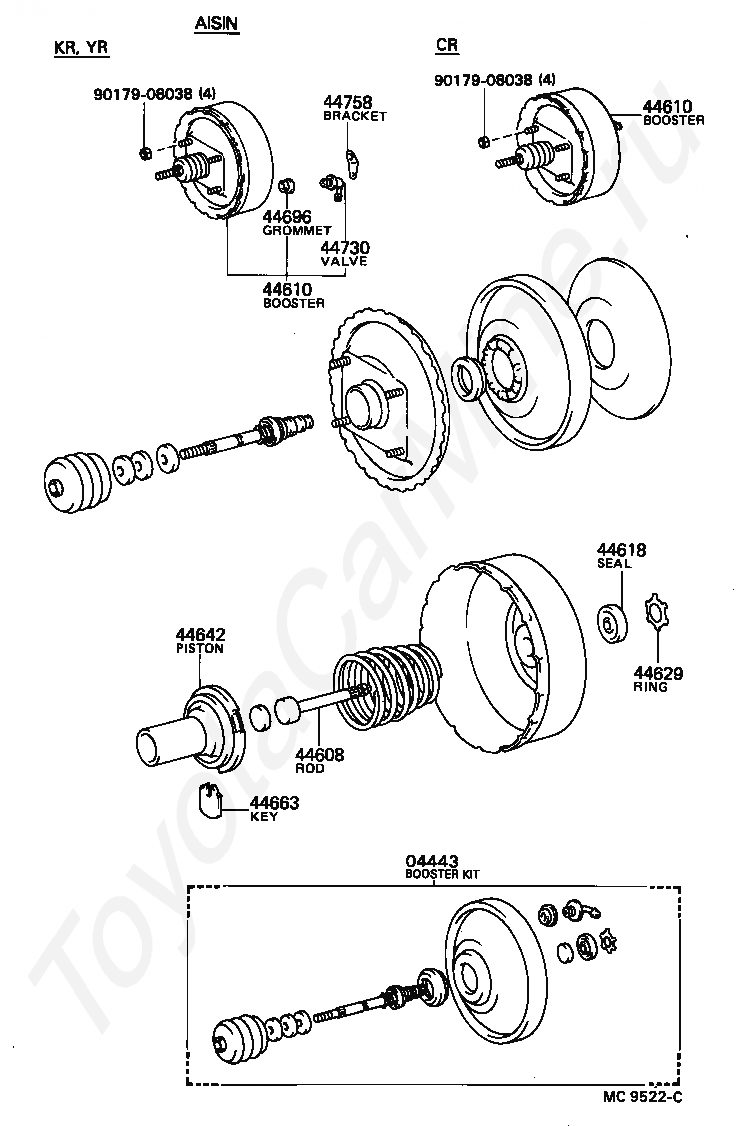

Вакуумный тормозной цилиндр TOYOTA TOWN/MASTERACE V,WG

Код

Описание

04443

BOOSTER KIT, BRAKE

44608

PUSH ROD SUB-ASSY, BOOSTER

44610

BOOSTER ASSY, BRAKE

44610

BOOSTER ASSY, BRAKE

44618

SEAL, BOOSTER BODY

44629

RING, CIRCULAR INTERNAL

44642

PISTON, BRAKE BOOSTER

44663

KEY, VALVE STOPPER

44696

GROMMET, CHECK VALVE

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44758

BRACKET, VACUUM CHECK VALVE

9017908038

Крепеж

9017908038

Крепеж

Код

Описание

04443

BOOSTER KIT, BRAKE

44608

PUSH ROD SUB-ASSY, BOOSTER

44610

BOOSTER ASSY, BRAKE

44610

BOOSTER ASSY, BRAKE

44618

SEAL, BOOSTER BODY

44629

RING, CIRCULAR INTERNAL

44642

PISTON, BRAKE BOOSTER

44663

KEY, VALVE STOPPER

44696

GROMMET, CHECK VALVE

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44758

BRACKET, VACUUM CHECK VALVE

9017908038

Крепеж

9017908038

Крепеж

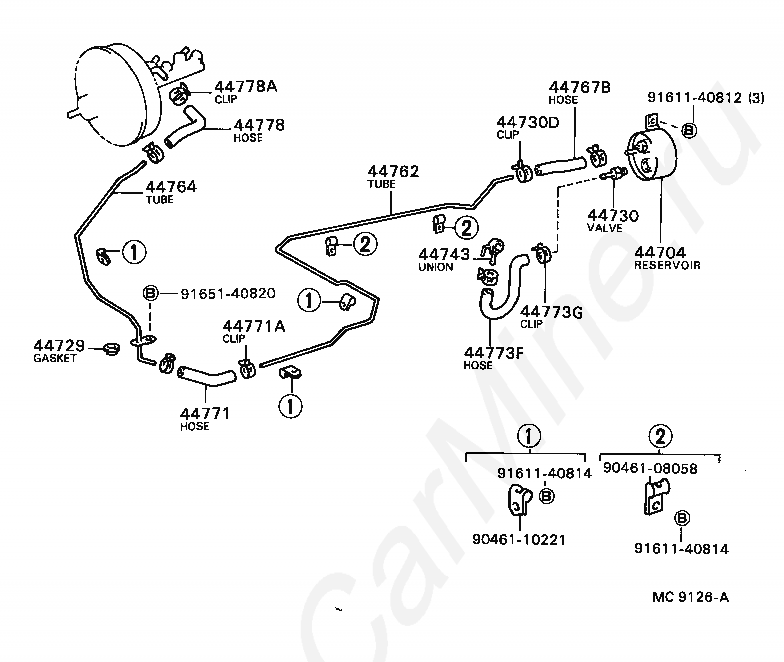

Код

Описание

44704

RESERVOIR SUB-ASSY, VACUUM

44729

GASKET, VACUUM TUBE

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44743

UNION(FOR VACUUM PUMP)

44762

TUBE, BOOSTER VACUUM

44764

TUBE, BOOSTER VACUUM

44767B

HOSE(FOR VACUUM RESERVOIR TO BRAKE BOOSTER TUBE)

44771

HOSE, VACUUM TUBE CONNECTOR

44771A

CLIP(FOR VACUUM TUBE CONNECTOR HOSE)

44773F

HOSE, UNION TO CHECK VALVE

44773G

CLIP(FOR UNION TO CHECK VALVE HOSE)

44778

HOSE, CONNECTOR TO CHECK VALVE

44778A

CLIP(FOR CONNECTOR TO CHECK VALVE HOSE)

9046108058

Крепеж

9046110221

Крепеж

9161140812

Крепеж

9161140814

Крепеж

9161140814

Крепеж

9165140820

Крепеж

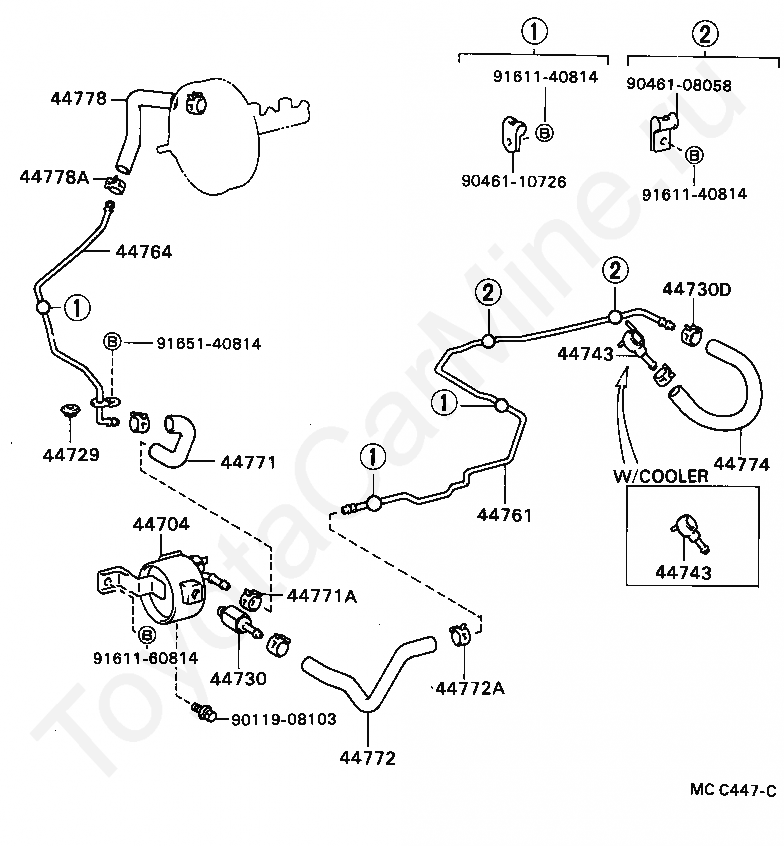

Код

Описание

44704

RESERVOIR SUB-ASSY, VACUUM

44729

GASKET, VACUUM TUBE

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44743

UNION(FOR VACUUM PUMP)

44743

UNION(FOR VACUUM PUMP)

44761

TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR

44764

TUBE, BOOSTER VACUUM

44771

HOSE, VACUUM TUBE CONNECTOR

44771A

CLIP(FOR VACUUM TUBE CONNECTOR HOSE)

44772

HOSE, CHECK VALVE TO CONNECTOR TUBE

44772A

CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

44774

HOSE, UNION TO CONNECTOR TUBE

44778

HOSE, CONNECTOR TO CHECK VALVE

44778A

CLIP(FOR CONNECTOR TO CHECK VALVE HOSE)

9011908103

Крепеж

9046108058

Крепеж

9046110726

Крепеж

9161140814

Крепеж

9161140814

Крепеж

9161160814

Крепеж

9165140814

Крепеж
