Каталог

Япония

Модель

TOWN/MASTERACE V,WG

VIN

Дата

1984/08

Двигатель

1,8 литра, дизель

Кузов

V(MODEL MARK)

Класс

N(MODEL MARK)

Фрейм

CR26

КПП

механика МКПП, 5 скоростей

Опции

4-дверный вэн STANDARD ROOF 5-местный

Рулевая рейка и наконечники TOYOTA TOWN/MASTERACE V,WG

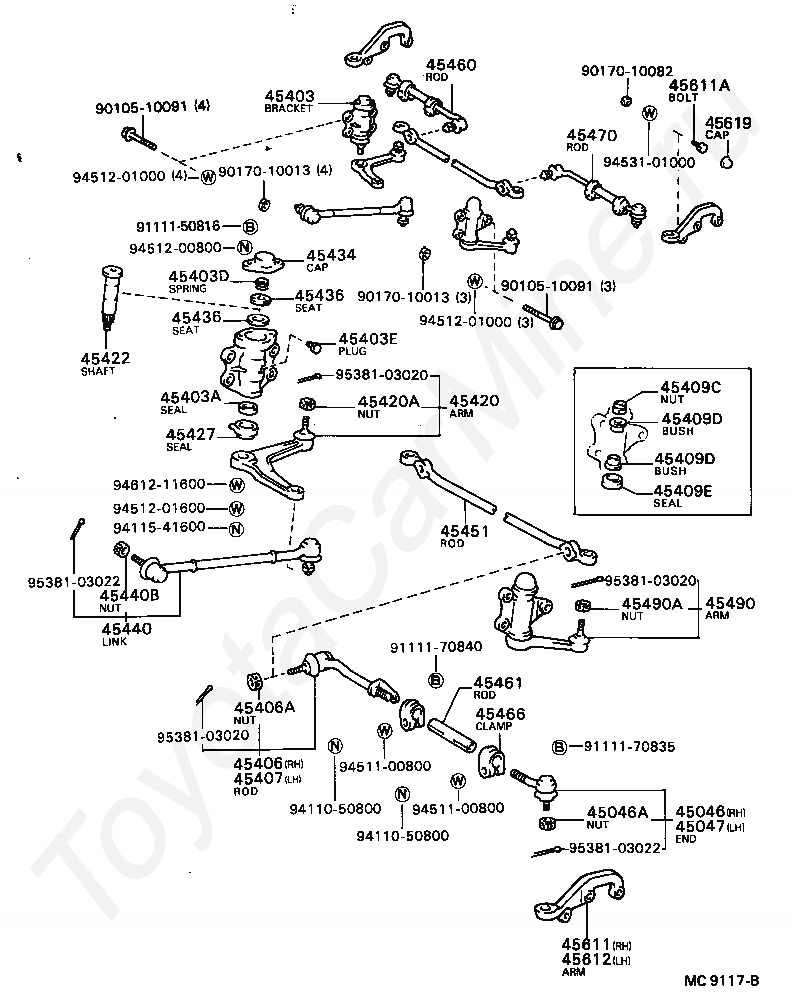

Код

Описание

45046

END SUB-ASSY, TIE ROD, RH

45046A

NUT, CASTLE(FOR TIE ROD END)

45047

END SUB-ASSY, TIE ROD, LH

45403

BRACKET SUB-ASSY, CENTER ARM

45403A

SEAL, OIL(FOR CENTER ARM BRACKET)

45403D

SPRING, COMPRESSION(FOR CENTER ARM SHAFT SET)

45403E

PLUG, W/HEAD TAPER SCREW(FOR CENTER ARM SHAFT)

45406

ROD SUB-ASSY, TIE, RH

45406A

NUT, CASTLE(FOR TIE ROD)

45407

ROD SUB-ASSY, TIE, LH

45409C

NUT(FOR IDLER ARM SUPPORT)

45409D

BUSH(FOR IDLER ARM)

45409D

BUSH(FOR IDLER ARM)

45409E

SEAL, DUST(FOR IDLER ARM SUPPORT)

45420

ARM ASSY, STEERING CENTER

45420A

NUT, CASTLE(FOR STEERING CENTER ARM)

45422

SHAFT, CENTER ARM

45427

SEAL, CENTER ARM DUST, LOWER

45434

CAP, CENTER ARM BRACKET

45436

SEAT, CENTER ARM SHAFT

45436

SEAT, CENTER ARM SHAFT

45440

LINK ASSY, STEERING DRAG

45440B

NUT, CASTLE(FOR STEERING DRAG LINK)

45451

ROD, STEERING RELAY

45460

ROD ASSY, TIE, RH

45461

ROD, STEERING TIE

45466

CLAMP, TIE ROD END

45470

ROD ASSY, TIE, LH

45490

ARM ASSY, STEERING IDLER

45490A

NUT, CASTLE(FOR IDLER ARM)

45611

ARM, STEERING KNUCKLE, RH

45611A

BOLT, KNUCKLE STOPPER

45612

ARM, STEERING KNUCKLE, LH

45619

COVER, KNUCKLE STOPPER

9010510091

Крепеж

9010510091

Крепеж

9017010013

Крепеж

9017010013

Крепеж

9017010082

Крепеж

9111150816

Крепеж

9111170835

Крепеж

9111170840

Крепеж

9411050800

Крепеж

9411050800

Крепеж

9411541600

Крепеж

9451100800

Крепеж

9451100800

Крепеж

9451200800

Крепеж

9451201000

Крепеж

9451201000

Крепеж

9451201600

Крепеж

9453101000

Крепеж

9461211600

Крепеж

9538103020

Крепеж

9538103020

Крепеж

9538103020

Крепеж

9538103022

Крепеж

9538103022

Крепеж

Код

Описание

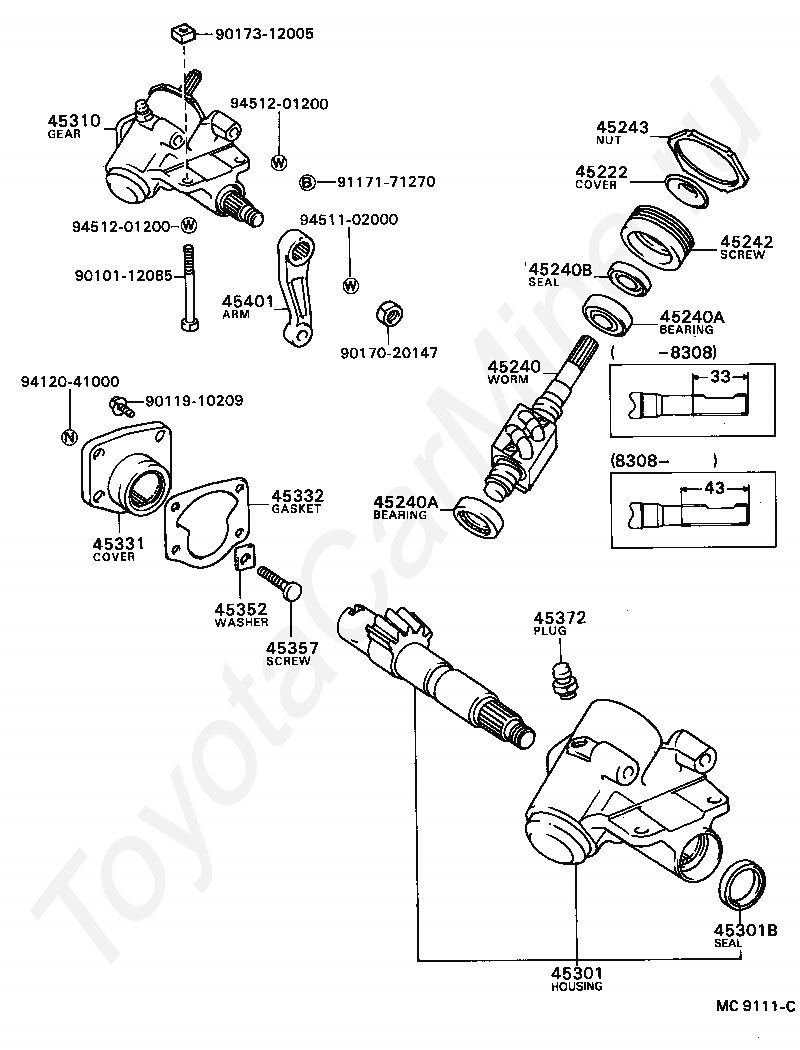

45222

COVER, STEERING GEAR DUST

45240

WORM ASSY, STEERING

45240A

BEARING(FOR STEERING WORM)

45240A

BEARING(FOR STEERING WORM)

45240B

SEAL, OIL(FOR STEERING WORM)

45242

SCREW, WORM BEARING ADJUSTING

45243

NUT, WORM BEARING ADJUSTING SCREW LOCK

45301

HOUSING SUB-ASSY, STEERING GEAR

45301B

SEAL, OIL(FOR SECTOR SHAFT)

45310

HOUSING ASSY, STEERING GEAR

45331

COVER, SECTOR SHAFT END

45332

GASKET, SECTOR SHAFT END COVER

45352

WASHER, SECTOR SHAFT THRUST

45357

SCREW, SECTOR SHAFT ADJUSTING

45372

PLUG, STEERING GEAR HOUSING OIL

45401

ARM SUB-ASSY, PITMAN

9010112085

Крепеж

9011910209

Крепеж

9017020147

Крепеж

9017312005

Крепеж

9117171270

Крепеж

9412041000

Крепеж

9451102000

Крепеж

9451201200

Крепеж

9451201200

Крепеж

Код

Описание

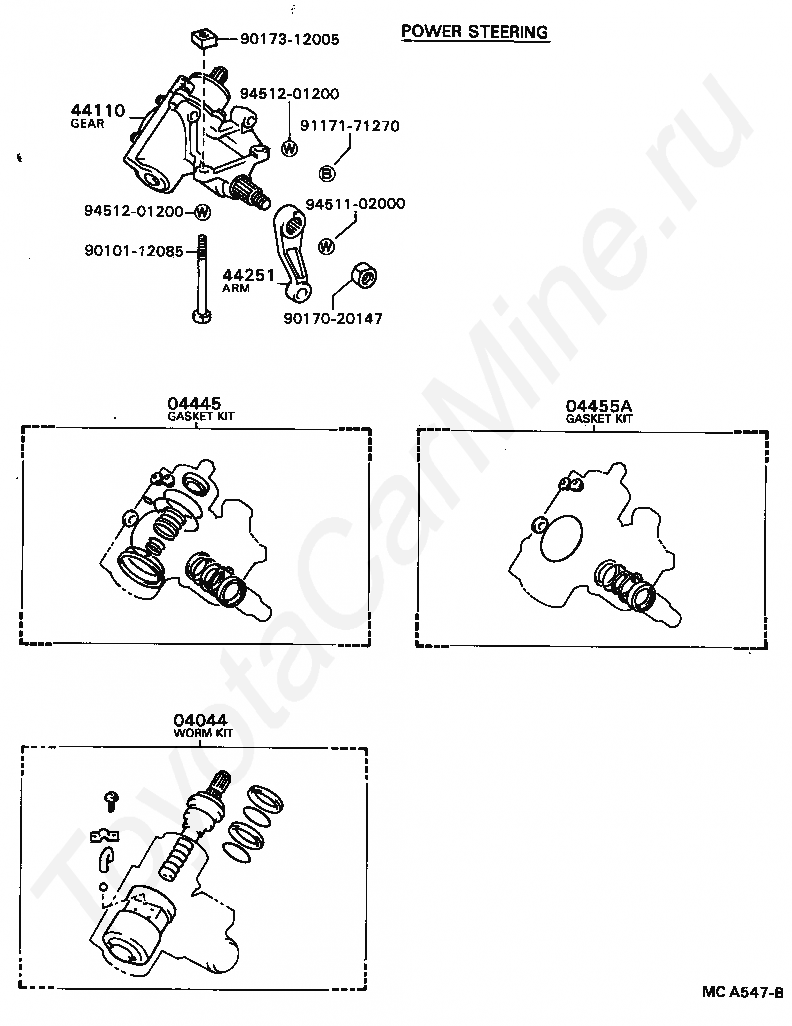

04044

WARM KIT, POWER STEERING

04445

GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)

04455A

GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE

44110

GEAR ASSY, POWER STEERING

44251

ARM, PITMAN

9010112085

Крепеж

9017020147

Крепеж

9017312005

Крепеж

9117171270

Крепеж

9451102000

Крепеж

9451201200

Крепеж

9451201200

Крепеж

Код

Описание

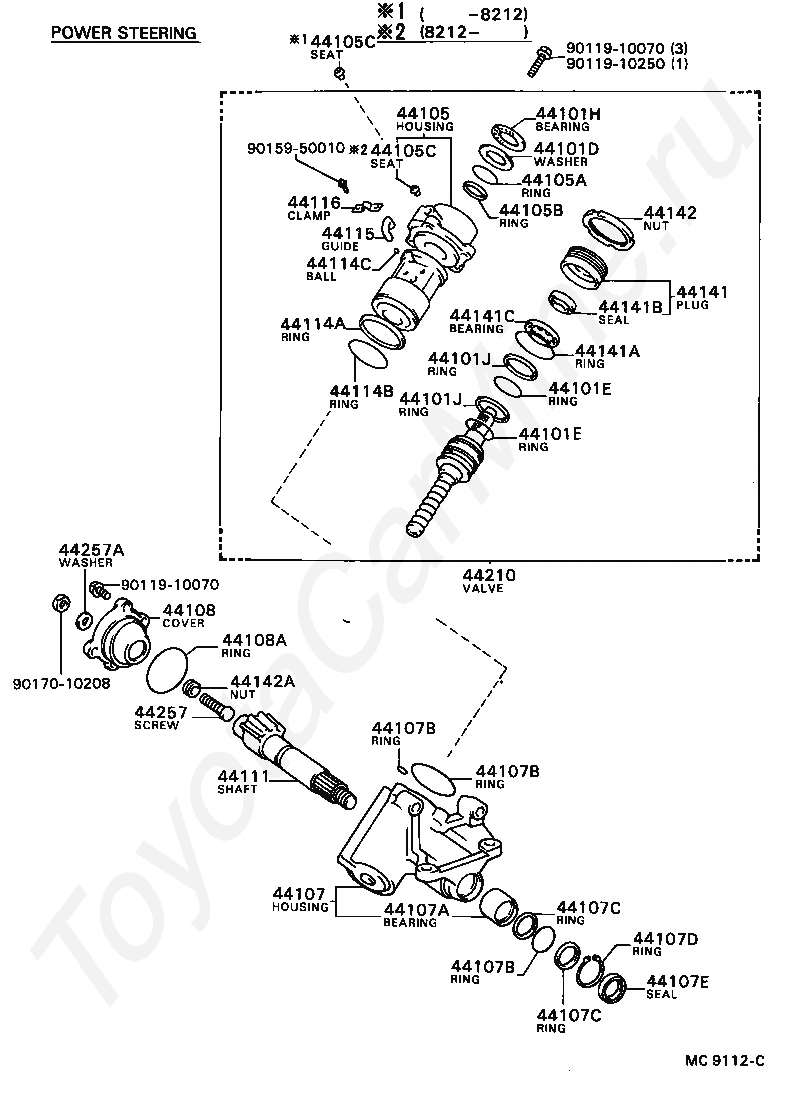

44101D

WASHER, PLATE(FOR STEERING WORM)

44101E

RING, O(FOR STEERING WORM)

44101E

RING, O(FOR STEERING WORM)

44101H

BEARING, THRUST NEEDLE ROLLER(FOR STEERING WORM)

44101J

RING(FOR STEERING WORM)

44101J

RING(FOR STEERING WORM)

44105

HOUSING SUB-ASSY, VALVE

44105A

RING, O(FOR VALVE HOUSING)

44105B

RING(FOR VALVE HOUSING)

44105C

SEAT, UNION(FOR VALVE BODY HOUSING)

44105C

SEAT, UNION(FOR VALVE BODY HOUSING)

44107

HOUSING SUB-ASSY, POWER STEERING GEAR

44107A

BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING)

44107B

RING, O(FOR POWER STEERING GEAR HOUSING)

44107B

RING, O(FOR POWER STEERING GEAR HOUSING)

44107B

RING, O(FOR POWER STEERING GEAR HOUSING)

44107C

RING(FOR POWER STEERING GEAR HOUSING)

44107C

RING(FOR POWER STEERING GEAR HOUSING)

44107D

RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING)

44107E

SEAL, OIL(FOR POWER STEERING GEAR HOUSING)

44108

COVER SUB-ASSY, SIDE

44108A

RING, O(FOR SIDE COVER)

44111

SHAFT, CROSS

44114A

RING(FOR POWER PISTON NUT)

44114B

RING, O(FOR POWER PISTON NUT)

44114C

BALL(FOR POWER PISTON NUT)

44115

GUIDE, BALL

44116

CLAMP, BALL GUIDE

44141

PLUG, ADJUSTER

44141A

RING, O(FOR ADJUSTER PLUG)

44141B

SEAL, OIL(FOR ADJUSTER PLUG)

44141C

BEARING(FOR ADJUSTER PLUG)

44142

NUT, LOCK

44142A

NUT, LOCK, NO.1

44210

VALVE ASSY, POWER STEERING CONTROL

44257

SCREW, CROSS SHAFT ADJUSTING

44257A

WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW)

9011910070

Крепеж

9011910070

Крепеж

9011910250

Крепеж

9015950010

Крепеж

9017010208

Крепеж

Код

Описание

45046A

NUT, CASTLE(FOR TIE ROD END)

45046A

NUT, CASTLE(FOR TIE ROD END)

45460

ROD ASSY, TIE, RH

45460

ROD ASSY, TIE, RH

45466

CLAMP, TIE ROD END

45470

ROD ASSY, TIE, LH

45470

ROD ASSY, TIE, LH

45611

ARM, STEERING KNUCKLE, RH

45611A

BOLT, KNUCKLE STOPPER

45612

ARM, STEERING KNUCKLE, LH

45619

COVER, KNUCKLE STOPPER

9010108265

Крепеж

9017008125

Крепеж

9017010082

Крепеж

9451100800

Крепеж

9453101000

Крепеж

9538103020

Крепеж

9538103020

Крепеж

Код

Описание

45222

COVER, STEERING GEAR DUST

45501

HOUSING SUB-ASSY, STEERING RACK

45501A

SEAL, TYPE T OIL(FOR STEERING RACK HOUSING)

45503

END SUB-ASSY, STEERING RACK

45503

END SUB-ASSY, STEERING RACK

45504A

GUIDE SUB-ASSY, RACK

45509

PINION SUB-ASSY, STEERING

45509A

BEARING(FOR STEERING PINION)

45510

GEAR ASSY, STEERING

45514

BRACKET, STEERING RACK HOUSING, NO.1

45515

BRACKET, STEERING RACK HOUSING, NO.2

45516

GROMMET, STEERING RACK HOUSING, NO.1

45517

GROMMET, STEERING RACK HOUSING, NO.2

45521

RACK, STEERING

45522

BUSH, STEERING RACK

45523A

SPRING(FOR STEERING GEAR RACK GUIDE)

45524

CAP, STEERING RACK GUIDE SPRING

45524A

NUT(FOR STEERING RACK GUIDE SPRING CAP)

45535

BOOT, STEERING RACK, NO.1

45535A

CLAMP(FOR STEERING RACK BOOT)

45535A

CLAMP(FOR STEERING RACK BOOT)

45535B

CLIP(FOR STEERING RACK BOOT)

45535B

CLIP(FOR STEERING RACK BOOT)

45536

BOOT, STEERING RACK, NO.2

45537A

WASHER, CLAW(FOR STEERING RACK END LOCK)

45537A

WASHER, CLAW(FOR STEERING RACK END LOCK)

45543A

PROTECTOR, STEERING RACK BOOT, RH

45544A

PROTECTOR, STEERING RACK BOOT, LH

45545

SCREW, PINION BEARING ADJUSTING

45545A

NUT(FOR PINION BEARING ADJUSTING SCREW)

9011912084

Крепеж

9165140820

Крепеж

9165140820

Крепеж

Код

Описание

04445A

GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

04455

GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

44250

GEAR ASSY, POWER STEERING(FOR RACK & PINION)

45514

BRACKET, STEERING RACK HOUSING, NO.1

45514

BRACKET, STEERING RACK HOUSING, NO.1

45515

BRACKET, STEERING RACK HOUSING, NO.2

45515

BRACKET, STEERING RACK HOUSING, NO.2

45516

GROMMET, STEERING RACK HOUSING, NO.1

45516

GROMMET, STEERING RACK HOUSING, NO.1

45517

GROMMET, STEERING RACK HOUSING, NO.2

45517

GROMMET, STEERING RACK HOUSING, NO.2

45543A

PROTECTOR, STEERING RACK BOOT, RH

45544A

PROTECTOR, STEERING RACK BOOT, LH

9011912027

Крепеж

9011912084

Крепеж

9165140820

Крепеж

9165140820

Крепеж

9411571200

Крепеж

9453101200

Крепеж

9462111200

Крепеж

Код

Описание

44015A

NUT SUB-ASSY, BEARING GUIDE

44015B

RING, O(FOR BEARING GUIDE NUT)

44015C

SEAL, OIL(FOR BEARING GUIDE NUT)

44201

VALVE SUB-ASSY, POWER STEERING CONTROL

44201C

RING(FOR POWER STEERING CONTROL VALVE)

44203

HOUSING SUB-ASSY, POWER STEERING RACK

44204

RACK SUB-ASSY, POWER STEERING

44204A

RING(FOR RACK STEERING PISTON)

44204A

RING(FOR RACK STEERING PISTON)

44210B

SEAT, UNION(FOR POWER STEERING CONTROL VALVE)

44210C

RING, O(FOR POWER STEERING CONTROL VALVE)

44210E

SEAL, OIL(FOR POWER STEERING CONTROL VALVE)

44210F

BEARING(FOR POWER STEERING CONTROL VALVE)

44211

HOUSING, CONTROL VALVE

44222A

COVER, DUST(FOR POWER STEERING GEAR)

44253A

SEAL, OIL(FOR POWER STEERING RACK HOUSING)

44267

GUIDE, RACK END

44275

STOPPER, CYLINDER END

44275B

SEAL, OIL(FOR CYLINDER END STOPPER)

44277

SEAT, RACK GUIDE

44418A

TUBE, STEERING RIGHT TURN PRESSURE

44418B

SEAT, UNION(FOR STEERING TURN PRESSURE TUBE)

44418B

SEAT, UNION(FOR STEERING TURN PRESSURE TUBE)

44419A

TUBE, STEERING LEFT TURN PRESSURE

44503E

END SUB-ASSY, STEERING RACK(FOR POWER STEERING)

44503E

END SUB-ASSY, STEERING RACK(FOR POWER STEERING)

44503F

WASHER, CLAW(FOR POWER STEERING RACK END)

44503F

WASHER, CLAW(FOR POWER STEERING RACK END)

44523G

GUIDE, RACK(FOR POWER STEERING)

44523H

SPRING(FOR POWER STEERING RACK GUIDE)

44524A

CAP, RACK GUIDE SPRING(FOR POWER STEERING)

44524B

NUT(FOR POWER STEERING RACK GUIDE CAP)

44535B

BOOT, STEERING RACK NO.1(FOR POWER STEERING)

44535C

CLAMP(FOR POWER STEERING RACK BOOT)

44535C

CLAMP(FOR POWER STEERING RACK BOOT)

44535D

CLIP(FOR POWER STEERING RACK BOOT)

44535D

CLIP(FOR POWER STEERING RACK BOOT)

44536B

BOOT, STEERING RACK NO.2(FOR POWER STEERING)

9014930004

Крепеж

9014930004

Крепеж

9151160825

Крепеж
