Каталог

Япония

Модель

TOWN/MASTERACE V,WG

VIN

Дата

1984/08

Двигатель

1,8 литра, дизель

Кузов

V(MODEL MARK)

Класс

N(MODEL MARK)

Фрейм

CR26

КПП

механика МКПП, 5 скоростей

Опции

4-дверный вэн STANDARD ROOF 5-местный

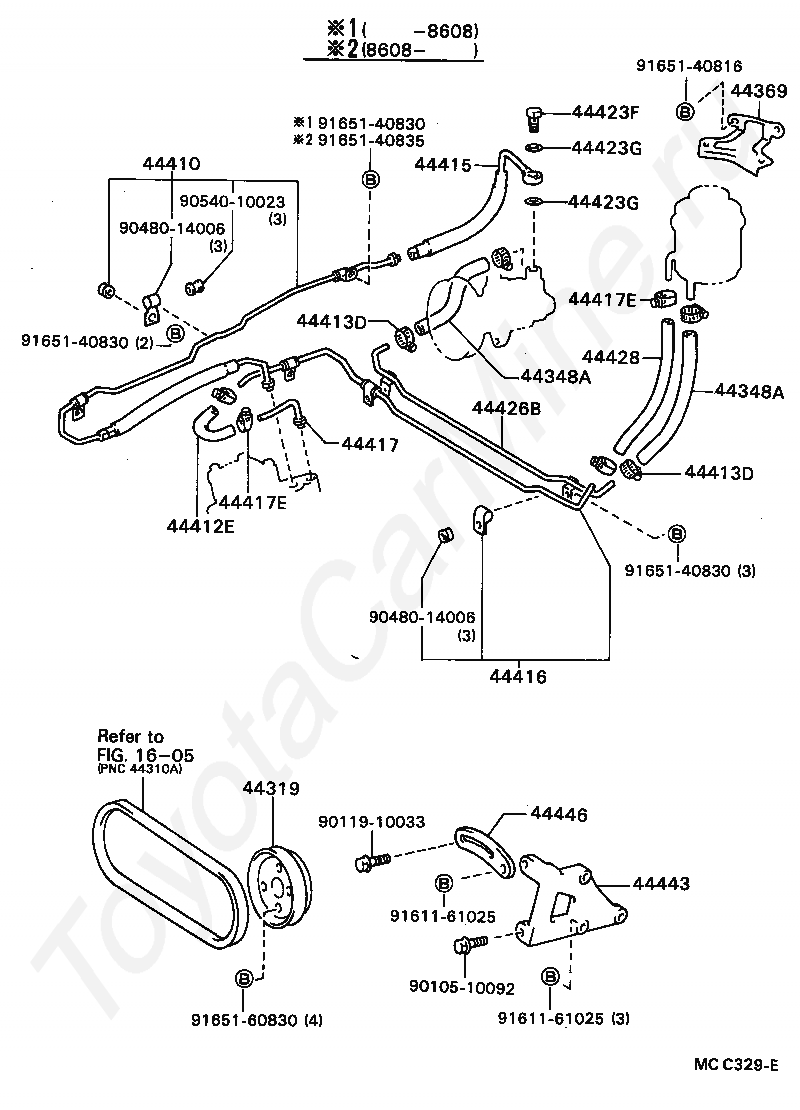

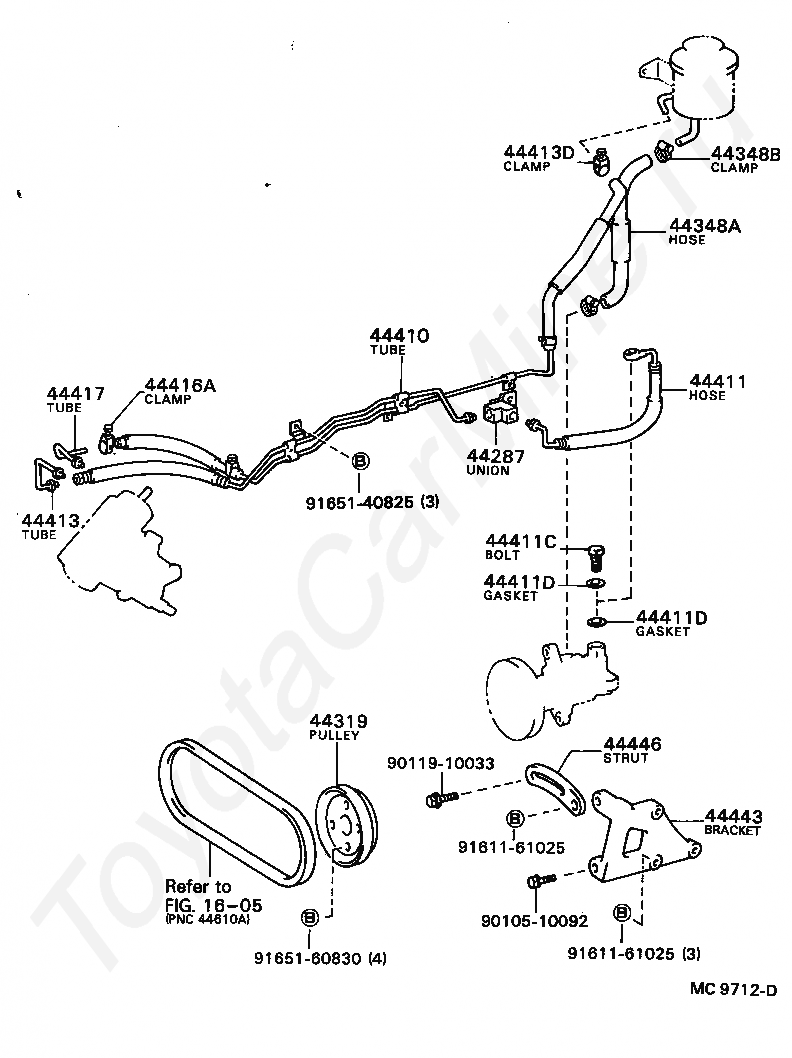

POWER STEERING TUBE TOYOTA TOWN/MASTERACE V,WG

Код

Описание

1605

переход к группе запчастей

44287

UNION, PRESSURE TUBE

44319

PULLEY, VANE PUMP DRIVE

44348A

HOSE, OIL RESERVOIR TO PUMP, NO.1

44348B

CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

44410

TUBE ASSY, PRESSURE FEED

44411

HOSE, PRESSURE FEED

44411C

BOLT, UNION(FOR PRESSURE FEED HOSE)

44411D

GASKET(FOR PRESSURE FEED HOSE)

44411D

GASKET(FOR PRESSURE FEED HOSE)

44413

TUBE, PRESSURE FEED, NO.1

44413D

CLAMP(FOR RESERVOIR TANK INLET HOSE)

44416A

CLAMP(FOR RETURN HOSE)

44417

TUBE, RETURN, NO.2

44443

BRACKET, PUMP

44446

STRUT, ADJUSTING

9010510092

Крепеж

9011910033

Крепеж

9161161025

Крепеж

9161161025

Крепеж

9165140825

Крепеж

9165160830

Крепеж

Код

Описание

1605

переход к группе запчастей

44319

PULLEY, VANE PUMP DRIVE

44348A

HOSE, OIL RESERVOIR TO PUMP, NO.1

44348A

HOSE, OIL RESERVOIR TO PUMP, NO.1

44369

BRACKET, OIL RESERVOIR, NO.1

44410

TUBE ASSY, PRESSURE FEED

44412E

HOSE, RETURN, NO.2

44413D

CLAMP(FOR RESERVOIR TANK INLET HOSE)

44413D

CLAMP(FOR RESERVOIR TANK INLET HOSE)

44415

HOSE, PRESSURE FEED, NO.2

44416

TUBE, RETURN(FOR STEERING GEAR OUTLET)

44417

TUBE, RETURN, NO.2

44417E

CLIP, HOSE(FOR RETURN TUBE TO RESERVOIR HOSE)

44417E

CLIP, HOSE(FOR RETURN TUBE TO RESERVOIR HOSE)

44423F

BOLT, UNION

44423G

GASKET, UNION BOLT

44423G

GASKET, UNION BOLT

44426B

TUBE, OIL RESERVOIR TO PUMP

44428

HOSE, RETURN, NO.2

44443

BRACKET, PUMP

44446

STRUT, ADJUSTING

9010510092

Крепеж

9011910033

Крепеж

9048014006

Крепеж

9048014006

Крепеж

9054010023

Крепеж

9161161025

Крепеж

9161161025

Крепеж

9165140816

Крепеж

9165140830

Крепеж

9165140830

Крепеж

9165140830

Крепеж

9165140835

Крепеж

9165160830

Крепеж
