1605
переход к группе запчастей

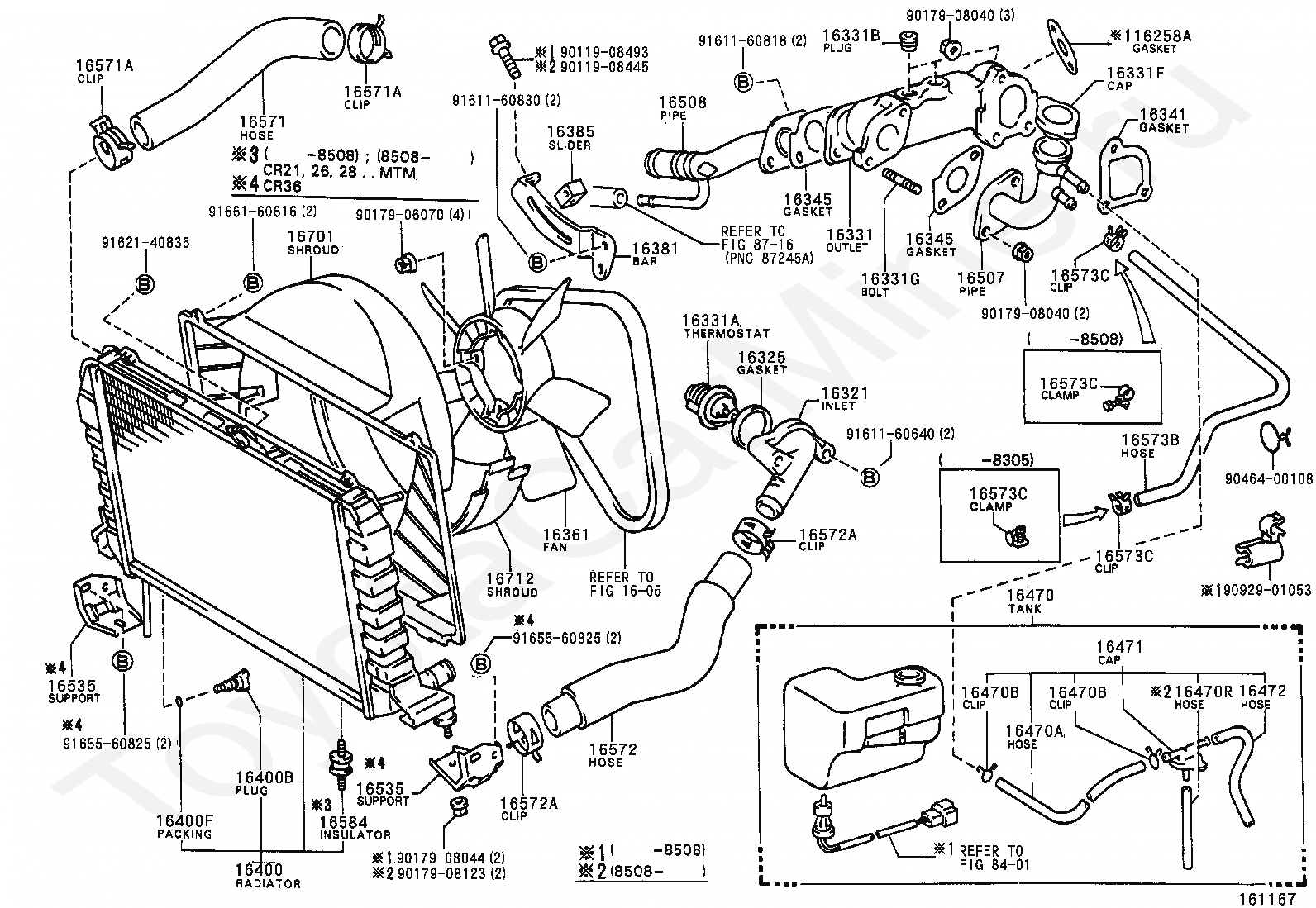

16258A
GASKET(FOR HEATER RETURN)
16325
GASKET, WATER INLET HOUSING, NO.1
16331B
PLUG(FOR WATER OUTLET)
16331F
CAP SUB-ASSY(FOR WATER OUTLET)
16331G
BOLT, STUD(FOR WATER INLET)
16341
GASKET, WATER OUTLET
16345
GASKET, WATER OUTLET PIPE
16345
GASKET, WATER OUTLET PIPE
16381
BAR, FAN BELT ADJUSTING
16385
SLIDER, FAN BELT ADJUSTING
16400B
PLUG, RADIATOR DRAIN COCK
16400F
PACKING(FOR RADIATOR DRAIN COCK)
16470
TANK ASSY, RADIATOR RESERVE
16470A
HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470B
CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470B
CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470R
HOSE, NO.2(FOR RADIATOR RESERVE TANK)
16471
CAP SUB-ASSY, RESERVE TANK
16507
PIPE SUB-ASSY, RADIATOR
16508
PIPE SUB-ASSY, RADIATOR, NO.2
16535
SUPPORT, RADIATOR, LOWER
16535
SUPPORT, RADIATOR, LOWER
16571
HOSE, RADIATOR, INLET
16571A
CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16571A
CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572
HOSE, RADIATOR, OUTLET
16572A
CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16572A
CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16573B
HOSE, RADIATOR, NO.3
16573C
CLAMP OR CLIP, RADIATOR HOSE, NO.3
16573C
CLAMP OR CLIP, RADIATOR HOSE, NO.3
16573C
CLAMP OR CLIP, RADIATOR HOSE, NO.3
16573C
CLAMP OR CLIP, RADIATOR HOSE, NO.3
16584
INSULATOR, RADIATOR MOUNTING
16701
SHROUD SUB-ASSY, FAN
8401
переход к группе запчастей
8716
переход к группе запчастей
