Каталог

Япония

Модель

TOWN/MASTERACE V,WG

VIN

Дата

1981/01

Двигатель

1,8 литра

Кузов

фургон

Класс

SUPER EXTRA SPECIFICATION

Фрейм

TR15

КПП

механика МКПП, 5 скоростей

Опции

SUN ROOF 08S CBU

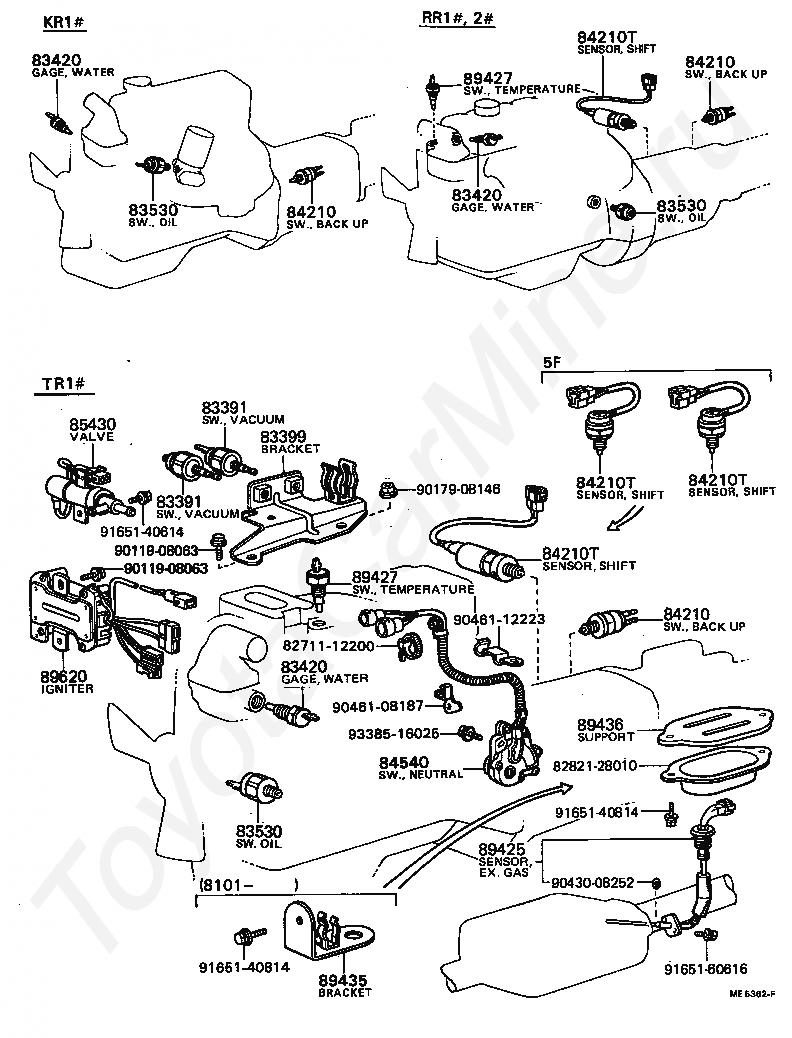

Реле и кнопки TOYOTA TOWN/MASTERACE V,WG







Код

Описание

8271112200

Крепеж

8282128010

Крепеж

83391

SWITCH, VACUUM

83391

SWITCH, VACUUM

83399

BRACKET, VACUUM SWITCH

83420

GAGE ASSY, WATER TEMPERATURE SENDER

83420

GAGE ASSY, WATER TEMPERATURE SENDER

83420

GAGE ASSY, WATER TEMPERATURE SENDER

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

84210

SWITCH ASSY, BACK-UP LAMP

84210

SWITCH ASSY, BACK-UP LAMP

84210

SWITCH ASSY, BACK-UP LAMP

84210T

SENSOR ASSY, SHIFT POINT

84210T

SENSOR ASSY, SHIFT POINT

84210T

SENSOR ASSY, SHIFT POINT

84210T

SENSOR ASSY, SHIFT POINT

84540

SWITCH ASSY, NEUTRAL START

85430

VALVE, OUTER VENT CONTROL

89425

SENSOR, EXHAUST GAS TEMPERATURE

89427

SWITCH, TEMPERATURE DETECT

89427

SWITCH, TEMPERATURE DETECT

89435

BRACKET, CONNECTOR COVER

89436

SUPPORT, CONNECTOR COVER

89620

IGNITER ASSY

9011908063

Крепеж

9011908063

Крепеж

9017908146

Крепеж

9043008252

Крепеж

9046108187

Крепеж

9046112223

Крепеж

9165140614

Крепеж

9165140814

Крепеж

9165140814

Крепеж

9165160616

Крепеж

9338516025

Крепеж

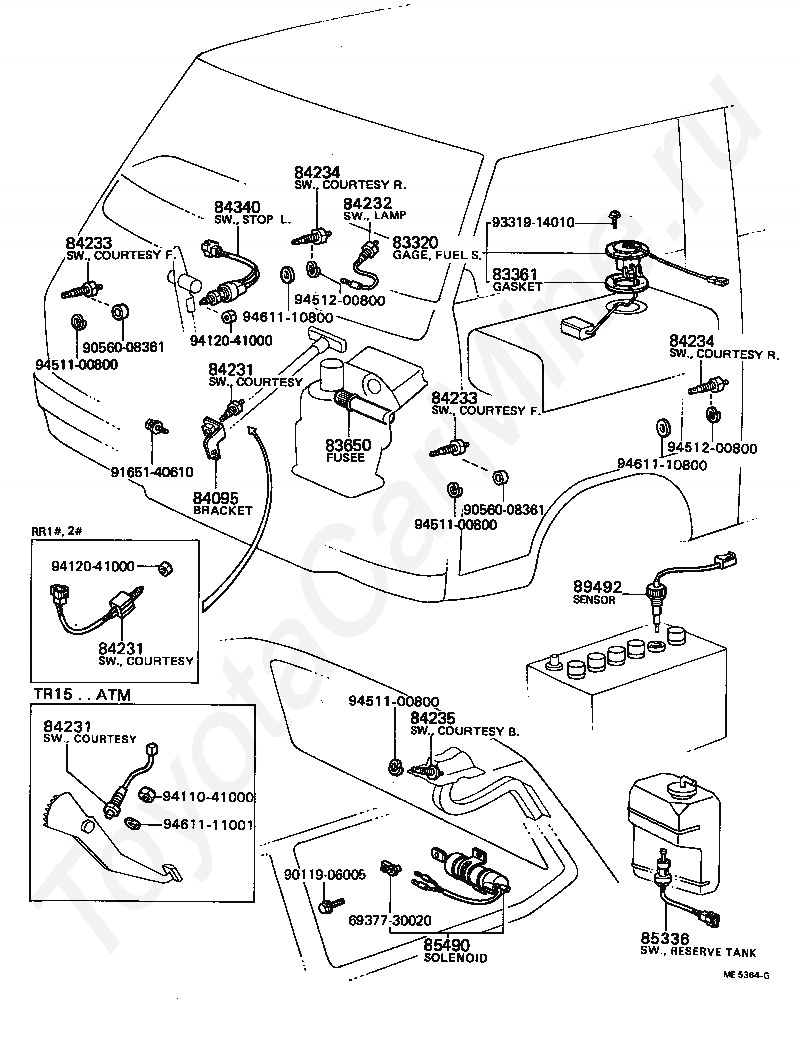

Код

Описание

6937730020

Крепеж

83320

GAGE ASSY, FUEL SENDER

83361

GASKET, FUEL SENDER GAGE

83650

FUSEE

84095

BRACKET SUB-ASSY, HAND BRAKE SIGNAL SWITCH

84231

SWITCH ASSY, COURTESY LAMP (FOR PARKING BRAKE)

84231

SWITCH ASSY, COURTESY LAMP (FOR PARKING BRAKE)

84231

SWITCH ASSY, COURTESY LAMP (FOR PARKING BRAKE)

84232

SWITCH ASSY, COURTESY LAMP (FOR GLOVE BOX)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84235

SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR)

84340

SWITCH ASSY, STOP LAMP

85336

SWITCH ASSY, RESERVE TANK LEVEL WARNING

85490

SOLENOID ASSY, DOOR CONTROL BACK

89492

SENSOR, ELECTROLYTE LEVEL

9011906005

Крепеж

9056008361

Крепеж

9056008361

Крепеж

9165140610

Крепеж

9331914010

Крепеж

9411041000

Крепеж

9412041000

Крепеж

9412041000

Крепеж

9451100800

Крепеж

9451100800

Крепеж

9451100800

Крепеж

9451200800

Крепеж

9451200800

Крепеж

9461110800

Крепеж

9461110800

Крепеж

9461111001

Крепеж

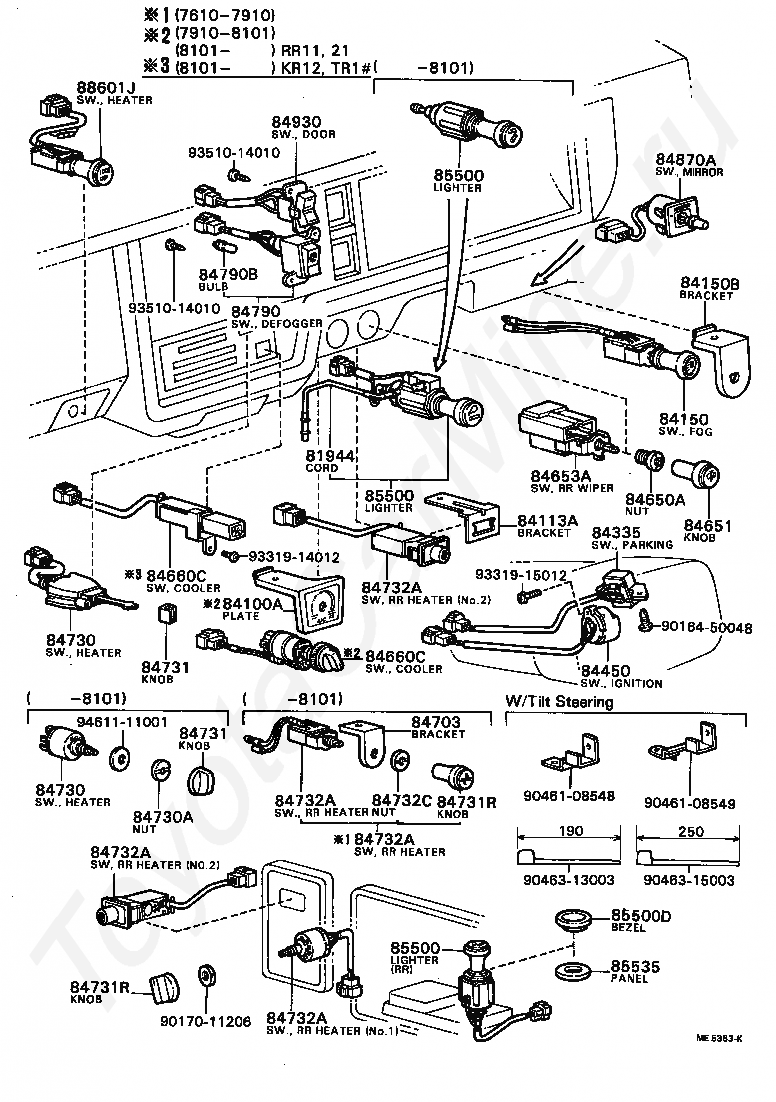

Код

Описание

81944

CORD, OPTICAL FIBER

84100A

PLATE, SWITCH CAUTION

84113A

BRACKET, SWITCH, NO.1

84150

SWITCH ASSY, FOG LAMP

84150B

BRACKET, FOG LAMP SWITCH

84335

SWITCH ASSY, PARKING LAMP

84450

SWITCH ASSY, IGNITION OR STARTER

84650A

BOLT OR NUT, WINDSHIELD WIPER SWITCH SET

84651

KNOB, WINDSHIELD WIPER SWITCH

84653A

SWITCH, REAR WIPER

84660C

SWITCH, COOLER

84660C

SWITCH, COOLER

84703

BRACKET SUB-ASSY, SWITCH SET

84730

SWITCH ASSY, HEATER BLOWER

84730

SWITCH ASSY, HEATER BLOWER

84730A

NUT, HEATER BLOWER SWITCH

84731

KNOB, HEATER BLOWER SWITCH

84731

KNOB, HEATER BLOWER SWITCH

84731R

KNOB, REAR HEATER BLOWER SWITCH

84731R

KNOB, REAR HEATER BLOWER SWITCH

84732A

SWITCH, REAR HEATER BLOWER

84732A

SWITCH, REAR HEATER BLOWER

84732A

SWITCH, REAR HEATER BLOWER

84732A

SWITCH, REAR HEATER BLOWER

84732A

SWITCH, REAR HEATER BLOWER

84732C

NUT, REAR HEATER BLOWER SWITCH

84790

SWITCH ASSY, REAR WINDOW DEFOGGER

84790B

BULB(FOR REAR WINDOW DEFOGGER SWITCH)

84870A

SWITCH ASSY, OUTER MIRROR

84930

SWITCH ASSY, DOOR CONTROL

85500

LIGHTER ASSY, CIGARETTE

85500

LIGHTER ASSY, CIGARETTE

85500

LIGHTER ASSY, CIGARETTE

85500D

BEZEL, CIGARETTE LIGHTER HOLE

85535

PANEL, CIGARETTE LIGHTER HEAT DIFFUSE

88601J

SWITCH ASSY, HEATER CONTROL(FOR HEATER IDLE-UP)

9016450048

Крепеж

9017011206

Крепеж

9046108548

Крепеж

9046108549

Крепеж

9046313003

Крепеж

9046315003

Крепеж

9331914012

Крепеж

9331915012

Крепеж

9351014010

Крепеж

9351014010

Крепеж

9461111001

Крепеж

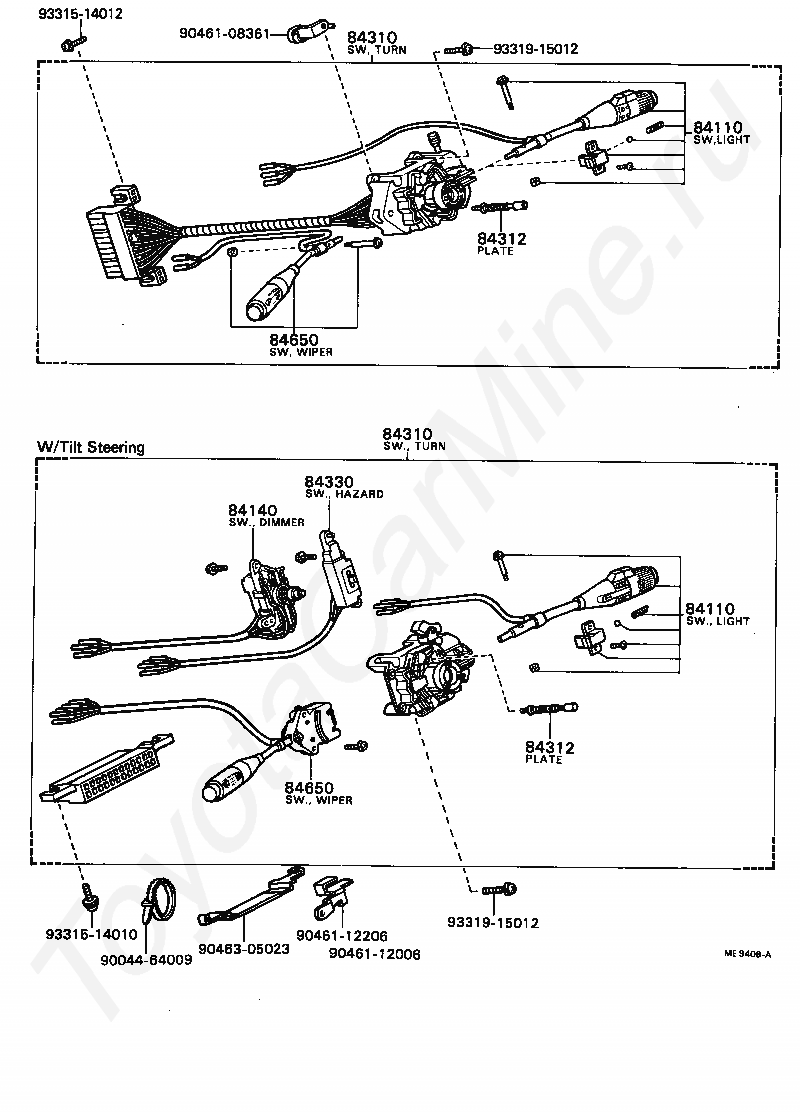

Код

Описание

84110

SWITCH ASSY, LIGHT CONTROL, NO.1

84110

SWITCH ASSY, LIGHT CONTROL, NO.1

84140

SWITCH ASSY, HEADLAMP DIMMER

84310

SWITCH ASSY, TURN SIGNAL

84310

SWITCH ASSY, TURN SIGNAL

84312

PLATE, HORN CONTACT

84312

PLATE, HORN CONTACT

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84650

SWITCH ASSY, WINDSHIELD WIPER

84650

SWITCH ASSY, WINDSHIELD WIPER

9004464009

Крепеж

9046108361

Крепеж

9046112006

Крепеж

9046112206

Крепеж

9046305023

Крепеж

9331514010

Крепеж

9331514012

Крепеж

9331915012

Крепеж

9331915012

Крепеж

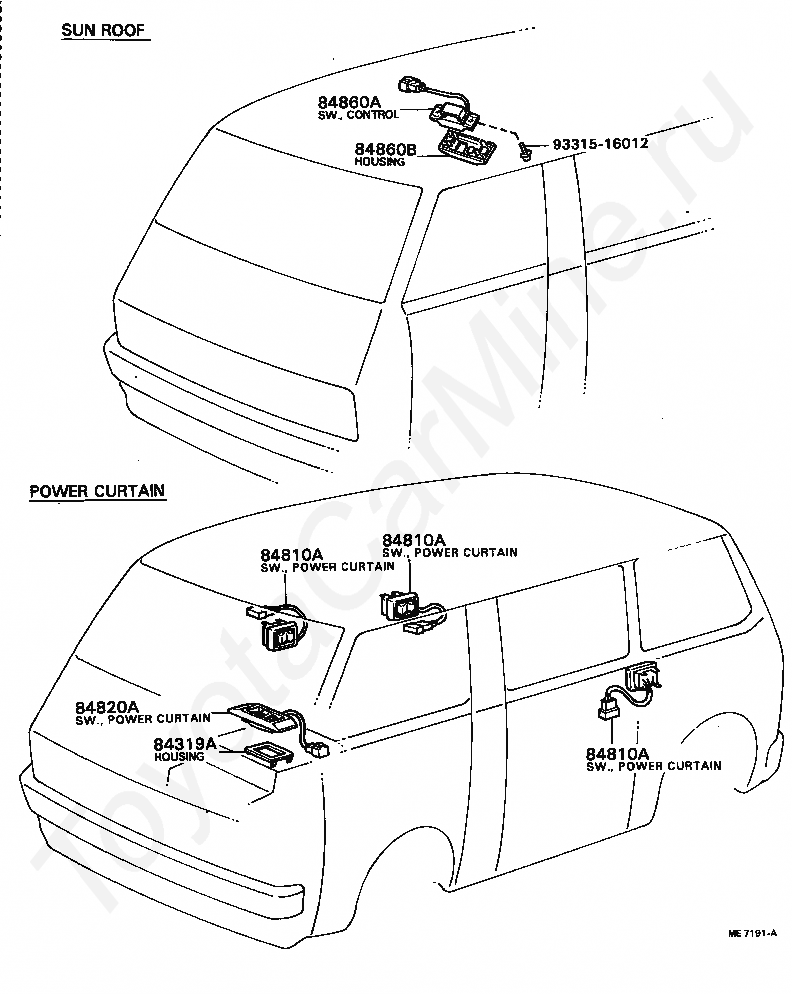

Код

Описание

84319A

HOUSING, POWER CURTAIN SWITCH

84810A

SWITCH ASSY, POWER CURTAIN

84810A

SWITCH ASSY, POWER CURTAIN

84810A

SWITCH ASSY, POWER CURTAIN

84820A

MASTER SWITCH ASSY, POWER CURTAIN

84860A

SWITCH ASSY, SLIDING ROOF

84860B

COVER, SLIDING ROOF SWITCH

9331516012

Крепеж

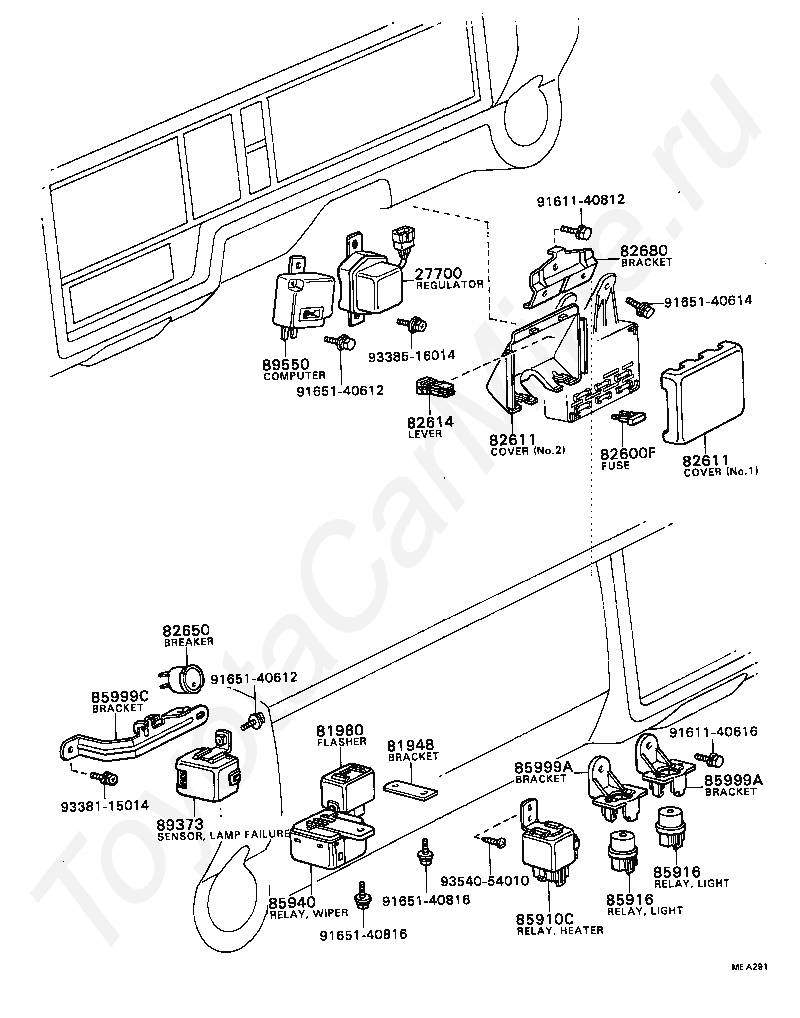

Код

Описание

27700

REGULATOR ASSY, GENERATOR

81948

BRACKET, FLASHER

81980

FLASHER ASSY, TURN SIGNAL

82600F

FUSE, FUSE BLOCK

82611

COVER, FUSE BLOCK

82611

COVER, FUSE BLOCK

82614

LEVER, FUSE

82650

BREAKER ASSY, WIRING CIRCUIT, NO.1

82680

BRACKET ASSY, FUSE BLOCK

85910C

RELAY ASSY (FOR HEATER BLOWER MOTOR)

85916

RELAY, LIGHT CONTROL

85916

RELAY, LIGHT CONTROL

85940

RELAY ASSY, WINDSHIELD WIPER

85999A

BRACKET, RELAY, NO.2

85999A

BRACKET, RELAY, NO.2

85999C

BRACKET, RELAY, NO.3

89373

SENSOR, LAMP FAILURE INDICATOR

89550

COMPUTER ASSY, EMISSION CONTROL

9161140616

Крепеж

9161140812

Крепеж

9165140612

Крепеж

9165140612

Крепеж

9165140614

Крепеж

9165140816

Крепеж

9165140816

Крепеж

9338115014

Крепеж

9338516014

Крепеж

9354054010

Крепеж
