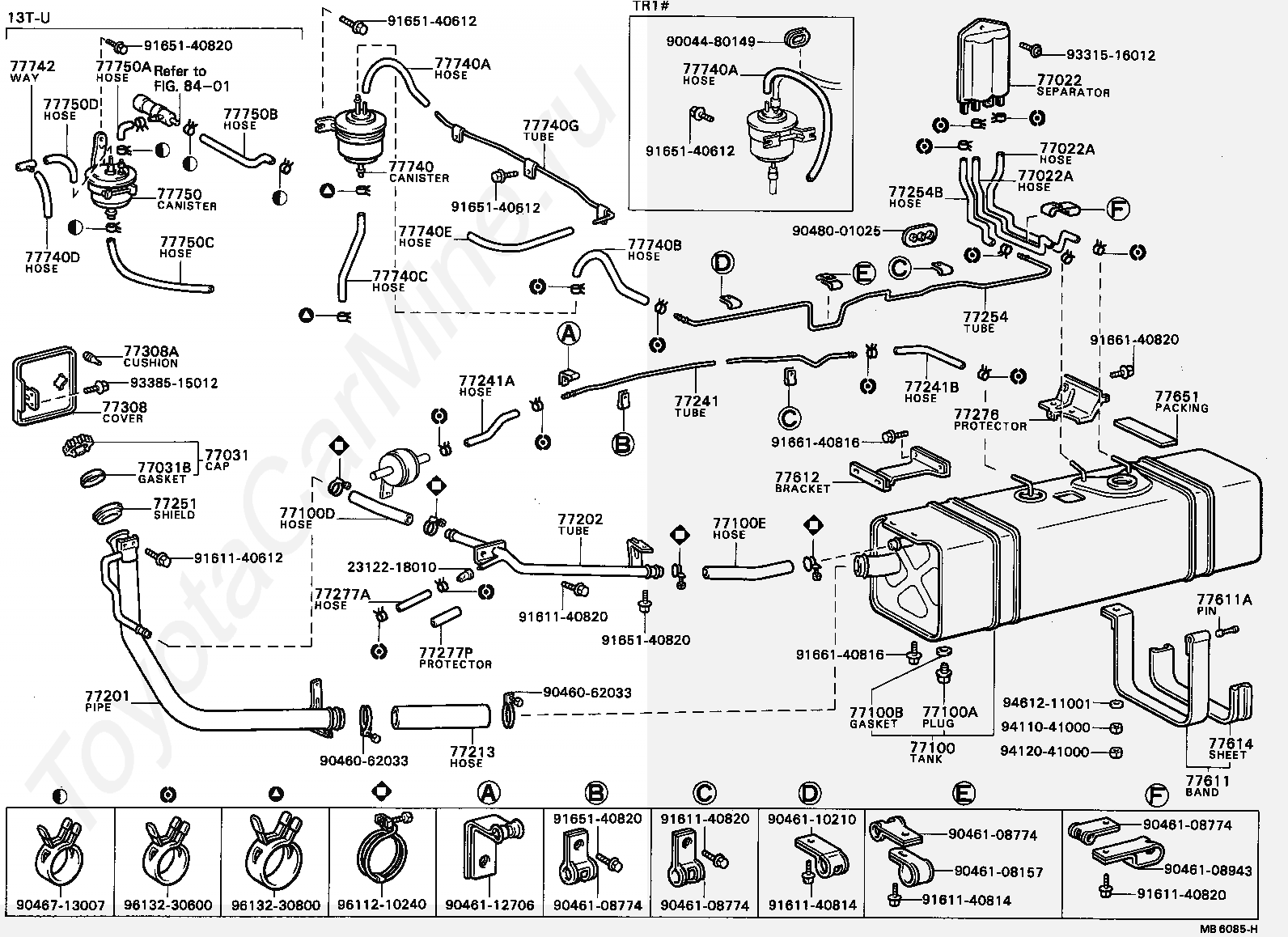

77022
SEPARATOR SUB-ASSY, FUEL EVAPORATIVE
77022A
HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
77022A
HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
77031
CAP ASSY, FUEL TANK
77031B
GASKET (FOR FUEL TANK CAP)
77100A
PLUG(FOR FUEL TANK)
77100B
GASKET(FOR FUEL TANK)
77100D
HOSE, FUEL, NO.1(FOR FUEL TANK)
77100E
HOSE, FUEL, NO.2(FOR FUEL TANK)
77201
PIPE SUB-ASSY, FUEL TANK INLET
77202
TUBE SUB-ASSY, BREATHER
77213
HOSE, FUEL TANK SUB INLET
77241
TUBE, FUEL MAIN, NO.1
77241A
HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
77241B
HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
77251
SHIELD, FUEL TANK, INLET, NO.1
77254
TUBE, FUEL EMISSION, NO.1
77254B
HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)
77276
PROTECTOR, FUEL HOSE
77277A
HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
77277P
PROTECTOR(FOR FUEL RETURN HOSE)
77308
COVER SUB-ASSY, FUEL INLET BOX
77308A
CUSHION(FOR FUEL INLET BOX COVER)
77611A
PIN (FOR FUEL TANK BAND)
77612
BRACKET SUB-ASSY, FUEL TANK
77614
SEAT, FUEL TANK BAND
77651
PACKING, FUEL TANK BRACKET
77740
CANISTER ASSY, CHARCOAL
77740A
HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
77740A
HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
77740B
HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER)
77740C
HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
77740D
HOSE, FUEL, NO.4(FOR CHARCOAL CANISTER)
77740E
HOSE, FUEL, NO.5(FOR CHARCOAL CANISTER)
77740G
TUBE, FUEL, NO.2(FOR CHARCOAL CANISTER)
77742
WAY, 3(FOR CANISTER)
77750
CANISTER ASSY, CHARCOAL
77750A
HOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER)
77750B
HOSE, FUEL, NO.2 (FOR CHARCOAL CANISTER)
77750C
HOSE, FUEL, NO.3 (FOR CHARCOAL CANISTER)
77750D
HOSE, FUEL, NO.4 (FOR CHARCOAL CANISTER)
8401
