Ходовые запчасти

Каталог

Европа

Модель

TERCEL

VIN

Дата

1979/08

Двигатель

1,3 литра

Кузов

2 двери, седан

Класс

DELUX SPECIFICATION

Фрейм

AL11

КПП

автомат АКПП, 3 ступени

Опции

левый руль GENERAL COUNTRIES

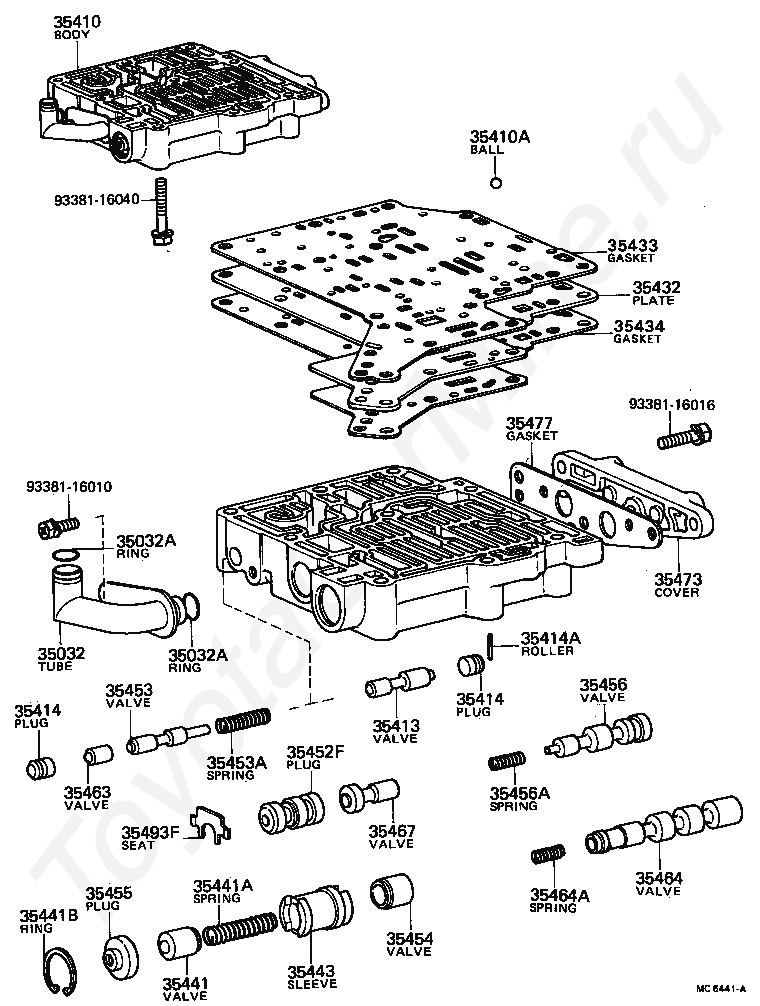

VALVE BODY & OIL STRAINER (ATM) TOYOTA TERCEL

Код

Описание

35032

TUBE SUB-ASSY, OIL PUMP SUCTION, NO.2

35032A

RING, O (FOR OIL PUMP SUCTION NO.2 TUBE)

35032A

RING, O (FOR OIL PUMP SUCTION NO.2 TUBE)

35410

BODY ASSY, TRANSMISSION VALVE

35410A

BALL (FOR REVERSE SHIFT RESTRICT)

35413

VALVE, CUT BACK

35414

PLUG, CUT BACK

35414

PLUG, CUT BACK

35414A

ROLLER (FOR CUT BACK PLUG)

35432

PLATE, VALVE BODY, NO.1

35433

GASKET, VALVE BODY, NO.1

35434

GASKET, VALVE BODY, NO.2

35441

VALVE, LOW COAST SHIFT CONTROL

35441A

SPRING, COMPRESSION (FOR LOW COAST SHIFT CONTROL VALVE)

35441B

RING, SNAP (FOR LOW COAST SHIFT CONTROL VALVE)

35443

SLEEVE, LOW COAST SHIFT CONTROL VALVE

35452F

PLUG, 2-3 SHIFT VALVE

35453

VALVE, DETENT REGULATOR

35453A

SPRING, COMPRESSION (FOR DETENT REGULATOR VALVE)

35454

VALVE, LOW COAST SHIFT

35455

PLUG, 1-2 SHIFT VALVE LOW

35456

VALVE, 2-3 SHIFT

35456A

SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)

35463

VALVE, DETENT PRESSURE CUT

35464

VALVE, 1-2 SHIFT

35464A

SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE)

35467

VALVE, INTERMEDIATE SHIFT

35473

COVER, TRANSMISSION VALVE BODY

35477

GASKET, VALVE BODY COVER

35493F

SEAT, SHIFT VALVE PLUG

9338116010

Крепеж

9338116016

Крепеж

9338116040

Крепеж

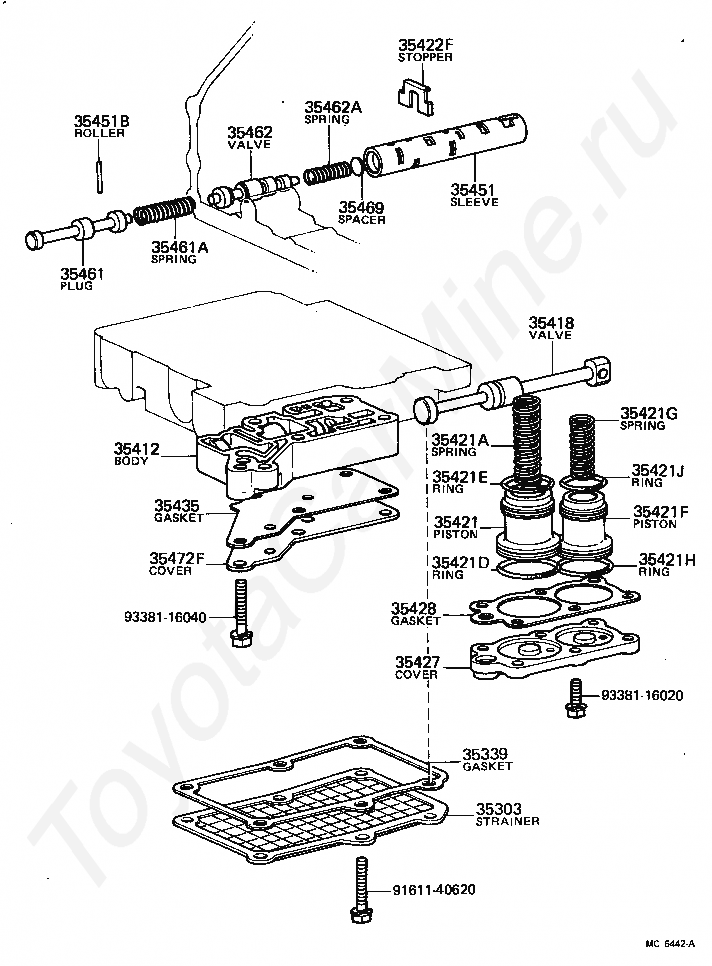

Код

Описание

35303

STRAINER SUB-ASSY, OIL

35339

GASKET, OIL STRAINER

35412

BODY, FRONT UPPER VALVE

35418

VALVE, MANUAL

35421

PISTON, ACCUMULATOR, NO.1

35421A

SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1)

35421D

RING (FOR ACCUMULATOR PISTON NO.1)

35421E

RING (FOR ACCUMULATOR PISTON NO.1)

35421F

PISTON, ACCUMULATOR, NO.2

35421G

SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2)

35421H

RING (FOR ACCUMULATOR PISTON NO.2)

35421J

RING (FOR ACCUMULATOR PISTON NO.2)

35422F

STOPPER, VALVE VIBRATING

35427

COVER, ACCUMULATOR

35428

GASKET, ACCUMULATOR COVER

35435

GASKET, VALVE BODY PLATE, NO.3

35451

SLEEVE, THROTTLE VALVE

35451B

ROLLER (FOR THROTTLE VALVE SLEEVE SETTING)

35461

PLUG, DOWN SHIFT

35461A

SPRING, COMPRESSION (FOR DOWN SHIFT PLUG)

35462

VALVE, THROTTLE

35462A

SPRING, COMPRESSION (FOR THROTTLE VALVE)

35469

SPACER (FOR VALVE BODY DOWN SHIFT PLUG)

35472F

COVER, FRONT VALVE BODY

9161140620

Крепеж

9338116020

Крепеж

9338116040

Крепеж

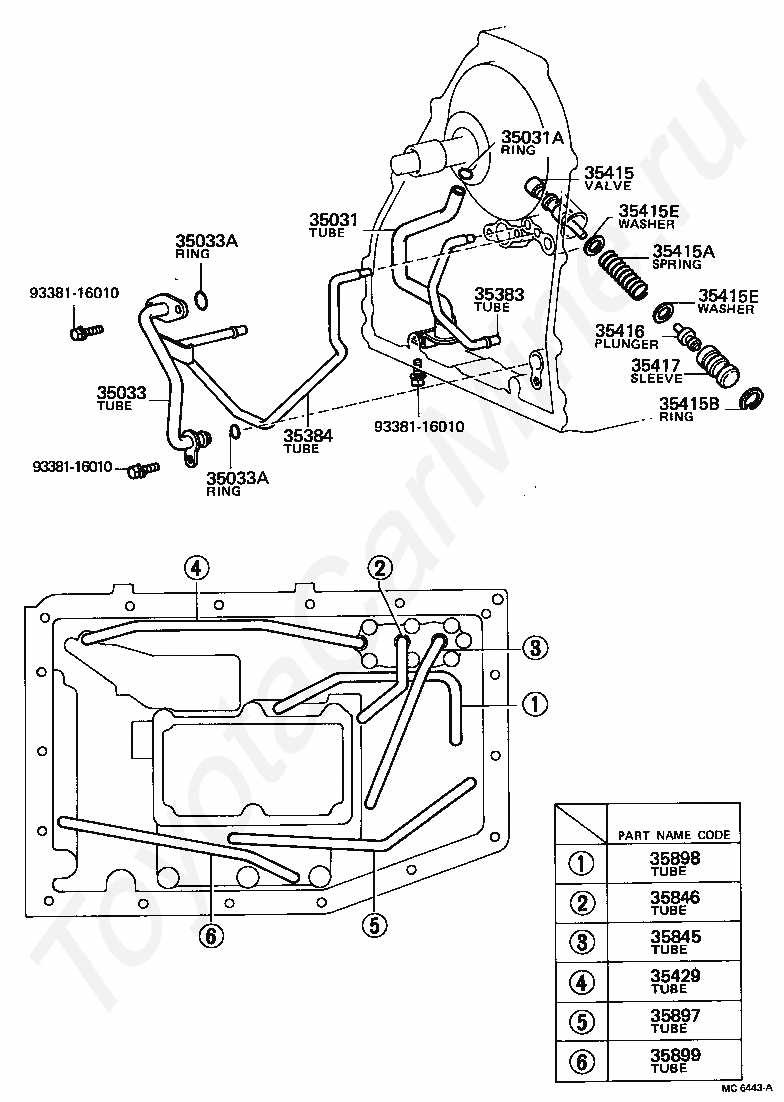

Код

Описание

35031

TUBE SUB-ASSY, OIL PUMP SUCTION, NO.1

35031A

RING, O (FOR OIL PUMP SUCTION NO.1 TUBE)

35033

TUBE SUB-ASSY, OIL PUMP DELIVERY

35033A

RING, O (FOR OIL PUMP DELIVERY)

35033A

RING, O (FOR OIL PUMP DELIVERY)

35383

TUBE, REVERSE LINE PRESSURE

35384

TUBE, THROTTLE PRESSURE

35415

VALVE, PRESSURE REGULATOR

35415A

SPRING, COMPRESSION (FOR PRESSURE REGULATOR VALVE)

35415B

RING, HOLE SNAP (FOR PRESSURE REGULATOR VALVE SET)

35415E

WASHER, PLATE (FOR PRESSURE REGULATOR VALVE)

35415E

WASHER, PLATE (FOR PRESSURE REGULATOR VALVE)

35416

PLUNGER, PRIMARY REGULATOR VALVE, NO.1

35417

SLEEVE, PRESSURE REGULATOR VALVE

35429

TUBE, LINE PRESSURE

35845

TUBE, RR CLUTCH ACCUMULATOR

35846

TUBE, BRAKE ACCUMULATOR

35897

TUBE, 1ST & REVERSE BRAKE

35898

TUBE, 1ST & REVERSE BRAKE, NO.2

35899

TUBE, GOVERNOR PRESSURE

9338116010

Крепеж

9338116010

Крепеж

9338116010

Крепеж
