Европа

Модель

TERCEL

VIN

Дата

1979/08

Двигатель

1,3 литра

Кузов

2 двери, седан

Класс

DELUX SPECIFICATION

Фрейм

AL11

КПП

автомат АКПП, 3 ступени

Опции

левый руль GENERAL COUNTRIES

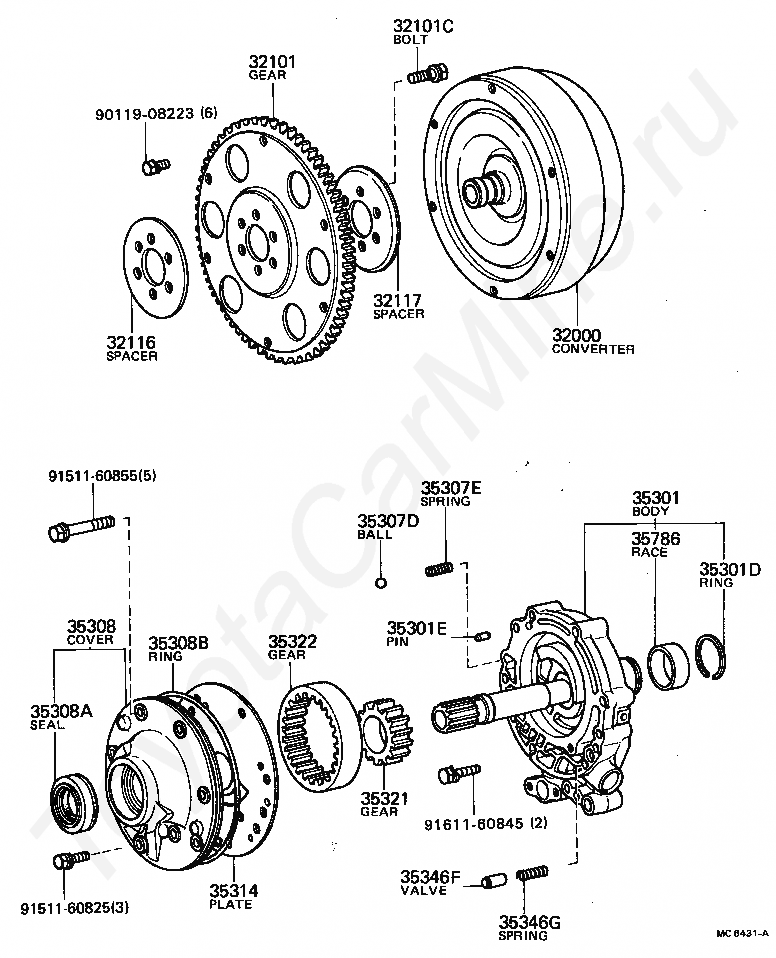

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM) TOYOTA TERCEL

Код

Описание

32000

CONVERTER ASSY, TORQUE

32101

GEAR SUB-ASSY, DRIVE PLATE & RING

32101C

BOLT, HEXAGON(FOR DRIVE PLATE SETTING)

32116

SPACER, DRIVE PLATE, FRONT

32117

SPACER, DRIVE PLATE, REAR

35301

BODY SUB-ASSY, FRONT OIL PUMP

35301D

RING, SHAFT SNAP (FOR FRONT OIL PUMP)

35301E

PIN, STRAIGHT (FOR FRONT OIL PUMP)

35307D

BALL, REVERSE SHIFT RESTRICT

35307E

SPRING, COMPRESSION (FOR REVERSE SHIFT RESTRICT)

35308

COVER SUB-ASSY, FRONT OIL PUMP

35308A

SEAL, OIL (FOR FRONT OIL PUMP COVER)

35308B

RING, TRANSMISSION CASE SEAL

35314

PLATE, FRONT OIL PUMP

35321

GEAR, FRONT OIL PUMP DRIVE

35322

GEAR, FRONT OIL PUMP DRIVEN

35346F

VALVE, PRIMING(FOR FRONT OIL PUMP)

35346G

SPRING, COMPRESSION(FOR PRIMING VALVE)

35786

RACE, DRIVE SPROCKET

9011908223

Крепеж

9151160825

Крепеж

9151160855

Крепеж

9161160845

Крепеж

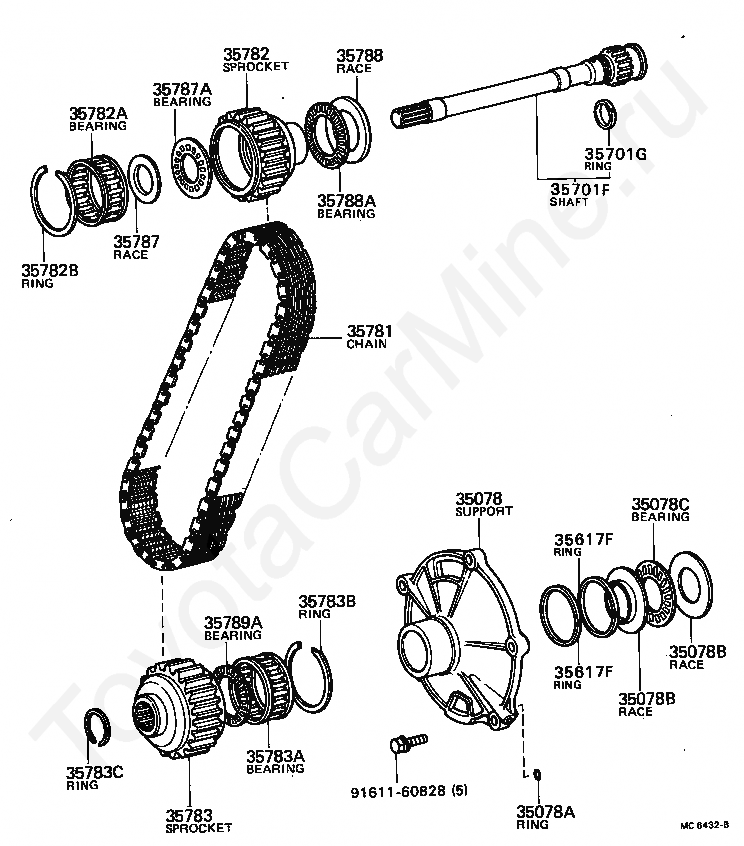

Код

Описание

35078

SUPPORT SUB-ASSY, FRONT

35078A

RING, O (FOR FRONT SUPPORT)

35078B

RACE, THRUST BEARING (FOR FRONT SUPPORT REAR)

35078B

RACE, THRUST BEARING (FOR FRONT SUPPORT REAR)

35078C

BEARING, THRUST NEEDLE ROLLER (FOR FRONT SUPPORT REAR)

35617F

RING, CLUTCH DRUM OIL SEAL

35617F

RING, CLUTCH DRUM OIL SEAL

35701F

SHAFT SUB-ASSY, INPUT

35701G

RING, INPUT SHAFT OIL SEAL

35781

CHAIN, PRIMARY DRIVE

35782

SPROCKET, DRIVE

35782A

BEARING, NEEDLE ROLLER(FOR DRIVE SPROCKET)

35782B

RING, HOLE SNAP(FOR DRIVE SPROCKET)

35783

SPROCKET, DRIVEN

35783A

BEARING, NEEDLE ROLLER(FOR DRIVEN SPROCKET)

35783B

RING, HOLE SNAP(FOR DRIVEN SPROCKET)

35783C

RING, SHAFT SNAP(FOR DRIVEN SPROCKET SET)

35787

RACE, THRUST BEARING (FOR DRIVE SPROCKET FRONT)

35787A

BEARING, THRUST NEEDLE ROLLER (FOR DRIVE SPROCKET FRONT)

35788

RACE, THRUST BEARING (FOR DRIVE SPROCKET REAR)

35788A

BEARING, THRUST NEEDLE ROLLER (FOR DRIVE SPROCKET REAR)

35789A

BEARING, THRUST NEEDLE ROLLER (FOR DRIVEN SPROCKET)

9161160828

Крепеж

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM) TOYOTA TERCEL
