Ходовые запчасти

Каталог

Европа

Модель

TERCEL

VIN

Дата

1990/09

Двигатель

1,5 литра, 12 клапанов, EFI

Класс

STANDARD TYPE

Фрейм

EL42

КПП

механика МКПП, 4 ступени

Опции

2 двери, седан США

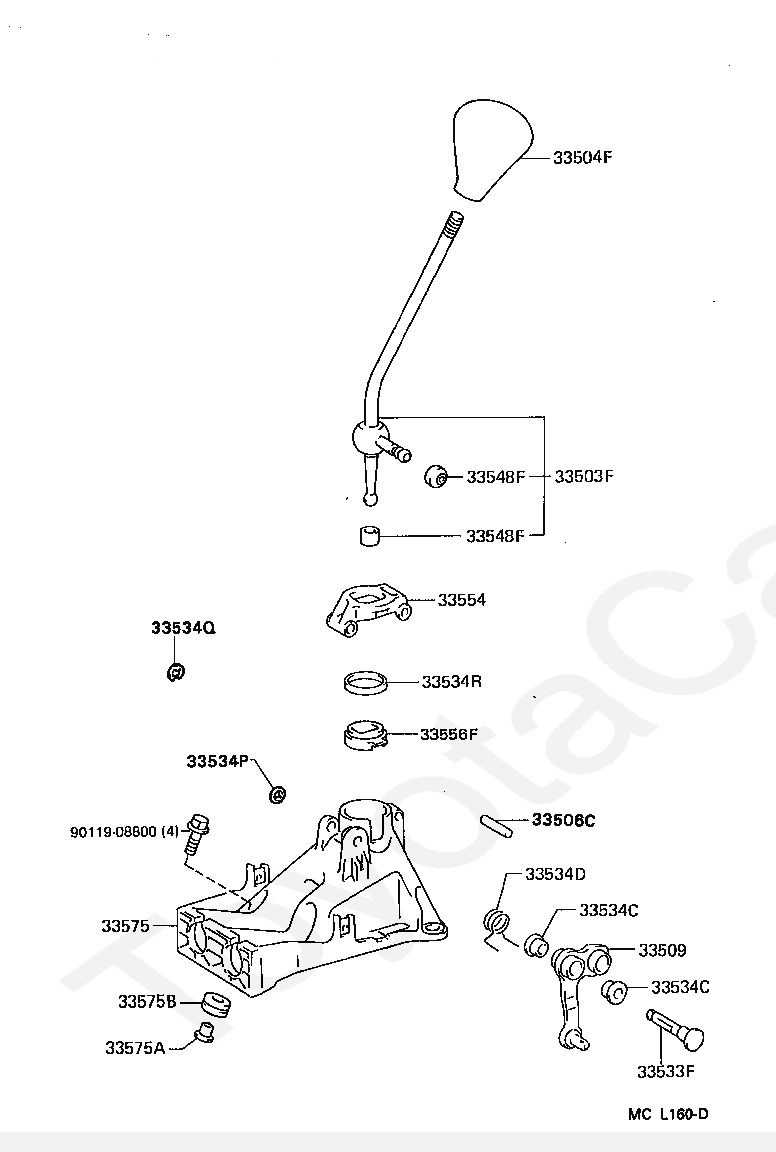

SHIFT LEVER & RETAINER TOYOTA TERCEL

Код

Описание

33503F

LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

33504F

KNOB SUB-ASSY, SHIFT LEVER

33506C

PIN, SHIFT LEVER RETAINER RING

33509

CRANK SUB-ASSY, SELECTING BELL, NO.1

33533F

SHAFT, BELLCRANK (FOR FLOOR SHIFT)

33534C

BUSH (FOR SELECTING BELLCRANK NO.1)

33534C

BUSH (FOR SELECTING BELLCRANK NO.1)

33534D

SPRING, TORSION (FOR SELECTING BELLCRANK NO.1)

33534P

WASHER, PLATE (FOR SELECTING BELLCRANK NO.1)

33534Q

RING, E (FOR SELECTING BELLCRANK NO.1)

33534R

CUSHION (FOR SELECTING BELLCRANK NO.1)

33548F

BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

33548F

BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

33554

CAP, SHIFT LEVER

33556F

SEAT, TRANSMISSION SHIFT LEVER BALL

33575

RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

33575A

BUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER)

33575B

BUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER)

9011908800

Крепеж

Код

Описание

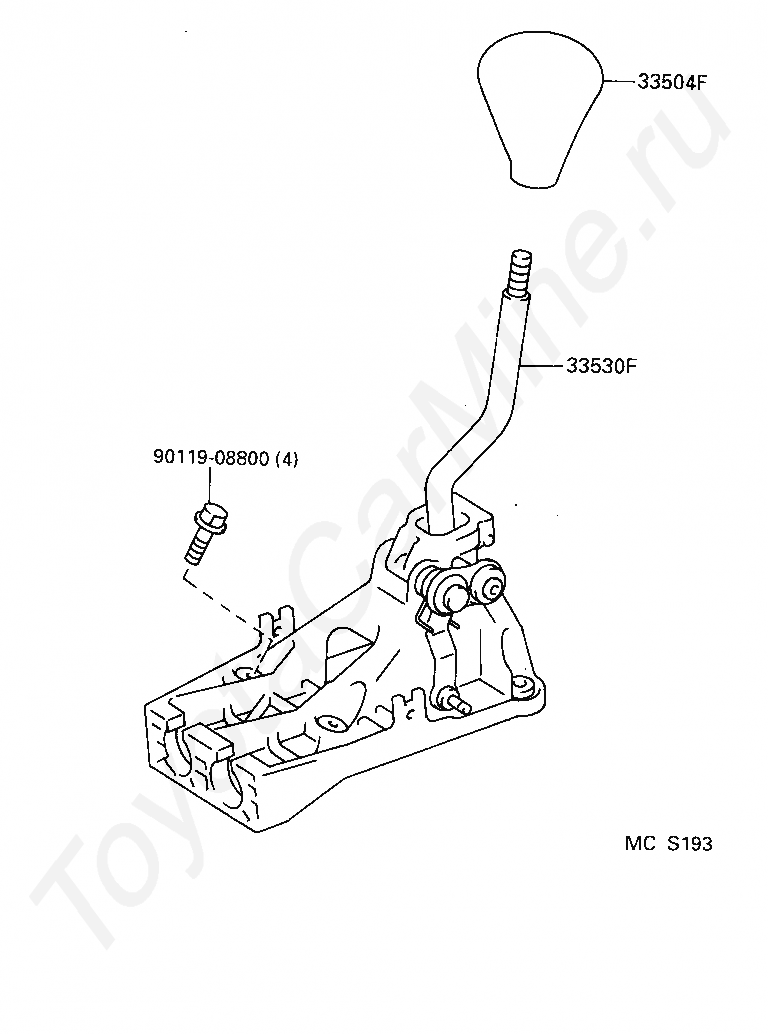

33504F

KNOB SUB-ASSY, SHIFT LEVER

33530F

LEVER ASSY, SHIFT (FOR FLOOR SHIFT)

9011908800

Крепеж

Код

Описание

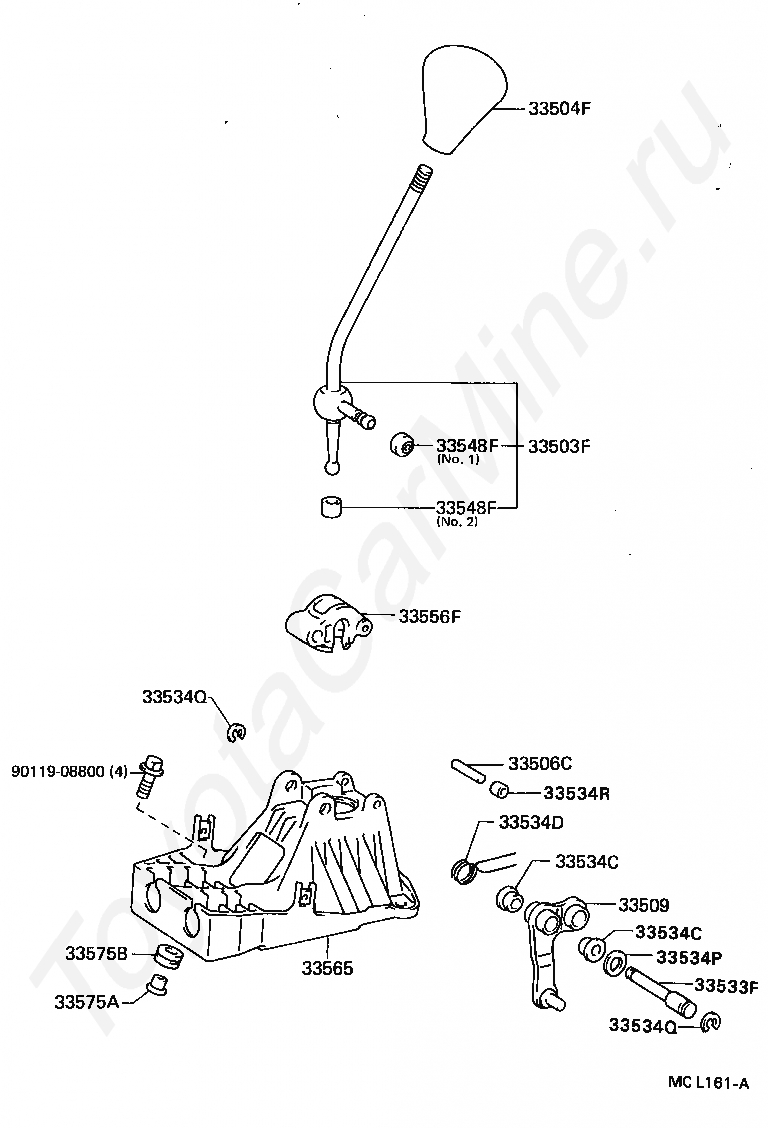

33503F

LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

33504F

KNOB SUB-ASSY, SHIFT LEVER

33506C

PIN, SHIFT LEVER RETAINER RING

33509

CRANK SUB-ASSY, SELECTING BELL, NO.1

33533F

SHAFT, BELLCRANK (FOR FLOOR SHIFT)

33534C

BUSH (FOR SELECTING BELLCRANK NO.1)

33534C

BUSH (FOR SELECTING BELLCRANK NO.1)

33534D

SPRING, TORSION (FOR SELECTING BELLCRANK NO.1)

33534P

WASHER, PLATE (FOR SELECTING BELLCRANK NO.1)

33534Q

RING, E (FOR SELECTING BELLCRANK NO.1)

33534Q

RING, E (FOR SELECTING BELLCRANK NO.1)

33534R

CUSHION (FOR SELECTING BELLCRANK NO.1)

33548F

BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

33548F

BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

33556F

SEAT, TRANSMISSION SHIFT LEVER BALL

33565

PLATE, CONTROL SHIFT LEVER RETAINER

33575A

BUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER)

33575B

BUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER)

9011908800

Крепеж

Код

Описание

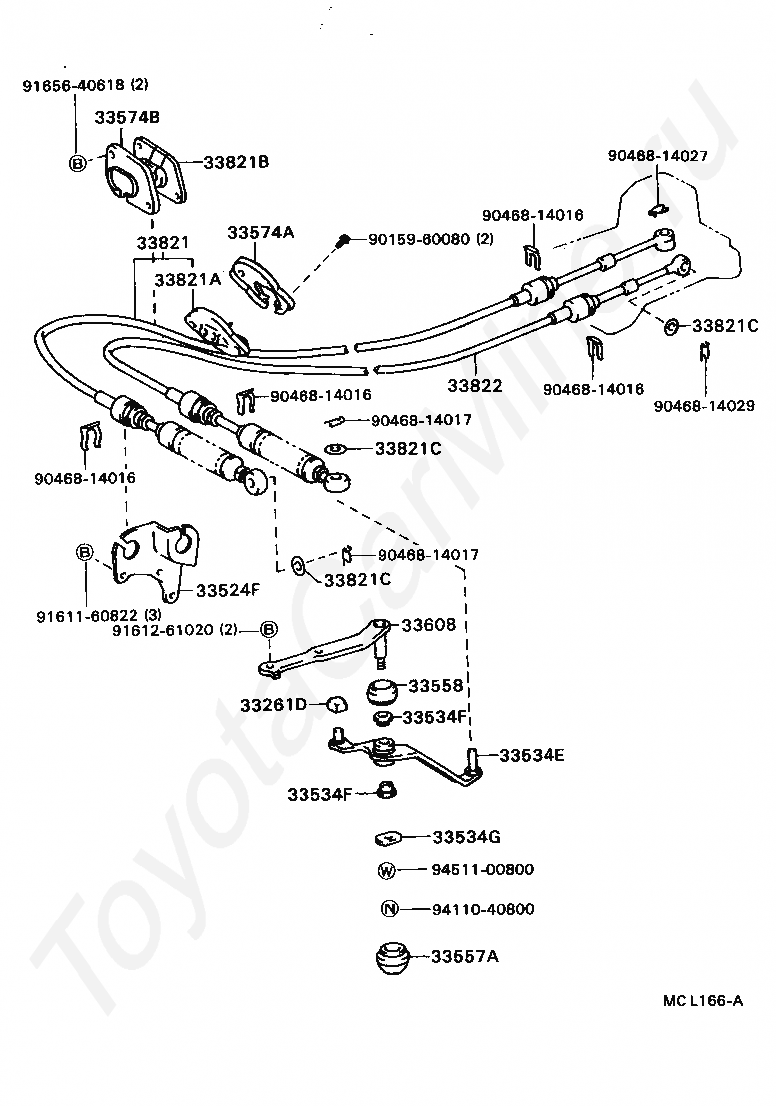

33261D

BUSH (FOR SHIFT & SELECT LEVER)

33524F

BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)

33534E

CRANK, SELECTING BELL, NO.2

33534F

BUSH (FOR SELECTING BELLCRANK NO.2)

33534F

BUSH (FOR SELECTING BELLCRANK NO.2)

33534G

WASHER, PLATE (FOR SELECTING BELLCRANK NO.2)

33557A

COVER, SELECTING BELLCRANK DUST, NO.1

33558

COVER, SELECTING BELLCRANK DUST, NO.2

33574A

RETAINER, SHIFT CABLE GROMMET, NO.1

33574B

RETAINER, SHIFT CABLE GROMMET, NO.2

33608

SUPPORT SUB-ASSY, SELECTING BELLCRANK

33821

CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)

33821A

GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE)

33821B

GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE)

33821C

WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)

33821C

WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)

33821C

WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)

33822

CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)

9015960080

Крепеж

9046814016

Крепеж

9046814016

Крепеж

9046814016

Крепеж

9046814016

Крепеж

9046814017

Крепеж

9046814017

Крепеж

9046814027

Крепеж

9046814029

Крепеж

9161160822

Крепеж

9161261020

Крепеж

9165640618

Крепеж

9411040800

Крепеж

9451100800

Крепеж
