2302
переход к группе запчастей

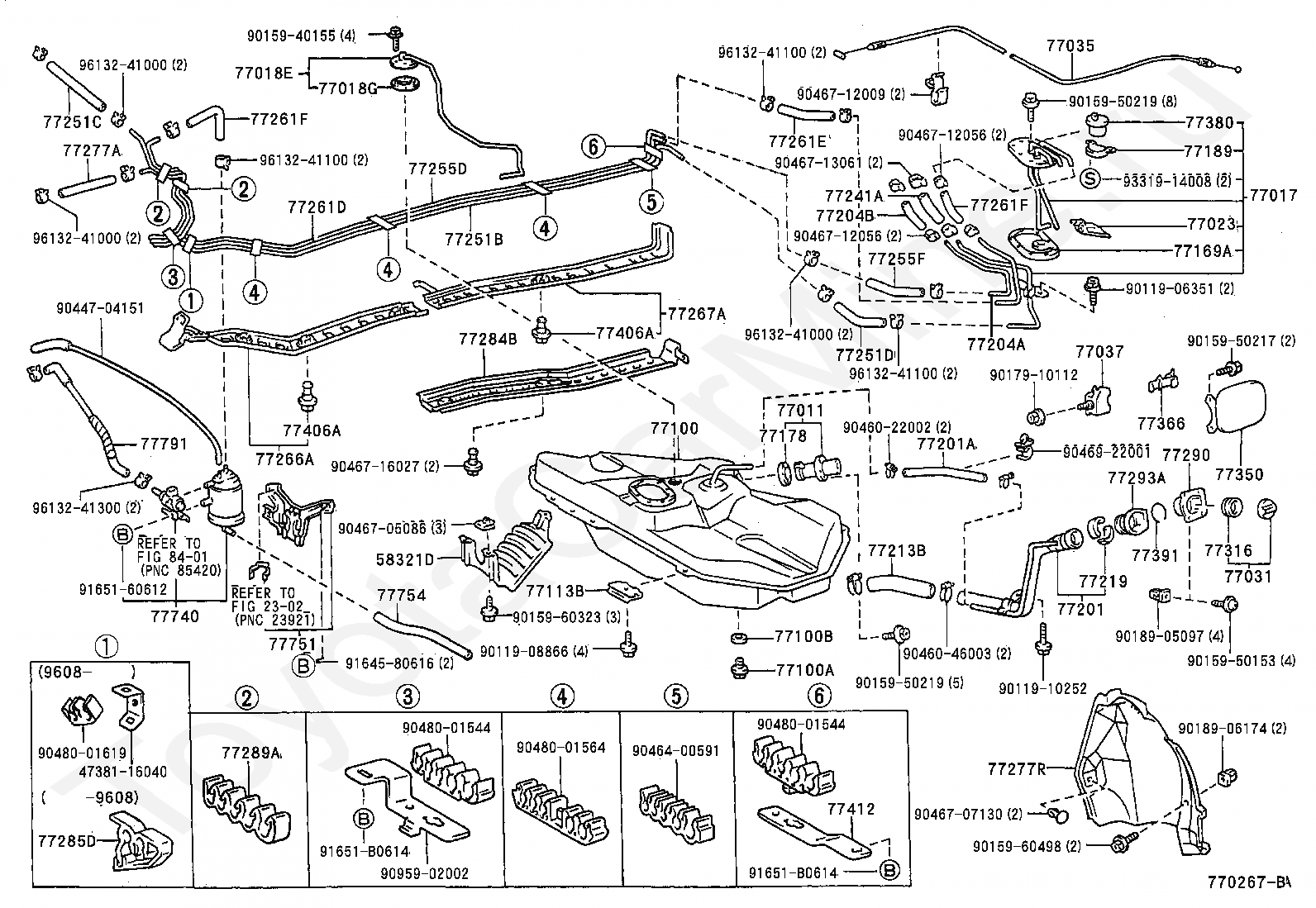

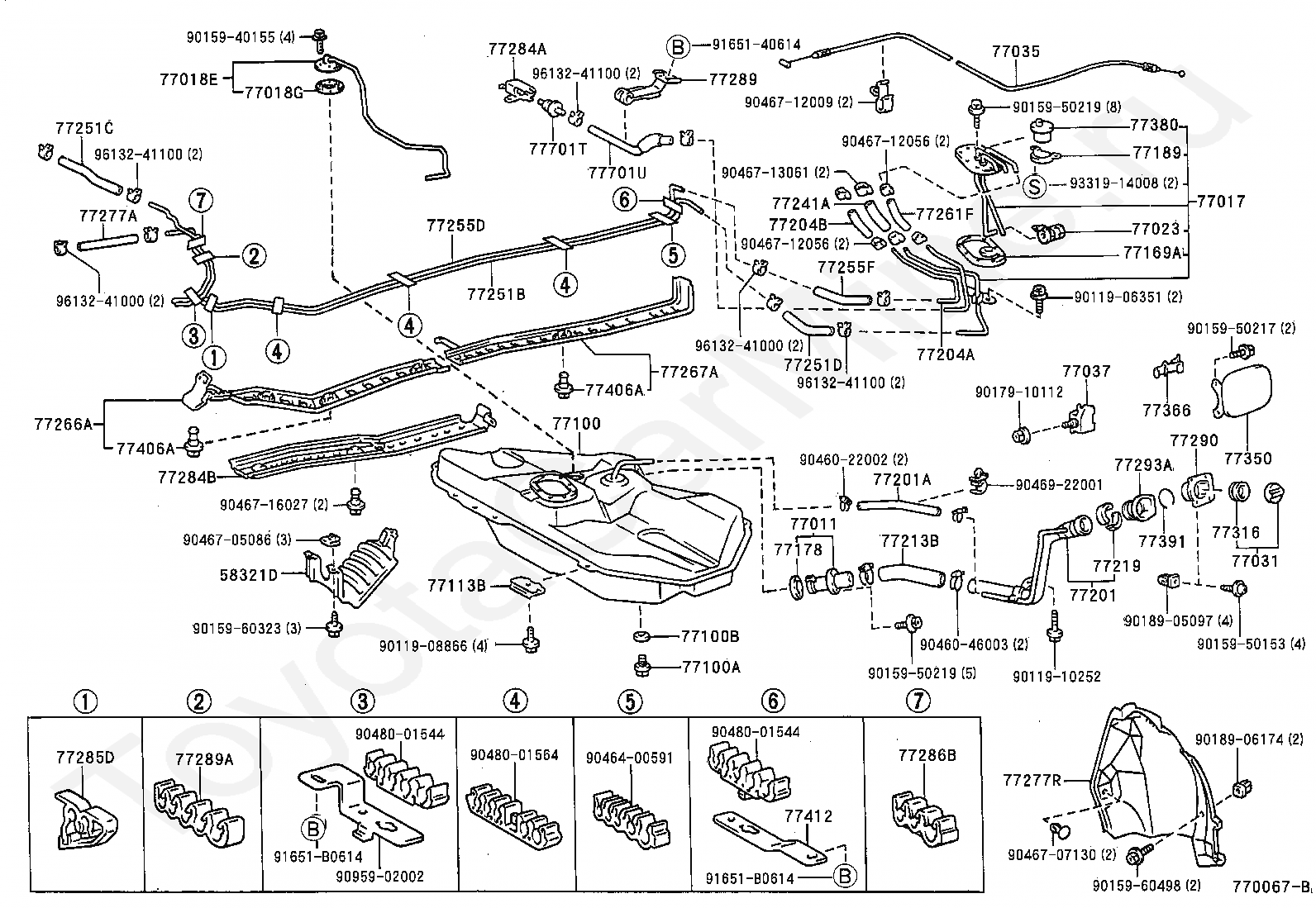

58321D
INSULATOR, REAR FLOOR HEAT, NO.1
77011
PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77017
TUBE SUB-ASSY, FUEL AND EVAPORATION VENT
77018E
TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT
77018G
GASKET, FUEL TANK EVAP/VENT TUBE
77023
FILTER SUB-ASSY, FUEL SUCTION TUBE
77031
CAP ASSY, FUEL TANK
77035
CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77037
LOCK SUB-ASSY, FUEL FILLER OPENING LID
77100A
PLUG(FOR FUEL TANK)
77100B
GASKET(FOR FUEL TANK)
77113B
PLATE, FUEL TANK SIDE
77169A
GASKET, FUEL SUCTION TUBE SET
77178
GASKET, FUEL TANK FILLER PIPE, LOWER
77189
RETAINER, FUEL CHECK VALVE
77201
PIPE SUB-ASSY, FUEL TANK INLET
77201A
HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77204A
TUBE, FUEL TANK RETURN
77204B
HOSE, FUEL(FOR FUEL RETURN)
77213B
HOSE, FUEL TANK TO FILLER PIPE
77219
COVER, FUEL TANK FILLER PIPE
77241A
HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
77251C
HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
77251D
HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
77255F
HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
77261D
TUBE, FUEL TANK TO CANISTER
77261E
HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77261F
HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
77261F
HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
77266A
PROTECTOR, FUEL TUBE, NO.1
77267A
PROTECTOR, FUEL TUBE, NO.2
77277A
HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
77277R
PROTECTOR, FUEL TANK FILLER PIPE
77284B
PROTECTOR, FUEL TUBE, NO.3
77285D
CLAMP, FUEL TUBE, NO.1
77289A
CLAMP, FUEL TUBE W/GROMMET, NO.3
77290
SHIELD ASSY, FUEL TANK FILLER PIPE
77293A
SHIELD, FUEL TANK FILLER PIPE, NO.3
77316
GASKET, FUEL TANK CAP
77350
LID ASSY, FUEL FILLER OPENING
77366
SPRING, FUEL FILLER OPENING LID HINGE
77380
VALVE ASSY, FUEL CUT OFF
77391
RING, FUEL INLET BOX
77406A
CLIP(FOR FUEL TUBE PROTECTOR)
77406A
CLIP(FOR FUEL TUBE PROTECTOR)
77412
SUPPORT, FUEL TUBE GROMMET, NO.2
77740
CANISTER ASSY, CHARCOAL
77751
BRACKET, CHARCOAL CANISTER BASE
77754
HOSE, CHARCOAL CANISTER OUTLET, NO.1
77791
HOSE, OUTER VENT VALVE TO CARBURETOR
8401
