Каталог

Япония

Модель

TANK/ROOMY

VIN

Дата

2020/09

Двигатель

1 литр, 12 клапанов DOHC, EFI

Класс

X TYPE

Фрейм

M910A

КПП

вариатор

Опции

ROOMY 5 дверей W/O TURBO D32H

SLOPE & POWER LIFT TOYOTA TANK/ROOMY

Код

Описание

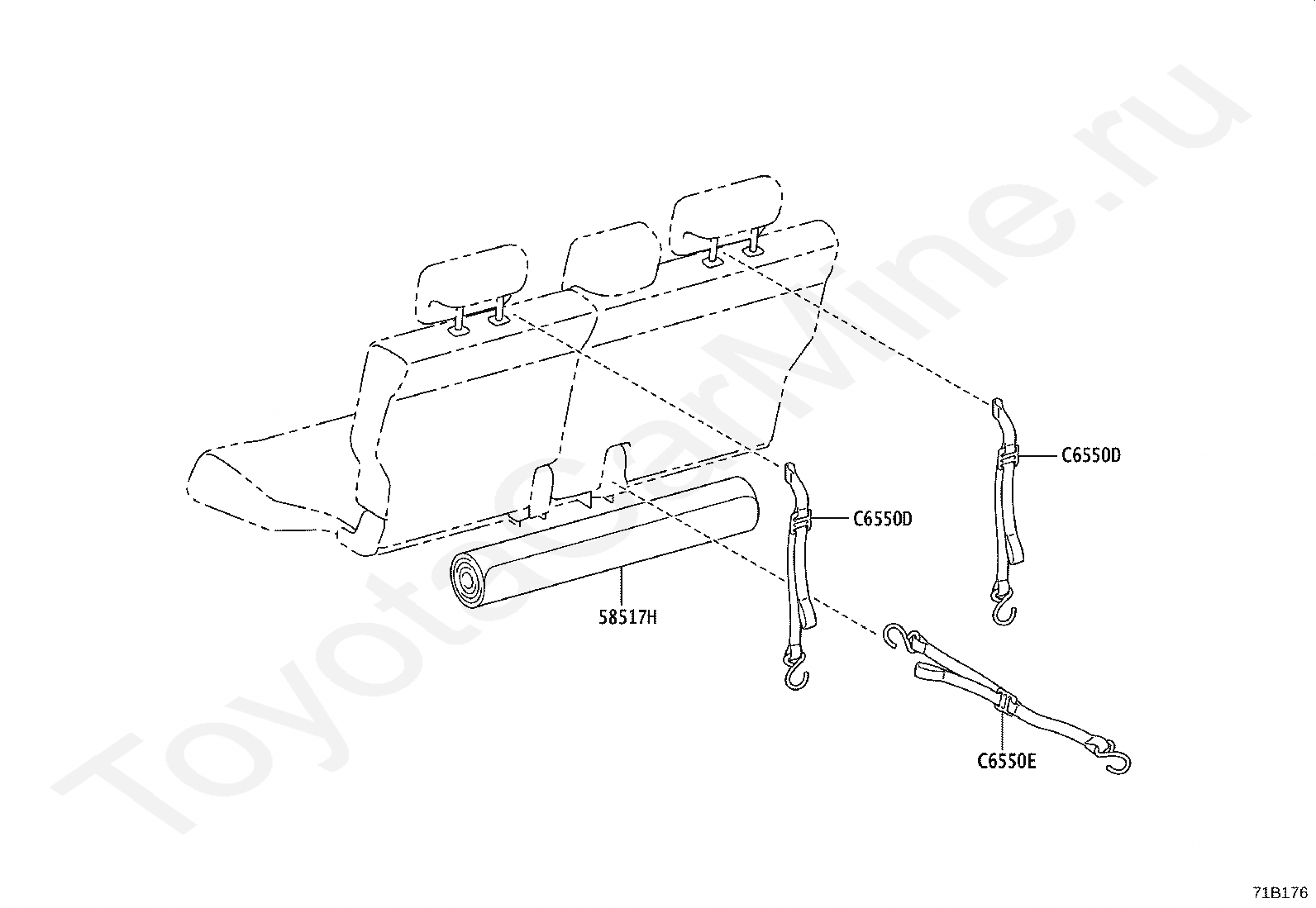

58517H

MAT, REAR FLOOR

C6550D

BELT ASSY, WHEEL CHAIR SET, NO.1

C6550D

BELT ASSY, WHEEL CHAIR SET, NO.1

C6550E

BELT ASSY, WHEEL CHAIR SET, NO.2

Код

Описание

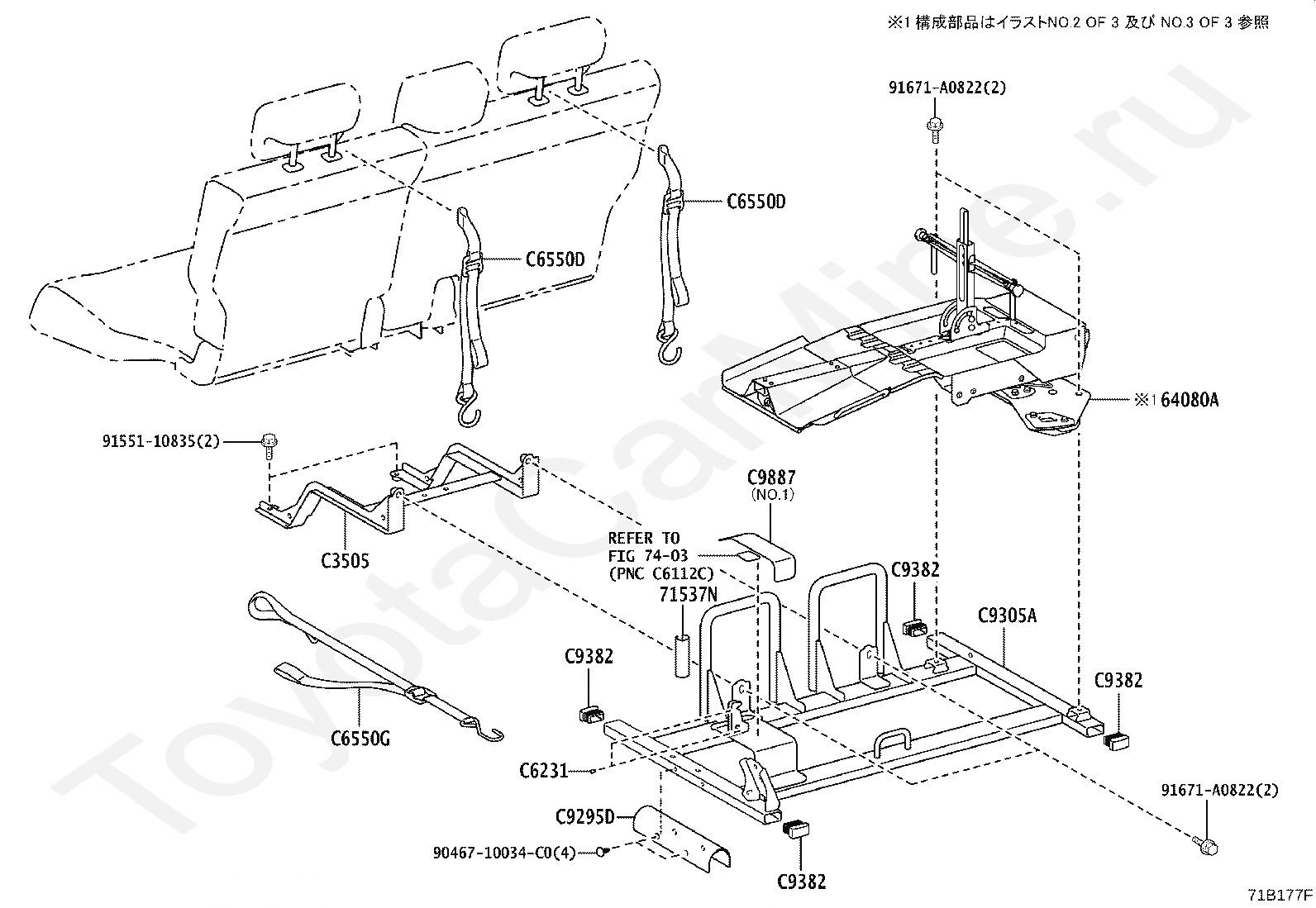

64080A

ARM ASSY, POWER LIFT

71537N

PROTECTOR, FRONT SEAT CUSHION EDGE NO.1

7403

переход к группе запчастей

9046710034C0

Крепеж

9155110835

Крепеж

91671A0822

Крепеж

91671A0822

Крепеж

C3505

BRACKET SUB-ASSY, TECS MOUNTING, NO.1

C6231

MARK, SIDE

C6550D

BELT ASSY, WHEEL CHAIR SET, NO.1

C6550D

BELT ASSY, WHEEL CHAIR SET, NO.1

C6550G

BELT ASSY, WHEEL CHAIR SET, NO.1

C9295D

COVER, POWER LIFT WIRE, NO.1

C9305A

FRAME SUB-ASSY, POWER LIFT PLATFORM

C9382

PROTECTOR, PLATFORM, B

C9382

PROTECTOR, PLATFORM, B

C9382

PROTECTOR, PLATFORM, B

C9382

PROTECTOR, PLATFORM, B

C9887

CUSHION, CRANE GUIDE STOPPER

Код

Описание

7403

переход к группе запчастей

7403

переход к группе запчастей

8202

переход к группе запчастей

9010506130

Крепеж

9010506130

Крепеж

9010506130

Крепеж

9011006018

Крепеж

9011906748

Крепеж

9011906779

Крепеж

9017606045

Крепеж

9017606045

Крепеж

9017606045

Крепеж

9155281025

Крепеж

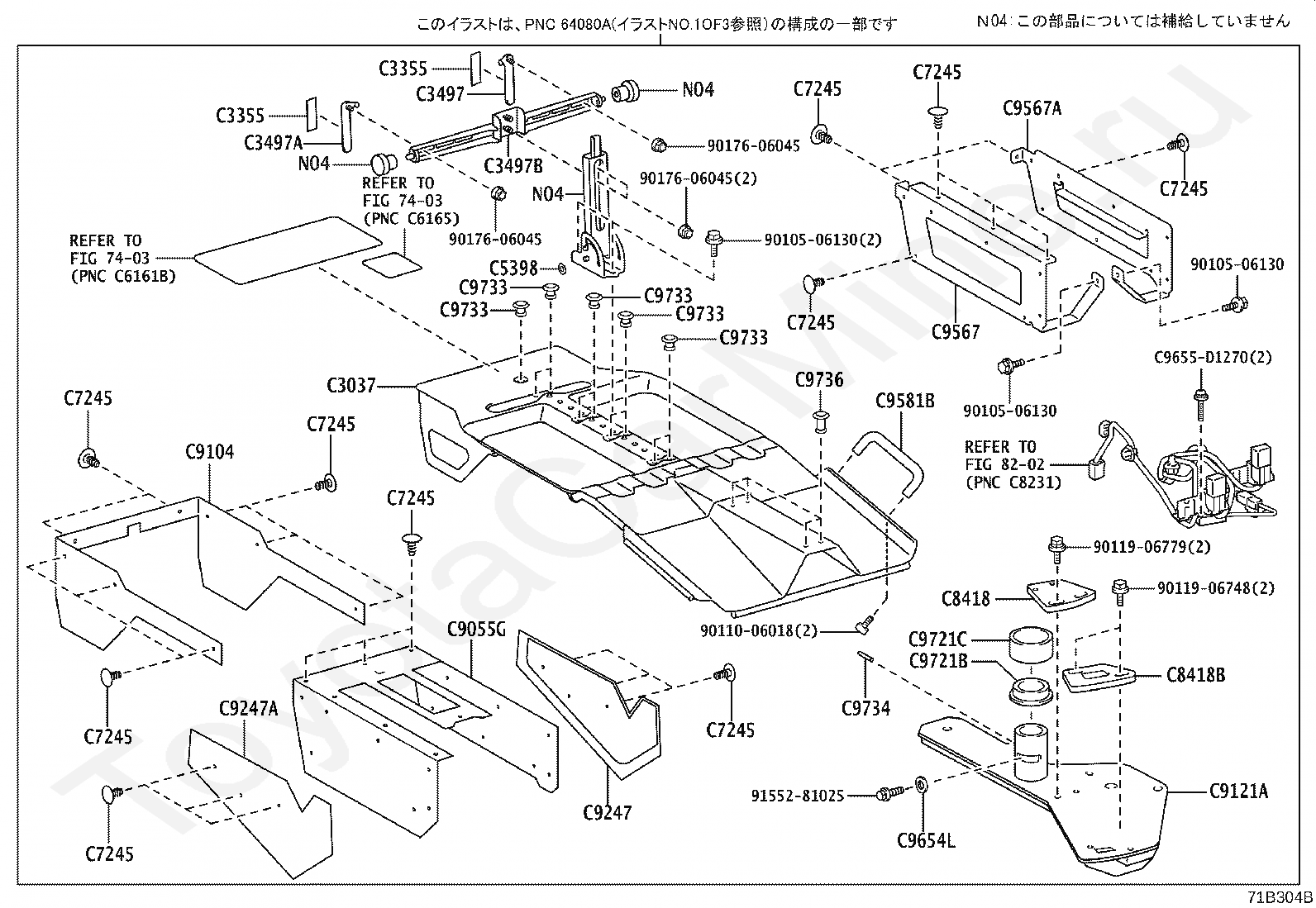

C3037

PLATE SUB-ASSY, CHAIR GUIDE

C3355

COVER, CHAIR GUIDE

C3355

COVER, CHAIR GUIDE

C3497

PLATE, WHEEL CHAIR LOCK, NO.1

C3497A

PLATE, WHEEL CHAIR LOCK, NO.2

C3497B

PLATE, WHEEL CHAIR LOCK, NO.3

C5398

SPACER, FRAME TO SIDE

C7245

CLIP, WELCAB SEAT TRACK HANDLE

C7245

CLIP, WELCAB SEAT TRACK HANDLE

C7245

CLIP, WELCAB SEAT TRACK HANDLE

C7245

CLIP, WELCAB SEAT TRACK HANDLE

C7245

CLIP, WELCAB SEAT TRACK HANDLE

C7245

CLIP, WELCAB SEAT TRACK HANDLE

C7245

CLIP, WELCAB SEAT TRACK HANDLE

C7245

CLIP, WELCAB SEAT TRACK HANDLE

C7245

CLIP, WELCAB SEAT TRACK HANDLE

C7245

CLIP, WELCAB SEAT TRACK HANDLE

C8418

PLATE, LIMIT SWITCH

C8418B

PLATE, LIMIT SWITCH, NO.2

C9055G

COVER SUB-ASSY, POWER LIFT, NO.1

C9104

COVER SUB-ASSY, POWER LIFT BEAM

C9121A

BASE, POWER LIFT COLUMN

C9247

PROTECTOR, POWER LIFT LINK, NO.1

C9247A

PROTECTOR, POWER LIFT LINK, NO.2

C9567

BRACKET, POWER LIFT COVER, NO.1

C9567A

BRACKET, POWER LIFT COVER, NO.2

C9581B

HANDLE, POWER LIFT

C9654L

COLLAR, POWER LIFT CYLINDER, NO.4

C9655D1270

Крепеж

C9721B

BEARING, NO.2 WINCH, NO.2

C9721C

BEARING, NO.2 WINCH, NO.3

C9733

PIN, WINCH ROLLER, NO.3

C9733

PIN, WINCH ROLLER, NO.3

C9733

PIN, WINCH ROLLER, NO.3

C9733

PIN, WINCH ROLLER, NO.3

C9733

PIN, WINCH ROLLER, NO.3

C9734

PIN, WINCH ROLLER, NO.4

C9736

PIN, WINCH ROLLER, NO.5

Код

Описание

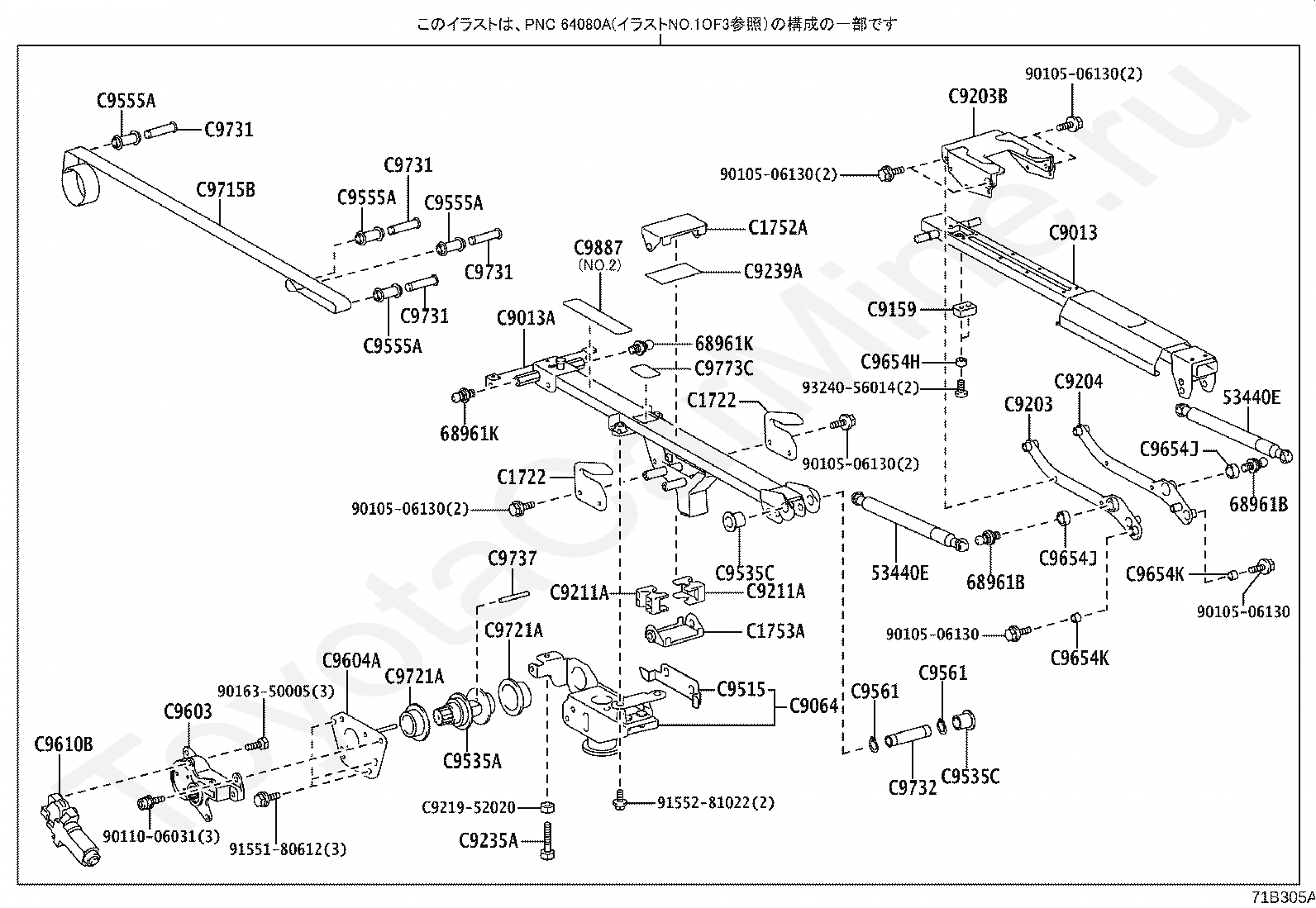

53440E

SUPPORT ASSY, POWER LIFT ARM

53440E

SUPPORT ASSY, POWER LIFT ARM

68961B

BOLT, POWER LIFT ARM, NO.1

68961B

BOLT, POWER LIFT ARM, NO.1

68961K

BOLT, POWER LIFT ARM, NO.2

68961K

BOLT, POWER LIFT ARM, NO.2

9010506130

Крепеж

9010506130

Крепеж

9010506130

Крепеж

9010506130

Крепеж

9010506130

Крепеж

9010506130

Крепеж

9011006031

Крепеж

9016350005

Крепеж

9155180612

Крепеж

9155281022

Крепеж

9324056014

Крепеж

C1722

PLATE, CONTROL, LOWER

C1722

PLATE, CONTROL, LOWER

C1752A

PLATE, CONTROL ARM, UPPER

C1753A

PLATE, CONTROL ARM, LOWER

C9013

ARM SUB-ASSY, POWER LIFT, NO.1

C9013A

ARM SUB-ASSY, POWER LIFT, NO.2

C9064

BASE SUB-ASSY, POWER LIFT MOTOR

C9159

SPACER, LIFT ARM GUIDE STOPPER

C9203

LINK SUB-ASSY, POWER LIFT ARM, NO.1 RH

C9203B

LINK SUB-ASSY, POWER LIFT ARM, NO.2

C9204

LINK SUB-ASSY, POWER LIFT ARM, NO.1 LH

C9211A

GUIDE, POWER LIFT

C9211A

GUIDE, POWER LIFT

C921952020

Крепеж

C9235A

STOP, POWER LIFT ARM

C9239A

SPACER, LIFT ARM LINK

C9515

BRACKET, POWER LIFT CABLE, NO.1

C9535A

PULLEY, POWER LIFT

C9535C

ROLLER, LIFT ARM GUIDE

C9535C

ROLLER, LIFT ARM GUIDE

C9555A

ROLLER, POWER LIFT

C9555A

ROLLER, POWER LIFT

C9555A

ROLLER, POWER LIFT

C9555A

ROLLER, POWER LIFT

C9561

STOP, CYLINDER

C9561

STOP, CYLINDER

C9603

GEAR SUB-ASSY, POWER LIFT

C9604A

BRACKET SUB-ASSY, POWER LIFT MOTOR

C9610B

MOTOR ASSY, POWER LIFT

C9654H

COLLAR, POWER LIFT CYLINDER

C9654J

COLLAR, POWER LIFT CYLINDER, NO.2

C9654J

COLLAR, POWER LIFT CYLINDER, NO.2

C9654K

COLLAR, POWER LIFT CYLINDER, NO.3

C9654K

COLLAR, POWER LIFT CYLINDER, NO.3

C9715B

BELT, WINCH

C9721A

BEARING, NO.2 WINCH, NO.1

C9721A

BEARING, NO.2 WINCH, NO.1

C9731

PIN, WINCH ROLLER, NO.1

C9731

PIN, WINCH ROLLER, NO.1

C9731

PIN, WINCH ROLLER, NO.1

C9731

PIN, WINCH ROLLER, NO.1

C9732

PIN, WINCH ROLLER, NO.2

C9737

PIN, WINCH ROLLER, NO.6

C9773C

COVER, WINCH BELT

C9887

CUSHION, CRANE GUIDE STOPPER
