Япония

Модель

TANK/ROOMY

VIN

Дата

2020/09

Двигатель

1 литр, 12 клапанов DOHC, EFI, двойной наддув

Класс

CUSTOM G TYPE

Фрейм

M900A

КПП

вариатор

Опции

ROOMY 5 дверей WITH TURBO (HARGER) D32H

Задние кресла TOYOTA TANK/ROOMY

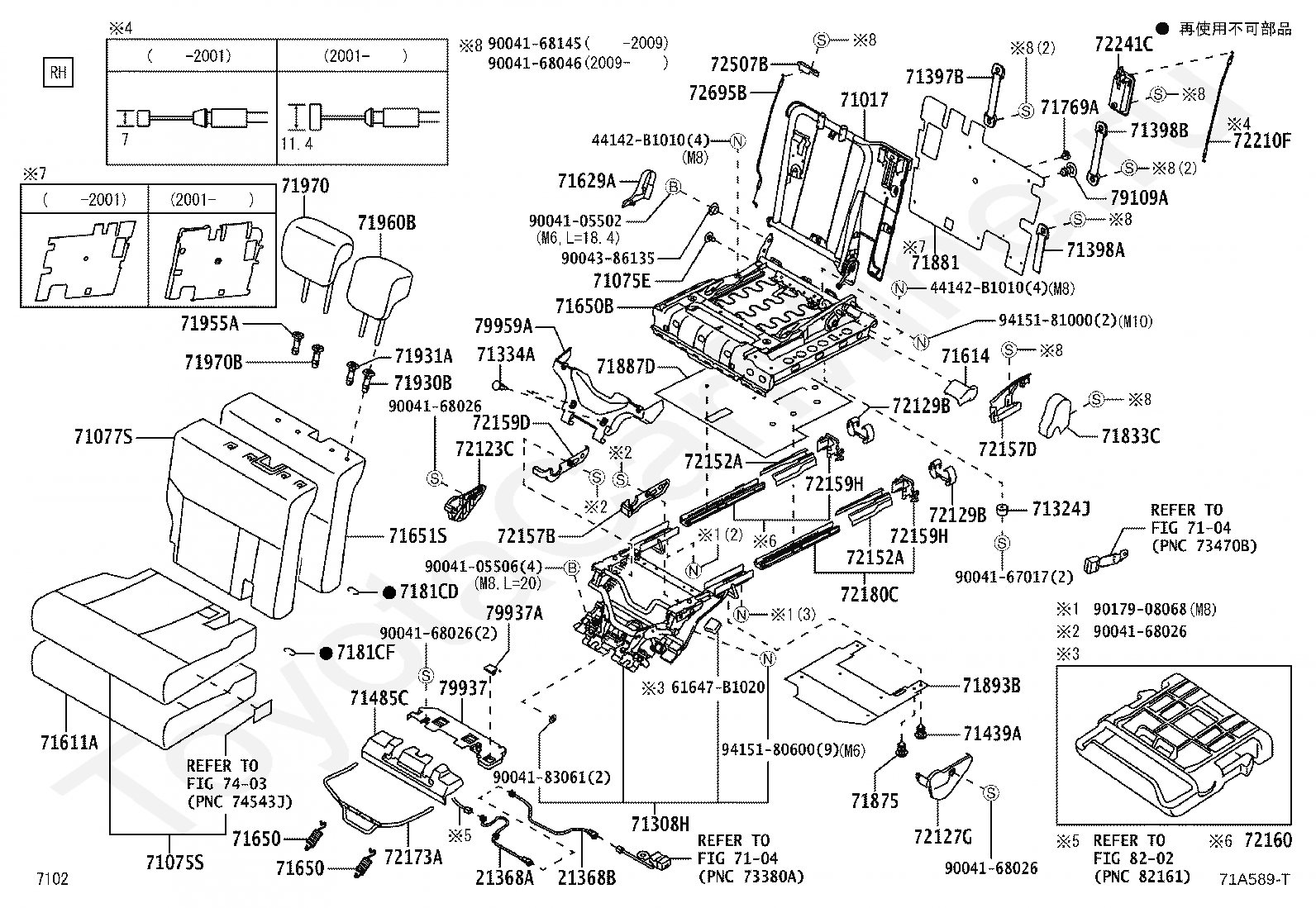

Код

Описание

21368A

HARNESS, REAR SEAT, NO.1

21368B

HARNESS, REAR SEAT, NO.2

44142B1010

Крепеж

44142B1010

Крепеж

61647B1020

Крепеж

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

7104

переход к группе запчастей

7104

переход к группе запчастей

71075E

CLIP(FOR REAR SEAT)

71075S

COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71308H

LEG SUB-ASSY, REAR SEAT, RH

71324J

CUSHION, REAR SEAT

71334A

STOPPER, REAR SEAT LEG

71397B

HOLDER, REAR SEAT BACK, RH

71398A

HOLDER, REAR SEAT BACK

71398B

HOLDER, REAR SEAT BACK, LH

71439A

CLIP

71485C

COVER, REAR SEAT HINGE, RH

71611A

PAD, REAR SEAT CUSHION, RH

71614

PAD, REAR SEAT CUSHION, CENTER

71629A

COVER, REAR SEAT CUSHION HINGE, RH

71650

SPRING ASSY, REAR SEAT CUSHION

71650

SPRING ASSY, REAR SEAT CUSHION

71650B

SPRING ASSY, REAR SEAT CUSHION, RH

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71769A

CLIP, REAR SEAT BACK BOARD

7181CD

RING, HOG, SMALL (FOR REAR SEAT BACK)

7181CF

RING, HOG, SMALL (FOR REAR SEAT CUSHION)

71833C

COVER, REAR SEAT RECLINING, NO.2 RH

71875

STOPPER, REAR SEAT CUSHION

71881

BOARD, REAR SEAT BACK, RH

71887D

MAT, REAR SEAT CUSHION, RH

71893B

CARPET, REAR SEAT CUSHION, UNDER RH

71930B

SUPPORT ASSY, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71955A

SUPPORT, REAR SEAT HEADREST

71960B

HEADREST ASSY, REAR SEAT, CENTER

71970

HEADREST ASSY, REAR SEAT

71970B

SUPPORT ASSY, REAR SEAT HEADREST, RH

72123C

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72127G

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72129B

PROTECTOR, SEAT TRACK LOWER RAIL

72129B

PROTECTOR, SEAT TRACK LOWER RAIL

72152A

COVER, REAR SEAT TRACK BRACKET, INNER

72152A

COVER, REAR SEAT TRACK BRACKET, INNER

72157B

COVER, REAR SEAT TRACK BRACKET, INNER RH

72157D

COVER, SEAT TRACK BRACKER, INNER RH

72159D

COVER, REAR SEAT TRACK BRACKET, OUTER RH

72159H

COVER, REAR SEAT TRACK BRACKET

72159H

COVER, REAR SEAT TRACK BRACKET

72160

TRACK ASSY, REAR SEAT, OUTER RH

72173A

HANDLE, REAR SEAT TRACK ADJUSTING, RH

72180C

TRACK ASSY, REAR SEAT, INNER RH

72210F

CABLE ASSY, SEAT TRACK CONTROL

72241C

LEVER, OUTER SEAT TRACK LOCK, RH

72507B

HANDLE SUB-ASSY, RECLINING RELEASE, RH

72695B

CABLE, REAR SEAT LOCK CONTROL, RH

7403

переход к группе запчастей

79109A

CLIP (FOR NO.1 SEAT BACK BOARD)

79937

COVER, REAR SEAT LEG, NO.2

79937A

COVER, REAR SEAT LEG, NO.2

79959A

COVER, REAR SEAT LEG, RH

8202

переход к группе запчастей

9004105502

Крепеж

9004105506

Крепеж

9004167017

Крепеж

9004168026

Крепеж

9004168026

Крепеж

9004168026

Крепеж

9004168026

Крепеж

9004168046

Крепеж

9004168145

Крепеж

9004183061

Крепеж

9004386135

Крепеж

9017908068

Крепеж

9415180600

Крепеж

9415181000

Крепеж

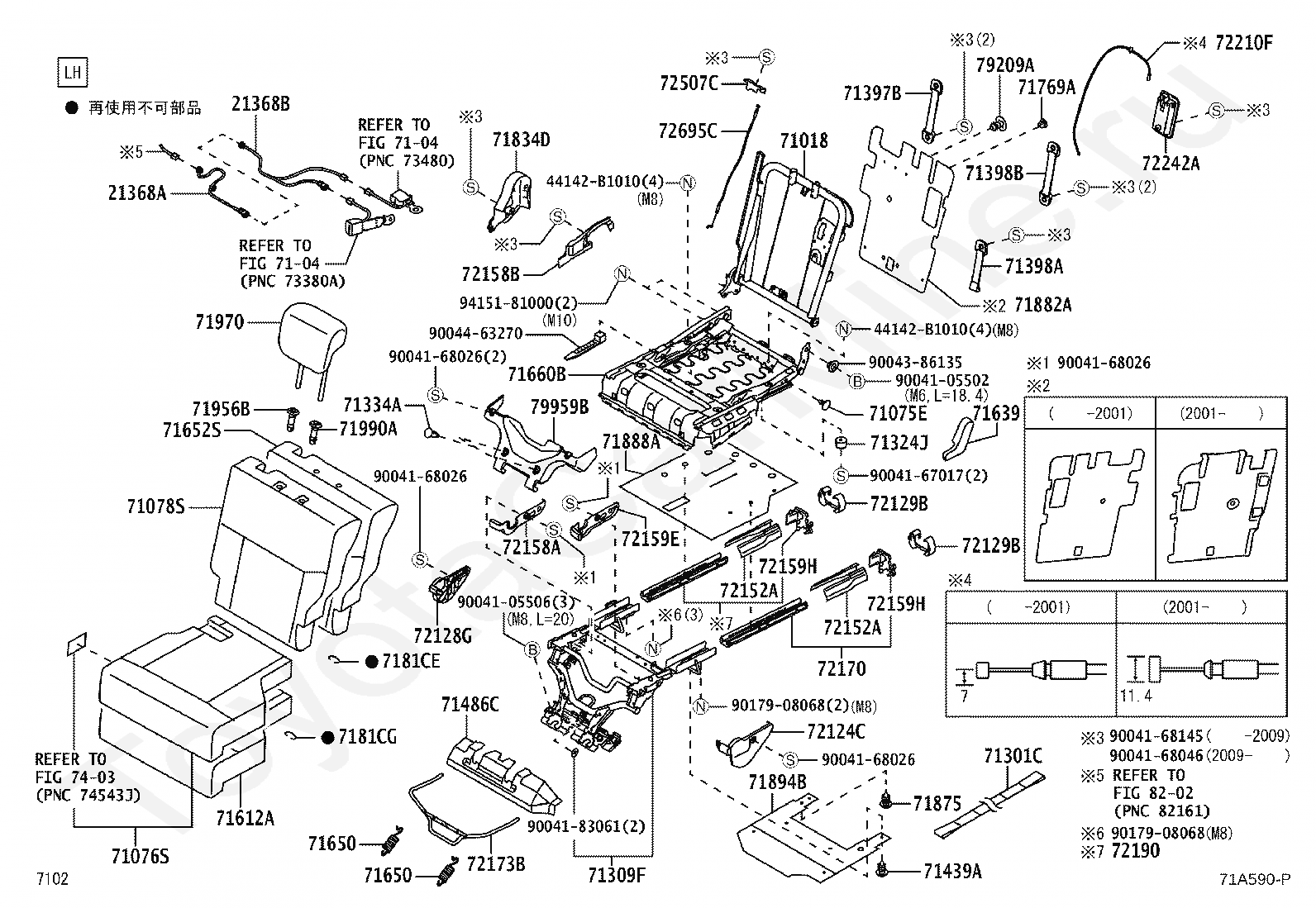

Код

Описание

21368A

HARNESS, REAR SEAT, NO.1

21368B

HARNESS, REAR SEAT, NO.2

44142B1010

Крепеж

44142B1010

Крепеж

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

7104

переход к группе запчастей

7104

переход к группе запчастей

71075E

CLIP(FOR REAR SEAT)

71076S

COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71301C

LINK SUB-ASSY, REAR SEAT CUSHION

71309F

LEG SUB-ASSY, REAR SEAT, LH

71324J

CUSHION, REAR SEAT

71334A

STOPPER, REAR SEAT LEG

71397B

HOLDER, REAR SEAT BACK, RH

71398A

HOLDER, REAR SEAT BACK

71398B

HOLDER, REAR SEAT BACK, LH

71439A

CLIP

71486C

COVER, REAR SEAT HINGE, LH

71612A

PAD, REAR SEAT CUSHION, LH

71639

COVER, REAR SEAT CUSHION HINGE, LH

71650

SPRING ASSY, REAR SEAT CUSHION

71650

SPRING ASSY, REAR SEAT CUSHION

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71660B

SPRING ASSY, REAR SEAT CUSHION, LH

71769A

CLIP, REAR SEAT BACK BOARD

7181CE

RING, HOG, SMALL (FOR REAR SEAT BACK)

7181CG

RING, HOG, SMALL (FOR REAR SEAT CUSHION)

71834D

COVER, REAR SEAT RECLINING, LH

71875

STOPPER, REAR SEAT CUSHION

71882A

BOARD, REAR SEAT BACK, LH

71888A

MAT, REAR SEAT CUSHION, LH

71894B

CARPET, REAR SEAT CUSHION, UNDER LH

71956B

SUPPORT, REAR SEAT HEADREST

71970

HEADREST ASSY, REAR SEAT

71990A

SUPPORT ASSY, REAR SEAT HEADREST, LH

72124C

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72128G

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72129B

PROTECTOR, SEAT TRACK LOWER RAIL

72129B

PROTECTOR, SEAT TRACK LOWER RAIL

72152A

COVER, REAR SEAT TRACK BRACKET, INNER

72152A

COVER, REAR SEAT TRACK BRACKET, INNER

72158A

COVER, REAR SEAT TRACK BRACKET, INNER LH

72158B

COVER, SEAT TRACK BRACKET, INNER LH

72159E

COVER, REAR SEAT TRACK BRACKET, OUTER LH

72159H

COVER, REAR SEAT TRACK BRACKET

72159H

COVER, REAR SEAT TRACK BRACKET

72170

TRACK ASSY, REAR SEAT, OUTER LH

72173B

HANDLE, REAR SEAT TRACK ADJUSTING, LH

72190

TRACK ASSY, REAR SEAT INNER, LH

72210F

CABLE ASSY, SEAT TRACK CONTROL

72242A

LEVER, OUTER SEAT TRACK LOCK, LH

72507C

HANDLE SUB-ASSY, RECLINING RELEASE, LH

72695C

CABLE, REAR SEAT LOCK CONTROL, LH

7403

переход к группе запчастей

79209A

CLIP (FOR NO.2 SEAT BACK BOARD)

79959B

COVER, REAR SEAT LEG, LH

8202

переход к группе запчастей

9004105502

Крепеж

9004105506

Крепеж

9004167017

Крепеж

9004168026

Крепеж

9004168026

Крепеж

9004168026

Крепеж

9004168026

Крепеж

9004168046

Крепеж

9004168145

Крепеж

9004183061

Крепеж

9004386135

Крепеж

9004463270

Крепеж

9017908068

Крепеж

9017908068

Крепеж

9415181000

Крепеж

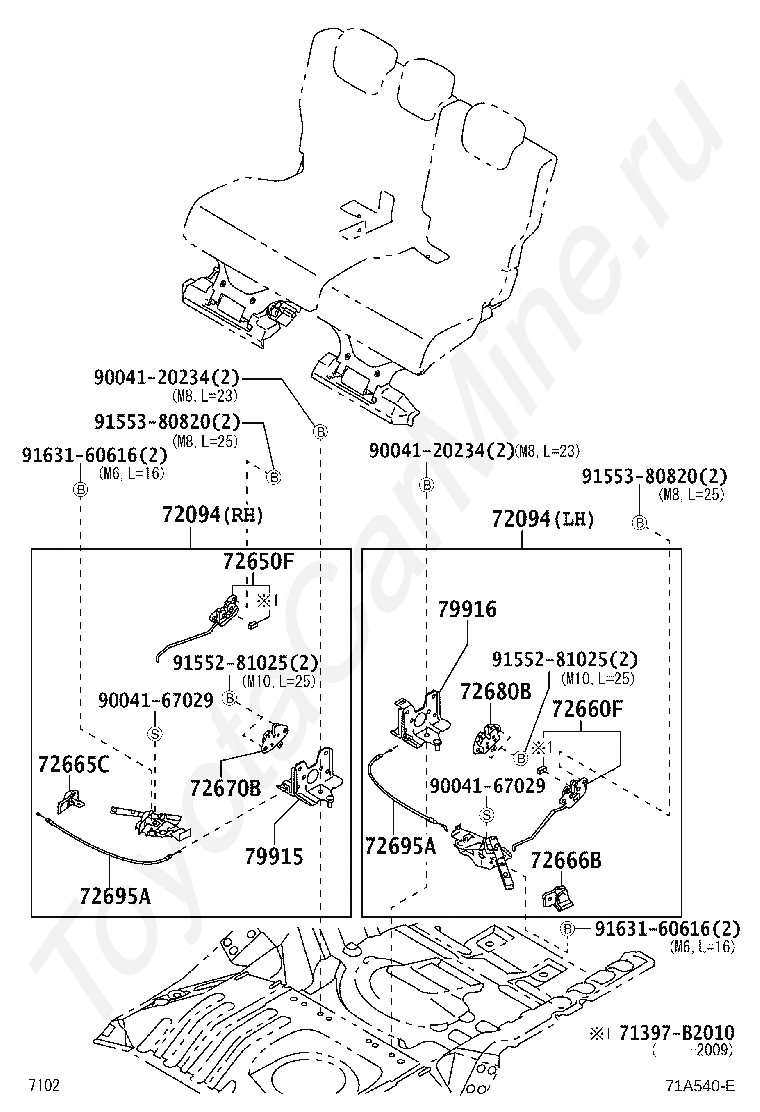

Код

Описание

71397B2010

Крепеж

72094

LOCK SUB-ASSY, REAR SEAT TURN

72094

LOCK SUB-ASSY, REAR SEAT TURN

72650F

LOCK ASSY, REAR SEAT, RH

72660F

LOCK ASSY, REAR SEAT, LH

72665C

COVER, REAR SEAT LOCK, RH

72666B

COVER, REAR SEAT LOCK, LH

72670B

LOCK ASSY, REAR SEAT CUSHION, RH

72680B

LOCK ASSY, REAR SEAT CUSHION, LH

72695A

CABLE, REAR SEAT LOCK CONTROL

72695A

CABLE, REAR SEAT LOCK CONTROL

79915

BRACKET, SEAT LEG

79916

BRACKET, SEAT LEG, NO.2

9004120234

Крепеж

9004120234

Крепеж

9004167029

Крепеж

9004167029

Крепеж

9155281025

Крепеж

9155281025

Крепеж

9155380820

Крепеж

9155380820

Крепеж

9163160616

Крепеж

9163160616

Крепеж
