Каталог

Япония

Модель

TANK/ROOMY

VIN

Дата

2020/09

Двигатель

1 литр, 12 клапанов DOHC, EFI, двойной наддув

Класс

CUSTOM G TYPE

Фрейм

M900A

КПП

вариатор

Опции

ROOMY 5 дверей WITH TURBO (HARGER) D32H

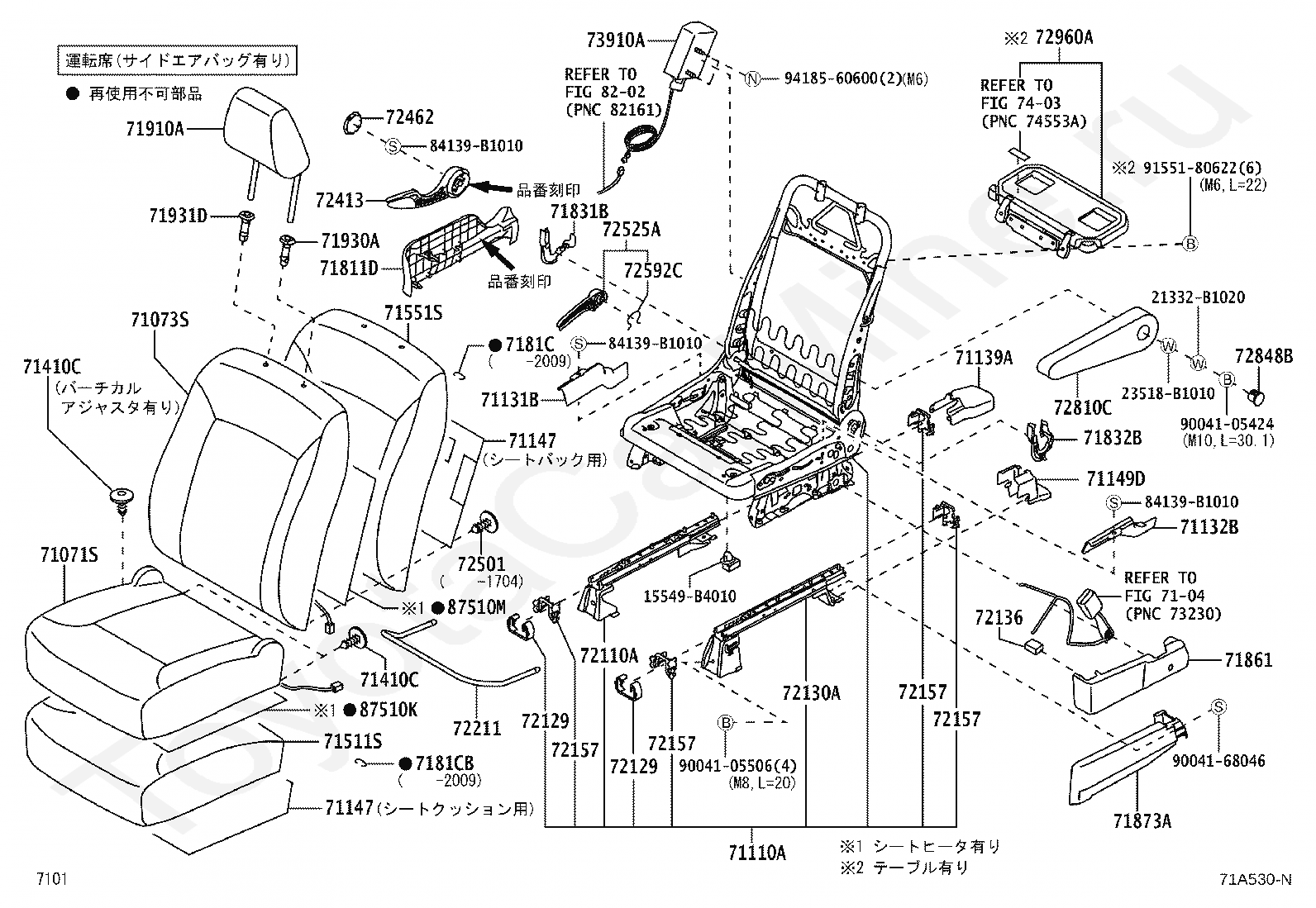

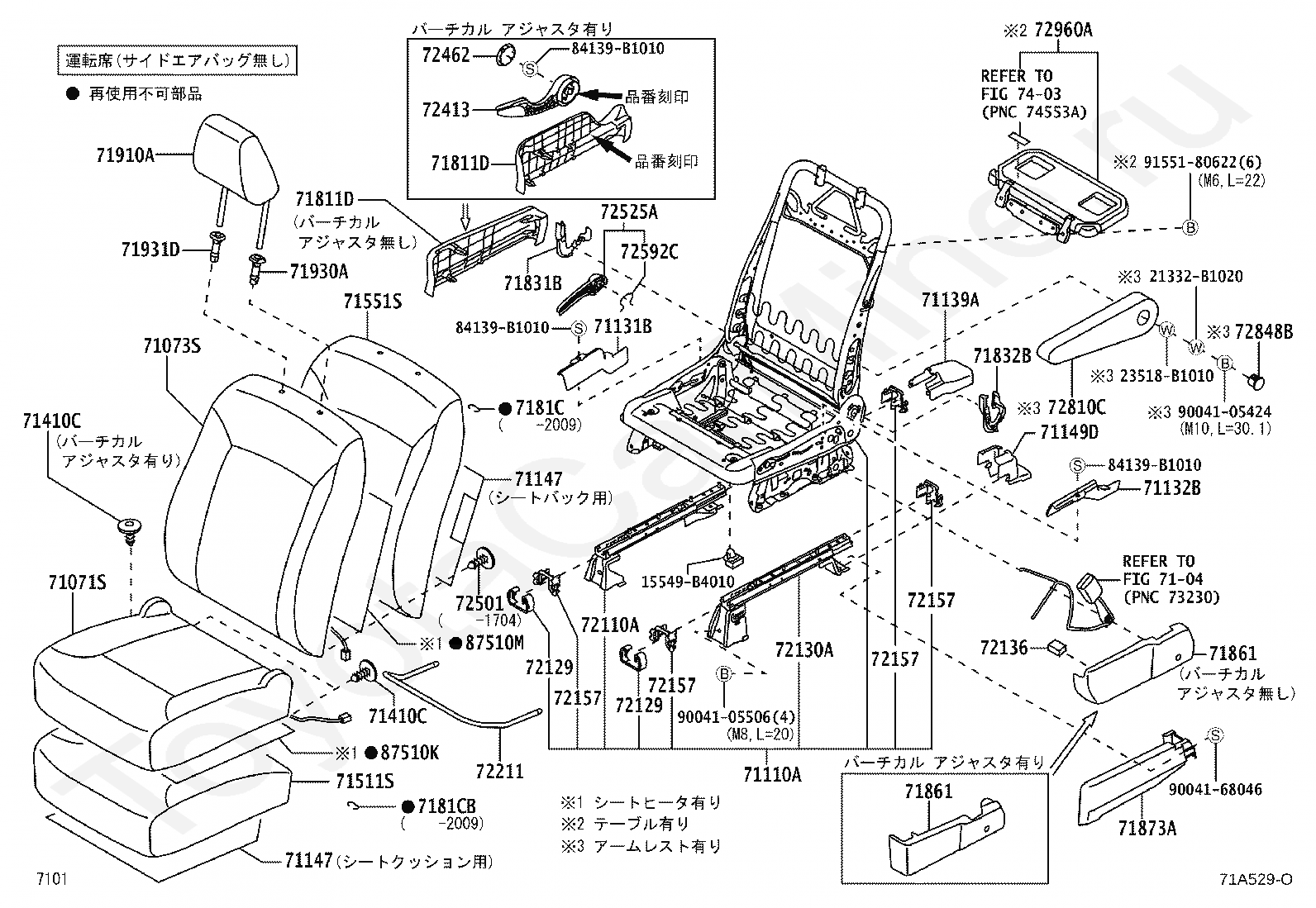

Передние кресла TOYOTA TANK/ROOMY







Код

Описание

15549B4010

Крепеж

21332B1020

Крепеж

23518B1010

Крепеж

7104

переход к группе запчастей

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71110A

FRAME ASSY, FRONT SEAT W/ADJUSTER, RH

71131B

PLATE, FRONT SEAT CUSHION, NO.1

71132B

PLATE, FRONT SEAT CUSHION, NO.2

71139A

COVER, FRONT SEAT LEG, NO.1

71147

SILENCER, SEAT SPRING

71147

SILENCER, SEAT SPRING

71149D

COVER, FRONT SEAT LEG, INNER (FOR RH SEAT)

71410C

CLIP(FOR FRONT SEAT CUSHION)

71410C

CLIP(FOR FRONT SEAT CUSHION)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71811D

SHIELD, FRONT SEAT CUSHION, RH

71811D

SHIELD, FRONT SEAT CUSHION, RH

7181C

RING, HOG, SMALL (FOR FRONT SEAT BACK)

7181CB

RING, HOG, SMALL (FOR FRONT SEAT CUSHION)

71831B

COVER, FRONT SEAT HINGE, RH

71832B

COVER, FRONT SEAT HINGE, LH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71910A

HEADREST ASSY, FRONT SEAT

71930A

SUPPORT ASSY, FRONT SEAT HEADREST

71931D

SUPPORT, FRONT SEAT HEADREST, RH

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72136

SPACER, SEAT TRACK, LOWER NO.1

72157

COVER, SEAT TRACK BRACKET, INNER

72157

COVER, SEAT TRACK BRACKET, INNER

72157

COVER, SEAT TRACK BRACKET, INNER

72157

COVER, SEAT TRACK BRACKET, INNER

72211

HANDLE, SEAT TRACK ADJUSTING

72413

LEVER, VERTICAL ADJUSTER LOCK

72462

COVER, VERTICAL ADJUSTER RH

72501

STOPPER ASSY, FRONT SEAT BACK, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72592C

RING, SHAFT SNAP

72810C

ARMREST ASSY, FRONT SEAT, CENTER

72848B

CAP, SEAT ARMREST, NO.1

72960A

TABLE ASSY, SEAT TURN

7403

переход к группе запчастей

84139B1010

Крепеж

84139B1010

Крепеж

84139B1010

Крепеж

87510K

HEATER ASSY, FRONT SEAT CUSHION, RH

87510M

HEATER ASSY, FRONT SEAT BACK, RH

9004105424

Крепеж

9004105506

Крепеж

9004168046

Крепеж

9155180622

Крепеж

Код

Описание

15549B4010

Крепеж

21332B1020

Крепеж

23518B1010

Крепеж

7104

переход к группе запчастей

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71110A

FRAME ASSY, FRONT SEAT W/ADJUSTER, RH

71131B

PLATE, FRONT SEAT CUSHION, NO.1

71132B

PLATE, FRONT SEAT CUSHION, NO.2

71139A

COVER, FRONT SEAT LEG, NO.1

71147

SILENCER, SEAT SPRING

71147

SILENCER, SEAT SPRING

71149D

COVER, FRONT SEAT LEG, INNER (FOR RH SEAT)

71410C

CLIP(FOR FRONT SEAT CUSHION)

71410C

CLIP(FOR FRONT SEAT CUSHION)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71811D

SHIELD, FRONT SEAT CUSHION, RH

7181C

RING, HOG, SMALL (FOR FRONT SEAT BACK)

7181CB

RING, HOG, SMALL (FOR FRONT SEAT CUSHION)

71831B

COVER, FRONT SEAT HINGE, RH

71832B

COVER, FRONT SEAT HINGE, LH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71910A

HEADREST ASSY, FRONT SEAT

71930A

SUPPORT ASSY, FRONT SEAT HEADREST

71931D

SUPPORT, FRONT SEAT HEADREST, RH

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72136

SPACER, SEAT TRACK, LOWER NO.1

72157

COVER, SEAT TRACK BRACKET, INNER

72157

COVER, SEAT TRACK BRACKET, INNER

72157

COVER, SEAT TRACK BRACKET, INNER

72157

COVER, SEAT TRACK BRACKET, INNER

72211

HANDLE, SEAT TRACK ADJUSTING

72413

LEVER, VERTICAL ADJUSTER LOCK

72462

COVER, VERTICAL ADJUSTER RH

72501

STOPPER ASSY, FRONT SEAT BACK, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72592C

RING, SHAFT SNAP

72810C

ARMREST ASSY, FRONT SEAT, CENTER

72848B

CAP, SEAT ARMREST, NO.1

72960A

TABLE ASSY, SEAT TURN

73910A

AIR BAG ASSY, FRONT SEAT, RH

7403

переход к группе запчастей

8202

переход к группе запчастей

84139B1010

Крепеж

84139B1010

Крепеж

84139B1010

Крепеж

87510K

HEATER ASSY, FRONT SEAT CUSHION, RH

87510M

HEATER ASSY, FRONT SEAT BACK, RH

9004105424

Крепеж

9004105506

Крепеж

9004168046

Крепеж

9155180622

Крепеж

9418560600

Крепеж

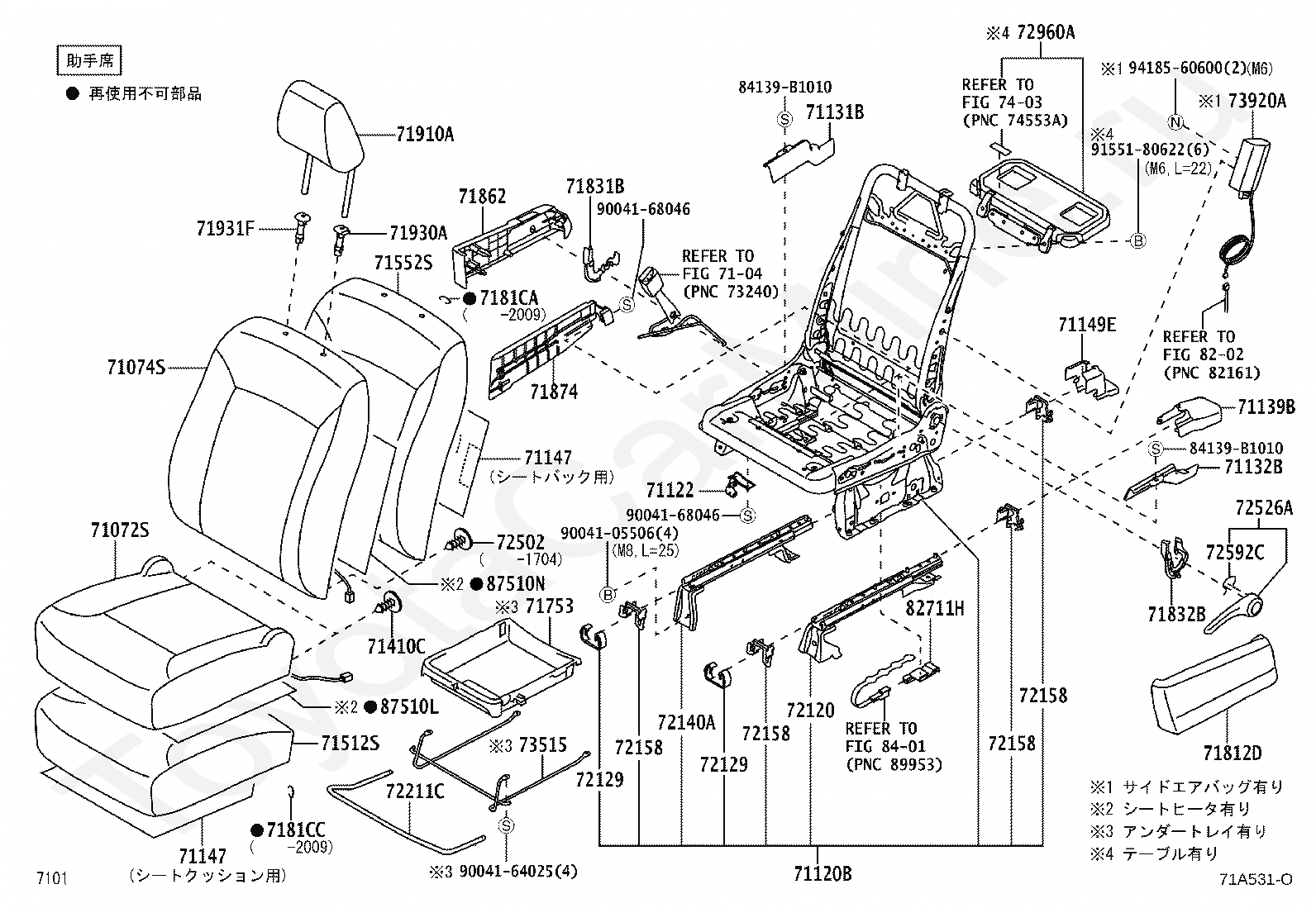

Код

Описание

7104

переход к группе запчастей

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71122

BRACKET, FRONT SEAT CUSHION, LH

71131B

PLATE, FRONT SEAT CUSHION, NO.1

71132B

PLATE, FRONT SEAT CUSHION, NO.2

71139B

COVER, FRONT SEAT LEG, NO.2

71147

SILENCER, SEAT SPRING

71147

SILENCER, SEAT SPRING

71149E

COVER, FRONT SEAT LEG, INNER (FOR LH SEAT)

71410C

CLIP(FOR FRONT SEAT CUSHION)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71753

TRAY, FRONT SEAT UNDER

71812D

SHIELD, FRONT SEAT CUSHION, LH

7181CA

RING, HOG, SMALL (FOR FRONT SEAT BACK)

7181CC

RING, HOG, SMALL (FOR FRONT SEAT CUSHION)

71831B

COVER, FRONT SEAT HINGE, RH

71832B

COVER, FRONT SEAT HINGE, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71910A

HEADREST ASSY, FRONT SEAT

71930A

SUPPORT ASSY, FRONT SEAT HEADREST

71931F

SUPPORT, FRONT SEAT HEADREST, LH

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72211C

HANDLE, SEAT TRACK ADJUSTING

72502

STOPPER ASSY, FRONT SEAT BACK, LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72592C

RING, SHAFT SNAP

72960A

TABLE ASSY, SEAT TURN

73515

RAIL, FRONT SEAT UNDER TRAY, NO.1

73920A

AIR BAG ASSY, FRONT SEAT, LH

7403

переход к группе запчастей

8202

переход к группе запчастей

82711H

CLAMP, WIRING HARNESS

8401

переход к группе запчастей

84139B1010

Крепеж

84139B1010

Крепеж

87510L

HEATER ASSY, FRONT SEAT CUSHION, LH

87510N

HEATER ASSY, FRONT SEAT BACK, LH

9004105506

Крепеж

9004164025

Крепеж

9004168046

Крепеж

9004168046

Крепеж

9155180622

Крепеж

9418560600

Крепеж
