Каталог

Япония

Модель

TANK/ROOMY

VIN

Дата

2020/09

Двигатель

1 литр, 12 клапанов DOHC, EFI, двойной наддув

Класс

CUSTOM G TYPE

Фрейм

M900A

КПП

вариатор

Опции

ROOMY 5 дверей WITH TURBO (HARGER) D32H

Боковая панель кузова TOYOTA TANK/ROOMY

Код

Описание

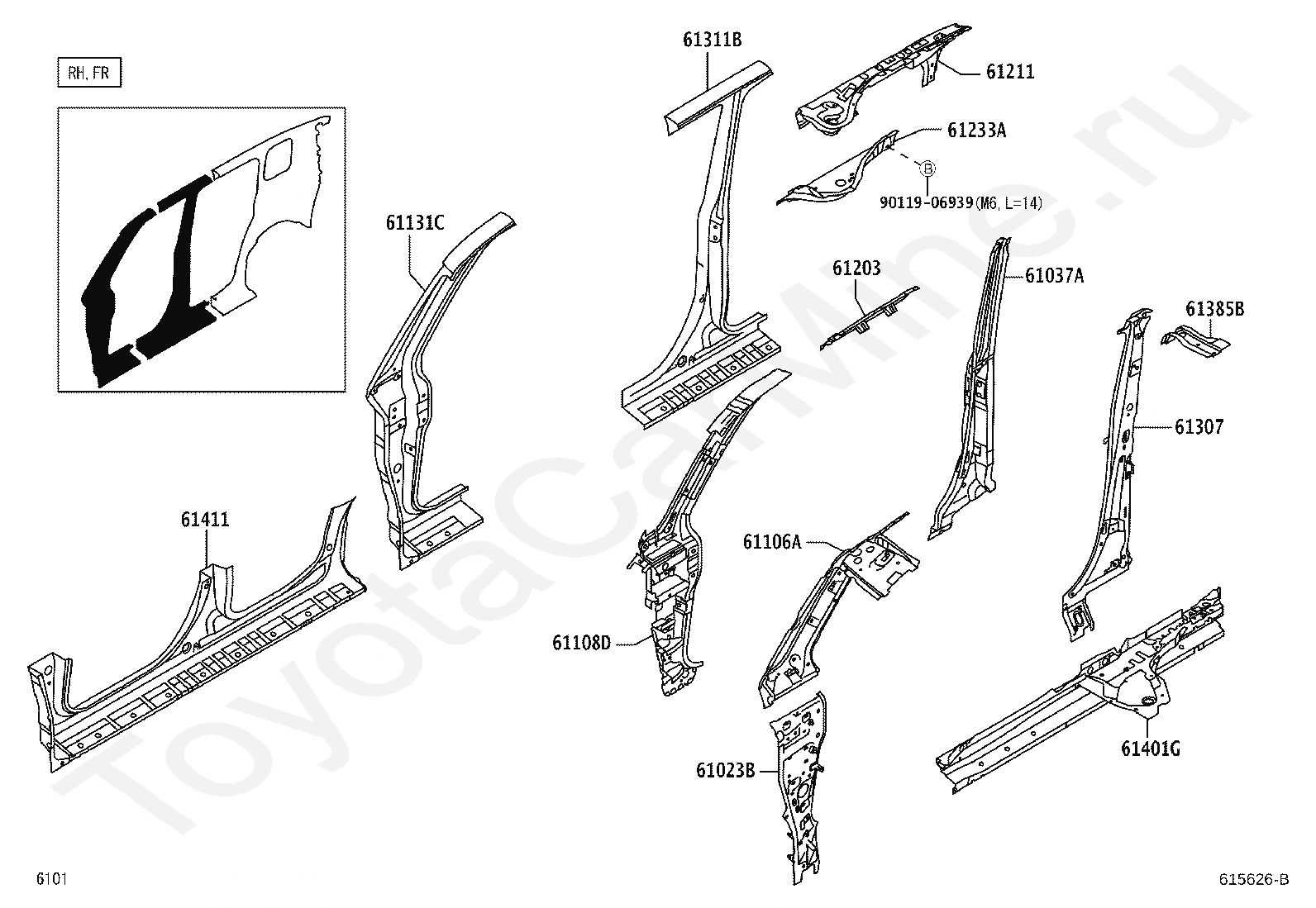

61023B

PILLAR SUB-ASSY, FRONT BODY, INNER RH

61037A

REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

61106A

REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH

61108D

REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH

61131C

PILLAR, FRONT BODY, OUTER RH

61203

RAIL SUB-ASSY, ROOF SIDE, INNER RH

61211

RAIL, ROOF SIDE, OUTER RH

61233A

RAIL, ROOF SIDE, INNER NO.2 RH

61307

PILLAR SUB-ASSY, CENTER BODY, INNER RH

61311B

PILLAR, CENTER BODY, OUTER RH

61385B

EXTENSION, CENTER BODY PILLAR, INNER RH

61401G

PANEL SUB-ASSY, ROCKER, INNER RH

61411

PANEL, ROCKER, OUTER RH

9011906939

Крепеж

Код

Описание

5202

переход к группе запчастей

52571B1010

Крепеж

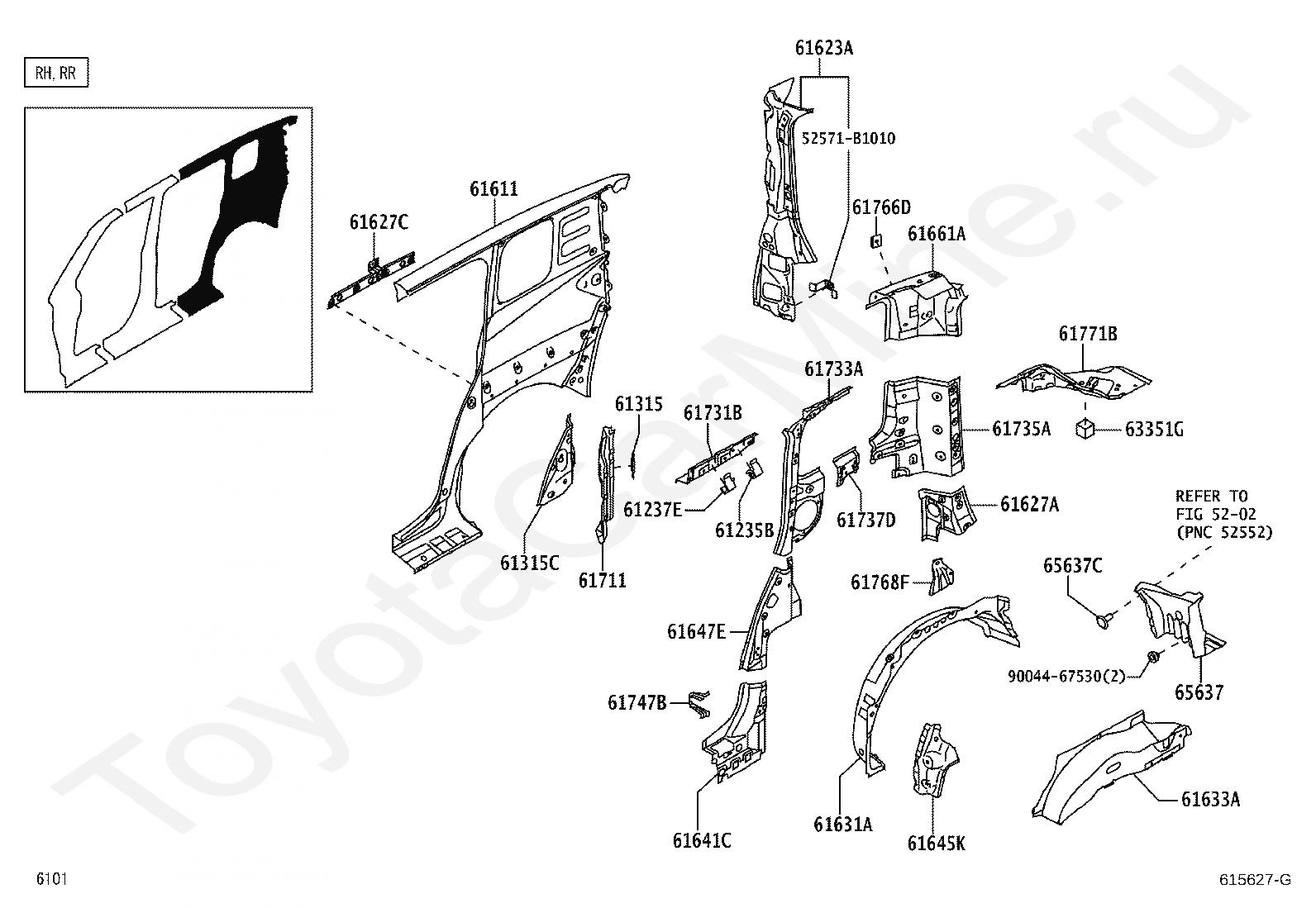

61235B

BRACKET, ASSIST GRIP

61237E

BRACKET, ASSIST GRIP, NO.1

61315

RETAINER, DOOR LOCK STRIKER PLATE

61315C

RETAINER, DOOR LOCK STRIKER, RH

61611

PANEL, QUARTER, RH

61623A

EXTENSION, QUARTER PANEL, OUTER RH

61627A

EXTENSION, QUARTER PANEL, LOWER RH

61627C

REINFORCEMENT, QUARTER INNER PANEL, RH

61631A

PANEL, QUARTER WHEEL HOUSE, OUTER RH

61633A

PANEL, QUARTER WHEEL HOUSE, INNER RH

61641C

GUSSET, QUARTER WHEEL HOUSE, FRONT RH

61645K

GUSSET, QUARTER WHEEL HOUSE INNER, RH

61647E

REINFORCEMENT, QUARTER PANEL, LOWER RH

61661A

EXTENSION, QUARTER PANEL TO UPPER BACK, RH

61711

PANEL, ROOF SIDE, OUTER RH

61731B

PANEL, ROOF SIDE, INNER RH

61733A

PANEL, ROOF SIDE, INNER FRONT RH

61735A

PANEL, ROOF SIDE, INNER REAR RH

61737D

REINFORCEMENT, ROOF SIDE, INNER RH

61747B

REINFORCEMENT, ROOF SIDE, INNER REAR, RH

61766D

REINFORCE, BELT ANCHOR TO QUARTER, INNER NO.1 RH

61768F

REINFORCE, BELT ANCHOR TO QUARTER, INNER LOWER RH

61771B

FRAME, BACK DOOR OPENING UPPER CORNER, RH

63351G

PAD, ROOF HEADLINING, NO.1

65637

LINER, REAR WHEEL HOUSE, RH

65637C

CLIP, REAR WHEEL HOUSE LINER

9004467530

Крепеж

Код

Описание

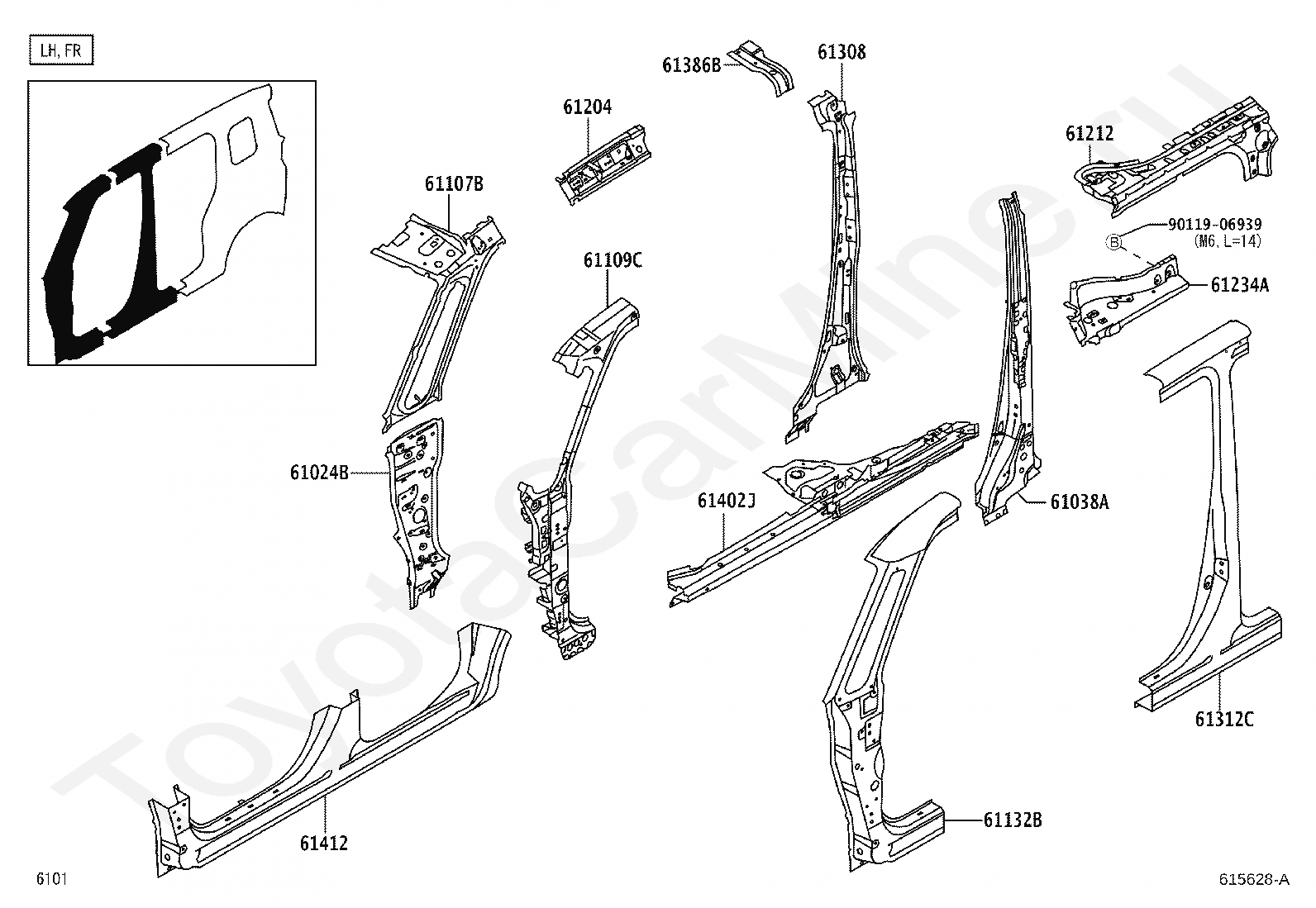

61024B

PILLAR SUB-ASSY, FRONT BODY, INNER LH

61038A

REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

61107B

REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH

61109C

REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH

61132B

PILLAR, FRONT BODY, OUTER LH

61204

RAIL SUB-ASSY, ROOF SIDE, INNER LH

61212

RAIL, ROOF SIDE, OUTER LH

61234A

RAIL, ROOF SIDE, INNER NO.2 LH

61308

PILLAR SUB-ASSY, CENTER BODY, INNER LH

61312C

PANEL, REAR BODY FRONT OUTSIDE, LH

61386B

EXTENSION, CENTER BODY PILLAR, INNER LH

61402J

PANEL SUB-ASSY, ROCKER, INNER LH

61412

PANEL, ROCKER, OUTER LH

9011906939

Крепеж

Код

Описание

5202

переход к группе запчастей

52571B1010

Крепеж

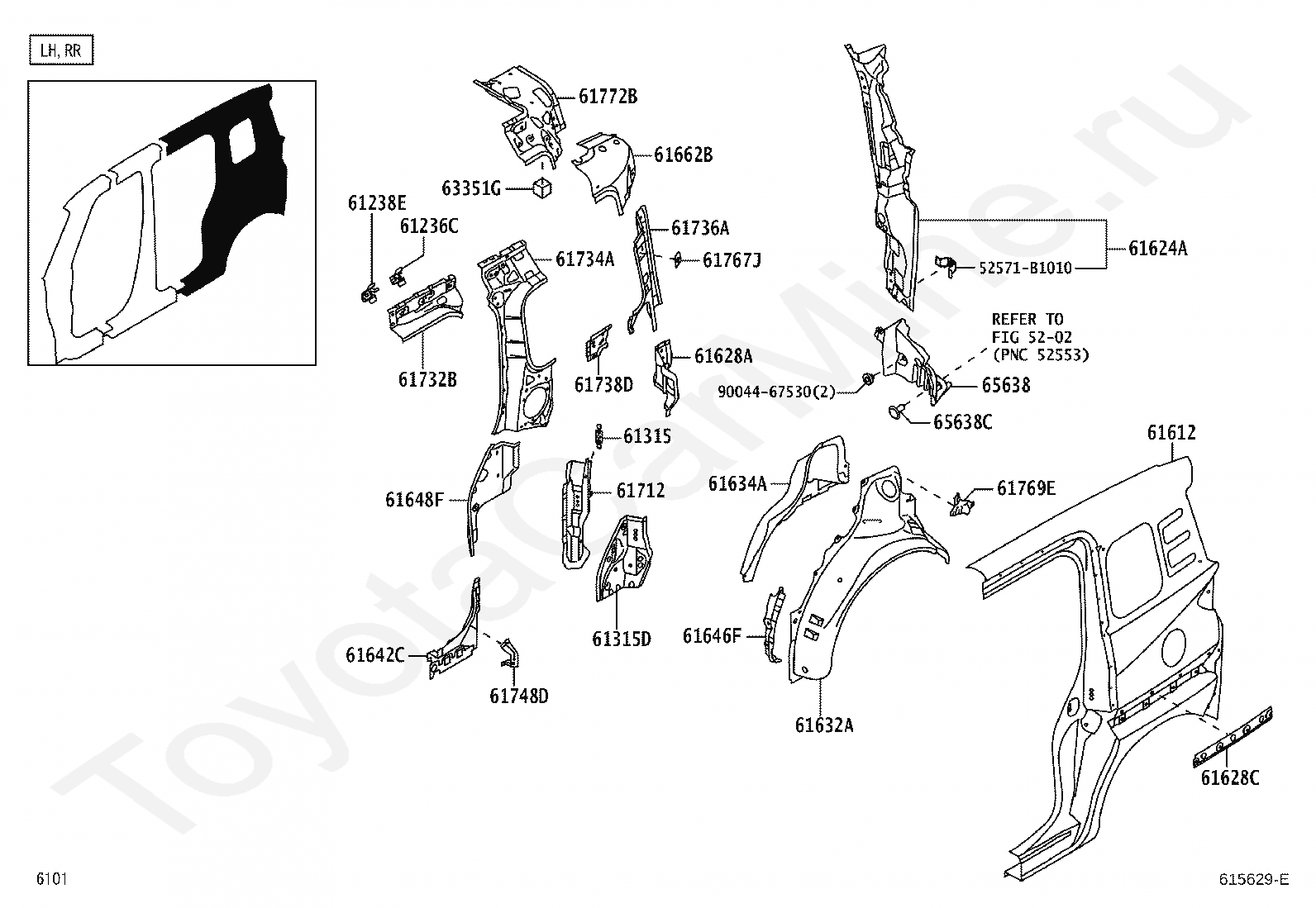

61236C

BRACKET, ASSIST GRIP

61238E

BRACKET, ASSIST GRIP, NO.2

61315

RETAINER, DOOR LOCK STRIKER PLATE

61315D

RETAINER, DOOR LOCK STRIKER, LH

61612

PANEL, QUARTER, LH

61624A

EXTENSION, QUARTER PANEL, OUTER LH

61628A

EXTENSION, QUARTER PANEL, LOWER LH

61628C

REINFORCEMENT, QUARTER INNER PANEL, LH

61632A

PANEL, QUARTER WHEEL HOUSE, OUTER LH

61634A

PANEL, QUARTER WHEEL HOUSE, INNER LH

61642C

GUSSET, QUARTER WHEEL HOUSE, FRONT LH

61646F

GUSSET, QUARTER WHEEL HOUSE INNER, LH

61648F

REINFORCEMENT, QUARTER PANEL, LOWER LH

61662B

EXTENSION, QUARTER PANEL TO UPPER BACK, LH

61712

PANEL, ROOF SIDE, OUTER LH

61732B

PANEL, ROOF SIDE, INNER LH

61734A

PANEL, ROOF SIDE, INNER FRONT LH

61736A

PANEL, ROOF SIDE, INNER REAR LH

61738D

REINFORCEMENT, ROOF SIDE, INNER LH

61748D

REINFORCEMENT, ROOF SIDE, INNER REAR LH

61767J

REINFORCE, BELT ANCHOR TO QUARTER, INNER NO.1 LH

61769E

REINFORCEMENT, BELT ANCHOR TO QUARTER, INNER LOWER LH

61772B

FRAME, BACK DOOR OPENING UPPER CORNER, LH

63351G

PAD, ROOF HEADLINING, NO.1

65638

LINER, REAR WHEEL HOUSE, LH

65638C

CLIP, REAR WHEEL HOUSE LINER

9004467530

Крепеж

Боковая панель кузова TOYOTA TANK/ROOMY
