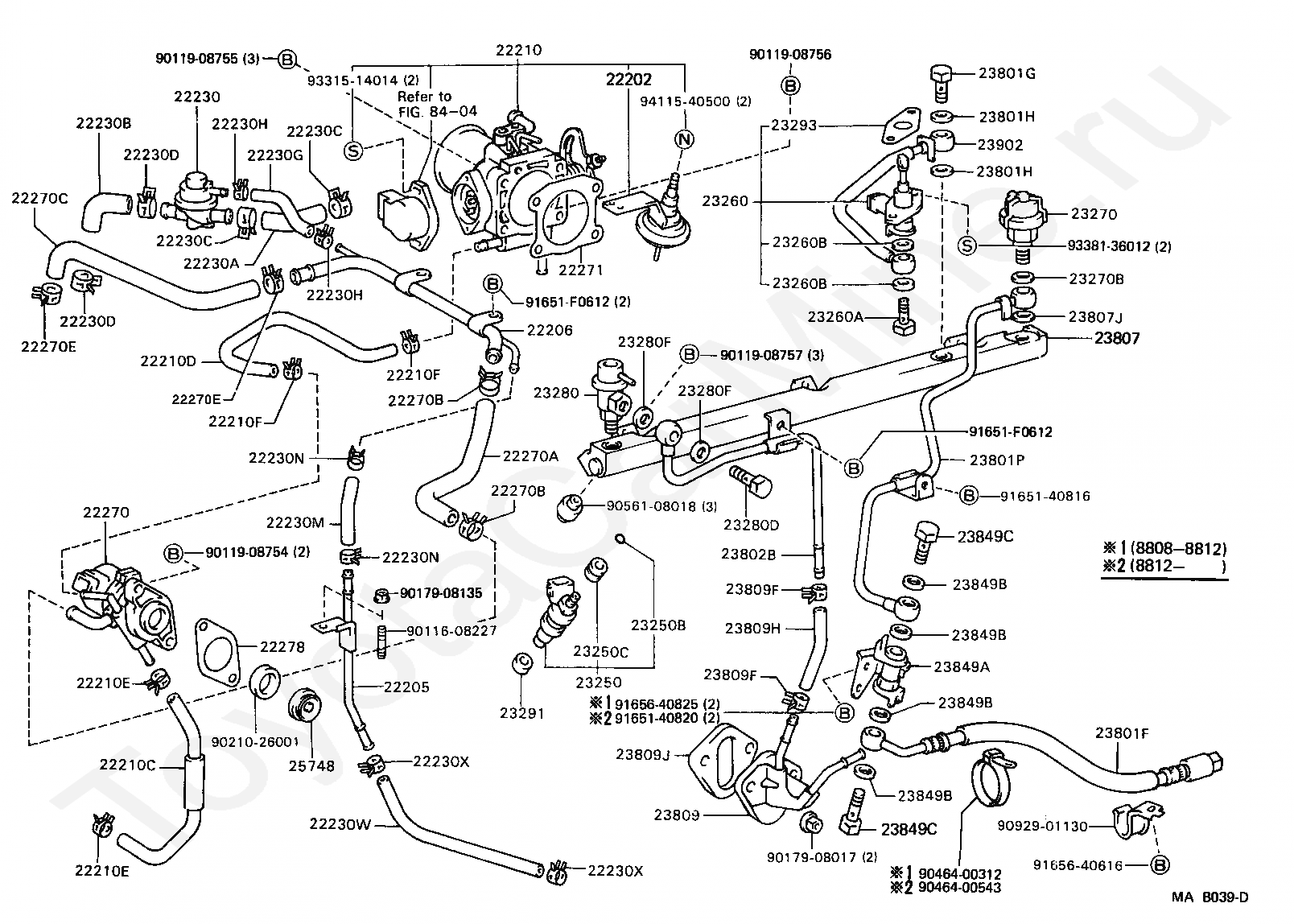

22205
PIPE SUB-ASSY, AUXILIARY AIR
22206
PIPE SUB-ASSY, IDLE SPEED CONTROL
22210
BODY ASSY, THROTTLE
22210C
HOSE, WATER BY-PASS, NO.1
22210D
HOSE, WATER BY-PASS, NO.2
22210E
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
22210E
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
22210F
CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
22210F
CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
22230
VALVE ASSY, AUXILIARY AIR
22230A
HOSE, AUXILIARY AIR VALVE, NO.1
22230B
HOSE, AUXILIARY AIR VALVE, NO.2
22230C
CLIP, AUXILIARY AIR VALVE HOSE, NO.1
22230C
CLIP, AUXILIARY AIR VALVE HOSE, NO.1
22230D
CLIP, AUXILIARY AIR VALVE HOSE, NO.2
22230D
CLIP, AUXILIARY AIR VALVE HOSE, NO.2
22230G
HOSE, AUXILIARY AIR VALVE, NO.3
22230H
CLIP, AUXILIARY AIR VALVE HOSE, NO.3
22230H
CLIP, AUXILIARY AIR VALVE HOSE, NO.3
22230M
HOSE, AUXILIARY AIR VALVE, NO.4
22230N
CLIP, AUXILIARY AIR VALVE, NO.4
22230N
CLIP, AUXILIARY AIR VALVE, NO.4
22230W
HOSE, AUXILIARY AIR VALVE, NO.5
22230X
CLIP, AUXILIARY AIR VALVE, NO.5
22230X
CLIP, AUXILIARY AIR VALVE, NO.5
22270
VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270A
HOSE, AIR, NO.1(FOR IDLE SPEED CONTROL VALVE)
22270B
CLIP(FOR AIR HOSE)
22270B
CLIP(FOR AIR HOSE)
22270C
HOSE, AIR, NO.2(FOR IDLE SPEED CONTROL VALVE)
22270E
CLIP(FOR AIR HOSE NO.2)
22270E
CLIP(FOR AIR HOSE NO.2)
22271
GASKET, THROTTLE BODY
22278
GASKET, IDLE SPEED CONTROL VALVE
23250
INJECTOR ASSY, FUEL
23250B
RING, O(FOR FUEL INJECTOR)
23250C
GROMMET(FOR FUEL INJECTOR)
23260
INJECTOR ASSY, COLD START FUEL
23270
DAMPER ASSY, FUEL PRESSURE PULSATION
23270B
GASKET(FOR PULSATION DAMPER HOSE)
23280
REGULATOR ASSY, FUEL PRESSURE
23280D
BOLT, UNION(FOR FUEL PIPE OR HOSE SET)
23280F
GASKET(FOR FUEL PRESSURE REGULATOR)
23280F
GASKET(FOR FUEL PRESSURE REGULATOR)
23291
INSULATOR, INJECTOR VIBRATION
23293
GASKET, COLD START INJECTOR
23801G
BOLT, UNION(FOR FUEL PIPE)
23801H
GASKET(FOR FUEL PIPE)
23801H
GASKET(FOR FUEL PIPE)
23801P
PIPE SUB-ASSY, FUEL, NO.1
23802B
PIPE SUB-ASSY, FUEL, NO.2
23807
PIPE SUB-ASSY, FUEL DELIVERY
23807J
GASKET, PIPE FUEL DELIVARY INLET
23809
SUPPORT SUB-ASSY, FUEL PIPE
23809F
CLIP(FOR FUEL PIPE SUPPORT)
23809F
CLIP(FOR FUEL PIPE SUPPORT)
23809H
HOSE, FUEL PIPE SUPPORT TO REGULATOR
23809J
INSULATOR, FUEL PIPE SUPPORT
23849A
SUPPORT, FUEL PIPE
23849B
GASKET(FOR FUEL PIPE SUPPORT)
23849B
GASKET(FOR FUEL PIPE SUPPORT)
23849B
GASKET(FOR FUEL PIPE SUPPORT)
23849B
GASKET(FOR FUEL PIPE SUPPORT)
23849C
BOLT, UNION(FOR FUEL PIPE SUPPORT)
23849C
BOLT, UNION(FOR FUEL PIPE SUPPORT)
23902
TUBE SUB-ASSY, FUEL
25748
VALVE, CHECK(FOR IDLE SPEED CONTROL)
