Европа

Модель

SUPRA

VIN

Дата

1986/01

Двигатель

3 литра, 24 клапана, DOHC, EFI

Кузов

POUNDS

Фрейм

MA70

КПП

автомат АКПП, 4 ступени

Опции

левый руль TWIN CAM Европа Швеция или Швейцария

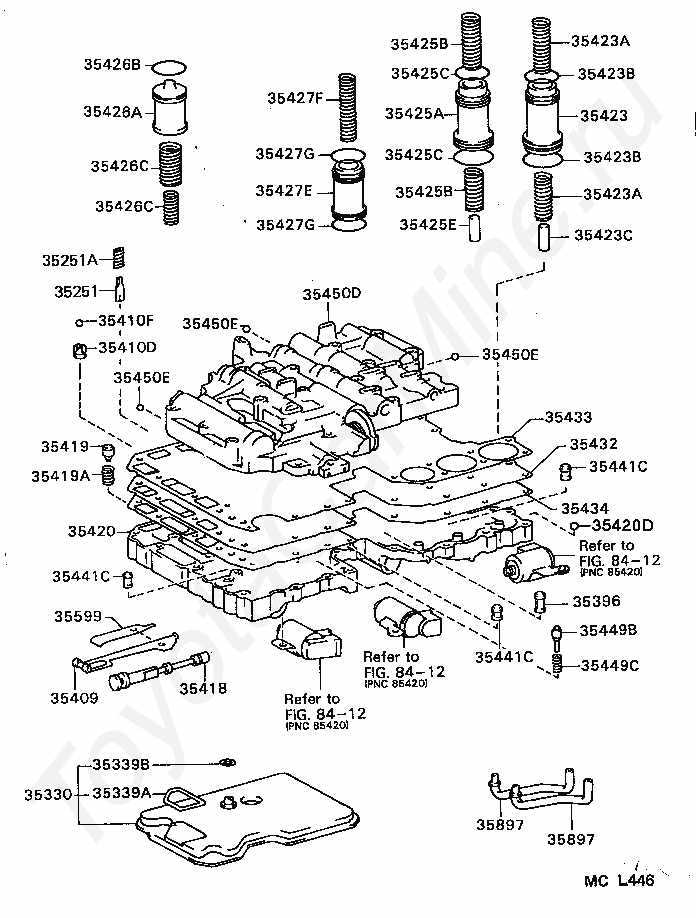

VALVE BODY & OIL STRAINER (ATM) TOYOTA SUPRA







Код

Описание

35251

BODY, CHECK BALL

35251A

SPRING, COMPRESSION (FOR CHECK BALL BODY)

35330

STRAINER ASSY, VALVE BODY OIL

35339A

GASKET, OIL STRAINER, NO.1

35339B

GASKET, OIL STRAINER, NO.2

35396

STRAINER, THROTTLE OIL

35409

SPRING SUB-ASSY, MANUAL DETENT

35410D

VALVE, CHECK

35410F

BALL (FOR CHECK VALVE)

35418

VALVE, MANUAL

35419

VALVE, CHECK, NO.1

35419A

SPRING, COMPRESSION (FOR CHECK VALVE)

35420

BODY ASSY, LOWER VALVE

35420D

BALL (FOR LOWER VALVE BODY)

35423

PISTON, B-2 ACCUMULATOR

35423A

SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)

35423A

SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)

35423B

RING, O (FOR B-2 ACCUMULATOR PISTON)

35423B

RING, O (FOR B-2 ACCUMULATOR PISTON)

35423C

PIN, STRAIGHT (FOR B-2 ACCUMULATOR PISTON)

35425A

PISTON, C-2 ACCUMULATOR

35425B

SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

35425B

SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

35425C

RING, O (FOR C-2 ACCUMULATOR PISTON)

35425C

RING, O (FOR C-2 ACCUMULATOR PISTON)

35425E

PIN, STRAIGHT (FOR C-2 ACCUMULATOR PISTON)

35426A

PISTON, C-0 ACCUMULATOR

35426B

RING, O (FOR C-0 ACCUMULATOR PISTON)

35426C

SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON)

35426C

SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON)

35427E

PISTON, B-0 ACCUMULATOR

35427F

SPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON)

35427G

RING, O (FOR B-0 ACCUMULATOR PISTON)

35427G

RING, O (FOR B-0 ACCUMULATOR PISTON)

35432

PLATE, VALVE BODY, NO.1

35433

GASKET, VALVE BODY, NO.1

35434

GASKET, VALVE BODY, NO.2

35441C

STRAINER, SOLENOID OIL

35441C

STRAINER, SOLENOID OIL

35441C

STRAINER, SOLENOID OIL

35449B

VALVE, PRESSURE RELIEF

35449C

SPRING, COMPRESSION (FOR VALVE PRESSURE RELIEF)

35450D

BODY ASSY, UPPER VALVE

35450E

BALL (FOR UPPER VALVE BODY)

35450E

BALL (FOR UPPER VALVE BODY)

35450E

BALL (FOR UPPER VALVE BODY)

35599

COVER, MANUAL DETENT SPRING

35897

TUBE, 1ST & REVERSE BRAKE

35897

TUBE, 1ST & REVERSE BRAKE

8412

переход к группе запчастей

8412

переход к группе запчастей

8412

переход к группе запчастей

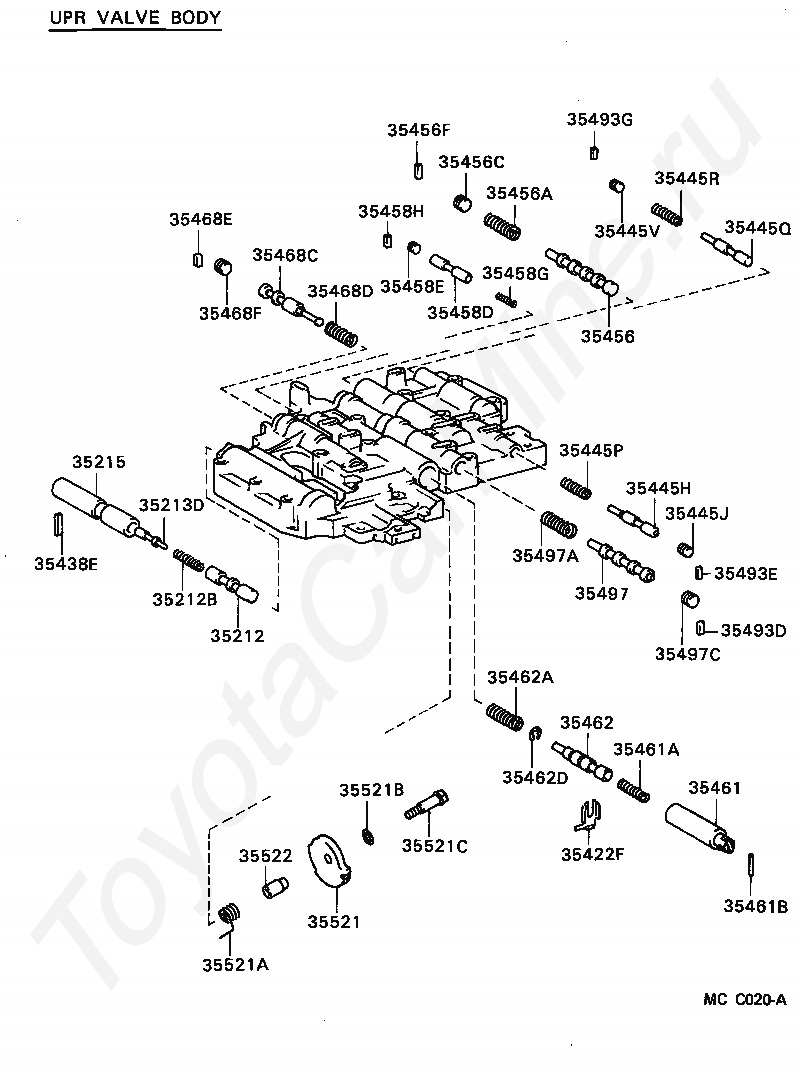

Код

Описание

35212

VALVE, LOCK UP RELAY

35212B

SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE)

35213D

PLUNGER, LOCK UP RELAY VALVE

35215

SLEEVE, LOCK UP RELAY VALVE

35422F

STOPPER, VALVE VIBRATING

35438E

SEAT, LOCK UP RELAY VALVE SPRING

35445H

VALVE, 2ND COAST MODULATOR

35445J

PLUG (FOR 2ND COAST MODULATOR VALVE)

35445P

SPRING, COMPRESSION (FOR 2ND COAST MODULATOR VALVE)

35445Q

VALVE, LOW COAST MODULATOR

35445R

SPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE)

35445V

PLUG (FOR LOW COAST MODULATOR VALVE)

35456

VALVE, 2-3 SHIFT

35456A

SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)

35456C

PLUG (FOR 2-3 SHIFT VALVE)

35456F

KEY, STRAIGHT (FOR 2-3 SHIFT VALVE)

35458D

VALVE, CUT BACK

35458E

PLUG (FOR CUT BACK VALVE)

35458G

SPRING, COMPRESSION (FOR CUT BACK VALVE)

35458H

KEY, STRAIGHT (FOR CUT BACK VALVE)

35461

PLUG, DOWN SHIFT

35461A

SPRING, COMPRESSION (FOR DOWN SHIFT PLUG)

35461B

PIN, STRAIGHT (FOR DOWN SHIFT PLUG)

35462

VALVE, THROTTLE

35462A

SPRING, COMPRESSION (FOR THROTTLE VALVE)

35462D

RING, E (FOR THROTTLE VALVE)

35468C

VALVE, SECONDARY REGULATOR

35468D

SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)

35468E

KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE)

35468F

PLUG (FOR SECONDARY REGULATOR VALVE)

35493D

SEAT, 3-4 SHIFT VALVE PLUG

35493E

SEAT, 2ND COAST MODULATOR VALVE PLUG

35493G

SEAT, LOW COAST MODULATOR VALVE PLUG

35497

VALVE, 3-4 SHIFT

35497A

SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE)

35497C

PLUG (FOR 3-4 SHIFT VALVE)

35521

CAM, THROTTLE VALVE

35521A

SPRING (FOR THROTTLE VALVE CAM RETURN)

35521B

WASHER (FOR THROTTLE VALVE CAM SET)

35521C

BOLT (FOR THROTTLE VALVE CAM SET)

35522

PIN, THROTTLE VALVE CAM

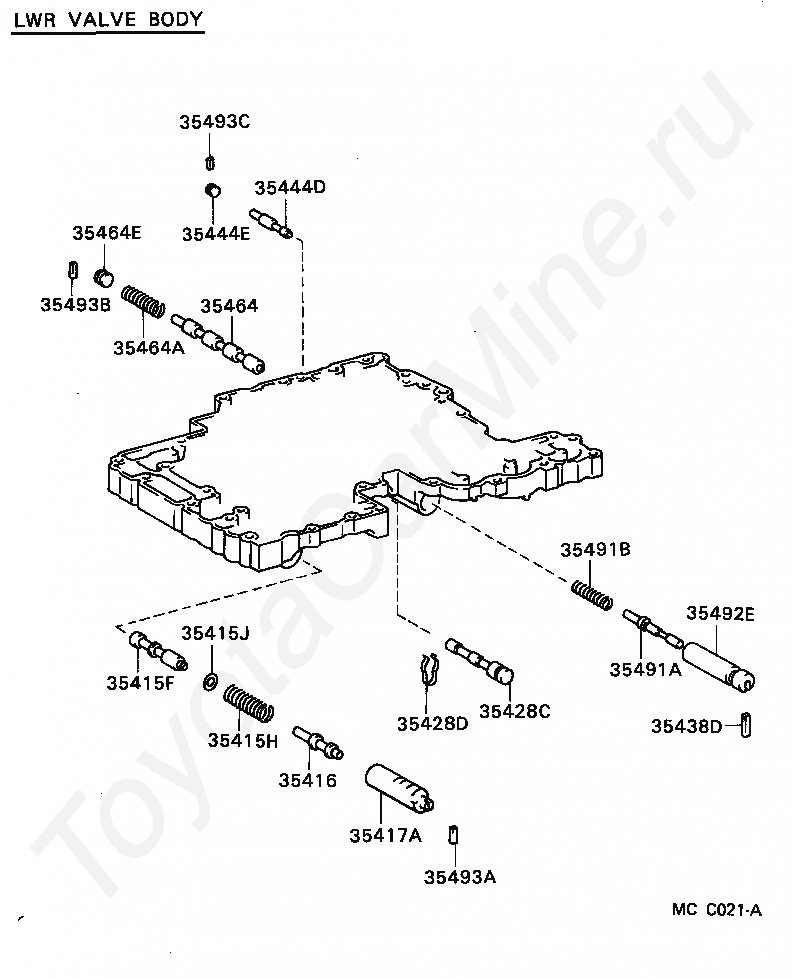

Код

Описание

35415F

VALVE, PRIMARY REGULATOR

35415H

SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE)

35415J

WASHER (FOR PRIMARY REGULATOR VALVE)

35416

PLUNGER, PRIMARY REGULATOR VALVE, NO.1

35417A

SLEEVE, PRIMARY REGULATOR VALVE

35428C

PLUG, PRESSURE REDUCING

35428D

CLIP (FOR PRESSURE REDUCING PLUG)

35438D

SEAT, ACCUMULATOR CONTROL VALVE SPRING

35444D

VALVE, RELEASE CONTROL

35444E

PLUG (FOR RELEASE CONTROL VALVE)

35464

VALVE, 1-2 SHIFT

35464A

SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE)

35464E

PLUG (FOR 1-2 SHIFT VALVE)

35491A

VALVE, ACCUMULATOR CONTROL, NO.1

35491B

SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1)

35492E

SLEEVE, ACCUMULATOR CONTROL VALVE

35493A

SEAT, PRIMARY REGULATOR VALVE PLUG

35493B

SEAT, 1-2 SHIFT VALVE PLUG

35493C

SEAT, RELEASE CONTROL VALVE PLUG

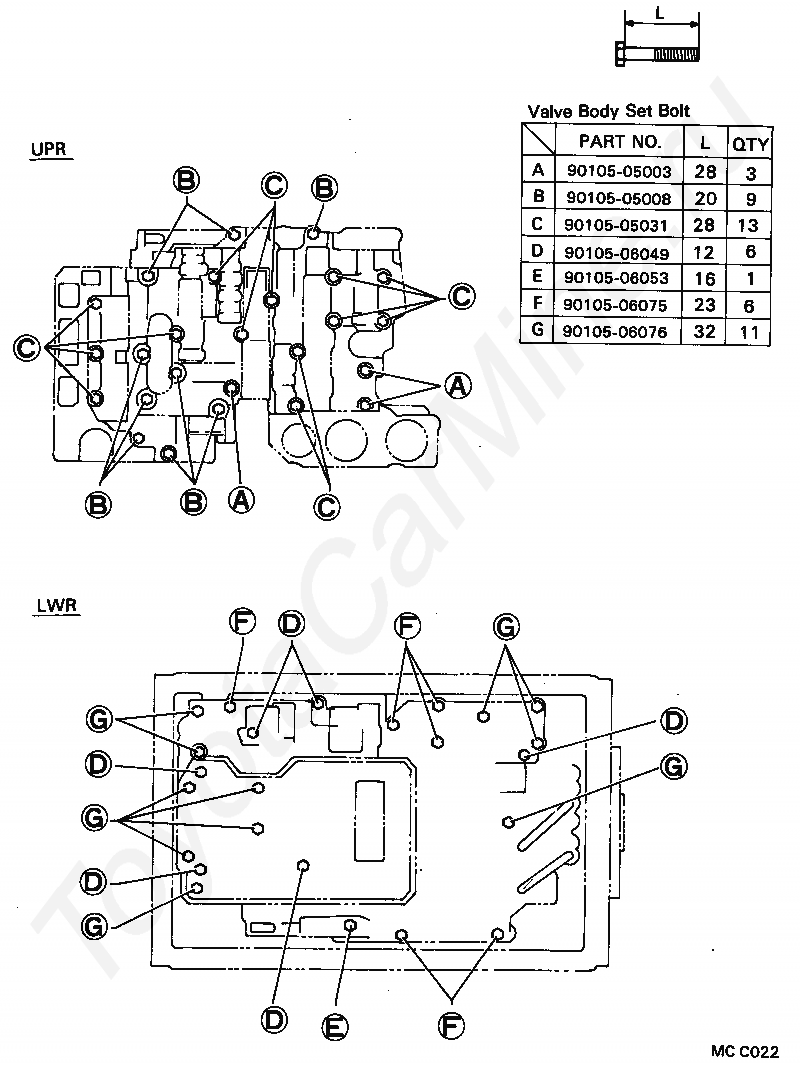

Код

Описание

9010505003

Крепеж

9010505008

Крепеж

9010505031

Крепеж

9010506049

Крепеж

9010506053

Крепеж

9010506075

Крепеж

9010506076

Крепеж
