Европа

Модель

SUPRA

VIN

Дата

1993/05

Двигатель

3 литра, 24 клапана, DOHC, EFI

Кузов

POUNDS

Фрейм

JZA80

КПП

механика МКПП, 5 скоростей

Опции

левый руль GENERAL COUNTRIES

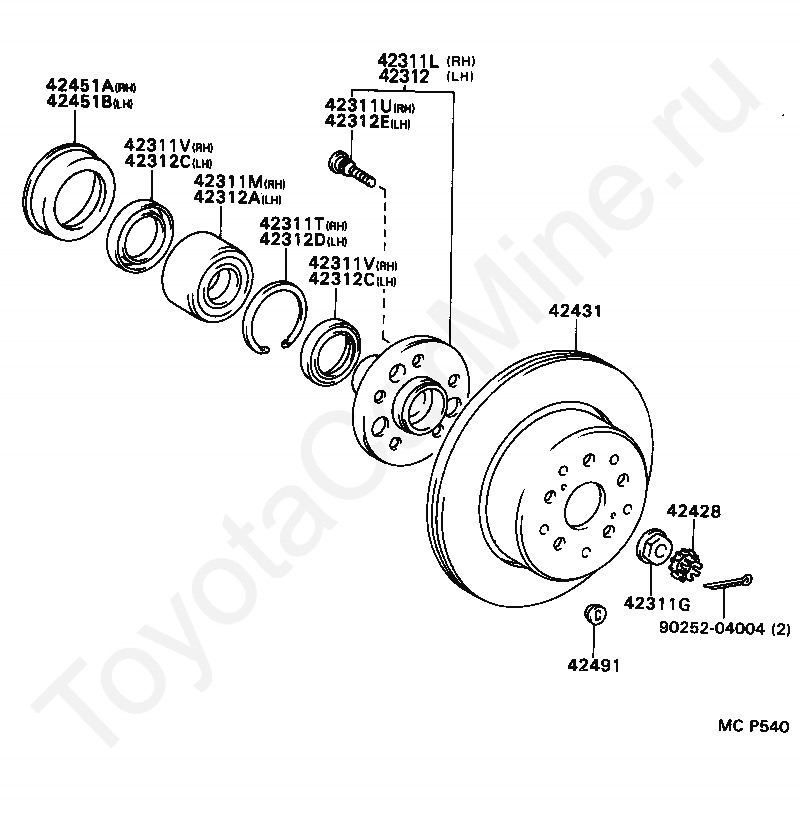

Задняя ступица и тормозной диск TOYOTA SUPRA

Код

Описание

42311G

NUT (FOR REAR AXLE SHAFT)

42311L

SHAFT, REAR AXLE, RH

42311M

BEARING (FOR REAR AXLE SHAFT RH)

42311T

RING, SNAP (FOR REAR AXLE SHAFT RH)

42311U

BOLT, HUB (FOR REAR AXLE RH)

42311V

SEAL, OIL (FOR REAR AXLE SHAFT RH)

42311V

SEAL, OIL (FOR REAR AXLE SHAFT RH)

42312

SHAFT, REAR AXLE, LH

42312A

BEARING (FOR REAR AXLE SHAFT LH)

42312C

SEAL, OIL (FOR REAR AXLE SHAFT LH)

42312C

SEAL, OIL (FOR REAR AXLE SHAFT LH)

42312D

RING, SNAP (FOR REAR AXLE SHAFT LH)

42312E

BOLT, HUB (FOR REAR AXLE LH)

42428

PLATE, REAR AXLE LOCK NUT

42431

DISC, REAR

42451A

DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH

42451B

DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH

42491

PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

9025204004

Крепеж

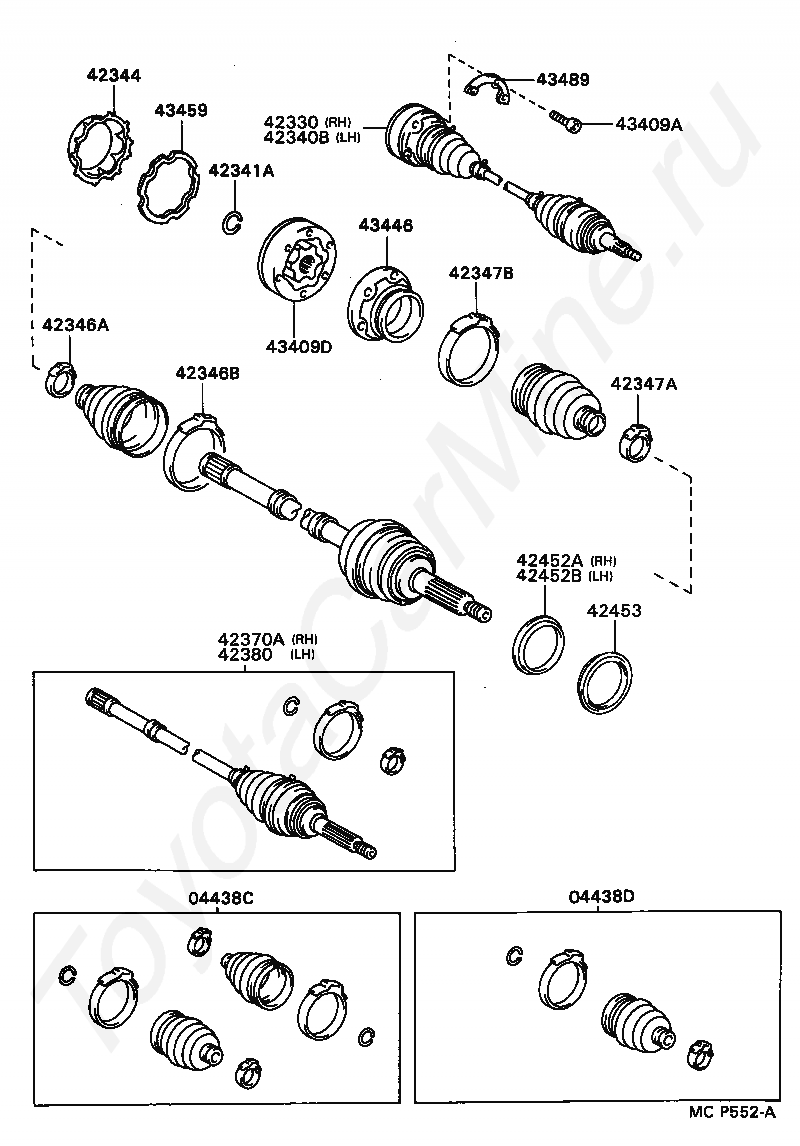

Код

Описание

04438C

BOOT KIT, REAR DRIVE SHAFT

04438D

BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT

42330

SHAFT ASSY, REAR DRIVE, RH

42340B

SHAFT ASSY, REAR DRIVE, LH

42341A

RING, SNAP (FOR REAR DRIVE SHAFT)

42344

COVER, REAR AXLE INBOARD JOINT END

42346A

CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)

42346B

CLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)

42347A

CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

42347B

CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

42370A

SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH

42380

SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH

42452A

DEFLECTER, REAR WHEEL BEARING DUST, NO.2 RH

42452B

DEFLECTER, REAR WHEEL BEARING DUST, NO.2 LH

43409A

BOLT (FOR REAR DRIVE SHAFT CROSS GROOVE JOINT)

43409D

JOINT SUB-ASSY, REAR DRIVE SHAFT CROSS GROOVE

43446

COVER, REAR AXLE INBOARD JOINT

43459

GASKET, REAR AXLE INBOARD JOINT END COVER

43489

WASHER, REAR DRIVE SHAFT CROSS GROOVE JOINT

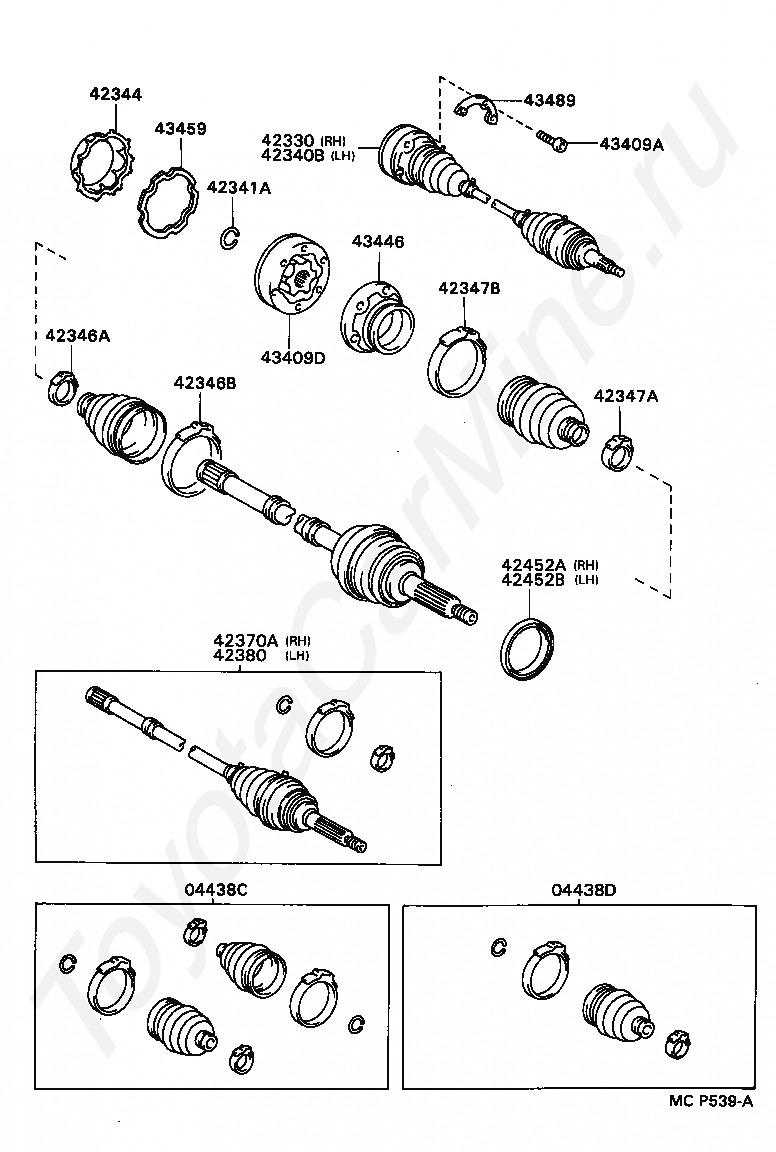

Код

Описание

04438C

BOOT KIT, REAR DRIVE SHAFT

04438D

BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT

42330

SHAFT ASSY, REAR DRIVE, RH

42340B

SHAFT ASSY, REAR DRIVE, LH

42341A

RING, SNAP (FOR REAR DRIVE SHAFT)

42344

COVER, REAR AXLE INBOARD JOINT END

42346A

CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)

42346B

CLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)

42347A

CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

42347B

CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

42370A

SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH

42380

SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH

42452A

DEFLECTER, REAR WHEEL BEARING DUST, NO.2 RH

42452B

DEFLECTER, REAR WHEEL BEARING DUST, NO.2 LH

42453

DEFLECTOR, REAR WHEEL BEARING DUST, NO.3

43409A

BOLT (FOR REAR DRIVE SHAFT CROSS GROOVE JOINT)

43409D

JOINT SUB-ASSY, REAR DRIVE SHAFT CROSS GROOVE

43446

COVER, REAR AXLE INBOARD JOINT

43459

GASKET, REAR AXLE INBOARD JOINT END COVER

43489

WASHER, REAR DRIVE SHAFT CROSS GROOVE JOINT

Задняя ступица и тормозной диск TOYOTA SUPRA
