Каталог

Европа

Модель

STOUT

VIN

Дата

1988/04

Двигатель

2,2 литра

Кузов

LOW DECK (STANDARD DECK)

Фрейм

YK110

КПП

МКПП, 4 ступени

Опции

правый руль 4TH GEAR SIDE,TYPE A:REFER TO ILLUSTRATION FIG.33-01 GENERAL COUNTRIES COMPLETED VEHICLE

Кондиционер: компрессор TOYOTA STOUT

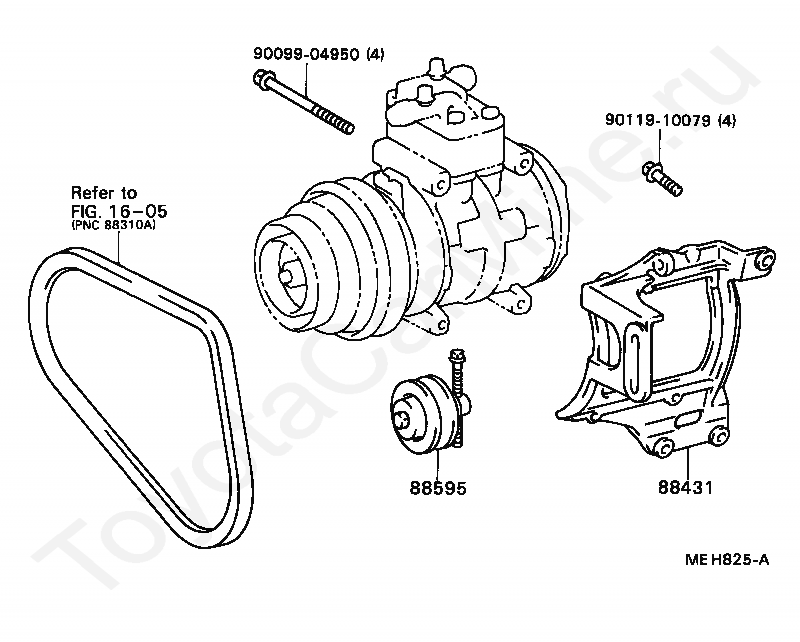

Код

Описание

1605

переход к группе запчастей

88431

BRACKET, COMPRESSOR MOUNTING, NO.1

88595

PULLEY, COOLER COMPRESSOR IDLE

9009904950

Крепеж

9011910079

Крепеж

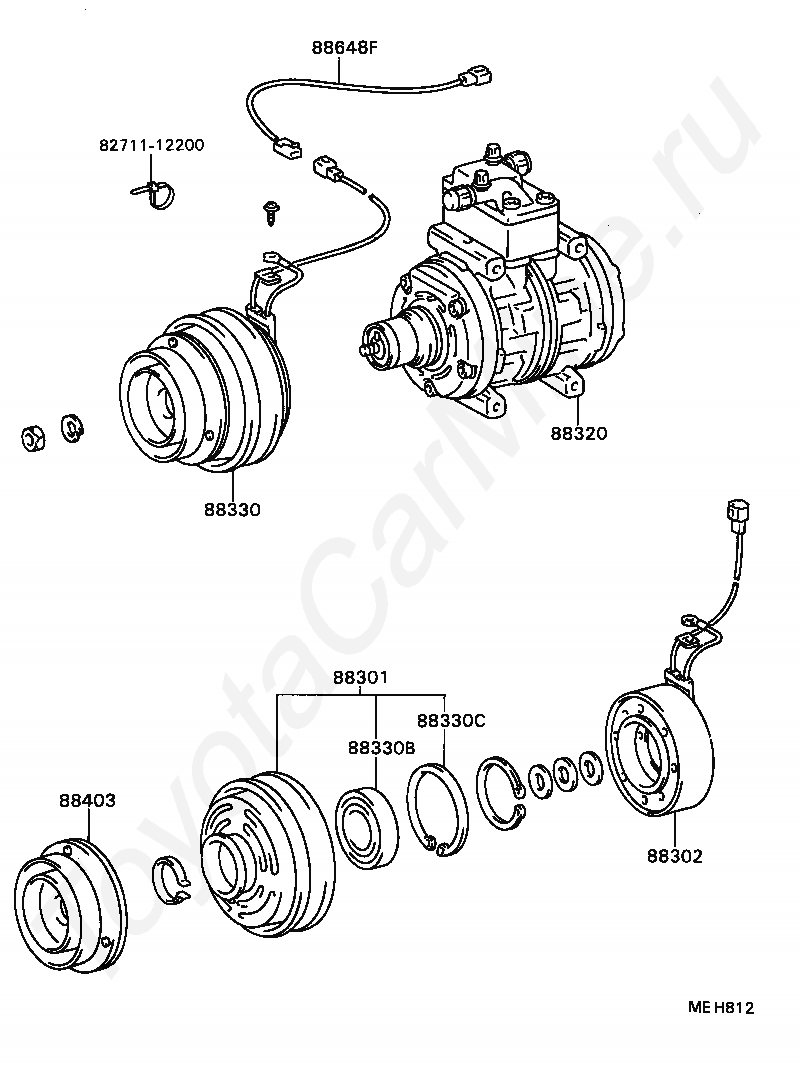

Код

Описание

8271112200

Крепеж

88301

ROTOR SUB-ASSY, MAGNET CLUTCH

88302

STATOR SUB-ASSY, MAGNET CLUTCH

88320

COMPRESSOR ASSY, COOLER

88330

CLUTCH ASSY, MAGNET

88330B

BEARING, MAGNET CLUTCH

88330C

RING, SNAP (FOR MAGNET CLUTCH)

88403

HUB SUB-ASSY, MAGNET CLUTCH

88648F

WIRE, MAGNET CLUTCH

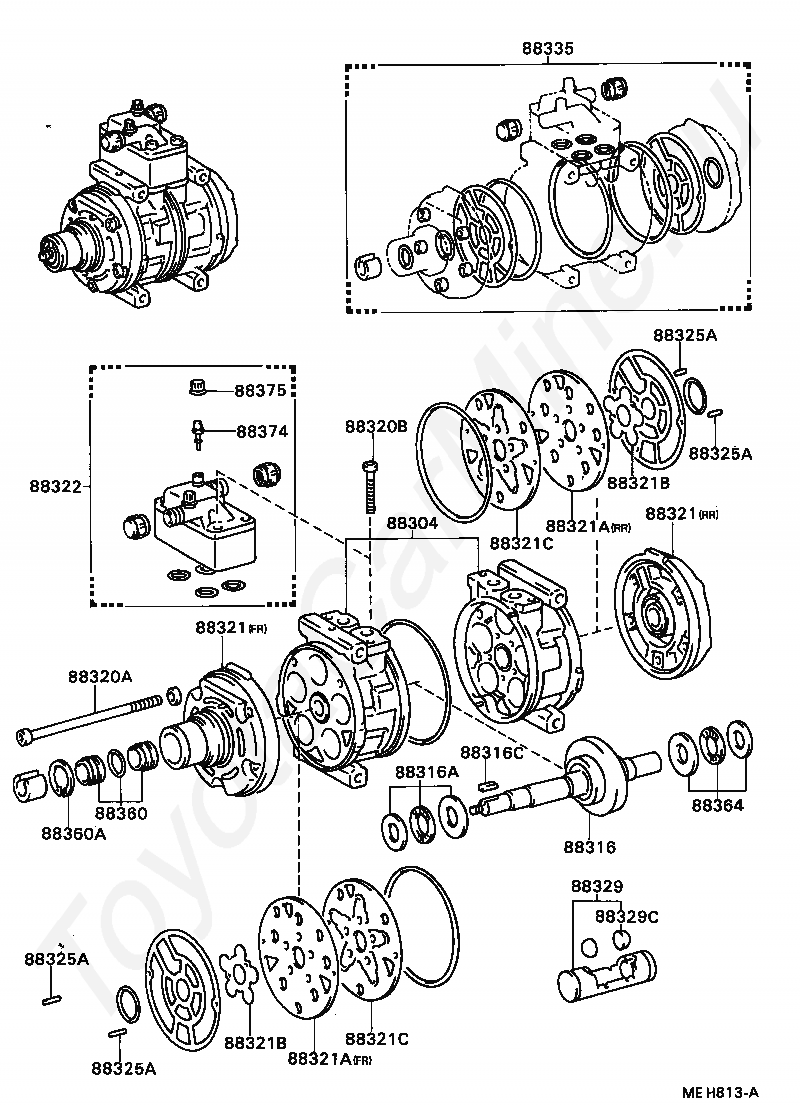

Код

Описание

88304

CYLINDER SUB-ASSY, COOLER COMPRESSOR

88316

CRANKSHAFT, COOLER COMPRESSOR

88316A

BEARING, COMPRESSOR CRANKSHAFT, FRONT

88316C

KEY, COMPRESSOR CRANKSHAFT

88320A

BOLT, THROUGH

88320B

BOLT, SERVICE VALVE

88321

HEAD, COOLER COMPRESSOR CYLINDER

88321

HEAD, COOLER COMPRESSOR CYLINDER

88321A

PLATE SUB-ASSY, VALVE

88321A

PLATE SUB-ASSY, VALVE

88321B

REED SUB-ASSY, VALVE

88321B

REED SUB-ASSY, VALVE

88321C

REED, SUCTION VALVE

88321C

REED, SUCTION VALVE

88322

VALVE, COOLER COMPRESSOR SUCTION SERVICE

88325A

PIN, CYLINDER BLOCK

88325A

PIN, CYLINDER BLOCK

88325A

PIN, CYLINDER BLOCK

88325A

PIN, CYLINDER BLOCK

88329

PISTON SUB-ASSY, COOLER COMPRESSOR

88329C

SHOE, PISTON

88335

GASKET KIT, OVERHAUL

88360

SEAL ASSY, COOLER COMPRESSOR SHAFT

88360A

RING, COMPRESSOR SEAL PLATE SNAP

88364

BEARING, COMPRESSOR CRANKSHAFT, REAR

88374

VALVE, COOLER COMPRESSOR SERVICE

88375

CAP, COOLER COMPRESSOR SERVICE VALVE

Кондиционер: компрессор TOYOTA STOUT
