Каталог

Европа

Модель

STOUT

VIN

Дата

1988/04

Двигатель

2,2 литра

Кузов

LOW DECK (STANDARD DECK)

Фрейм

YK110

КПП

МКПП, 4 ступени

Опции

правый руль 4TH GEAR SIDE,TYPE A:REFER TO ILLUSTRATION FIG.33-01 GENERAL COUNTRIES COMPLETED VEHICLE

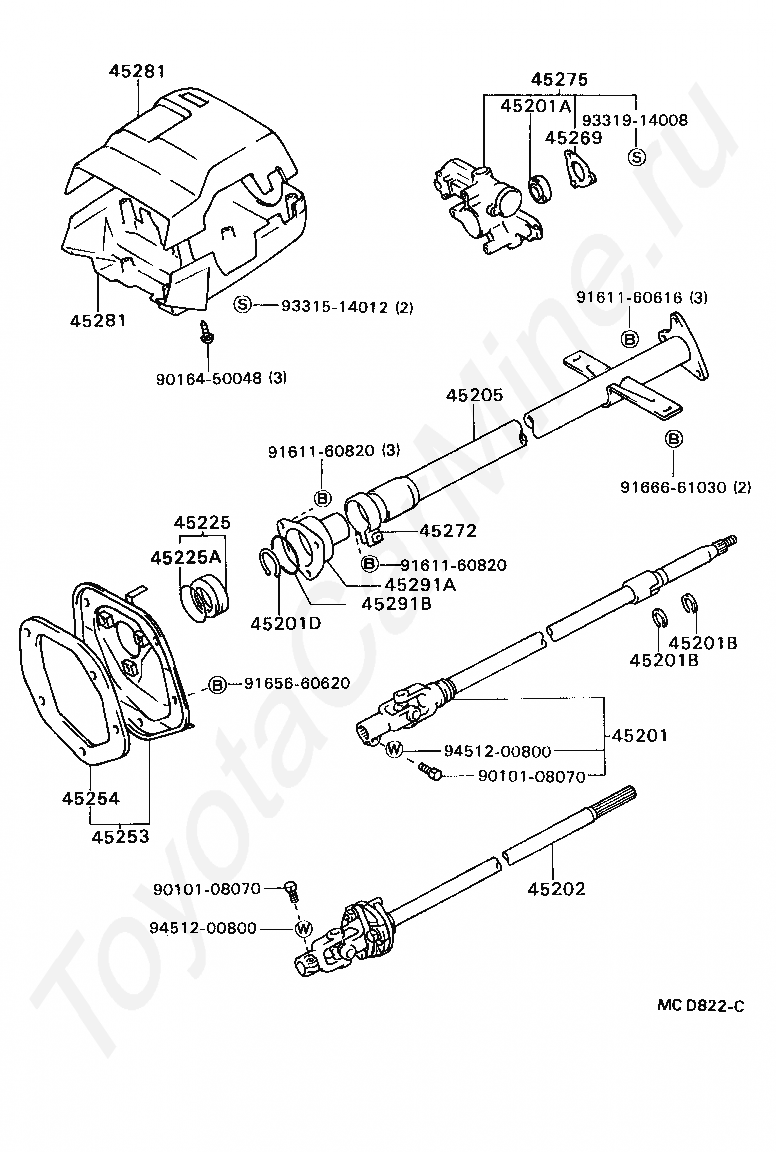

Рулевая колонка TOYOTA STOUT

Код

Описание

45201

SHAFT SUB-ASSY, STEERING MAIN

45201A

BEARING(FOR STEERING MAIN SHAFT)

45201B

RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

45201B

RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

45201D

RING(FOR STEERING MAIN SHAFT)

45202

SHAFT SUB-ASSY, STEERING INTERMEDIATE

45205

TUBE SUB-ASSY, STEERING COLUMN

45225

BLOCK, BEARING

45225A

RING, O(FOR BEARING BLOCK)

45253

COVER, STEERING COLUMN HOLE

45254

SHIELD, STEERING COLUMN HOLE

45269

RETAINER, MAIN SHAFT BEARING

45272

CLAMP, STEERING COLUMN, LOWER

45275

BRACKET, STEERING COLUMN, UPPER

45281

HOUSING, STEERING COLUMN

45281

HOUSING, STEERING COLUMN

45291A

SUPPORT, STEERING COLUMN TUBE

45291B

RING, O(FOR STEERING COLUMN TUBE SUPPORT)

9010108070

Крепеж

9010108070

Крепеж

9016450048

Крепеж

9161160616

Крепеж

9161160820

Крепеж

9161160820

Крепеж

9165660620

Крепеж

9166661030

Крепеж

9331514012

Крепеж

9331914008

Крепеж

9451200800

Крепеж

9451200800

Крепеж

Рулевая колонка TOYOTA STOUT
