Каталог

Европа

Модель

STOUT

VIN

Дата

1988/04

Двигатель

2,2 литра

Кузов

LOW DECK (STANDARD DECK)

Фрейм

YK110

КПП

МКПП, 4 ступени

Опции

правый руль 4TH GEAR SIDE,TYPE A:REFER TO ILLUSTRATION FIG.33-01 GENERAL COUNTRIES COMPLETED VEHICLE

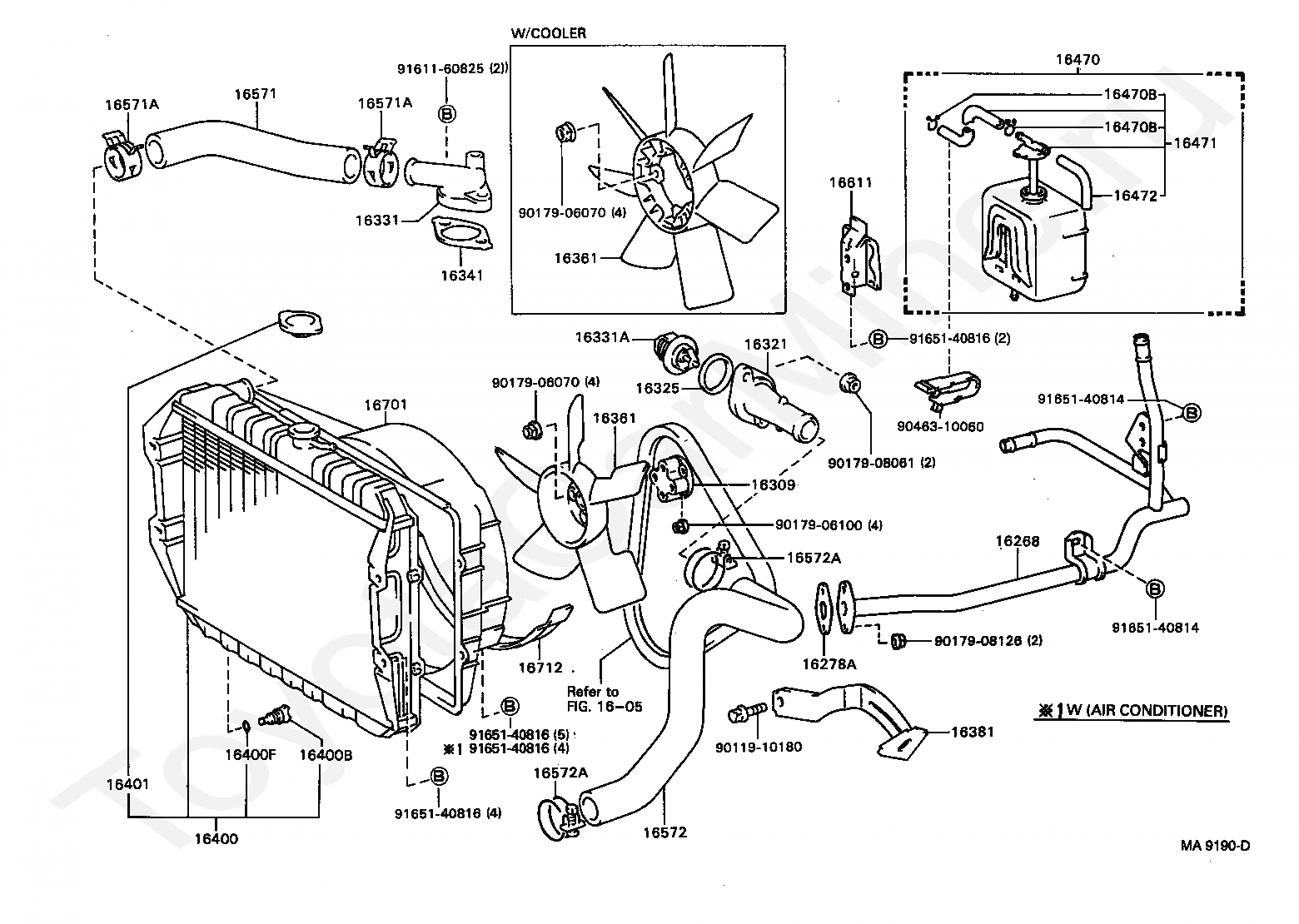

Радиатор и шланги TOYOTA STOUT

Код

Описание

1605

переход к группе запчастей

16268

PIPE, WATER BY-PASS, NO.1

16278A

GASKET, WATER BY-PASS

16309

SHAFT SUB-ASSY, FAN DRIVE

16321

INLET, WATER

16325

GASKET, WATER INLET HOUSING, NO.1

16331

OUTLET, WATER

16331A

THERMOSTAT

16341

GASKET, WATER OUTLET

16361

FAN

16361

FAN

16381

BAR, FAN BELT ADJUSTING

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16401

CAP SUB-ASSY, RADIATOR

16470

TANK ASSY, RADIATOR RESERVE

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16471

CAP SUB-ASSY, RESERVE TANK

16472

HOSE, BREATHER

16571

HOSE, RADIATOR, INLET

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16572

HOSE, RADIATOR, OUTLET

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16611

BRACKET, RADIATOR RESERVE TANK

16701

SHROUD SUB-ASSY, FAN

16712

SHROUD, FAN, NO.2

9011910180

Крепеж

9017906070

Крепеж

9017906070

Крепеж

9017906100

Крепеж

9017908061

Крепеж

9017908126

Крепеж

9046310060

Крепеж

9161160825

Крепеж

9165140814

Крепеж

9165140814

Крепеж

9165140816

Крепеж

9165140816

Крепеж

9165140816

Крепеж

9165140816

Крепеж

Радиатор и шланги TOYOTA STOUT
