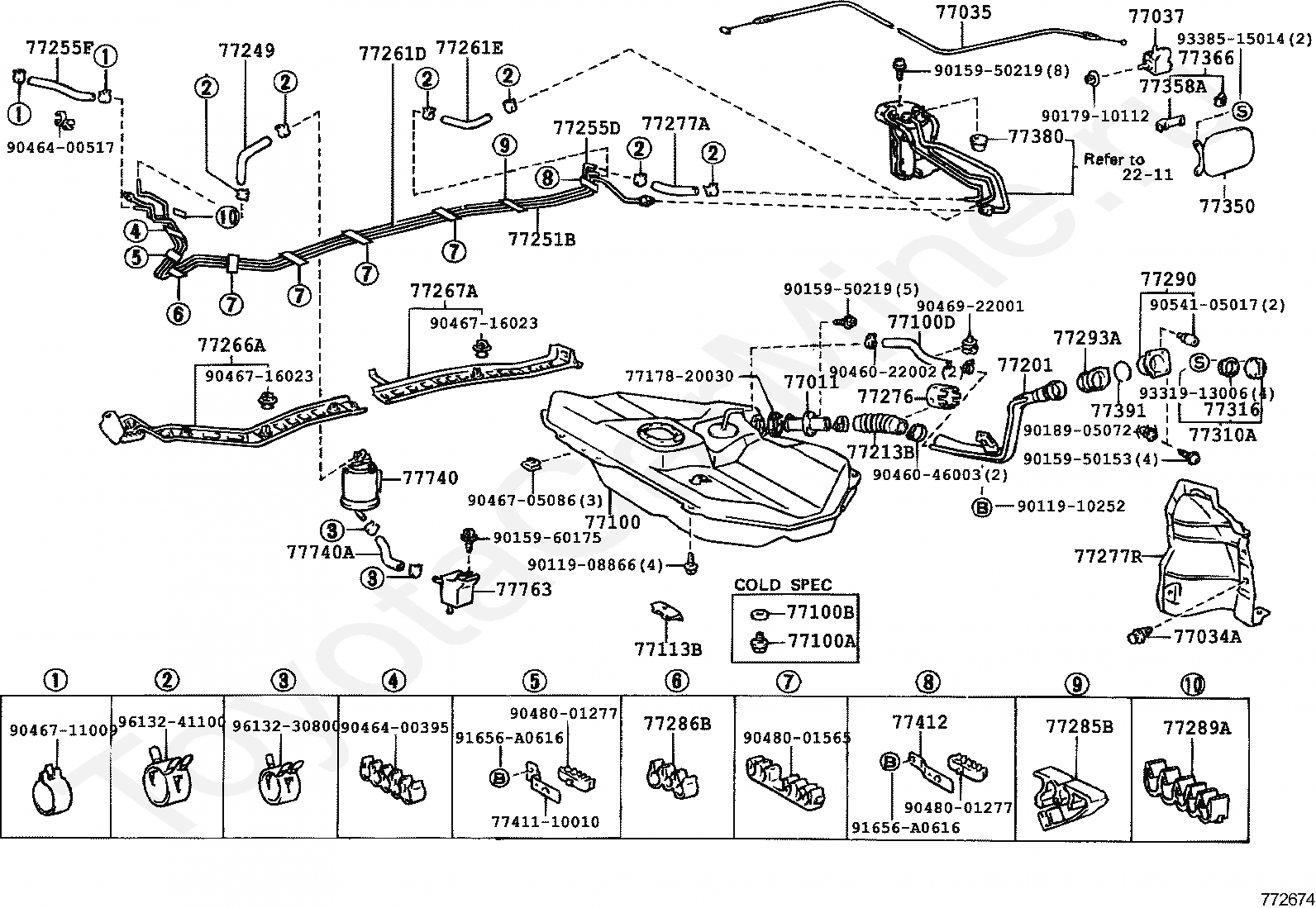

2211
переход к группе запчастей
77011
PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77034A
CRIP (FOR FUEL TANK FILLER PIPE)
77035
CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77037
LOCK SUB-ASSY, FUEL FILLER OPENING LID
77100A
PLUG(FOR FUEL TANK)
77100B
GASKET(FOR FUEL TANK)
77100D
HOSE, FUEL, NO.1(FOR FUEL TANK)
77113B
PLATE, FUEL TANK SIDE
77201
PIPE SUB-ASSY, FUEL TANK INLET
77213B
HOSE, FUEL TANK TO FILLER PIPE
77249
HOSE, FUEL EMISSION
77255F
HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
77261D
TUBE, FUEL TANK TO CANISTER
77261E
HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77266A
PROTECTOR, FUEL TUBE, NO.1
77267A
PROTECTOR, FUEL TUBE, NO.2
77276
PROTECTOR, FUEL HOSE
77277A
HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
77277R
PROTECTOR, FUEL TANK FILLER PIPE
77285B
CLAMP, FUEL TUBE W/GROMMET, NO.1
77286B
CLAMP, FUEL TUBE W/GROMMET, NO.2
77289A
CLAMP, FUEL TUBE W/GROMMET, NO.3
77290
SHIELD ASSY, FUEL TANK FILLER PIPE
77293A
SHIELD, FUEL TANK FILLER PIPE, NO.3
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77350
LID ASSY, FUEL FILLER OPENING
77358A
STOPPER, FUEL FILLER OPENING LID
77366
SPRING, FUEL FILLER OPENING LID HINGE
77380
VALVE ASSY, FUEL CUT OFF
77391
RING, FUEL INLET BOX
77412
SUPPORT, FUEL TUBE GROMMET, NO.2
77740
CANISTER ASSY, CHARCOAL
77740A
HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
77763
CASE, CHARCOAL CANISTER DRAIN
