6709
переход к группе запчастей

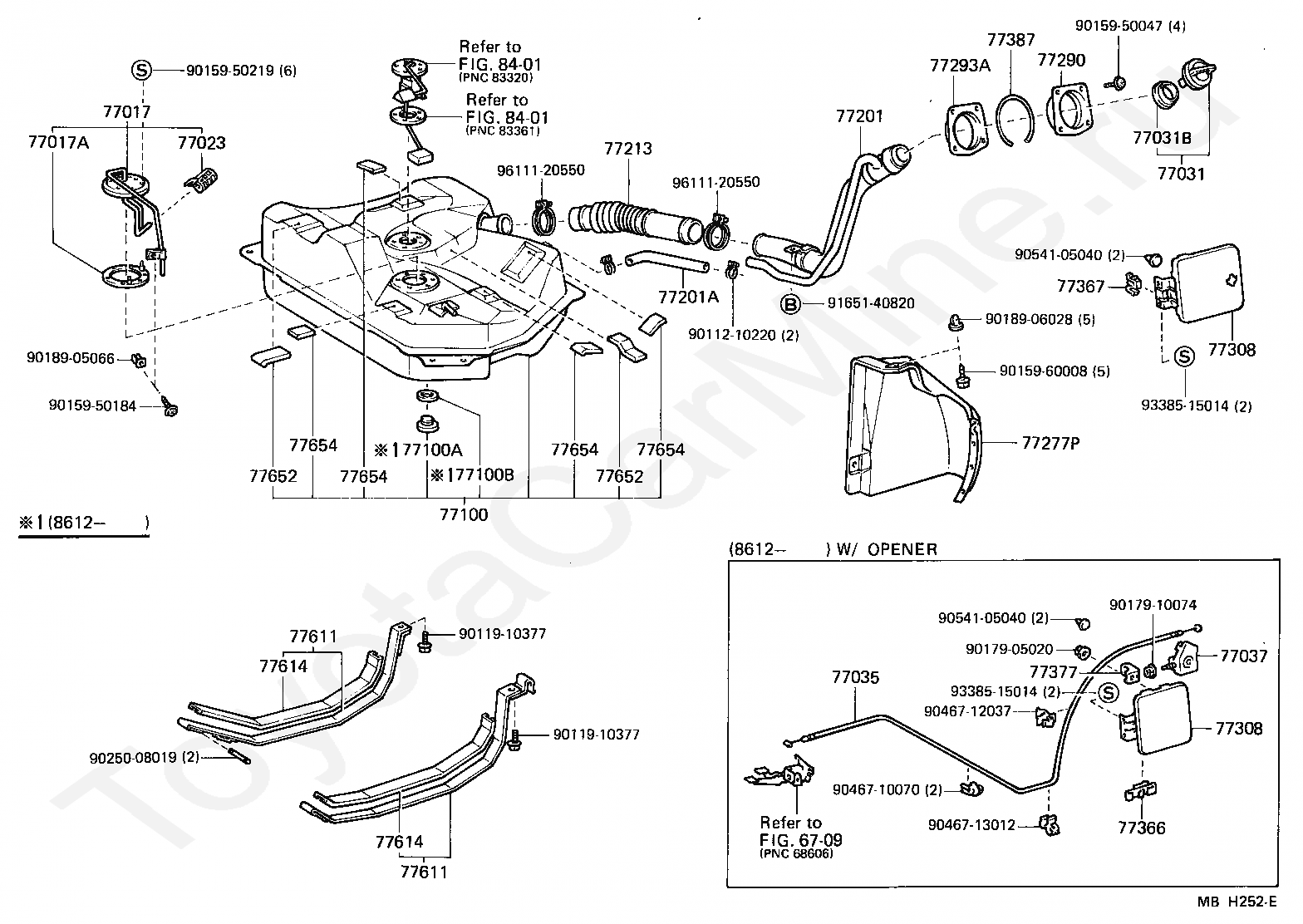

77017
TUBE SUB-ASSY, FUEL AND EVAPORATION VENT
77017A
GASKET, FUEL TANK VENT
77023
FILTER SUB-ASSY, FUEL SUCTION TUBE
77031
CAP ASSY, FUEL TANK
77031B
GASKET (FOR FUEL TANK CAP)
77035
CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77037
LOCK SUB-ASSY, FUEL FILLER OPENING LID
77100A
PLUG(FOR FUEL TANK)
77100B
GASKET(FOR FUEL TANK)
77201
PIPE SUB-ASSY, FUEL TANK INLET
77201A
HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77213
HOSE, FUEL TANK SUB INLET
77277P
PROTECTOR(FOR FUEL RETURN HOSE)
77290
SHIELD ASSY, FUEL TANK FILLER PIPE
77293A
SHIELD, FUEL TANK FILLER PIPE, NO.3
77308
COVER SUB-ASSY, FUEL INLET BOX
77308
COVER SUB-ASSY, FUEL INLET BOX
77366
SPRING, FUEL FILLER OPENING LID HINGE
77367
STOPPER, FUEL FILLER OPENING LID
77377
RETAINER, FUEL FILLER OPENING LID LOCK
77387
RING, FUEL INLET BOX
77614
SEAT, FUEL TANK BAND
77614
SEAT, FUEL TANK BAND
77652
CUSHION, FUEL TANK, NO.1
77652
CUSHION, FUEL TANK, NO.1
77654
CUSHION, FUEL TANK, NO.2
77654
CUSHION, FUEL TANK, NO.2
77654
CUSHION, FUEL TANK, NO.2
77654
CUSHION, FUEL TANK, NO.2
