Ходовые запчасти

Каталог

Япония

Модель

SPRINTER

VIN

Дата

1991/06

Двигатель

1,3 литра, 16 клапанов, DOHC, EFI

Кузов

4 двери

Класс

LX SPECIFICATION

Фрейм

EE101

КПП

автомат АКПП, 3 ступени

Опции

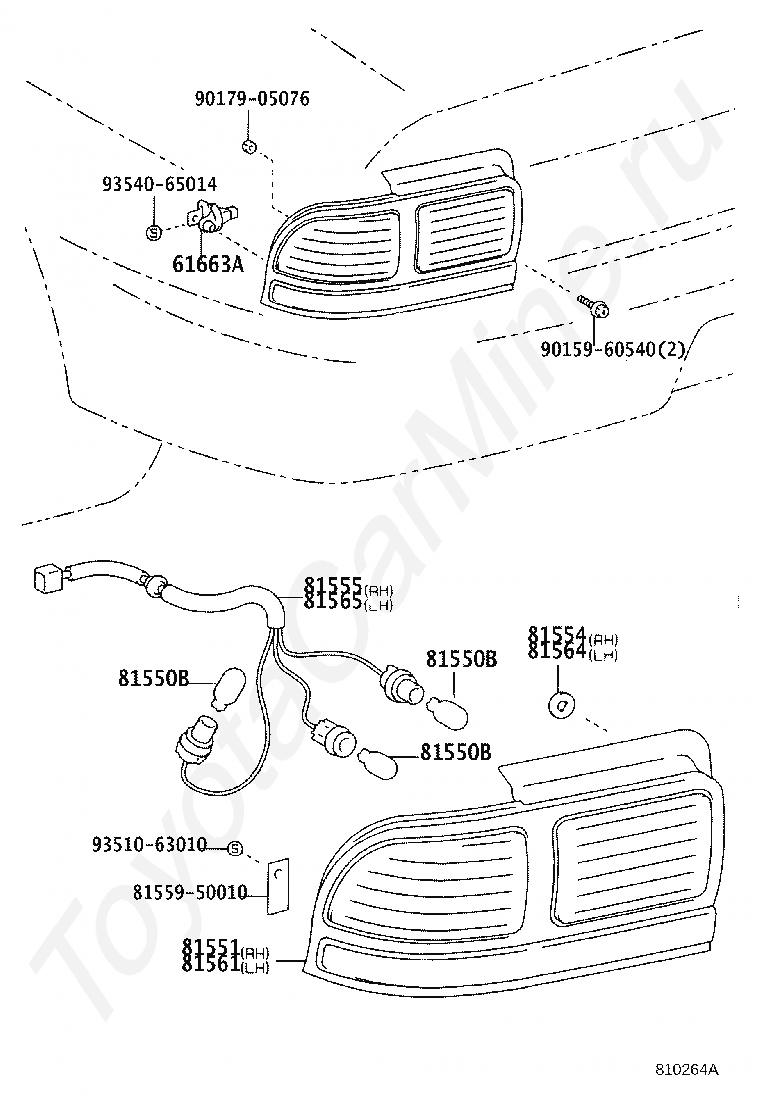

Задние фонари TOYOTA SPRINTER

Код

Описание

61663A

BRACKET, REAR COMBINATION LAMP MOUNTING

81550B

BULB(FOR REAR COMBINATION LAMP)

81550B

BULB(FOR REAR COMBINATION LAMP)

81550B

BULB(FOR REAR COMBINATION LAMP)

81551

LENS, REAR COMBINATION LAMP, RH

81554

GASKET, REAR COMBINATION LAMP BODY, RH

81554

GASKET, REAR COMBINATION LAMP BODY, RH

81555

SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

8155950010

Крепеж

81561

LENS, REAR COMBINATION LAMP, LH

81564

GASKET, REAR COMBINATION LAMP BODY, LH

81564

GASKET, REAR COMBINATION LAMP BODY, LH

81565

SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

9015960473

Крепеж

9017905076

Крепеж

9351063010

Крепеж

9354065014

Крепеж

Код

Описание

61663A

BRACKET, REAR COMBINATION LAMP MOUNTING

81550B

BULB(FOR REAR COMBINATION LAMP)

81550B

BULB(FOR REAR COMBINATION LAMP)

81550B

BULB(FOR REAR COMBINATION LAMP)

81551

LENS, REAR COMBINATION LAMP, RH

81554

GASKET, REAR COMBINATION LAMP BODY, RH

81555

SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

8155950010

Крепеж

81561

LENS, REAR COMBINATION LAMP, LH

81564

GASKET, REAR COMBINATION LAMP BODY, LH

81565

SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

9015960540

Крепеж

9017905076

Крепеж

9351063010

Крепеж

9354065014

Крепеж

Код

Описание

7681723010

Крепеж

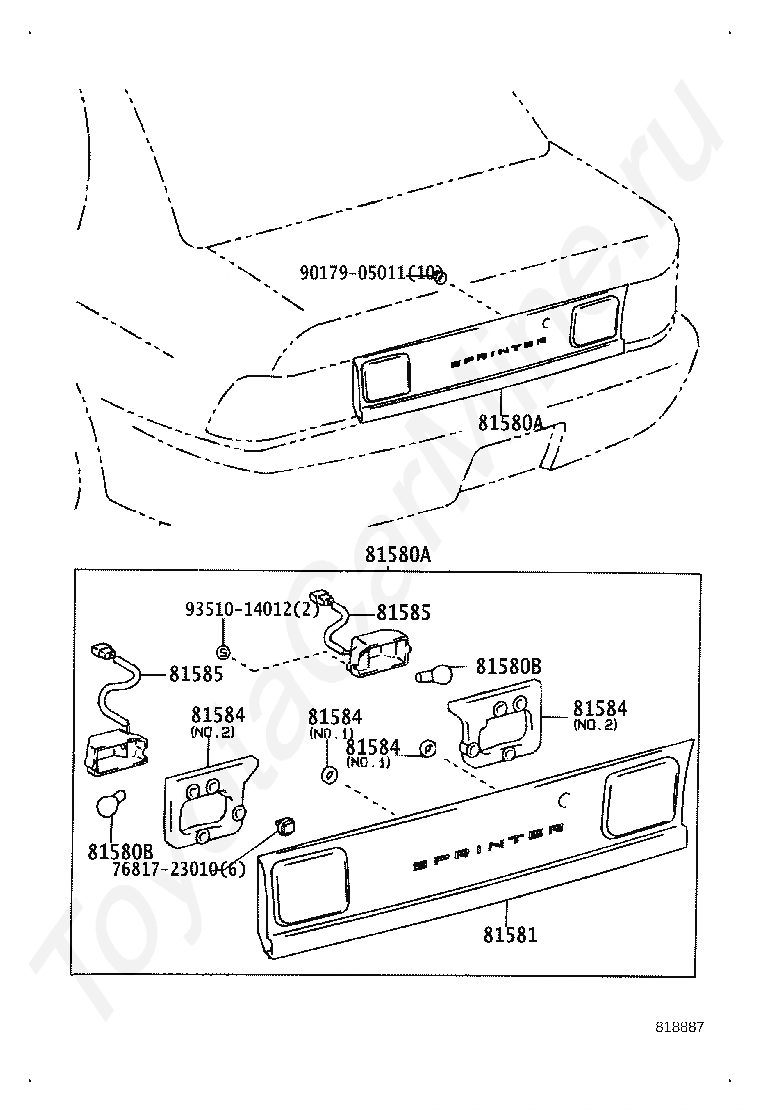

81580A

LAMP ASSY, REAR

81580A

LAMP ASSY, REAR

81580B

BULB (FOR REAR LAMP)

81580B

BULB (FOR REAR LAMP)

81581

LENS, REAR LAMP

81584

PACKING, REAR LAMP RH

81584

PACKING, REAR LAMP RH

81584

PACKING, REAR LAMP RH

81584

PACKING, REAR LAMP RH

81585

SOCKET & WIRE, REAR LAMP

81585

SOCKET & WIRE, REAR LAMP

9017905011

Крепеж

9351014012

Крепеж
