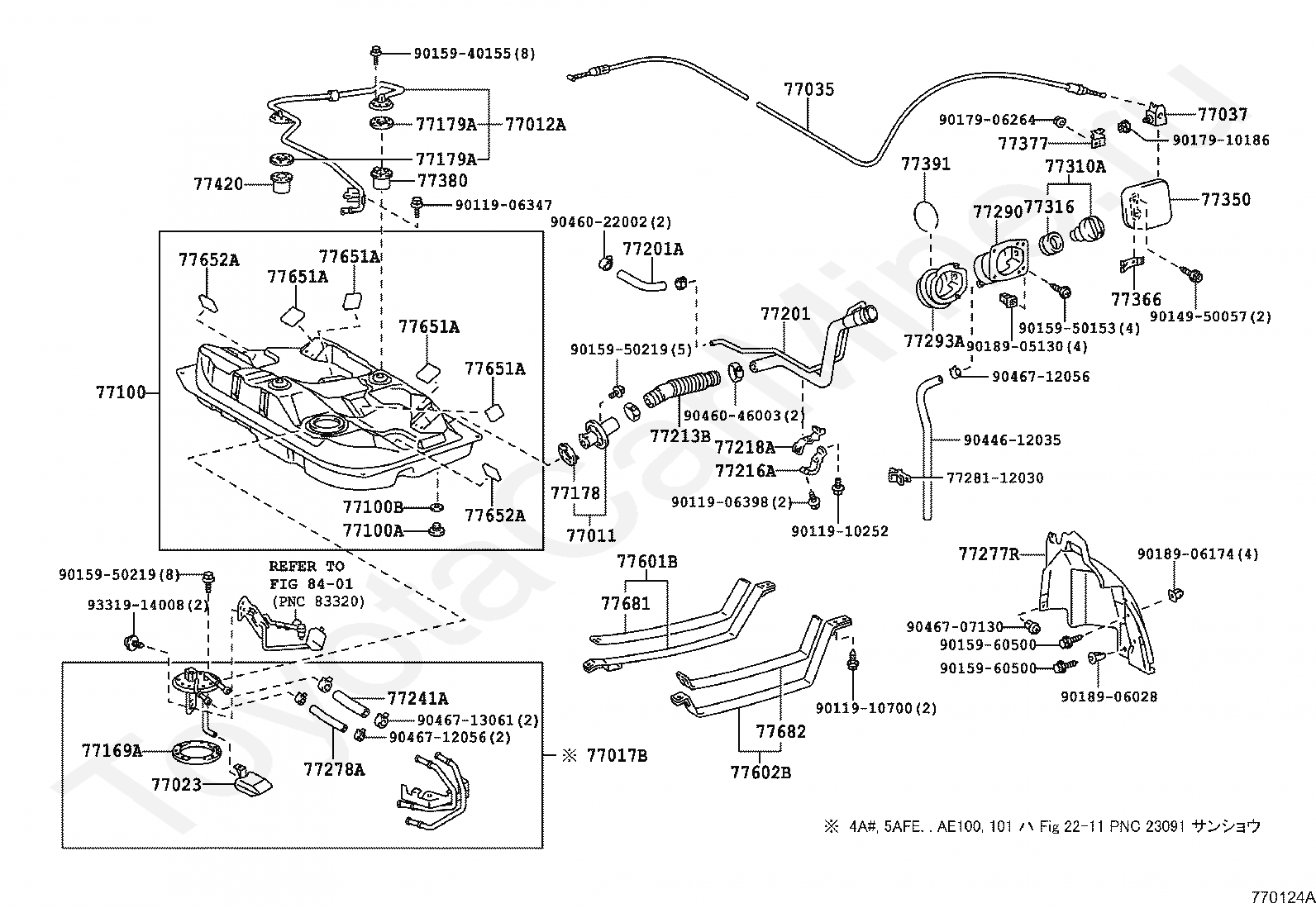

77011
PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77012A
TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1
77017B
TUBE SUB-ASSY, FUEL TANK VENT
77023
FILTER SUB-ASSY, FUEL SUCTION TUBE
77035
CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77037
LOCK SUB-ASSY, FUEL FILLER OPENING LID
77100A
PLUG(FOR FUEL TANK)
77100B
GASKET(FOR FUEL TANK)
77169A
GASKET, FUEL SUCTION TUBE SET
77178
GASKET, FUEL TANK FILLER PIPE, LOWER
77179A
GASKET, FUEL TANK BREATHER TUBE
77179A
GASKET, FUEL TANK BREATHER TUBE
77201
PIPE SUB-ASSY, FUEL TANK INLET
77201A
HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77213B
HOSE, FUEL TANK TO FILLER PIPE
77216A
SUPPORT, FUEL TANK FILLER PIPE, NO.1
77218A
SUPPORT, FUEL TANK FILLER PIPE, NO.3
77241A
HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
77277R
PROTECTOR, FUEL TANK FILLER PIPE
77278A
HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
77290
SHIELD ASSY, FUEL TANK FILLER PIPE
77293A
SHIELD, FUEL TANK FILLER PIPE, NO.3
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77350
LID ASSY, FUEL FILLER OPENING
77366
SPRING, FUEL FILLER OPENING LID HINGE
77377
RETAINER, FUEL FILLER OPENING LID LOCK
77380
VALVE ASSY, FUEL CUT OFF
77391
RING, FUEL INLET BOX
77420
VALVE ASSY, FUEL CUT OFF, NO.2
77601B
BAND SUB-ASSY, FUEL TANK, NO.1 RH
77602B
BAND SUB-ASSY, FUEL TANK, NO.1 LH
77651A
CUSHION, FUEL TANK, NO.1
77651A
CUSHION, FUEL TANK, NO.1
77651A
CUSHION, FUEL TANK, NO.1
77651A
CUSHION, FUEL TANK, NO.1
77652A
CUSHION, FUEL TANK, NO.2
77652A
CUSHION, FUEL TANK, NO.2
77681
SEAT, FUEL TANK BAND, RH
77682
SEAT, FUEL TANK BAND, LH
