6105
переход к группе запчастей
6709
переход к группе запчастей

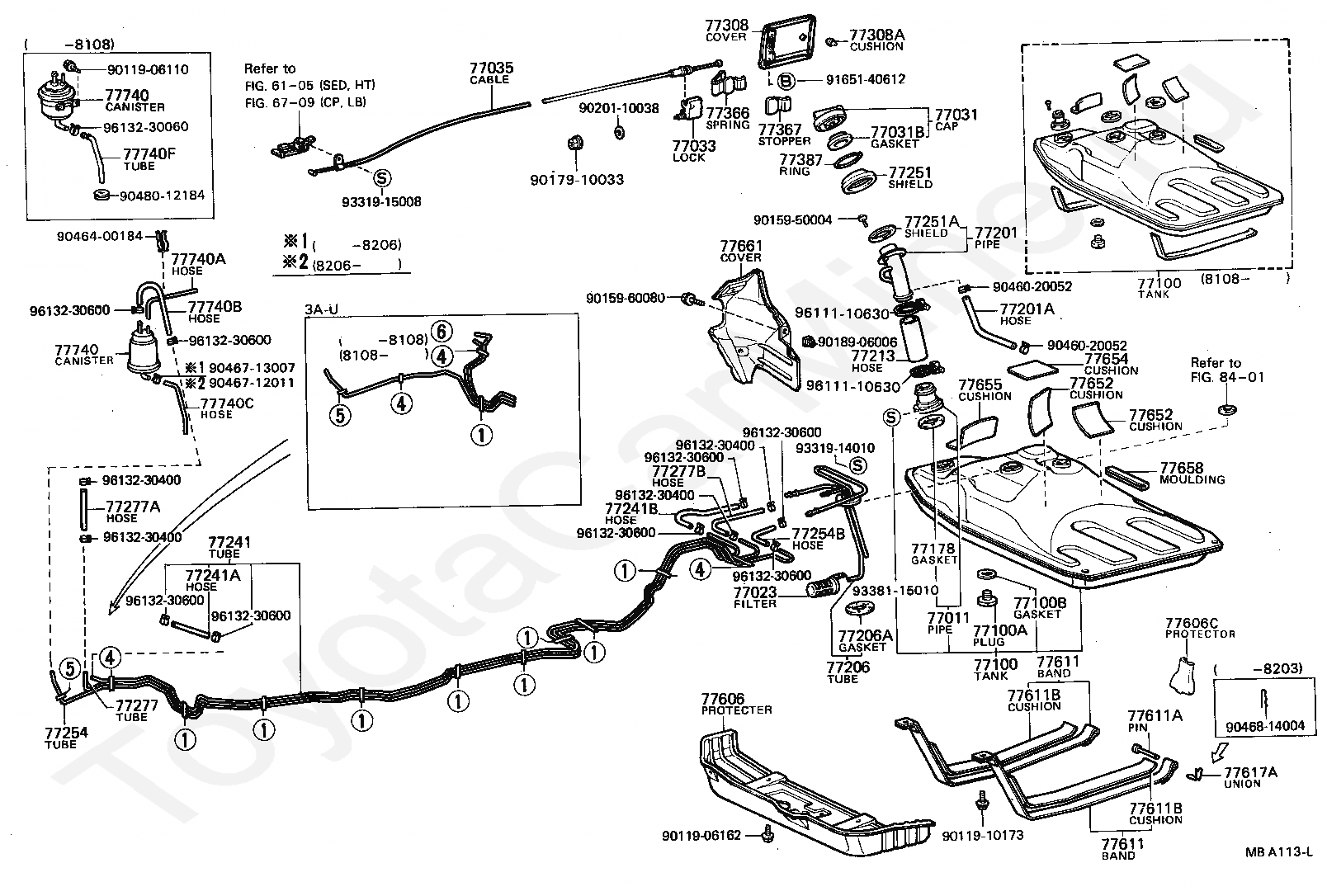

77011
PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77023
FILTER SUB-ASSY, FUEL SUCTION TUBE
77031
CAP ASSY, FUEL TANK
77031B
GASKET (FOR FUEL TANK CAP)
77033
LOCK SUB-ASSY, FUEL TANK CAP
77035
CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77100A
PLUG(FOR FUEL TANK)
77100B
GASKET(FOR FUEL TANK)
77178
GASKET, FUEL TANK FILLER PIPE, LOWER
77201
PIPE SUB-ASSY, FUEL TANK INLET
77201A
HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77206
TUBE SUB-ASSY, FUEL TANK SUCTION
77206A
GASKET (FOR FUEL TANK SUCTION TUBE)
77213
HOSE, FUEL TANK SUB INLET
77241
TUBE, FUEL MAIN, NO.1
77241A
HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
77241B
HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
77251
SHIELD, FUEL TANK, INLET, NO.1
77251A
SHIELD, FUEL TANK, INLET, NO.2
77254
TUBE, FUEL EMISSION, NO.1
77254B
HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)
77277
TUBE, FUEL RETURN, NO.1
77277A
HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
77277B
HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
77308
COVER SUB-ASSY, FUEL INLET BOX
77308A
CUSHION(FOR FUEL INLET BOX COVER)
77366
SPRING, FUEL FILLER OPENING LID HINGE
77367
STOPPER, FUEL FILLER OPENING LID
77387
RING, FUEL INLET BOX
77606
PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77606C
PROTECTOR, FUEL TANK, NO.2
77611A
PIN (FOR FUEL TANK BAND)
77611B
CUSHION, FUEL TANK, NO.4
77611B
CUSHION, FUEL TANK, NO.4
77617A
UNION, AUXILIARY FUEL BAND
77652
CUSHION, FUEL TANK, NO.1
77652
CUSHION, FUEL TANK, NO.1
77654
CUSHION, FUEL TANK, NO.2
77655
CUSHION, FUEL TANK, NO.3
77658
MOULDING, FUEL TANK EDGE
77661
COVER, FUEL INLET PIPE
77740
CANISTER ASSY, CHARCOAL
77740
CANISTER ASSY, CHARCOAL
77740A
HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
77740B
HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER)
77740C
HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
77740F
TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER)
8401
