Ходовые запчасти

Каталог

Масла

Каталог

Япония

Модель

SPRINTER

VIN

Дата

1979/10

Двигатель

1,5 литра

Кузов

седан

Класс

SE TYPE

Фрейм

AE70

КПП

автомат АКПП, 3 ступени

Опции

4 двери

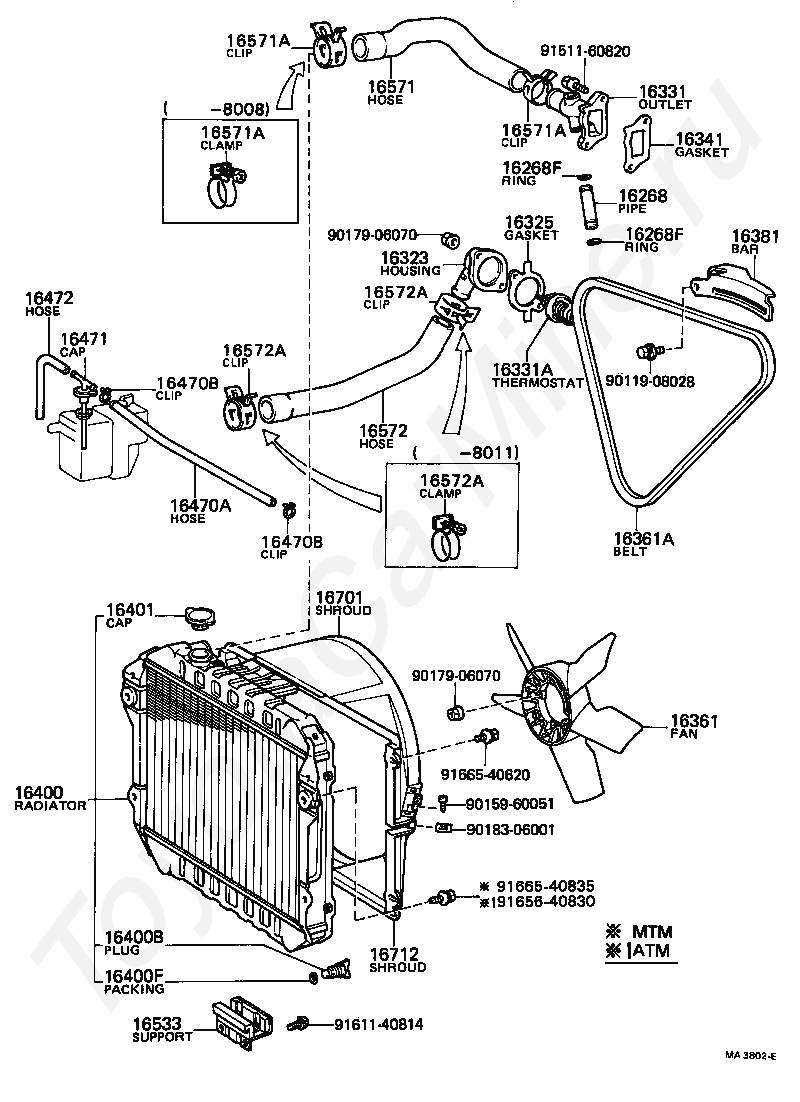

Радиатор и шланги TOYOTA SPRINTER

Код

Описание

16268

PIPE, WATER BY-PASS, NO.1

16268F

RING, O(FOR WATER BY-PASS PIPE)

16268F

RING, O(FOR WATER BY-PASS PIPE)

16323

HOUSING, WATER INLET

16325

GASKET, WATER INLET HOUSING, NO.1

16331

OUTLET, WATER

16331A

THERMOSTAT

16341

GASKET, WATER OUTLET

16361

FAN

16361A

BELT, V(FOR FAN & ALTERNATOR)

16381

BAR, FAN BELT ADJUSTING

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16401

CAP SUB-ASSY, RADIATOR

16470A

HOSE OR PIPE(FOR RADIATOR RESERVE TANK)

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16471

CAP SUB-ASSY, RESERVE TANK

16472

HOSE, BREATHER

16533

SUPPORT, RADIATOR, UPPER

16571

HOSE, RADIATOR, INLET

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16572

HOSE, RADIATOR, OUTLET

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16701

SHROUD SUB-ASSY, FAN

16712

SHROUD, FAN, NO.2

9011908028

Крепеж

9015960051

Крепеж

9017906070

Крепеж

9017906070

Крепеж

9018306001

Крепеж

9151160820

Крепеж

9161140814

Крепеж

9165640830

Крепеж

9166540620

Крепеж

9166540835

Крепеж

Код

Описание

16268

PIPE, WATER BY-PASS, NO.1

16268F

RING, O(FOR WATER BY-PASS PIPE)

16268F

RING, O(FOR WATER BY-PASS PIPE)

16323

HOUSING, WATER INLET

16325

GASKET, WATER INLET HOUSING, NO.1

16331

OUTLET, WATER

16331A

THERMOSTAT

16341

GASKET, WATER OUTLET

16361

FAN

16361A

BELT, V(FOR FAN & ALTERNATOR)

16381

BAR, FAN BELT ADJUSTING

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16401

CAP SUB-ASSY, RADIATOR

16470A

HOSE OR PIPE(FOR RADIATOR RESERVE TANK)

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16471

CAP SUB-ASSY, RESERVE TANK

16472

HOSE, BREATHER

16533

SUPPORT, RADIATOR, UPPER

16571

HOSE, RADIATOR, INLET

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16572

HOSE, RADIATOR, OUTLET

16572

HOSE, RADIATOR, OUTLET

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16701

SHROUD SUB-ASSY, FAN

16712

SHROUD, FAN, NO.2

9011908028

Крепеж

9015960008

Крепеж

9017906070

Крепеж

9017906070

Крепеж

9018306001

Крепеж

9151160820

Крепеж

9165640816

Крепеж

9166540620

Крепеж

9166540835

Крепеж

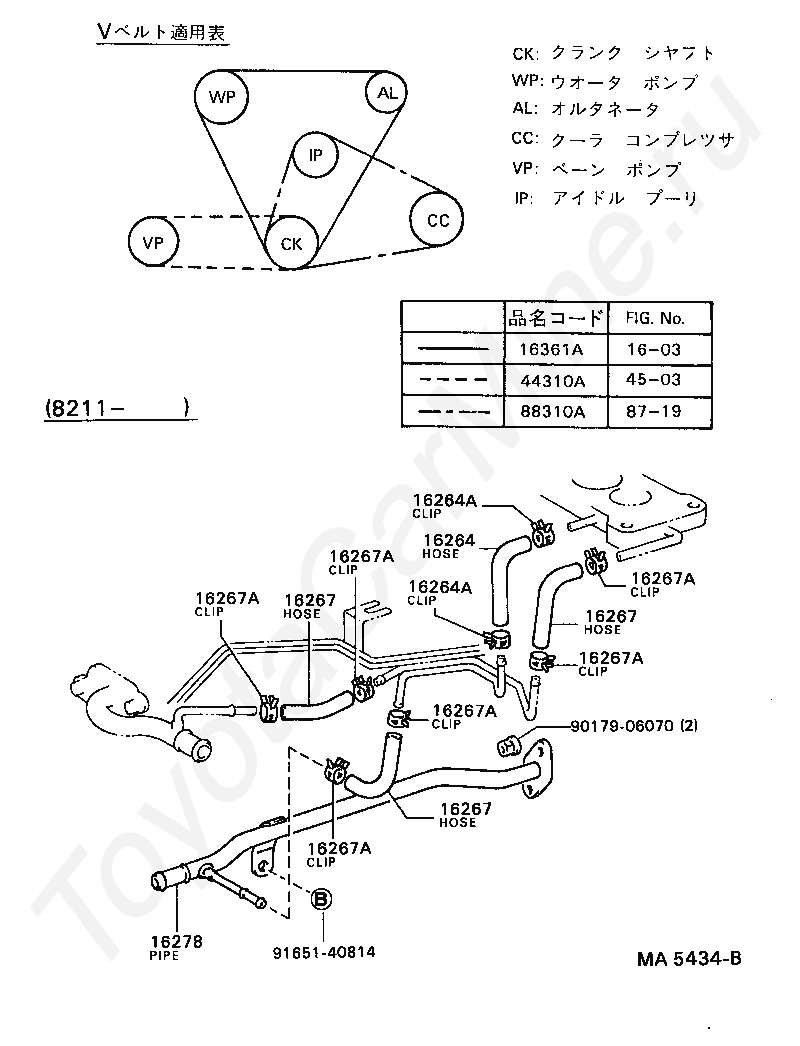

Код

Описание

1603

переход к группе запчастей

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16267

HOSE, WATER BY-PASS, NO.3

16267

HOSE, WATER BY-PASS, NO.3

16267

HOSE, WATER BY-PASS, NO.3

16267A
