2211
переход к группе запчастей

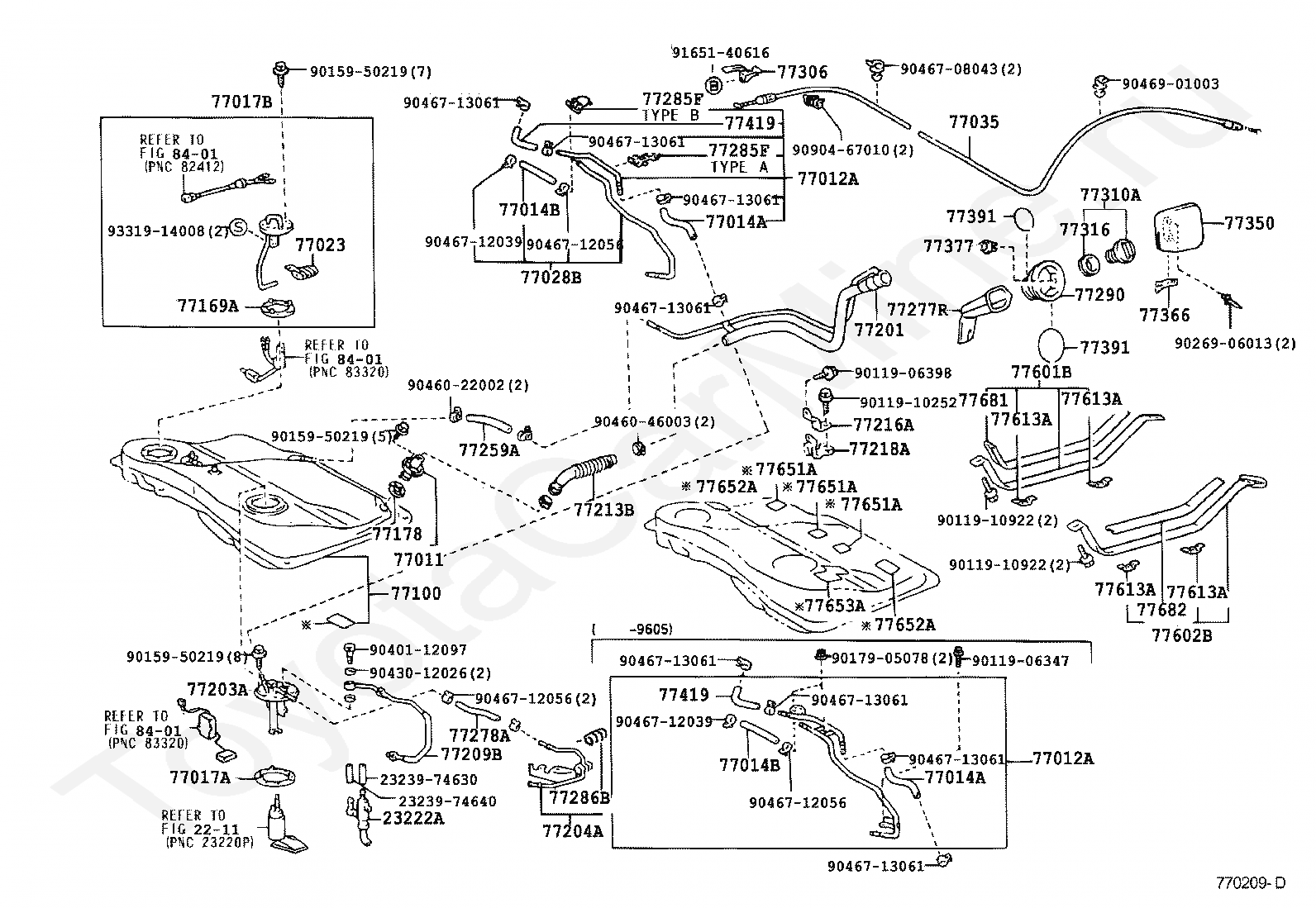

23222A
TUBE, FUEL RETURN JET
77011
PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77012A
TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1
77012A
TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1
77014A
TUBE SUB-ASSY, FUEL TANK BREATHER, NO.3
77014A
TUBE SUB-ASSY, FUEL TANK BREATHER, NO.3
77014B
HOSE, FUEL (FOR FUEL TANK BREATHER TUBE)
77014B
HOSE, FUEL (FOR FUEL TANK BREATHER TUBE)
77017A
GASKET, FUEL TANK VENT
77017B
TUBE SUB-ASSY, FUEL TANK VENT
77023
FILTER SUB-ASSY, FUEL SUCTION TUBE
77028B
TUBE SUB-ASSY, FUEL EVAPORATION, NO.3
77035
CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77169A
GASKET, FUEL SUCTION TUBE SET
77178
GASKET, FUEL TANK FILLER PIPE, LOWER
77201
PIPE SUB-ASSY, FUEL TANK INLET
77203A
TUBE SUB-ASSY, FUEL SUCTION
77204A
TUBE, FUEL TANK RETURN
77209B
TUBE SUB-ASSY, FUEL PUMP
77213B
HOSE, FUEL TANK TO FILLER PIPE
77216A
SUPPORT, FUEL TANK FILLER PIPE, NO.1
77218A
SUPPORT, FUEL TANK FILLER PIPE, NO.3
77259A
HOSE, FUEL(FOR BREATHER TUBE)
77277R
PROTECTOR, FUEL TANK FILLER PIPE
77278A
HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
77285F
CLAMP, FUEL TUBE, NO.1
77285F
CLAMP, FUEL TUBE, NO.1
77286B
CLAMP, FUEL TUBE W/GROMMET, NO.2
77290
SHIELD ASSY, FUEL TANK FILLER PIPE
77306
LEVER SUB-ASSY, FUEL LID LOCK OPEN
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77350
LID ASSY, FUEL FILLER OPENING
77366
SPRING, FUEL FILLER OPENING LID HINGE
77377
RETAINER, FUEL FILLER OPENING LID LOCK
77391
RING, FUEL INLET BOX
77391
RING, FUEL INLET BOX
77601B
BAND SUB-ASSY, FUEL TANK, NO.1 RH
77602B
BAND SUB-ASSY, FUEL TANK, NO.1 LH
77613A
BRACKET, FUEL TANK BAND, NO.1
77613A
BRACKET, FUEL TANK BAND, NO.1
77613A
BRACKET, FUEL TANK BAND, NO.1
77613A
BRACKET, FUEL TANK BAND, NO.1
77651A
CUSHION, FUEL TANK, NO.1
77651A
CUSHION, FUEL TANK, NO.1
77651A
CUSHION, FUEL TANK, NO.1
77652A
CUSHION, FUEL TANK, NO.2
77652A
CUSHION, FUEL TANK, NO.2
77653A
CUSHION, FUEL TANK, NO.3
77681
SEAT, FUEL TANK BAND, RH
77682
SEAT, FUEL TANK BAND, LH
8401
переход к группе запчастей
8401
переход к группе запчастей
8401
переход к группе запчастей
