Япония

Модель

SPRINTER CARIB

VIN

Дата

1996/05

Двигатель

1,6 литра, 16 клапанов, DOHC, EFI

Класс

S-TOURING TYPE

Фрейм

AE111

КПП

автомат АКПП, 4 ступени

Опции

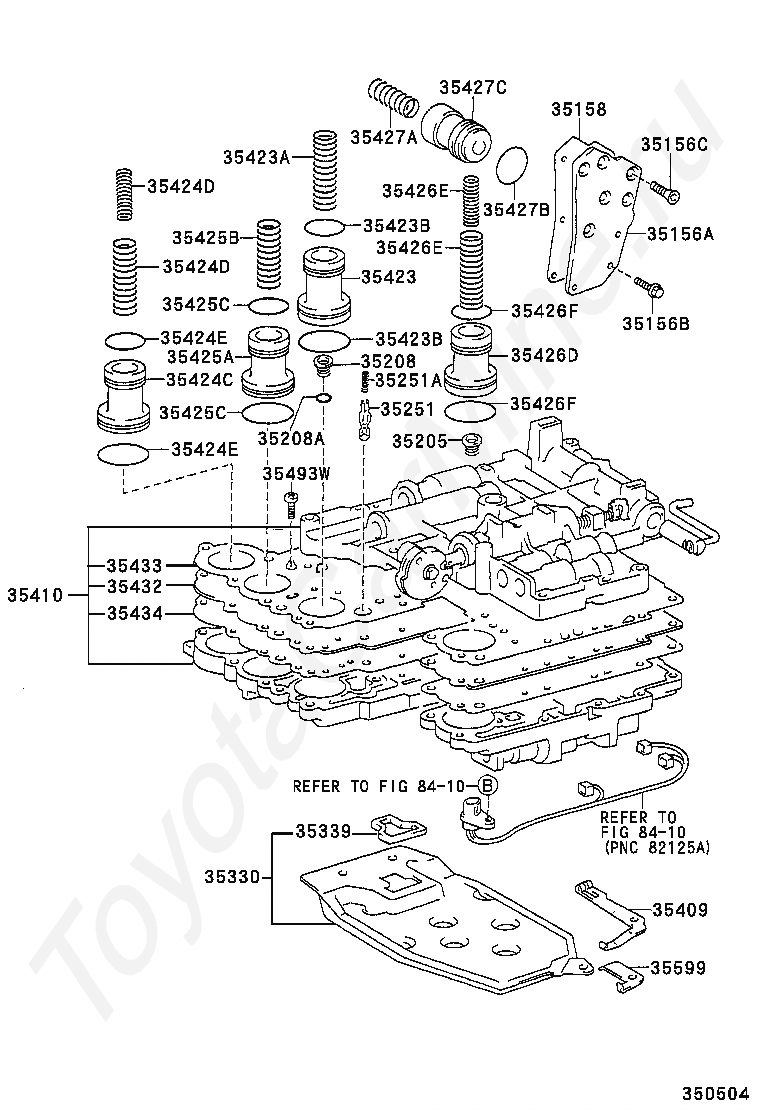

VALVE BODY & OIL STRAINER (ATM) TOYOTA SPRINTER CARIB







Код

Описание

35156A

PLATE, TRANSMISSION CASE, NO.2

35156B

BOLT(FOR TRANSMISSION CASE NO.2 PLATE)

35156C

SCREW(FOR TRANSMISSION CASE NO.2 PLATE)

35158

GASKET, TRANSMISSION CASE, NO.2 PLATE

35205

SPRING SUB-ASSY, C-3 ACCUMULATOR

35208

SPRING SUB-ASSY, B-2 ACCUMULATOR

35208A

RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)

35251

BODY, CHECK BALL

35251A

SPRING, COMPRESSION (FOR CHECK BALL BODY)

35330

STRAINER ASSY, VALVE BODY OIL

35339

GASKET, OIL STRAINER

35409

SPRING SUB-ASSY, MANUAL DETENT

35410

BODY ASSY, TRANSMISSION VALVE

35423

PISTON, B-2 ACCUMULATOR

35423A

SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)

35423B

RING, O (FOR B-2 ACCUMULATOR PISTON)

35423B

RING, O (FOR B-2 ACCUMULATOR PISTON)

35424C

PISTON, C-1 ACCUMULATOR

35424D

SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)

35424D

SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)

35424E

RING, O (FOR C-1 ACCUMULATOR PISTON)

35424E

RING, O (FOR C-1 ACCUMULATOR PISTON)

35425A

PISTON, C-2 ACCUMULATOR

35425B

SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

35425C

RING, O (FOR C-2 ACCUMULATOR PISTON)

35425C

RING, O (FOR C-2 ACCUMULATOR PISTON)

35426D

PISTON, C-3 ACCUMULATOR

35426E

SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)

35426E

SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)

35426F

RING, O (FOR C-3 ACCUMULATOR PISTON)

35426F

RING, O (FOR C-3 ACCUMULATOR PISTON)

35427A

SPRING, COMPRESSION (FOR B-4 ACCUMULATOR PISTON)

35427B

RING, O (FOR B-4 ACCUMULATOR PISTON)

35427C

PISTON, B-4 ACCUMULATOR

35432

PLATE, VALVE BODY, NO.1

35433

GASKET, VALVE BODY, NO.1

35434

GASKET, VALVE BODY, NO.2

35493W

SEAT, VALVE BODY

35599

COVER, MANUAL DETENT SPRING

8410

переход к группе запчастей

8410

переход к группе запчастей

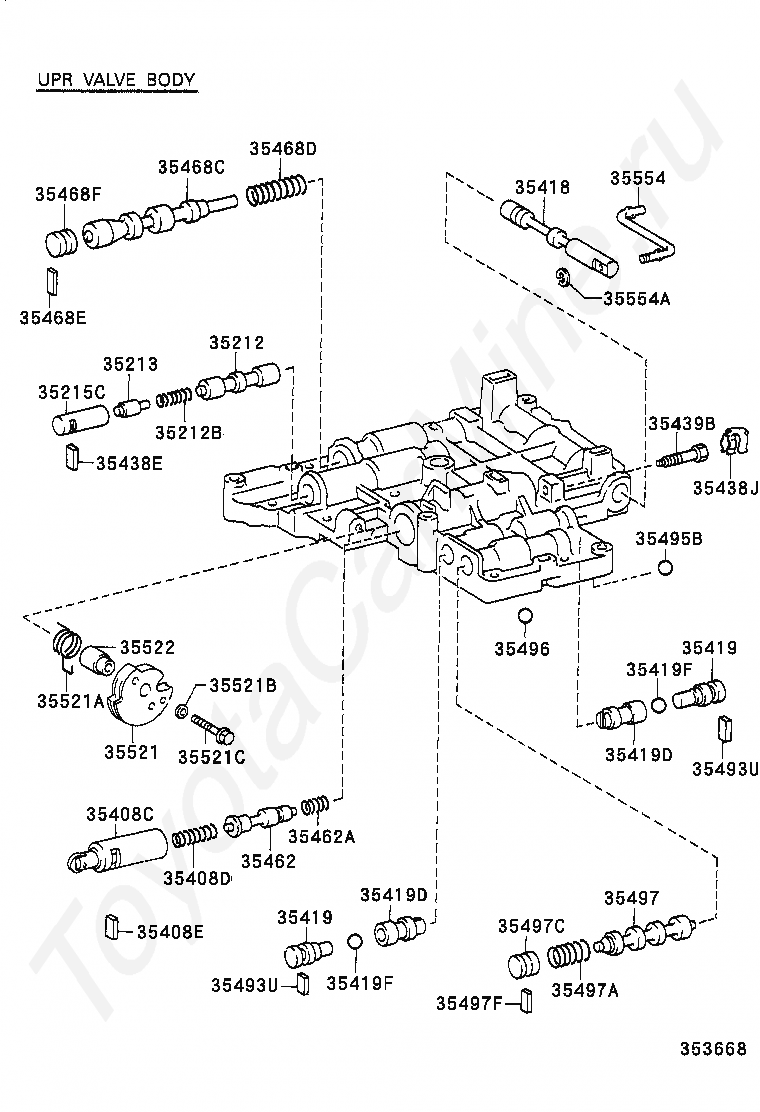

Код

Описание

35212

VALVE, LOCK UP RELAY

35212B

SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE)

35213

VALVE, LOCK UP RELAY CONTROL

35215C

SLEEVE, LOCK UP RELAY VALVE, NO.1

35408C

PLUG SUB-ASSY, THROTTLE VALVE

35408D

SPRING, COMPRESSION (FOR THROTTLE VALVE PLUG)

35408E

KEY, STRAIGHT (FOR THROTTLE VALVE PLUG)

35418

VALVE, MANUAL

35419

VALVE, CHECK, NO.1

35419

VALVE, CHECK, NO.1

35419D

VALVE, CHECK, NO.2

35419D

VALVE, CHECK, NO.2

35419F

BALL, CHECK VALVE

35419F

BALL, CHECK VALVE

35438E

SEAT, LOCK UP RELAY VALVE SPRING

35438J

SEAT, THROTTLE VALVE SPRING

35439B

SCREW, THROTTLE VALVE

35462

VALVE, THROTTLE

35462A

SPRING, COMPRESSION (FOR THROTTLE VALVE)

35468C

VALVE, SECONDARY REGULATOR

35468D

SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)

35468E

KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE)

35468F

PLUG (FOR SECONDARY REGULATOR VALVE)

35493U

SEAT, CHECK VALVE, NO.1

35493U

SEAT, CHECK VALVE, NO.1

35495B

BALL, CHECK, NO.1

35496

BALL, CHECK, NO.2

35497

VALVE, 3-4 SHIFT

35497A

SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE)

35497C

PLUG (FOR 3-4 SHIFT VALVE)

35497F

KEY, STRAIGHT (FOR 3-4 SHIFT VALVE)

35521

CAM, THROTTLE VALVE

35521A

SPRING (FOR THROTTLE VALVE CAM RETURN)

35521B

WASHER (FOR THROTTLE VALVE CAM SET)

35521C

BOLT (FOR THROTTLE VALVE CAM SET)

35522

PIN, THROTTLE VALVE CAM

35554

ROD, MANUAL VALVE CONNECTING

35554A

RING, E (FOR MANUAL VALVE CONNECTING ROD)

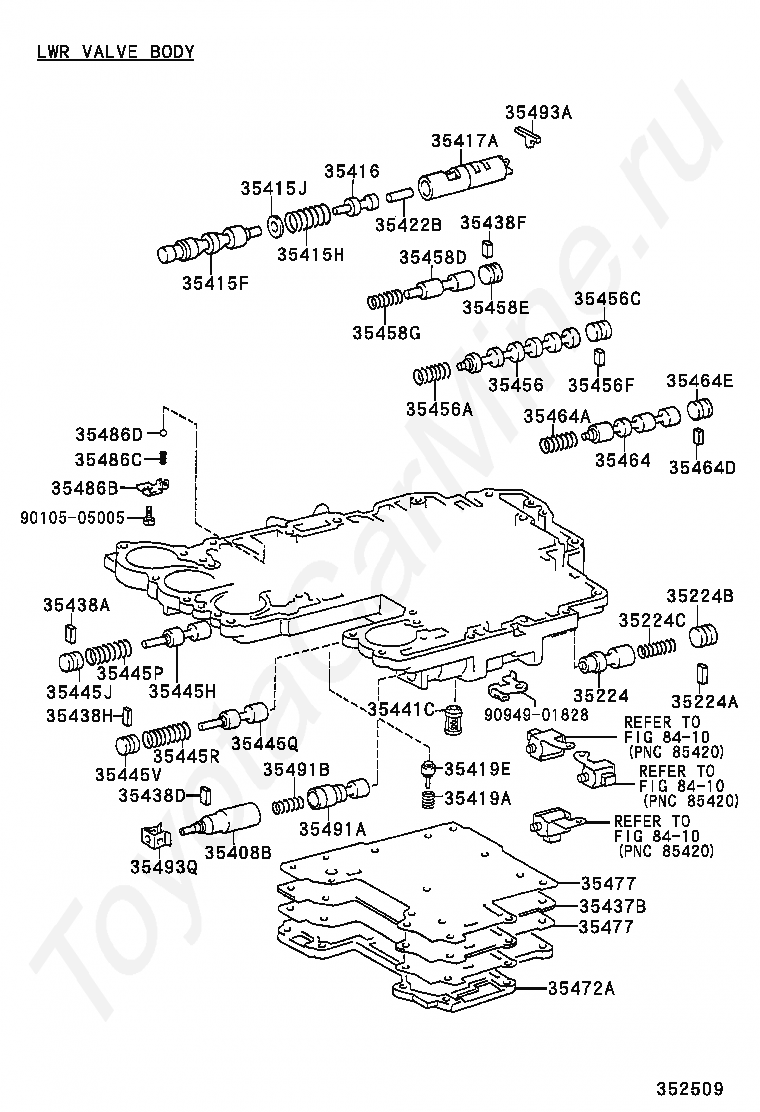

Код

Описание

35224

VALVE, REVERSE CONTROL

35224A

KEY, STRAIGHT (FOR REVERSE CONTROL VALVE)

35224B

PLUG (FOR REVERSE CONTROL VALVE)

35224C

SPRING, COMPRESSION (FOR REVERSE CONTROL VALVE)

35408B

PLUG SUB-ASSY, ACCUMULATOR CONTROL VALVE

35415F

VALVE, PRIMARY REGULATOR

35415H

SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE)

35415J

WASHER (FOR PRIMARY REGULATOR VALVE)

35416

PLUNGER, PRIMARY REGULATOR VALVE, NO.1

35417A

SLEEVE, PRIMARY REGULATOR VALVE

35419A

SPRING, COMPRESSION (FOR CHECK VALVE)

35419E

VALVE, CHECK, NO.3

35422B

PLUNGER, PRIMARY REGULATOR VALVE, NO.2

35437B

PLATE, VALVE BODY COVER

35438A

SEAT, 2ND COAST MODULATOR VALVE SPRING

35438D

SEAT, ACCUMULATOR CONTROL VALVE SPRING

35438F

SEAT, DETENT SPRING

35438H

SEAT, LOW COAST MODULATOR VALVE SPRING

35441C

STRAINER, SOLENOID OIL

35445H

VALVE, 2ND COAST MODULATOR

35445J

PLUG (FOR 2ND COAST MODULATOR VALVE)

35445P

SPRING, COMPRESSION (FOR 2ND COAST MODULATOR VALVE)

35445Q

VALVE, LOW COAST MODULATOR

35445R

SPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE)

35445V

PLUG (FOR LOW COAST MODULATOR VALVE)

35456

VALVE, 2-3 SHIFT

35456A

SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)

35456C

PLUG (FOR 2-3 SHIFT VALVE)

35456F

KEY, STRAIGHT (FOR 2-3 SHIFT VALVE)

35458D

VALVE, CUT BACK

35458E

PLUG (FOR CUT BACK VALVE)

35458G

SPRING, COMPRESSION (FOR CUT BACK VALVE)

35464

VALVE, 1-2 SHIFT

35464A

SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE)

35464D

KEY, STRAIGHT (FOR 1-2 SHIFT VALVE)

35464E

PLUG (FOR 1-2 SHIFT VALVE)

35472A

COVER, LOWER VALVE BODY

35477

GASKET, VALVE BODY COVER

35477

GASKET, VALVE BODY COVER

35486B

SEAT, PRESSURE RELIEF VALVE SPRING

35486C

SPRING, COMPRESSION(FOR PRESSURE RELIFE VALVE)

35486D

BALL (FOR PRESSURE RELIFE VALVE)

35491A

VALVE, ACCUMULATOR CONTROL, NO.1

35491B

SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1)

35493A

SEAT, PRIMARY REGULATOR VALVE PLUG

35493Q

SEAT, ACCUMULATOR CONTROL VALVE PLUG, NO.1

8410

переход к группе запчастей

8410

переход к группе запчастей

8410

переход к группе запчастей

9010505005

Крепеж

9094901828

Крепеж

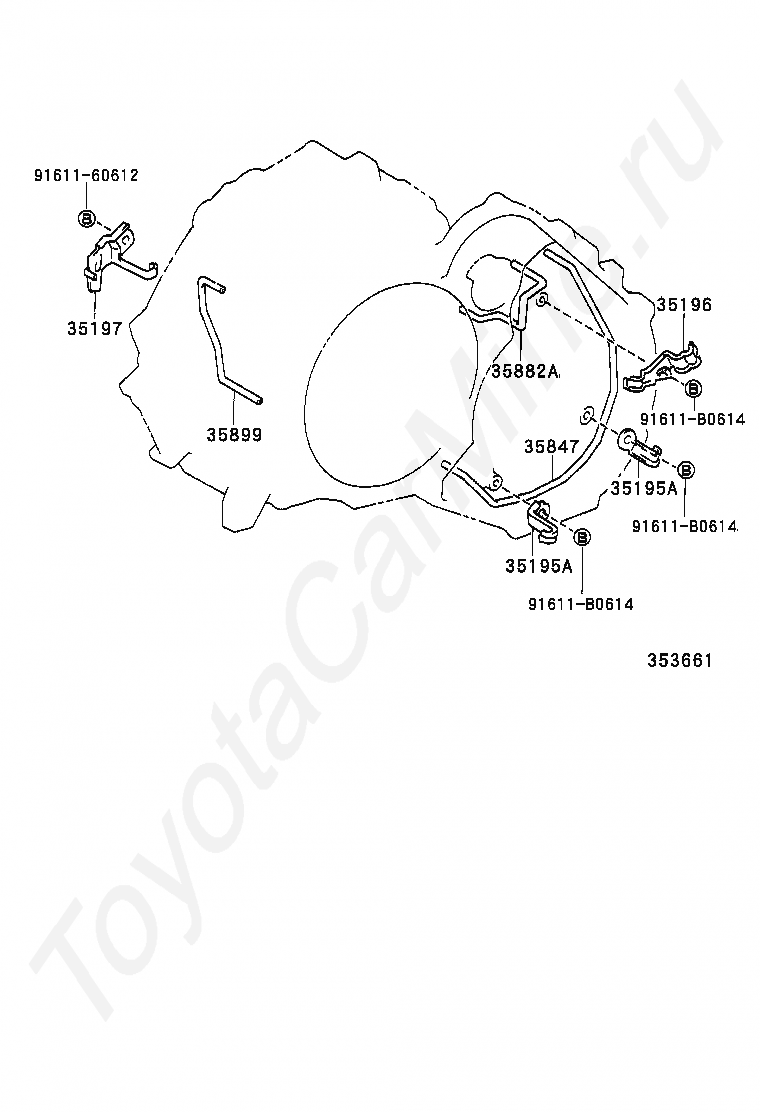

Код

Описание

35195A

CLAMP, TRANSAXLE APPLY TUBE, NO.1

35195A

CLAMP, TRANSAXLE APPLY TUBE, NO.1

35196

CLAMP, TRANSAXLE APPLY TUBE, NO.2

35197

CLAMP, TRANSAXLE APPLY TUBE, NO.3

35847

TUBE, TRANSMISSION LUBE APPLY

35882A

TUBE, DIFFERENTIAL GEAR LUBE APPLY

35899

TUBE, GOVERNOR PRESSURE

9161160612

Крепеж

91611B0614

Крепеж

91611B0614

Крепеж

91611B0614

Крепеж

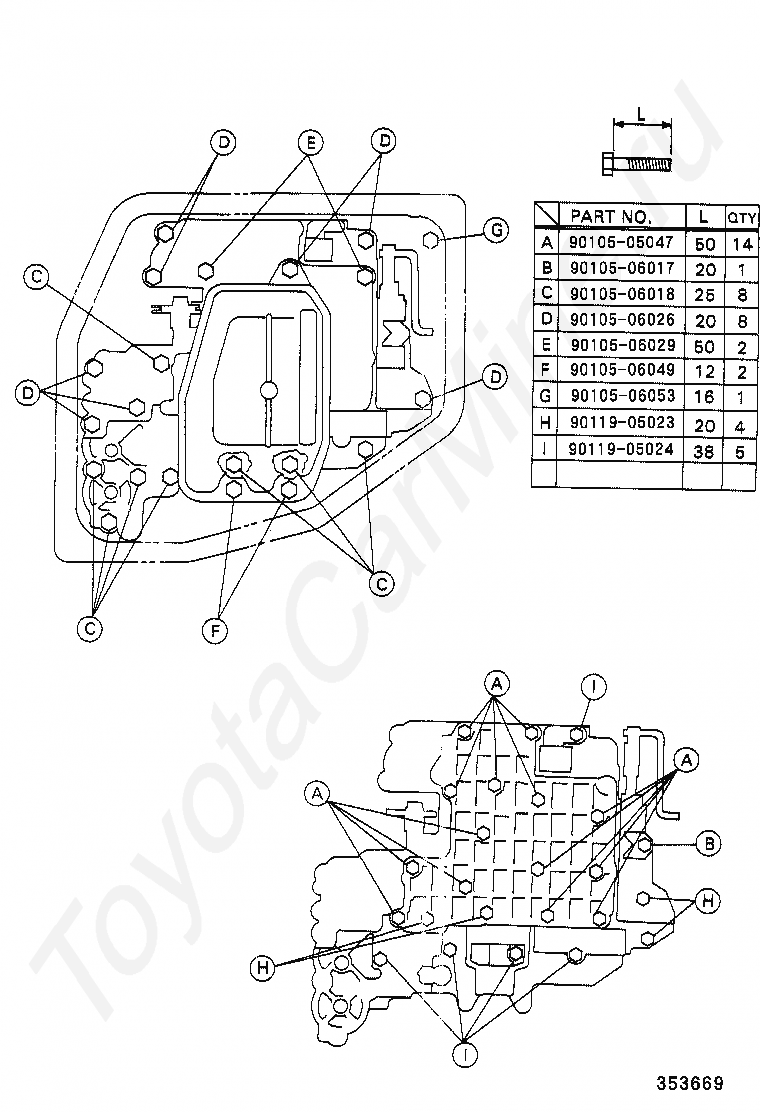

Код

Описание

9010505047

Крепеж

9010506017

Крепеж

9010506018

Крепеж

9010506026

Крепеж

9010506029

Крепеж

9010506049

Крепеж

9010506053

Крепеж

9011905023

Крепеж

9011905024

Крепеж
