Каталог

Ближний Восток

Модель

SIENTA (JPP)

VIN

Дата

2018/09

Двигатель

1,5 литра, 16 клапанов, DOHC, EFI

Кузов

фургон

Фрейм

NSP170

КПП

вариатор

Опции

правый руль 7-местный N(MODEL MARK) HIGH EFFICIENCY TWIN CAM GENERAL COUNTRIES 759W

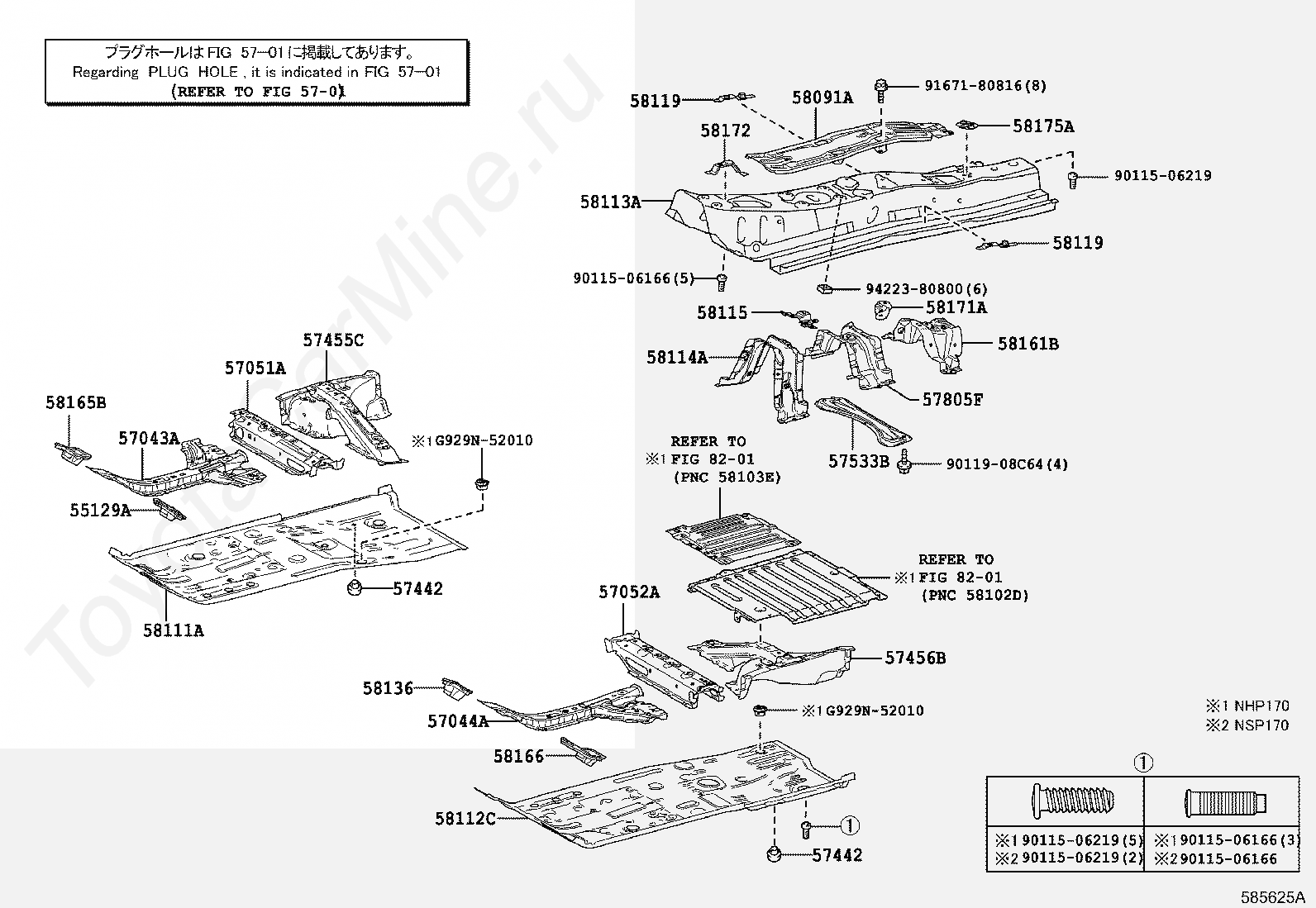

FLOOR PAN & LOWER BACK PANEL TOYOTA SIENTA (JPP)

Код

Описание

55129A

COVER, FRONT FLOOR HOLE

5701

переход к группе запчастей

57043A

REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

57044A

REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

57051A

MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

57052A

MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

57442

PLUG, STEP PANEL HOLE

57442

PLUG, STEP PANEL HOLE

57455C

BRACKET, FRONT SEAT MOUNTING, OUTSIDE RH

57456B

BRACKET, FRONT SEAT MOUNTING, OUTSIDE LH

57533B

BRACE, FRONT FLOOR, CENTER

57805F

REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1

58091A

REINFORCEMENT SET, BODY FITTING

58111A

PAN, FRONT FLOOR, RH

58112C

PAN, FRONT FLOOR, LH

58113A

PANEL, FRONT FLOOR, CENTER

58114A

REINFORCEMENT, FRONT FLOOR PANEL

58115

REINFORCEMENT, FRONT FLOOR PANEL, FRONT

58119

PLATE, FRONT FLOOR SIDE, FRONT

58119

PLATE, FRONT FLOOR SIDE, FRONT

58136

COVER, FRONT FLOOR HOLE

58161B

REINFORCEMENT, BELT ANCHOR TO FLOOR PAN

58165B

COVER, FRONT FLOOR, RH

58166

COVER, FRONT FLOOR, LH

58171A

REINFORCE, PARKING BRAKE BASE

58172

BRACKET, COMPUTER MOUNTING, NO.3

58175A

REINFORCEMENT, PARKING BRAKE BASE, NO.1

8201

переход к группе запчастей

8201

переход к группе запчастей

9011506166

Крепеж

9011506166

Крепеж

9011506166

Крепеж

9011506219

Крепеж

9011506219

Крепеж

9011506219

Крепеж

9011908C64

Крепеж

9167180816

Крепеж

9422380800

Крепеж

G929N52010

Крепеж

G929N52010

Крепеж

Код

Описание

5305

переход к группе запчастей

5701

переход к группе запчастей

57068

MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER

57069

MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER

58025A

PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH

58026A

PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH

58203D

BRACKET SUB-ASSY, REAR SEAT HINGE, OUTER RH

58204D

BRACKET SUB-ASSY, REAR SEAT HINGE, OUTER LH

58211H

PAN, CENTER FLOOR

58307

PANEL SUB-ASSY, BODY LOWER BACK

58311

PAN, REAR FLOOR

58316M

RETAINER, REAR SEAT ANCHOR

58316M

RETAINER, REAR SEAT ANCHOR

58325E

COVER, REAR FLOOR SERVICE HOLE

58338H

REINFORCEMENT, REAR FLOOR PAN, NO.2 RH

58339L

REINFORCEMENT, REAR FLOOR PAN, NO.2 LH

58351E

BRACKET, SPARE WHEEL CLAMP

58371B

PANEL, BODY LOWER BACK, OUTER

58386B

BRACKET, REAR BUMPER COVER, NO.2

58386B

BRACKET, REAR BUMPER COVER, NO.2

61627H

EXTENSION, QUARTER PANEL, REAR LOWER RH

61628H

EXTENSION, QUARTER PANEL, REAR LWR LH

64208C

MEMBER SUB-ASSY, ROOM PARTITION CROSS

9011506166

Крепеж

9011506243

Крепеж

9011906802

Крепеж

9011910409

Крепеж

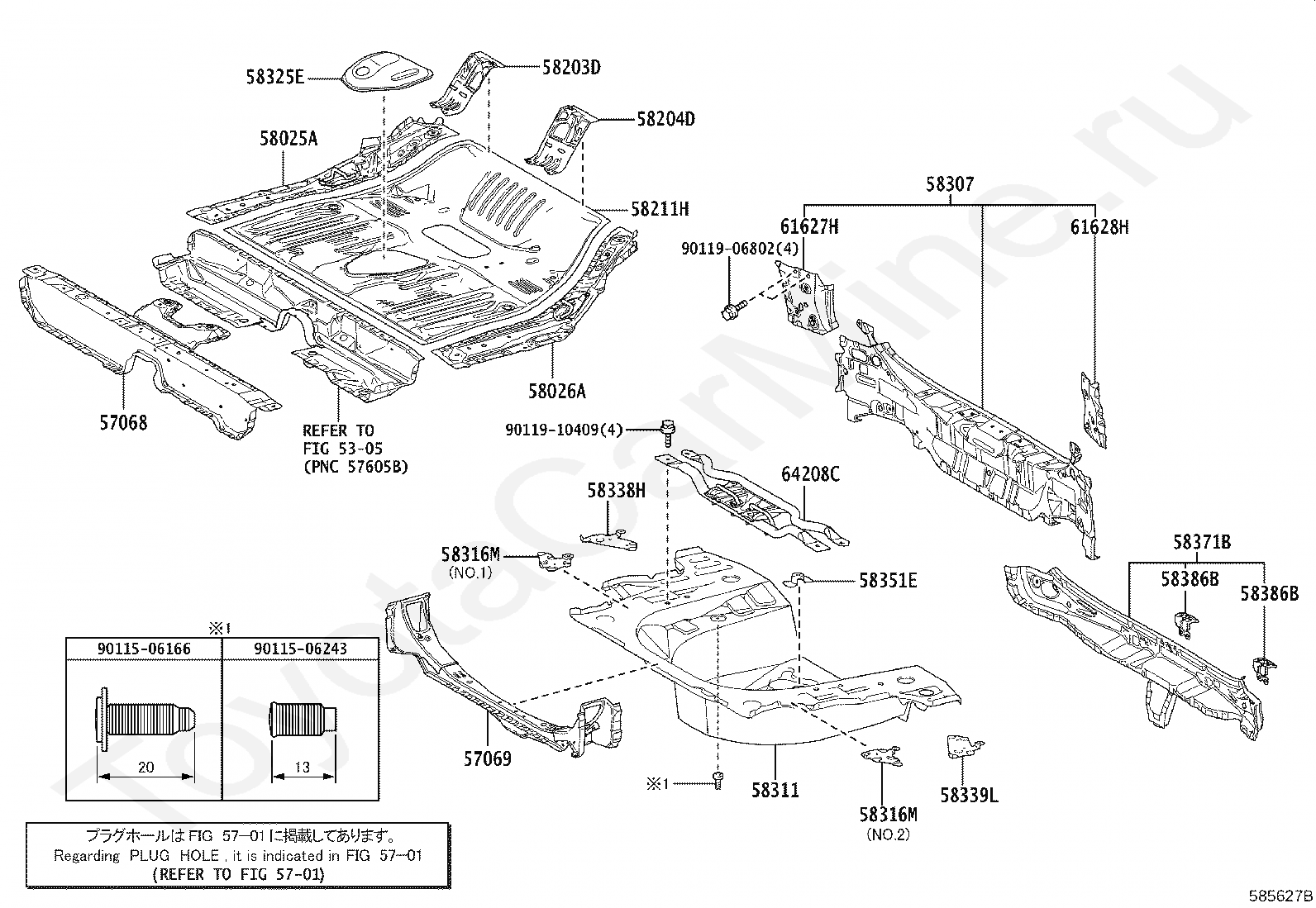

FLOOR PAN & LOWER BACK PANEL TOYOTA SIENTA (JPP)
