Япония

Модель

SIENTA

VIN

Дата

2018/09

Двигатель

1,5 литра, 16 клапанов DOHC, EFI

Кузов

фургон

Класс

FUNBASE X TYPE

Фрейм

NHP170

КПП

вариатор

Опции

5-местный HIGH EFFICIENCY TWIN CAM 759W

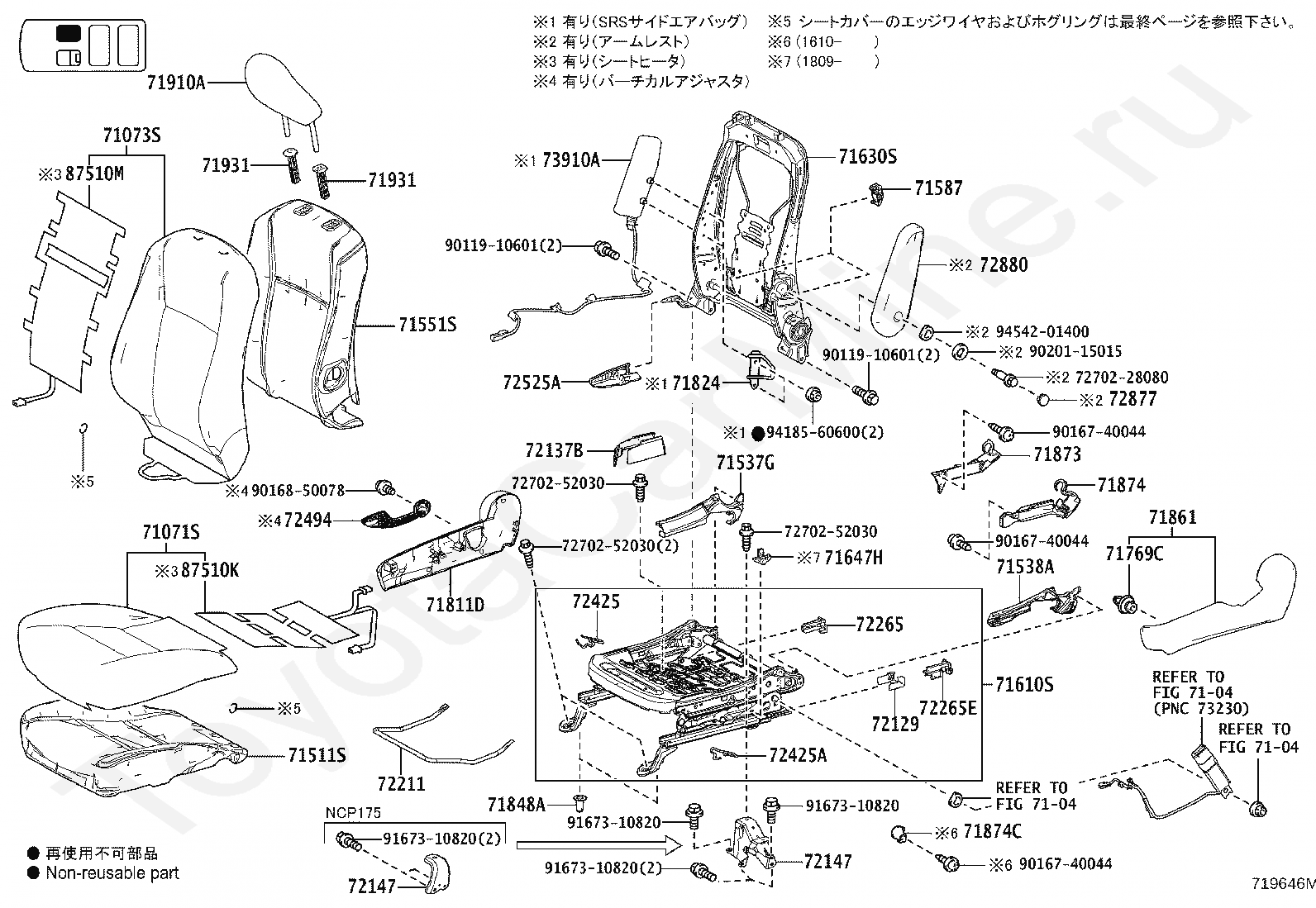

Передние кресла TOYOTA SIENTA







Код

Описание

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71537G

PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)

71538A

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71587

PROTECTOR, FRONT SEAT BACK EDGE

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71647H

PROTECTOR, FRONT SEAT CUSHION EDGE

71769C

CLIP, FRONT SEAT CUSHION COVER

71811D

SHIELD, FRONT SEAT CUSHION, RH

71824

BRACKET, FRONT SEAT SIDE, NO.1 RH

71848A

CAP, SEAT ADJUSTER COVER, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71874C

SHIELD, FRONT SEAT CUSHION, LOWER

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72137B

COVER, SEAT TRACK, RH

72147

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH

72147

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH

72211

HANDLE, SEAT TRACK ADJUSTING

72265

COVER, SEAT TRACK UPPER RAIL, RH

72265E

COVER, SEAT TRACK UPPER RAIL, RH

72425

BAR, VERTICAL ADJUSTER TORSION, NO.1

72425A

BAR, VERTICAL ADJUSTER TORSION NO.2

72494

HANDLE, VERTICAL ADJUSTING, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

7270228080

Крепеж

7270252030

Крепеж

7270252030

Крепеж

7270252030

Крепеж

72877

COVER, SEAT ARMREST, RH

72880

ARMREST ASSY, SEAT, C RH

73910A

AIR BAG ASSY, FRONT SEAT, RH

87510K

HEATER ASSY, FRONT SEAT CUSHION, RH

87510M

HEATER ASSY, FRONT SEAT BACK, RH

9011910601

Крепеж

9011910601

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016850078

Крепеж

9020115015

Крепеж

9167310820

Крепеж

9167310820

Крепеж

9167310820

Крепеж

9167310820

Крепеж

9418560600

Крепеж

9454201400

Крепеж

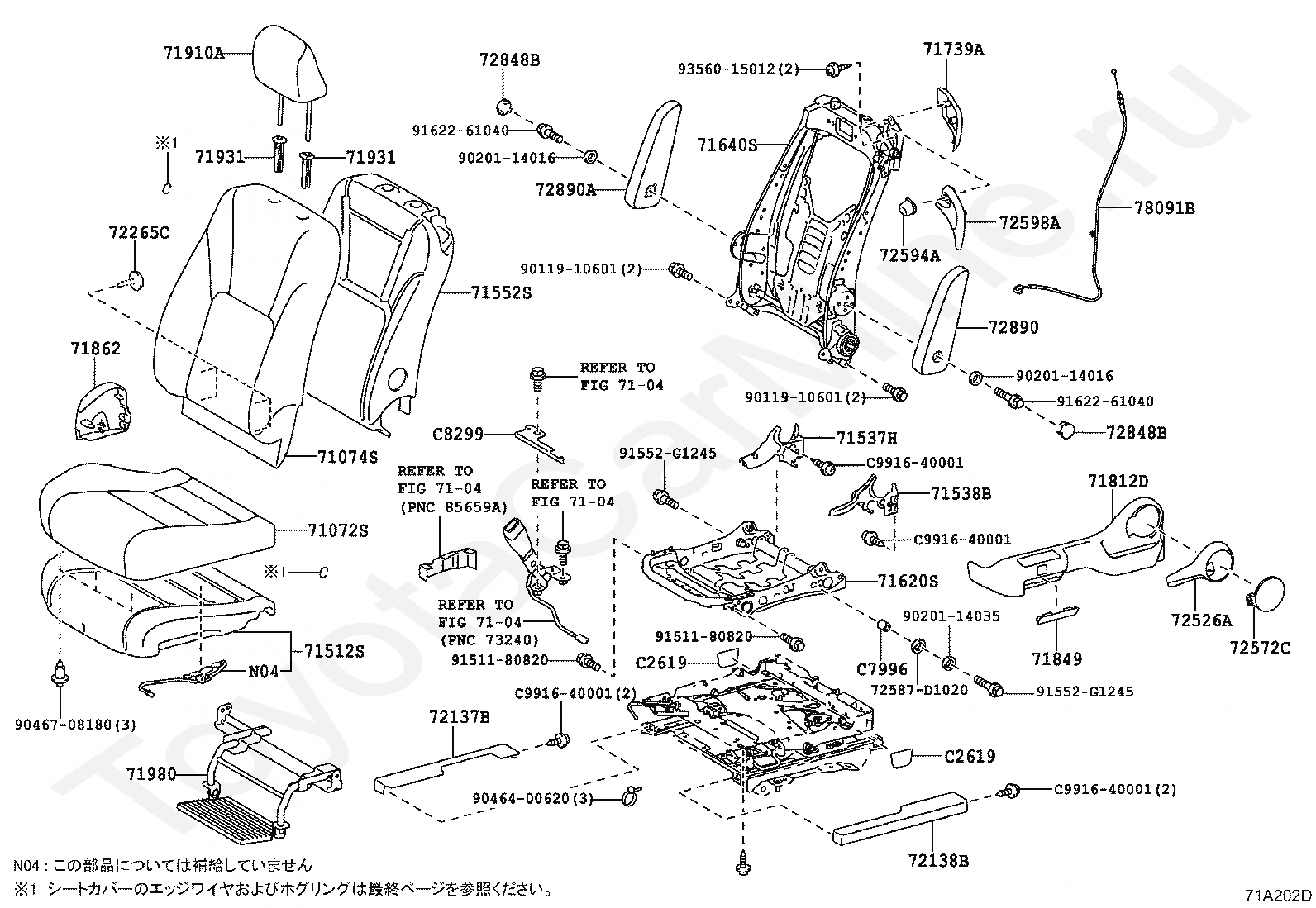

Код

Описание

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71537H

PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)

71538B

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71587

PROTECTOR, FRONT SEAT BACK EDGE

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

7176947020

Крепеж

71769C

CLIP, FRONT SEAT CUSHION COVER

71812D

SHIELD, FRONT SEAT CUSHION, LH

71825

BRACKET, FRONT SEAT SIDE, NO.1 LH

71849

CAP, SEAT ADJUSTER COVER, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71910C

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72129A

PROTECTOR, SEAT TRACK LOWER RAIL, NO.2

72138B

COVER, SEAT TRACK, LH

72148

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH

72148

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH

72211C

HANDLE, SEAT TRACK ADJUSTING

72266

COVER, SEAT TRACK UPPER RAIL, LH

72266C

COVER, SEAT TRACK UPPER RAIL, LH

72425

BAR, VERTICAL ADJUSTER TORSION, NO.1

72425A

BAR, VERTICAL ADJUSTER TORSION NO.2

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

7270252030

Крепеж

7270252030

Крепеж

7270252030

Крепеж

73920A

AIR BAG ASSY, FRONT SEAT, LH

87510L

HEATER ASSY, FRONT SEAT CUSHION, LH

87510N

HEATER ASSY, FRONT SEAT BACK, LH

9011910601

Крепеж

9011910601

Крепеж

9167310820

Крепеж

9167310820

Крепеж

9167310820

Крепеж

9167310820

Крепеж

9167310820

Крепеж

9418560600

Крепеж

Код

Описание

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71537H

PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)

71538B

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71739A

BEZEL, FRONT SEAT BACK

71812D

SHIELD, FRONT SEAT CUSHION, LH

71849

CAP, SEAT ADJUSTER COVER, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

71980

FOOTREST ASSY, FRONT SEAT, NO.1

72137B

COVER, SEAT TRACK, RH

72138B

COVER, SEAT TRACK, LH

72265C

CLIP, SEAT TRACK UPPER RAIL COVER

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72572C

CAP, RECLINING ADJUSTER KNOB, LH

72587D1020

Крепеж

72594A

KNOB, RECLINING REMOTE CONTROL LEVER, LH

72598A

BEZEL, RECLINING REMOTE CONTROL, LH

72848B

CAP, SEAT ARMREST, NO.1

72848B

CAP, SEAT ARMREST, NO.1

72890

ARMREST ASSY, SEAT, C LH

72890A

ARMREST ASSY, FRONT SEAT, INNER LH

78091B

CABLE SUB-ASSY, FOLD SEAT LOCK CONTROL

9011910601

Крепеж

9011910601

Крепеж

9020114016

Крепеж

9020114016

Крепеж

9020114035

Крепеж

9046400620

Крепеж

9046708180

Крепеж

9151180820

Крепеж

9151180820

Крепеж

91552G1245

Крепеж

91552G1245

Крепеж

9162261040

Крепеж

9162261040

Крепеж

9356015012

Крепеж

C2619

COVER, BACK FRAME

C2619

COVER, BACK FRAME

C7996

SPACER, TURN SEAT, NO.1

C8299

BRACKET, WELCAB SEAT HARNESS CONNECTOR

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

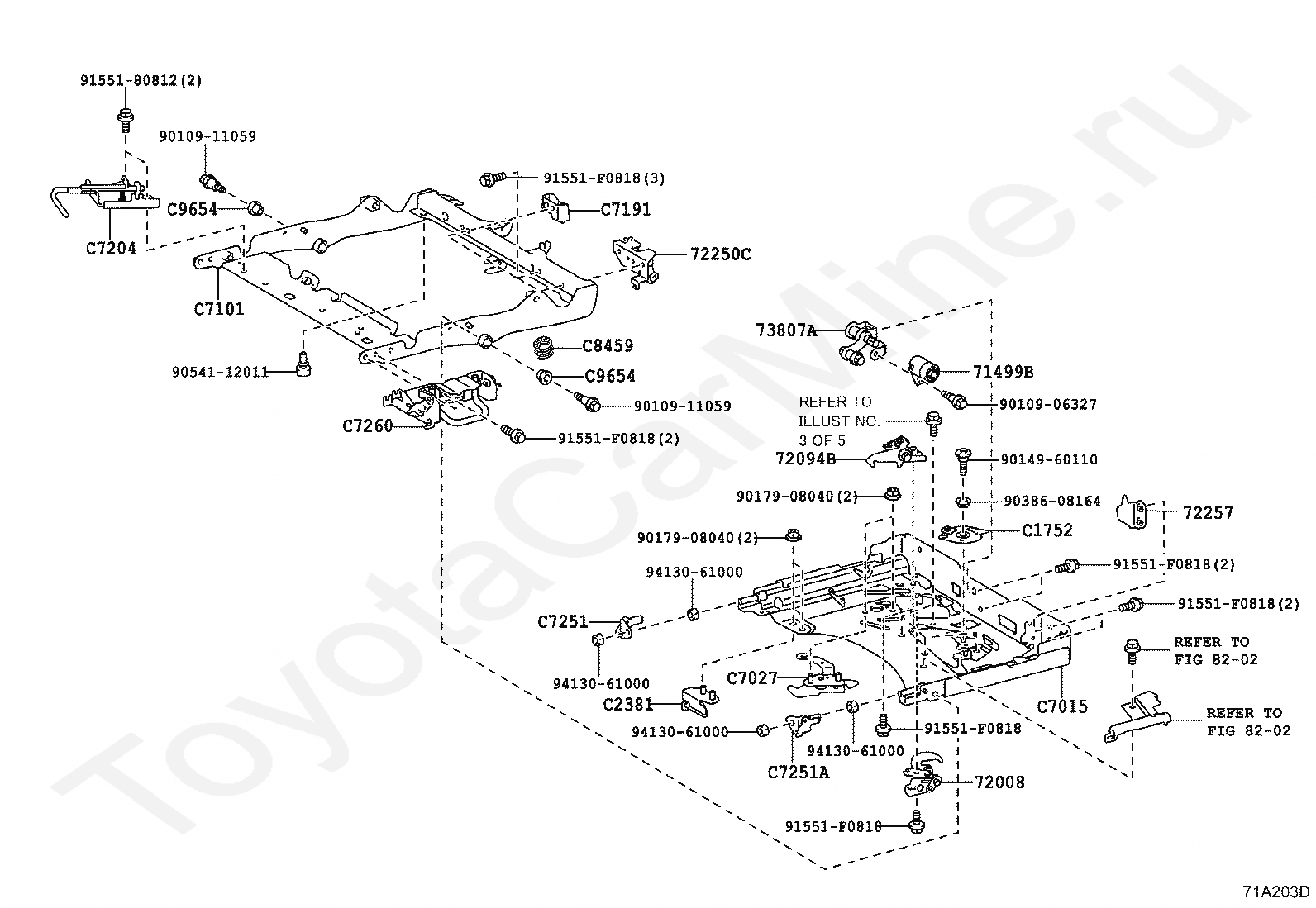

Код

Описание

71499B

DAMPER, SEAT CUSHION SPRING

72008

LOCK SUB-ASSY, FRONT SEAT TURN

72094B

LOCK SUB-ASSY, FRONT SEAT TURN

72250C

LOCK ASSY, FRONT SEAT

72257

STRIKER, FRONT SEAT LOCK

73807A

LINK SUB-ASSY, FRONT SEAT SUSPENSION, INNER RH

8202

переход к группе запчастей

8202

переход к группе запчастей

9010906327

Крепеж

9010911059

Крепеж

9010911059

Крепеж

9014960110

Крепеж

9017908040

Крепеж

9017908040

Крепеж

9038608164

Крепеж

9054112011

Крепеж

9155180812

Крепеж

91551F0818

Крепеж

91551F0818

Крепеж

91551F0818

Крепеж

91551F0818

Крепеж

91551F0818

Крепеж

91551F0818

Крепеж

9413061000

Крепеж

9413061000

Крепеж

9413061000

Крепеж

9413061000

Крепеж

C1752

PLATE, CONTROL ARM, UPPER

C2381

GUIDE, TABLE RETAINER, NO.1

C7015

PANEL SUB-ASSY, TURN TABLE

C7027

LOCK SUB-ASSY, WELCAB SEAT TURN

C7101

BRACKET SUB-ASSY, SEAT HOLDER, FRONT

C7191

BRACKET, SEAT HOLDER LINK

C7204

HANDLE SUB-ASSY, WELCAB SEAT TRACK

C7251

BRACKET, WELCAB SEAT TRACK STOPPER, NO.1 RH

C7251A

BRACKET, WELCAB SEAT TRACK STOPPER, NO.1 LH

C7260

HANDLE ASSY, SEAT TURN LOCK

C8459

SPRING, LIMIT SWITCH

C9654

COLLAR, POWER LIFT CYLINDER

C9654

COLLAR, POWER LIFT CYLINDER

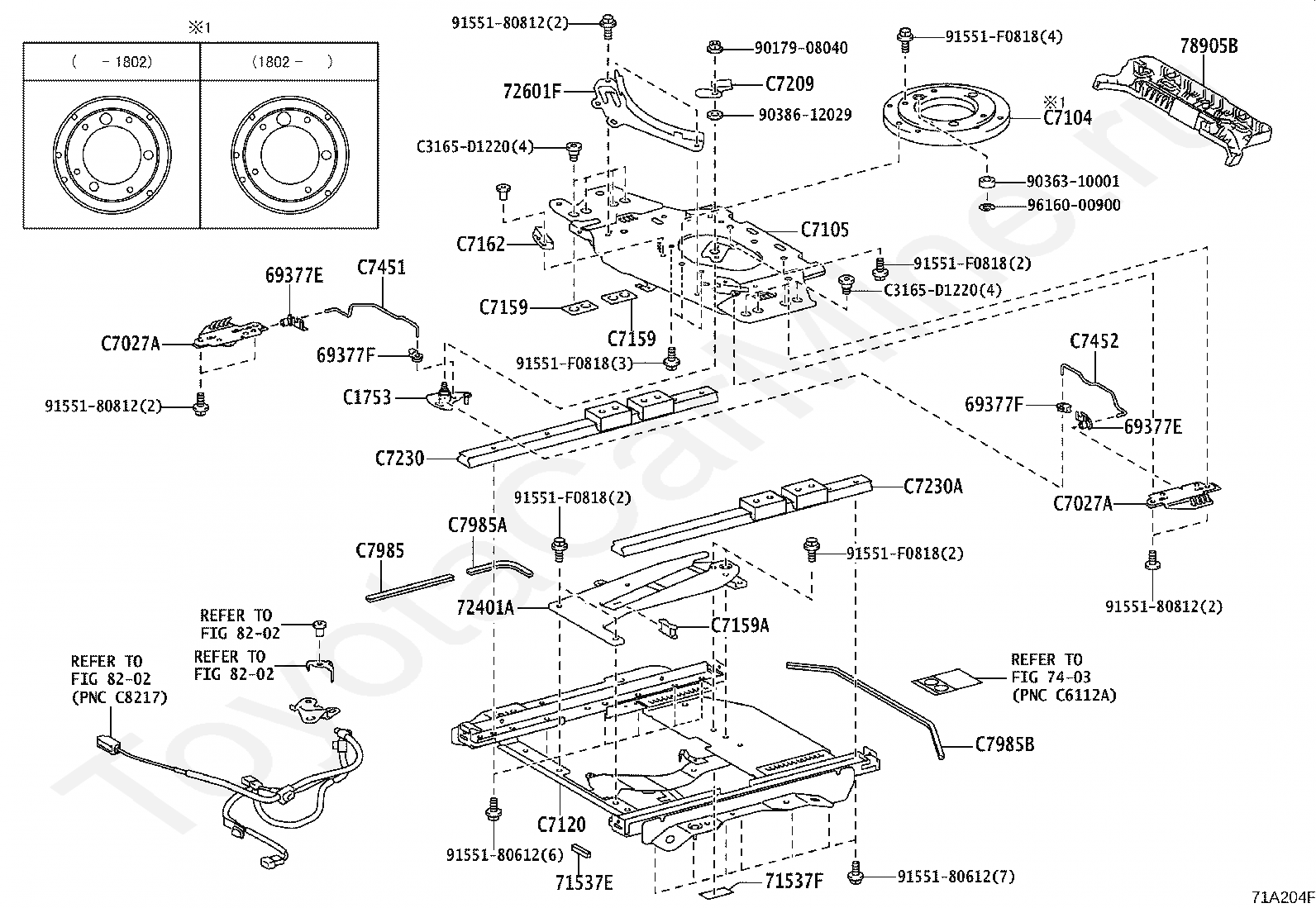

Код

Описание

69377E

SNAP, WELCAB SEAT LINK ARM, NO.1

69377E

SNAP, WELCAB SEAT LINK ARM, NO.1

69377F

SNAP, WELCAB SEAT LINK ARM, NO.2

69377F

SNAP, WELCAB SEAT LINK ARM, NO.2

71537E

PROTECTOR, FRONT SEAT CUSHION, NO.1

71537F

PROTECTOR, FRONT SEAT CUSHION, NO.2

72401A

GUIDE SUB-ASSY, FRONT SEAT TRACK ROLLER

72601F

STRIKER SUB-ASSY, FRONT SEAT LOCK

7403

переход к группе запчастей

78905B

COVER SUB-ASSY, REAR SEAT UNDER TRAY

8202

переход к группе запчастей

8202

переход к группе запчастей

8202

переход к группе запчастей

9017908040

Крепеж

9036310001

Крепеж

9038612029

Крепеж

9155180612

Крепеж

9155180612

Крепеж

9155180812

Крепеж

9155180812

Крепеж

9155180812

Крепеж

91551F0818

Крепеж

91551F0818

Крепеж

91551F0818

Крепеж

91551F0818

Крепеж

91551F0818

Крепеж

9616000900

Крепеж

C1753

PLATE, CONTROL ARM, LOWER

C3165D1220

Крепеж

C3165D1220

Крепеж

C7027A

LOCK SUB-ASSY, WELCAB SEAT TURN

C7027A

LOCK SUB-ASSY, WELCAB SEAT TURN

C7104

PLATE SUB-ASSY, SEAT TURN

C7105

PANEL SUB-ASSY, SLIDE TABLE

C7120

LEG, WELCAB SEAT, NO.1

C7159

CUSHION, WELCAB SEAT LEG STOPPER

C7159

CUSHION, WELCAB SEAT LEG STOPPER

C7159A

CUSHION, WELCAB SEAT LEG STOPPER, NO.1

C7162

PLATE, WELCAB SEAT SLIDE TABLE

C7209

PLATE SUB-ASSY, FRONT SEAT TURN, UPPER

C7230

TRACK ASSY, WELCAB SEAT, NO.1

C7230A

TRACK ASSY, WELCAB SEAT, NO.2

C7451

ARM, WELCAB SEAT LINK, NO.1

C7452

ARM, WELCAB SEAT LINK, NO.2

C7985

GUARD, REAR SEAT TURN, NO.1

C7985A

GUARD, REAR SEAT TURN, NO.2

C7985B

GUARD, REAR SEAT TURN, NO.3

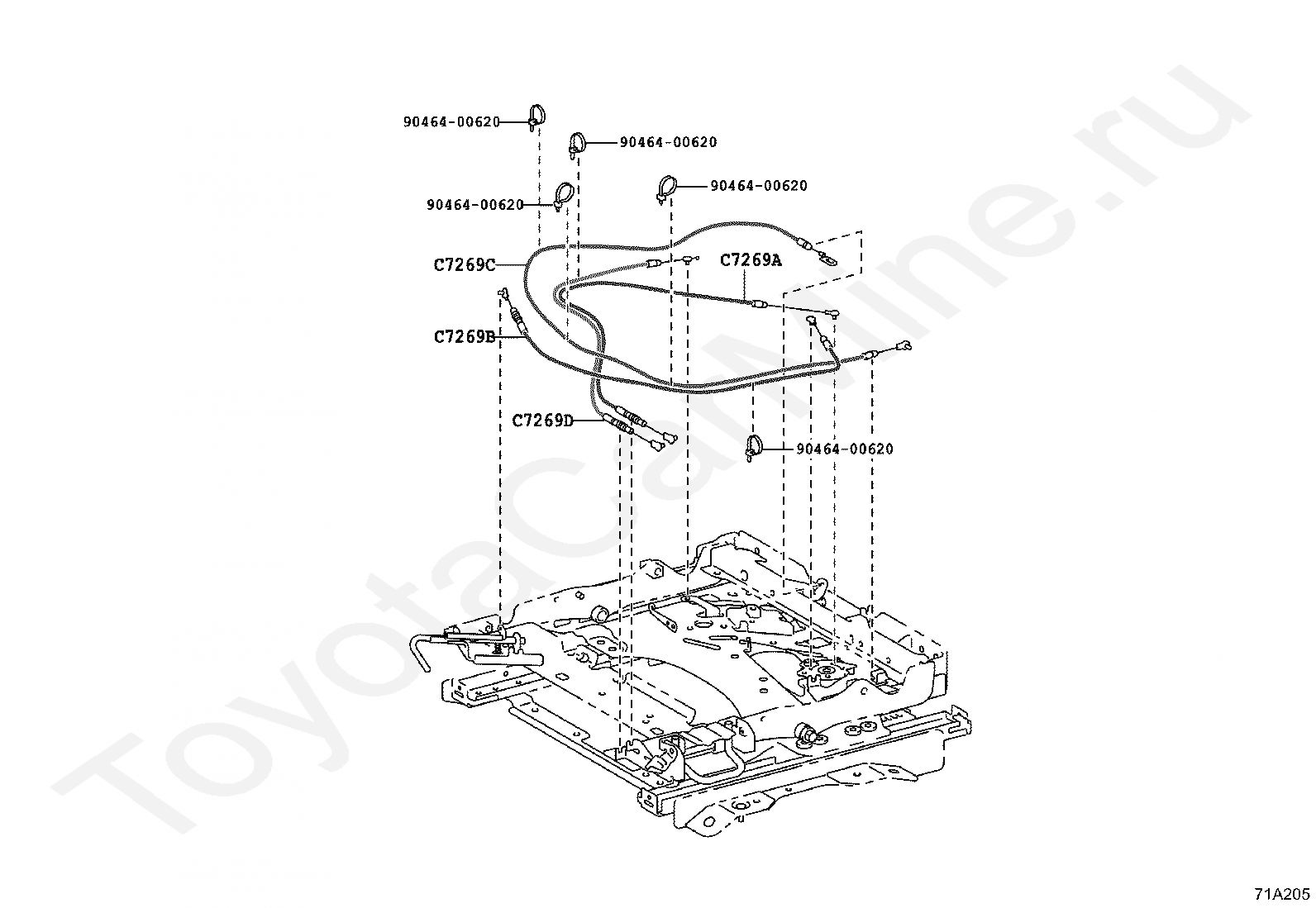

Код

Описание

9046400620

Крепеж

9046400620

Крепеж

9046400620

Крепеж

9046400620

Крепеж

9046400620

Крепеж

C7269A

CABLE, SEAT TURN LOCK RELEASE, NO.1

C7269B

CABLE, SEAT TURN LOCK RELEASE, NO.2

C7269C

CABLE, SEAT TURN LOCK RELEASE, NO.3

C7269D

CABLE, SEAT TURN LOCK RELEASE, NO.4

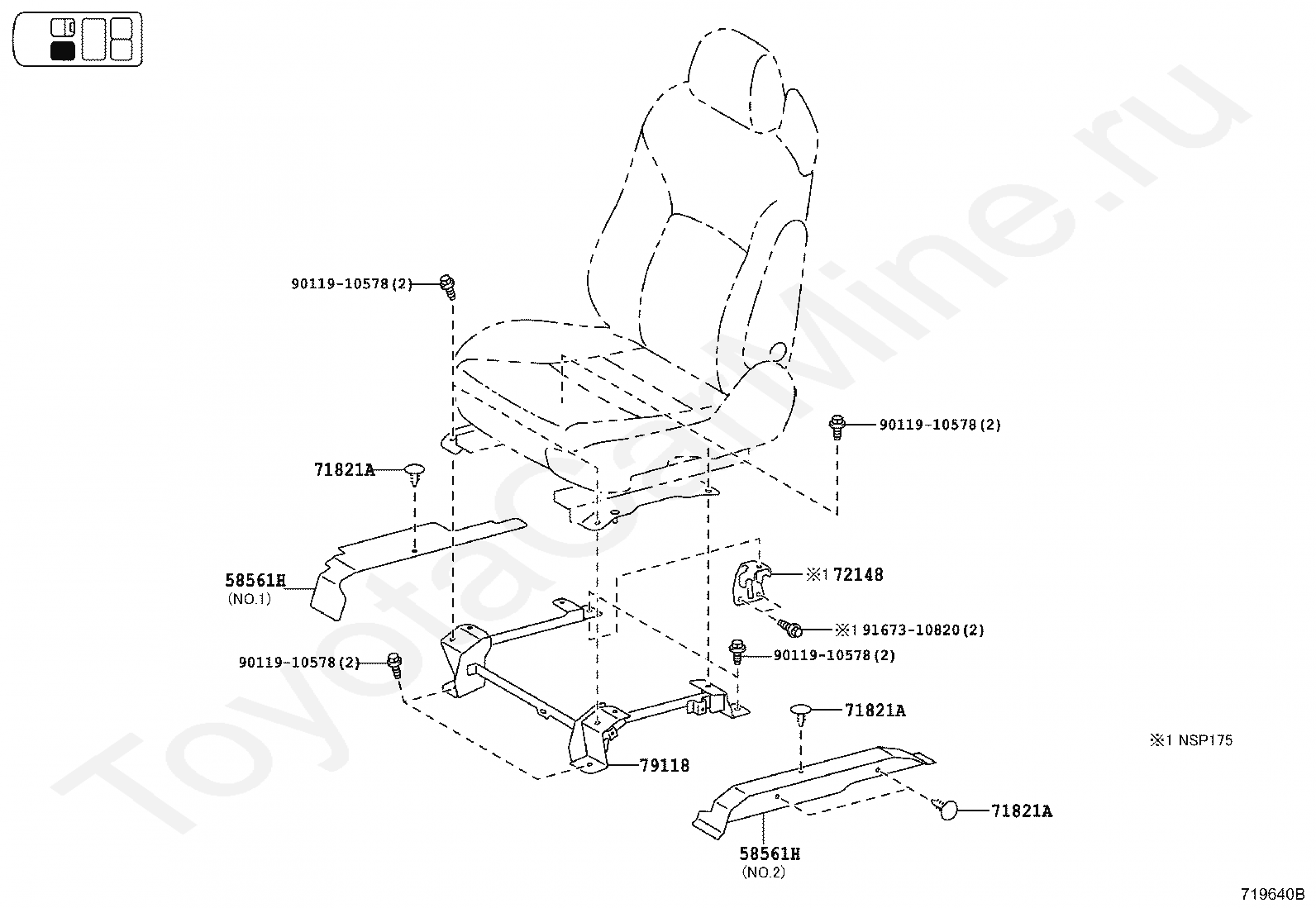

Код

Описание

58561H

CARPET, FRONT FLOOR SIDE, LH

58561H

CARPET, FRONT FLOOR SIDE, LH

71821A

CLIP (FOR FRONT SEAT SIDE SHIELD)

71821A

CLIP (FOR FRONT SEAT SIDE SHIELD)

71821A

CLIP (FOR FRONT SEAT SIDE SHIELD)

72148

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH

79118

BRACKET, NO.1 SEAT LEG

9011910578

Крепеж

9011910578

Крепеж

9011910578

Крепеж

9011910578

Крепеж

9167310820

Крепеж

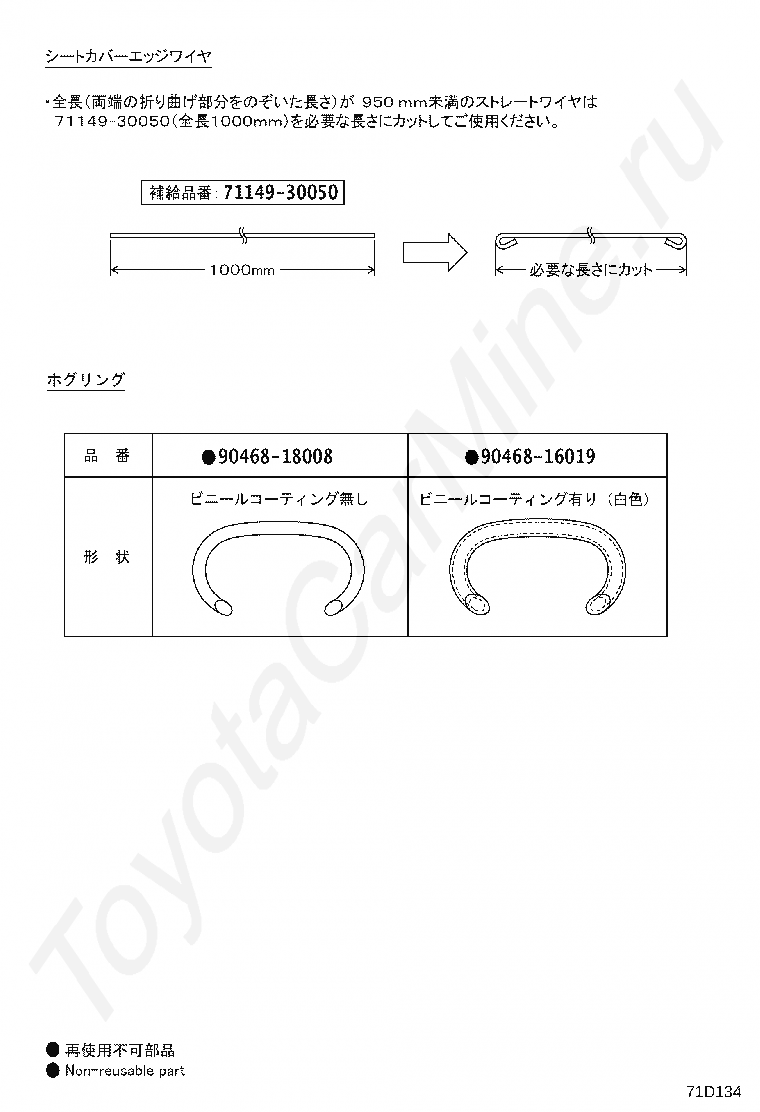

Код

Описание

7114930050

Крепеж

9046816019

Крепеж

9046818008

Крепеж
