Ближний Восток

Модель

SIENNA

VIN

Дата

2016/08

Двигатель

3,5 литра, 24 клапана, DOHC

Кузов

фургон

Класс

XLE TYPE

Фрейм

GSL30

КПП

автомат АКПП, 8 скоростей

Опции

7-местный Корея 672W

Кресла TOYOTA SIENNA

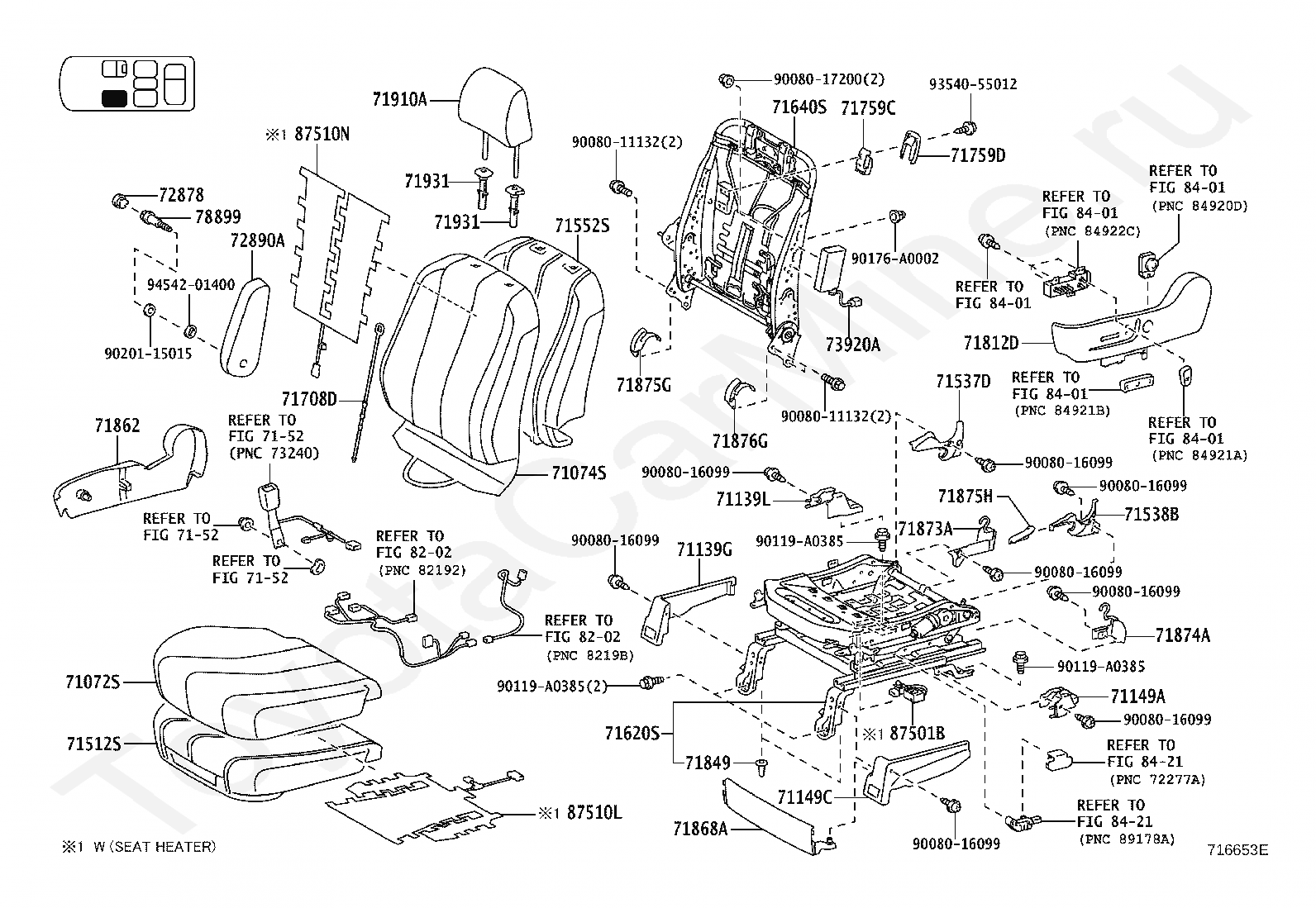

Код

Описание

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71139G

COVER, FRONT SEAT LEG

71139L

COVER, FRONT SEAT LEG, RH(FOR LH SEAT)

71149A

COVER, FRONT SEAT LEG, LH

71149C

COVER, FRONT SEAT LEG, LH (FOR LH SEAT)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

71538B

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71708D

STRAP SUB-ASSY, SEAT COVER, LH

71759C

HOOK, FRONT SEAT BACK, NO.1

71759D

HOOK, FRONT SEAT BACK, NO.2

71812D

SHIELD, FRONT SEAT CUSHION, LH

71849

CAP, SEAT ADJUSTER COVER, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71868A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71874A

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71875H

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72878

COVER, SEAT ARMREST, LH

72890A

ARMREST ASSY, FRONT SEAT, INNER LH

73920A

AIR BAG ASSY, FRONT SEAT, LH

78899

BOLT, FRONT SEAT

8202

переход к группе запчастей

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8421

переход к группе запчастей

8421

переход к группе запчастей

87501B

CONTROL SUB-ASSY, SEAT HEATER, LH

87510L

HEATER ASSY, FRONT SEAT CUSHION, LH

87510N

HEATER ASSY, FRONT SEAT BACK, LH

9008011132

Крепеж

9008011132

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008017200

Крепеж

90119A0385

Крепеж

90119A0385

Крепеж

90119A0385

Крепеж

90176A0002

Крепеж

9020115015

Крепеж

9354055012

Крепеж

9454201400

Крепеж

Код

Описание

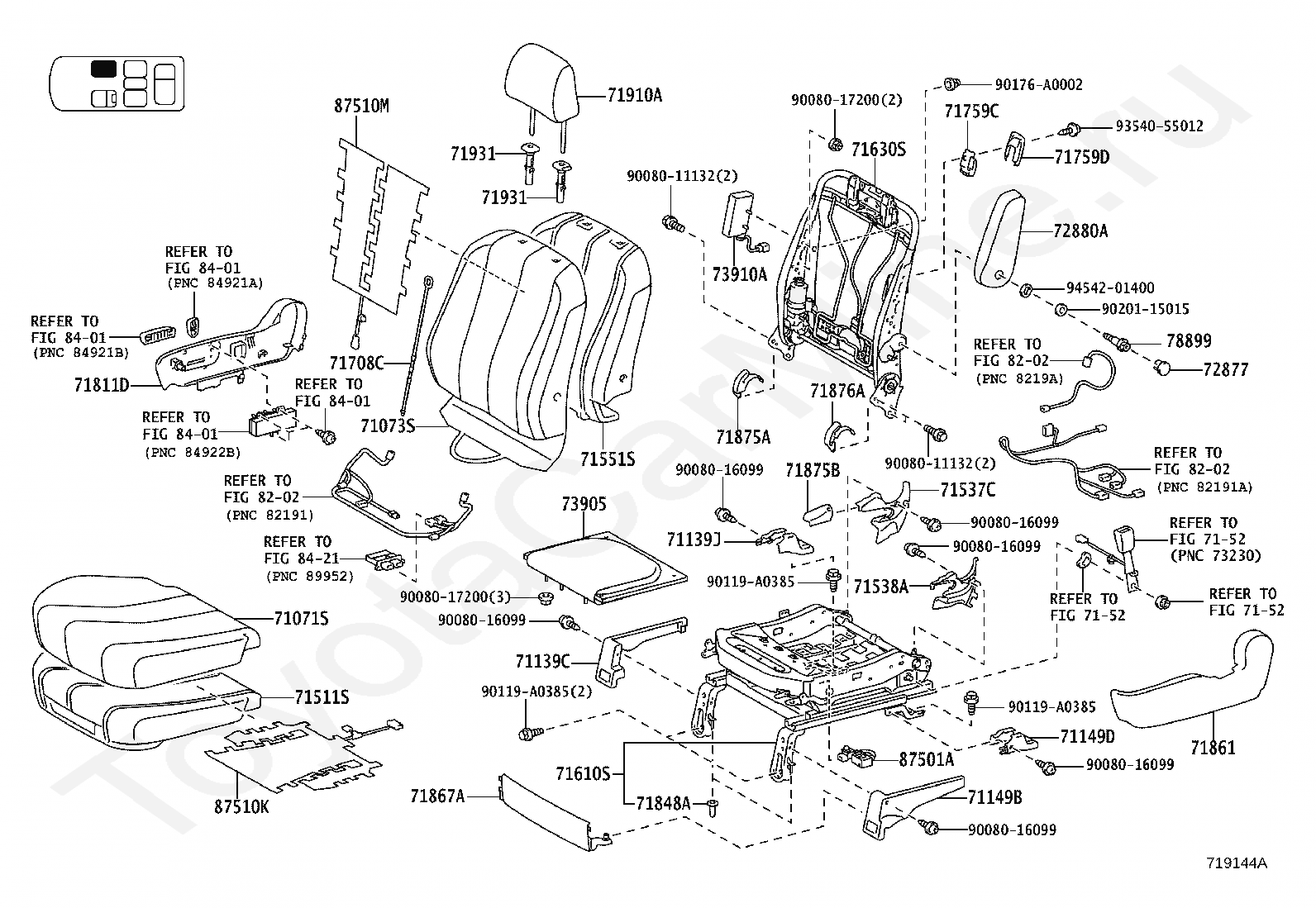

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71139C

COVER, FRONT SEAT LEG, RH

71139J

COVER, FRONT SEAT LEG, RH(FOR RH SEAT)

71149B

COVER, FRONT SEAT LEG, LH (FOR RH SEAT)

71149D

COVER, FRONT SEAT LEG, INNER (FOR RH SEAT)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71537C

PROTECTOR, FRONT SEAT CUSHION EDGE, RH

71538A

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71708C

STRAP SUB-ASSY, SEAT COVER, RH

71759C

HOOK, FRONT SEAT BACK, NO.1

71759D

HOOK, FRONT SEAT BACK, NO.2

71811D

SHIELD, FRONT SEAT CUSHION, RH

71848A

CAP, SEAT ADJUSTER COVER, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71867A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72877

COVER, SEAT ARMREST, RH

72880A

ARMREST ASSY, FRONT SEAT, INNER RH

73905

AIR BAG SUB-ASSY, FRONT SEAT, RH

73910A

AIR BAG ASSY, FRONT SEAT, RH

78899

BOLT, FRONT SEAT

8202

переход к группе запчастей

8202

переход к группе запчастей

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8421

переход к группе запчастей

87501A

CONTROL SUB-ASSY, SEAT HEATER, RH

87510K

HEATER ASSY, FRONT SEAT CUSHION, RH

87510M

HEATER ASSY, FRONT SEAT BACK, RH

9008011132

Крепеж

9008011132

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008017200

Крепеж

9008017200

Крепеж

90119A0385

Крепеж

90119A0385

Крепеж

90119A0385

Крепеж

90176A0002

Крепеж

9020115015

Крепеж

9354055012

Крепеж

9454201400

Крепеж

Код

Описание

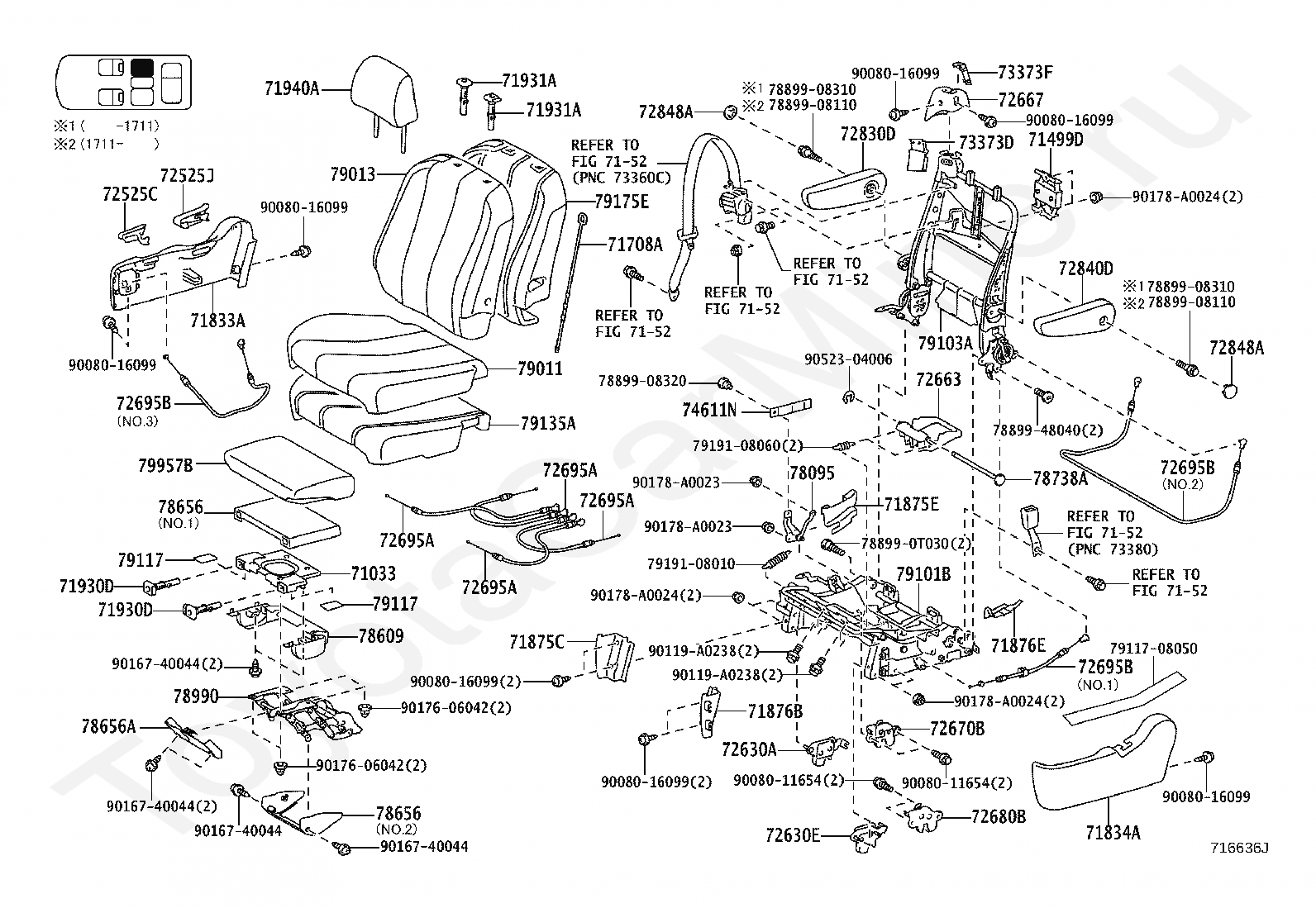

71033

LEG SUB-ASSY, REAR SEAT CUSHION

71499D

DAMPER, REAR SEAT BACK SPRING

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71708A

STRAP SUB-ASSY, SEAT COVER

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71875C

COVER, RECLINING ADJUSTER INSIDE, RH

71875E

COVER, RECLINING ADJUSTER INSIDE, RH

71876B

COVER, RECLINING ADJUSTER INSIDE, LH

71876E

COVER, RECLINING ADJUSTER INSIDE, LH

71930D

SUPPORT ASSY, REAR SEAT LEGREST

71930D

SUPPORT ASSY, REAR SEAT LEGREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72525C

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH

72525J

HANDLE, RECLINING ADJUSTER RELEASE, RH

72630A

LOCK ASSY, REAR NO.1 SEAT

72630E

LOCK ASSY, REAR NO.1 SEAT

72663

LEVER, REAR SEAT LOCK CONTROL, NO.1

72667

BEZEL, REAR SEAT BACK LOCK, UPPER

72670B

LOCK ASSY, REAR SEAT CUSHION, RH

72680B

LOCK ASSY, REAR SEAT CUSHION, LH

72695A

CABLE, REAR SEAT LOCK CONTROL

72695A

CABLE, REAR SEAT LOCK CONTROL

72695A

CABLE, REAR SEAT LOCK CONTROL

72695A

CABLE, REAR SEAT LOCK CONTROL

72695B

CABLE, REAR SEAT LOCK CONTROL, RH

72695B

CABLE, REAR SEAT LOCK CONTROL, RH

72695B

CABLE, REAR SEAT LOCK CONTROL, RH

72830D

ARMREST ASSY, REAR SEAT, RH

72840D

ARMREST ASSY, REAR SEAT, LH

72848A

CAP, SEAT ARMREST, NO.1

72848A

CAP, SEAT ARMREST, NO.1

73373D

COVER, REAR SEAT SHOULDER BELT HOLE, RH

73373F

COVER, REAR SEAT SHOULDER BELT HOLE

74611N

STRAP, ASSIST GRIP

78095

LEVER SUB-ASSY, FOLD SEAT LOCK, RH

78609

COVER SUB-ASSY, REAR SEAT LEGREST LOCK

78656

COVER, REAR SEAT LEGREST

78656

COVER, REAR SEAT LEGREST

78656A

COVER, REAR SEAT LEGREST

78738A

PIN, SUB SEAT CUSHION PIN

7889908110

Крепеж

7889908110

Крепеж

7889908310

Крепеж

7889908310

Крепеж

7889908320

Крепеж

788990T030

Крепеж

7889948040

Крепеж

78990

ADJUSTER ASSY, REAR SEAT FOOTREST

79011

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79101B

FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH

79103A

FRAME SUB-ASSY, NO.1 SEAT BACK, RH

79117

CARPET, NO.1 SEAT CUSHION

79117

CARPET, NO.1 SEAT CUSHION

7911708050

Крепеж

79135A

PAD, NO.1 SEAT CUSHION, RH

79175E

PAD, NO.1 SEAT BACK, RH

7919108010

Крепеж

7919108060

Крепеж

79957B

PAD, REAR SEAT LEG SIDE

9008011654

Крепеж

9008011654

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

90119A0238

Крепеж

90119A0238

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017606042

Крепеж

9017606042

Крепеж

90178A0023

Крепеж

90178A0023

Крепеж

90178A0024

Крепеж

90178A0024

Крепеж

90178A0024

Крепеж

9052304006

Крепеж

Код

Описание

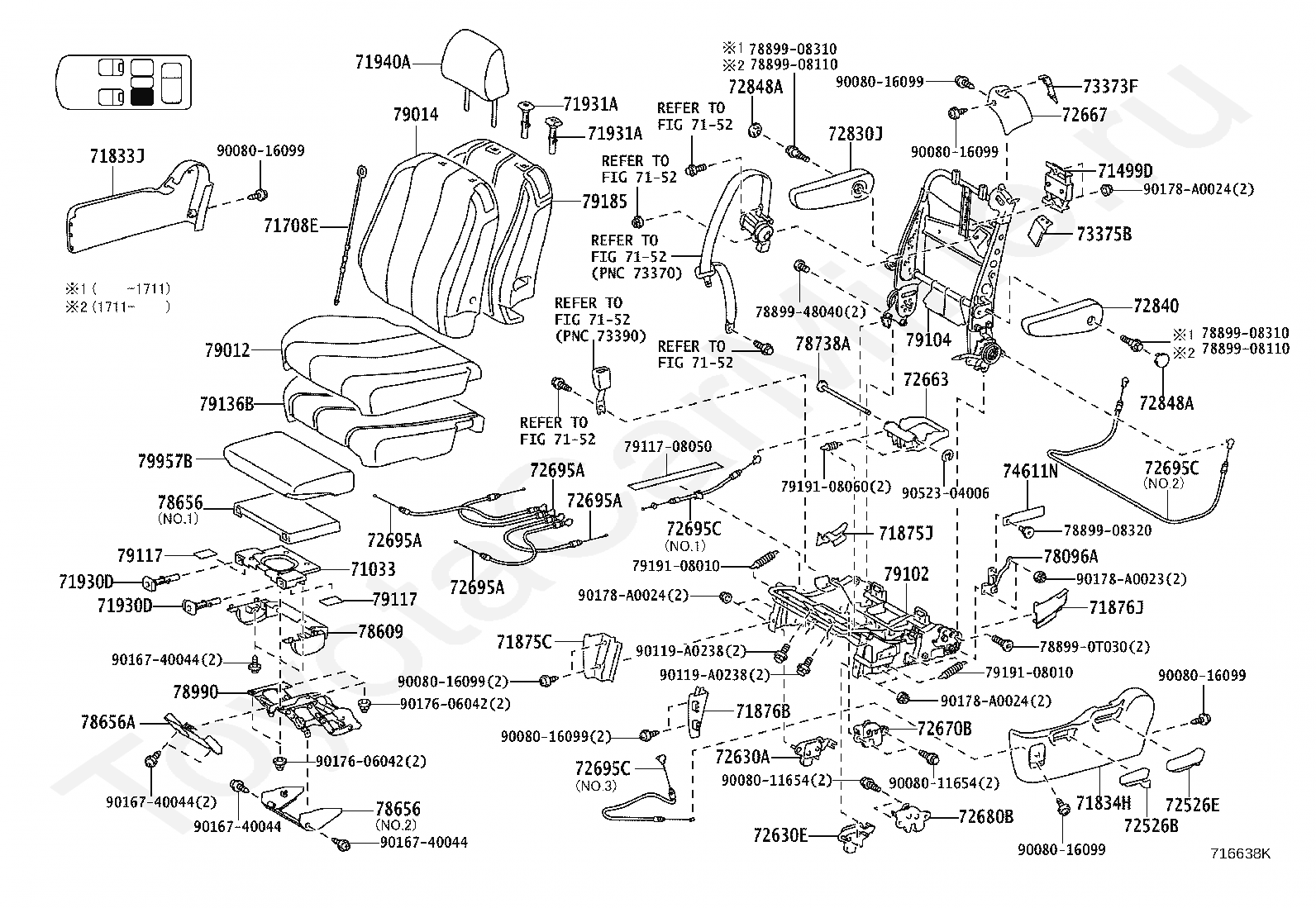

71033

LEG SUB-ASSY, REAR SEAT CUSHION

71499D

DAMPER, REAR SEAT BACK SPRING

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71708E

STRAP SUB-ASSY, REAR SEAT COVER

71833J

COVER, REAR SEAT RECLINING, NO.1 RH

71834H

COVER, REAR SEAT RECLINING, NO.1 LH

71875C

COVER, RECLINING ADJUSTER INSIDE, RH

71875J

COVER, RECLINING ADJUSTER INSIDE, RH

71876B

COVER, RECLINING ADJUSTER INSIDE, LH

71876J

COVER, RECLINING ADJUSTER INSIDE, LH

71930D

SUPPORT ASSY, REAR SEAT LEGREST

71930D

SUPPORT ASSY, REAR SEAT LEGREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72526B

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH

72526E

HANDLE, RECLINING ADJUSTER RELEASE, LH

72630A

LOCK ASSY, REAR NO.1 SEAT

72630E

LOCK ASSY, REAR NO.1 SEAT

72663

LEVER, REAR SEAT LOCK CONTROL, NO.1

72667

BEZEL, REAR SEAT BACK LOCK, UPPER

72670B

LOCK ASSY, REAR SEAT CUSHION, RH

72680B

LOCK ASSY, REAR SEAT CUSHION, LH

72695A

CABLE, REAR SEAT LOCK CONTROL

72695A

CABLE, REAR SEAT LOCK CONTROL

72695A

CABLE, REAR SEAT LOCK CONTROL

72695A

CABLE, REAR SEAT LOCK CONTROL

72695C

CABLE, REAR SEAT LOCK CONTROL, LH

72695C

CABLE, REAR SEAT LOCK CONTROL, LH

72695C

CABLE, REAR SEAT LOCK CONTROL, LH

72830J

ARMREST ASSY, REAR NO.1 SEAT, RH

72840

ARMREST ASSY, REAR NO.1 SEAT, LH

72848A

CAP, SEAT ARMREST, NO.1

72848A

CAP, SEAT ARMREST, NO.1

73373F

COVER, REAR SEAT SHOULDER BELT HOLE

73375B

COVER, REAR SEAT SHOULDER BELT HOLE, LH

74611N

STRAP, ASSIST GRIP

78096A

LEVER SUB-ASSY, FOLD SEAT LOCK, LH

78609

COVER SUB-ASSY, REAR SEAT LEGREST LOCK

78656

COVER, REAR SEAT LEGREST

78656

COVER, REAR SEAT LEGREST

78656A

COVER, REAR SEAT LEGREST

78738A

PIN, SUB SEAT CUSHION PIN

7889908110

Крепеж

7889908110

Крепеж

7889908310

Крепеж

7889908310

Крепеж

7889908320

Крепеж

788990T030

Крепеж

7889948040

Крепеж

78990

ADJUSTER ASSY, REAR SEAT FOOTREST

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79102

FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

79104

FRAME SUB-ASSY, NO.1 SEAT BACK, LH

79117

CARPET, NO.1 SEAT CUSHION

79117

CARPET, NO.1 SEAT CUSHION

7911708050

Крепеж

79136B

PAD, NO.1 SEAT CUSHION, LH

79185

PAD, NO.1 SEAT BACK, LH

7919108010

Крепеж

7919108010

Крепеж

7919108060

Крепеж

79957B

PAD, REAR SEAT LEG SIDE

9008011654

Крепеж

9008011654

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

90119A0238

Крепеж

90119A0238

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017606042

Крепеж

9017606042

Крепеж

90178A0023

Крепеж

90178A0024

Крепеж

90178A0024

Крепеж

90178A0024

Крепеж

9052304006

Крепеж

Код

Описание

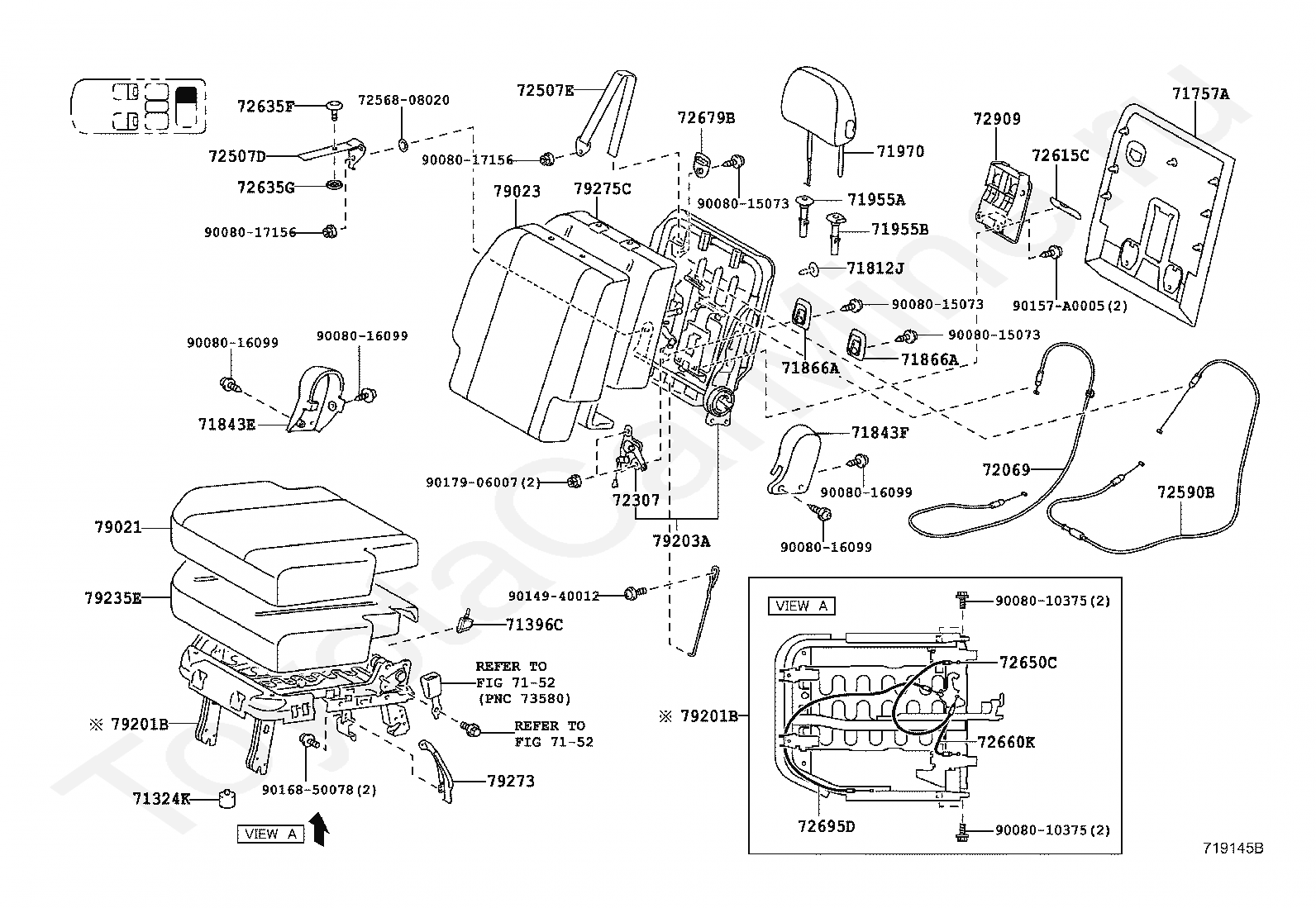

71324K

CUSHION, REAR SEAT

71396C

CUSHION, NO.2 SEAT SUPPORT, REAR

7152

переход к группе запчастей

7152

переход к группе запчастей

71757A

COVER, REAR SEAT BACK BOARD, RH

71812J

CLIP, REAR SEAT COVER

71843E

COVER, REAR SEAT RECLINING, RH (FOR RH SEAT)

71843F

COVER, REAR SEAT RECLINING, LH (FOR RH SEAT)

71866A

BEZEL, REAR SEAT COVER, NO.2

71866A

BEZEL, REAR SEAT COVER, NO.2

71955A

SUPPORT, REAR SEAT HEADREST

71955B

SUPPORT, REAR SEAT HEADREST

71970

HEADREST ASSY, REAR SEAT

72069

CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL

72307

LINK SUB-ASSY, RECLINING CONTROL, RH

72507D

HANDLE SUB-ASSY, NO.2 SEAT RECLINING RELEASE

72507E

HANDLE SUB-ASSY, RECLINING RELEASE, NO.1

7256808020

Крепеж

72590B

CABLE ASSY, RECLINING REMOTE CONTROL

72615C

COVER, REAR SEAT BACK LOCK STRIKER

72635F

HOOK, REAR SEAT BACK LOCK, NO.2(MALE)

72635G

HOOK, REAR SEAT BACK LOCK, NO.2(FEMALE)

72650C

CABLE ASSY, REAR NO.2 SEAT LOCK, RH

72660K

CABLE ASSY, REAR NO.2 SEAT CUSHION LOCK, RH

72679B

BEZEL, REAR SEAT BACK LOCK CONTROL

72695D

CABLE, REAR NO.2 SEAT LOCK CONTROL, RH

72909

HANDLE 3RD SEAT

79021

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79023

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79201B

FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH

79201B

FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH

79203A

FRAME SUB-ASSY, NO.2 SEAT BACK, RH

79235E

PAD, NO.2 SEAT CUSHION, RH

79273

COVER, NO.2 SEAT HINGE

79275C

PAD, NO.2 SEAT BACK, RH

9008010375

Крепеж

9008010375

Крепеж

9008015073

Крепеж

9008015073

Крепеж

9008015073

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008017156

Крепеж

9008017156

Крепеж

9014940012

Крепеж

90157A0005

Крепеж

9016850078

Крепеж

9017906007

Крепеж

Код

Описание

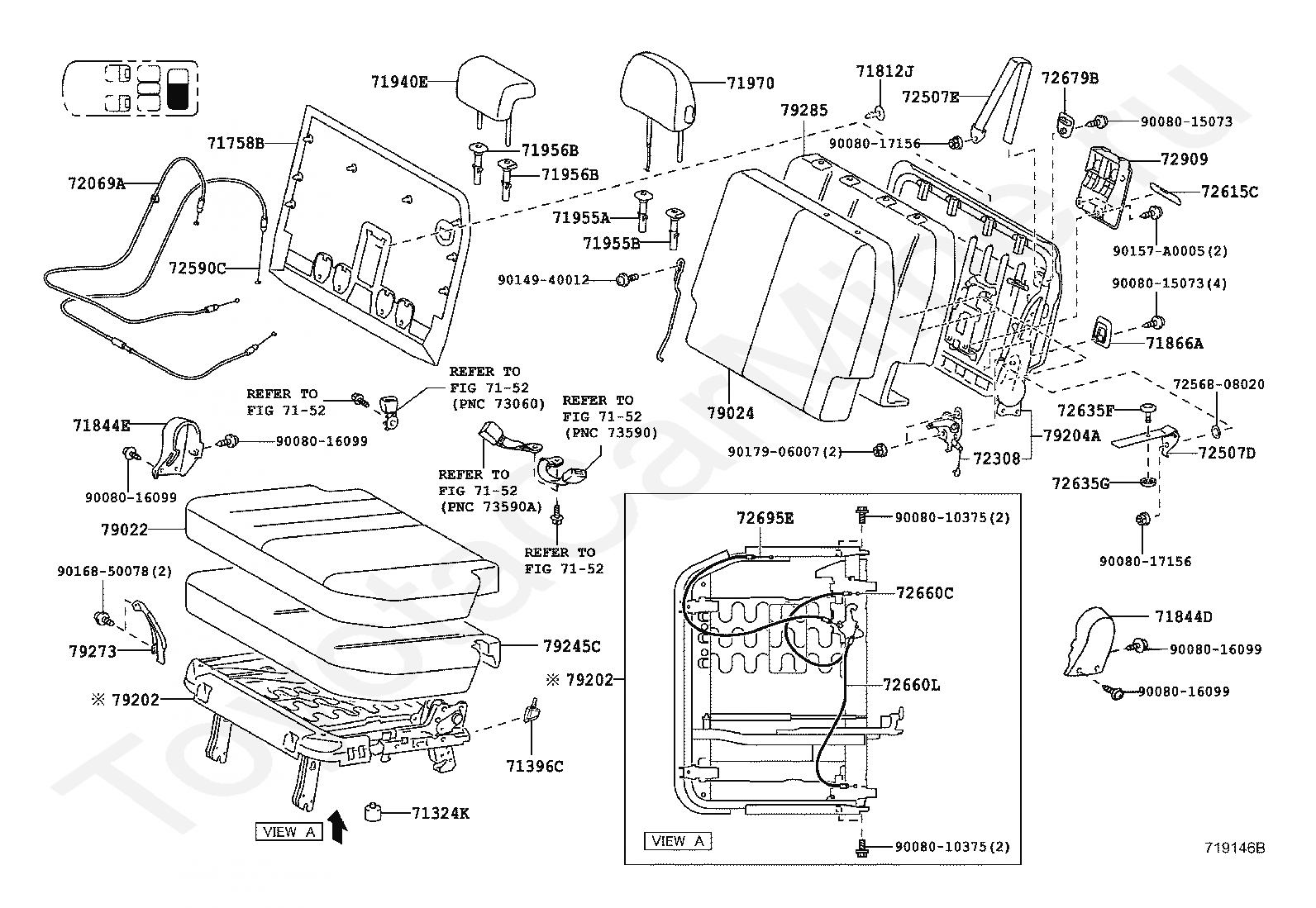

71324K

CUSHION, REAR SEAT

71396C

CUSHION, NO.2 SEAT SUPPORT, REAR

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71758B

COVER, REAR SEAT BACK BOARD, LH

71812J

CLIP, REAR SEAT COVER

71844D

COVER, REAR SEAT RECLINING, LH (FOR LH SEAT)

71844E

COVER, REAR SEAT RECLINING, RH (FOR LH SEAT)

71866A

BEZEL, REAR SEAT COVER, NO.2

71940E

HEADREST ASSY, NO.2 SEAT

71955A

SUPPORT, REAR SEAT HEADREST

71955B

SUPPORT, REAR SEAT HEADREST

71956B

SUPPORT, REAR SEAT HEADREST

71956B

SUPPORT, REAR SEAT HEADREST

71970

HEADREST ASSY, REAR SEAT

72069A

CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL, LH

72308

LINK SUB-ASSY, RECLINING CONTROL, LH

72507D

HANDLE SUB-ASSY, NO.2 SEAT RECLINING RELEASE

72507E

HANDLE SUB-ASSY, RECLINING RELEASE, NO.1

7256808020

Крепеж

72590C

CABLE ASSY, RECLINING REMOTE CONTROL

72615C

COVER, REAR SEAT BACK LOCK STRIKER

72635F

HOOK, REAR SEAT BACK LOCK, NO.2(MALE)

72635G

HOOK, REAR SEAT BACK LOCK, NO.2(FEMALE)

72660C

CABLE ASSY, REAR NO.2 SEAT LOCK, LH

72660L

CABLE ASSY, REAR NO.2 SEAT CUSHION LOCK, LH

72679B

BEZEL, REAR SEAT BACK LOCK CONTROL

72695E

CABLE, REAR NO.2 SEAT LOCK CONTROL, LH

72909

HANDLE 3RD SEAT

79022

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79024

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79202

FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH

79202

FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH

79204A

FRAME SUB-ASSY, NO.2 SEAT BACK, LH

79245C

PAD, NO.2 SEAT CUSHION, LH

79273

COVER, NO.2 SEAT HINGE

79285

PAD, NO.2 SEAT BACK, LH

9008010375

Крепеж

9008010375

Крепеж

9008015073

Крепеж

9008015073

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008017156

Крепеж

9008017156

Крепеж

9014940012

Крепеж

90157A0005

Крепеж

9016850078

Крепеж

9017906007

Крепеж

Код

Описание

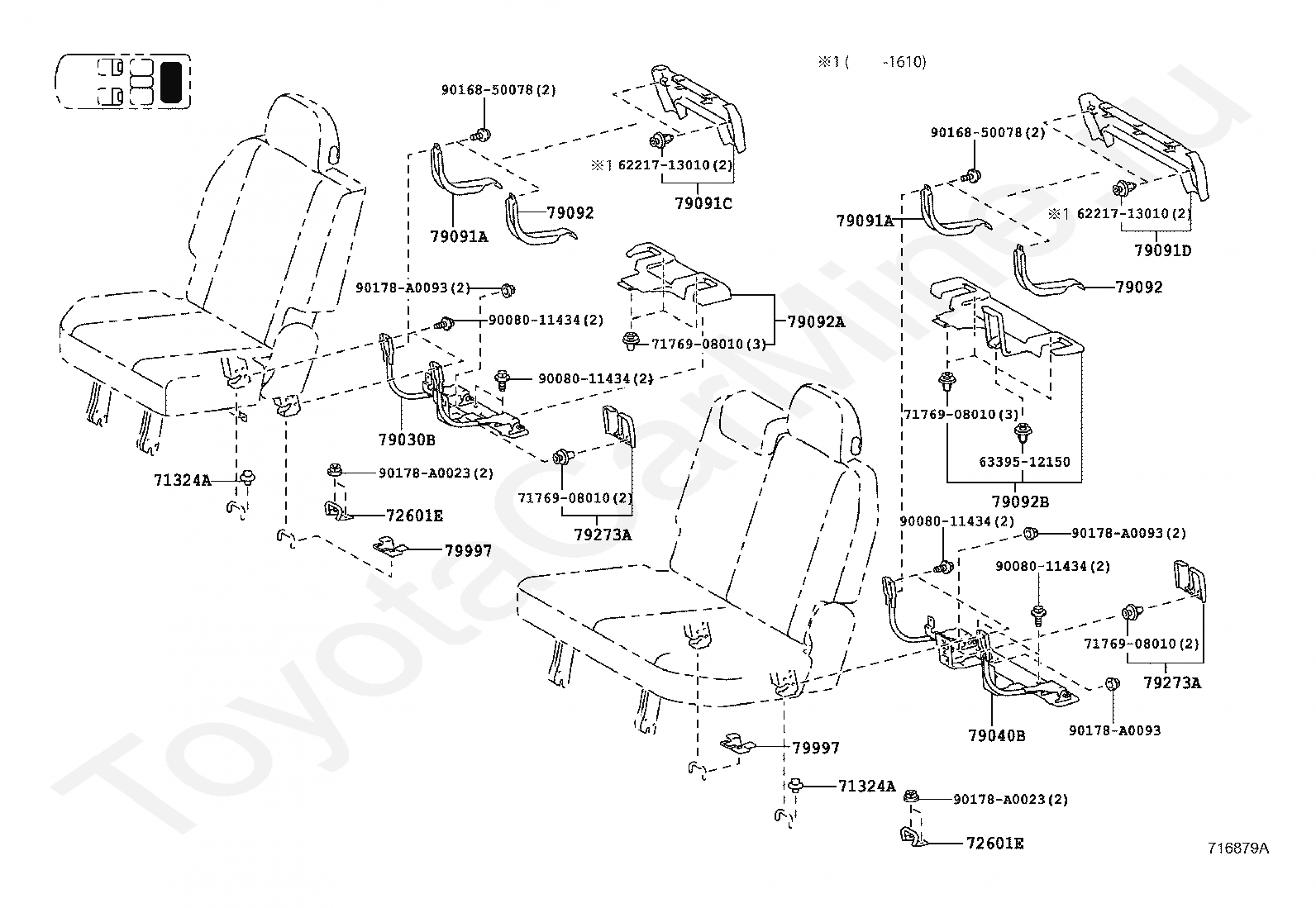

6221713010

Крепеж

6221713010

Крепеж

6339512150

Крепеж

71324A

CUSHION, REAR SEAT

71324A

CUSHION, REAR SEAT

7176908010

Крепеж

7176908010

Крепеж

7176908010

Крепеж

7176908010

Крепеж

72601E

STRIKER SUB-ASSY, REAR SEAT LOCK, NO.2

72601E

STRIKER SUB-ASSY, REAR SEAT LOCK, NO.2

79030B

LEG ASSY, REAR NO.2 SEAT, RH

79040B

LEG ASSY, REAR NO.2 SEAT, LH

79091A

GARNISH SUB-ASSY, REAR SEAT LEG SIDE

79091A

GARNISH SUB-ASSY, REAR SEAT LEG SIDE

79091C

GARNISH SUB-ASSY, REAR SEAT LEG SIDE, RH

79091D

GARNISH SUB-ASSY, REAR SEAT LEG SIDE, LH

79092

GARNISH SUB-ASSY, REAR SEAT LEG SIDE, NO.2

79092

GARNISH SUB-ASSY, REAR SEAT LEG SIDE, NO.2

79092A

GARNISH SUB-ASSY, REAR SEAT LEG SIDE, NO.2 RH

79092B

GARNISH SUB-ASSY, REAR SEAT LEG SIDE, NO.2 LH

79273A

COVER, NO.2 SEAT HINGE, NO.2

79273A

COVER, NO.2 SEAT HINGE, NO.2

79997

PROTECTOR, SEAT LEG BOX, NO.1

79997

PROTECTOR, SEAT LEG BOX, NO.1

9008011434

Крепеж

9008011434

Крепеж

9008011434

Крепеж

9008011434

Крепеж

9016850078

Крепеж

9016850078

Крепеж

90178A0023

Крепеж

90178A0023

Крепеж

90178A0093

Крепеж

90178A0093

Крепеж

90178A0093

Крепеж

Код

Описание

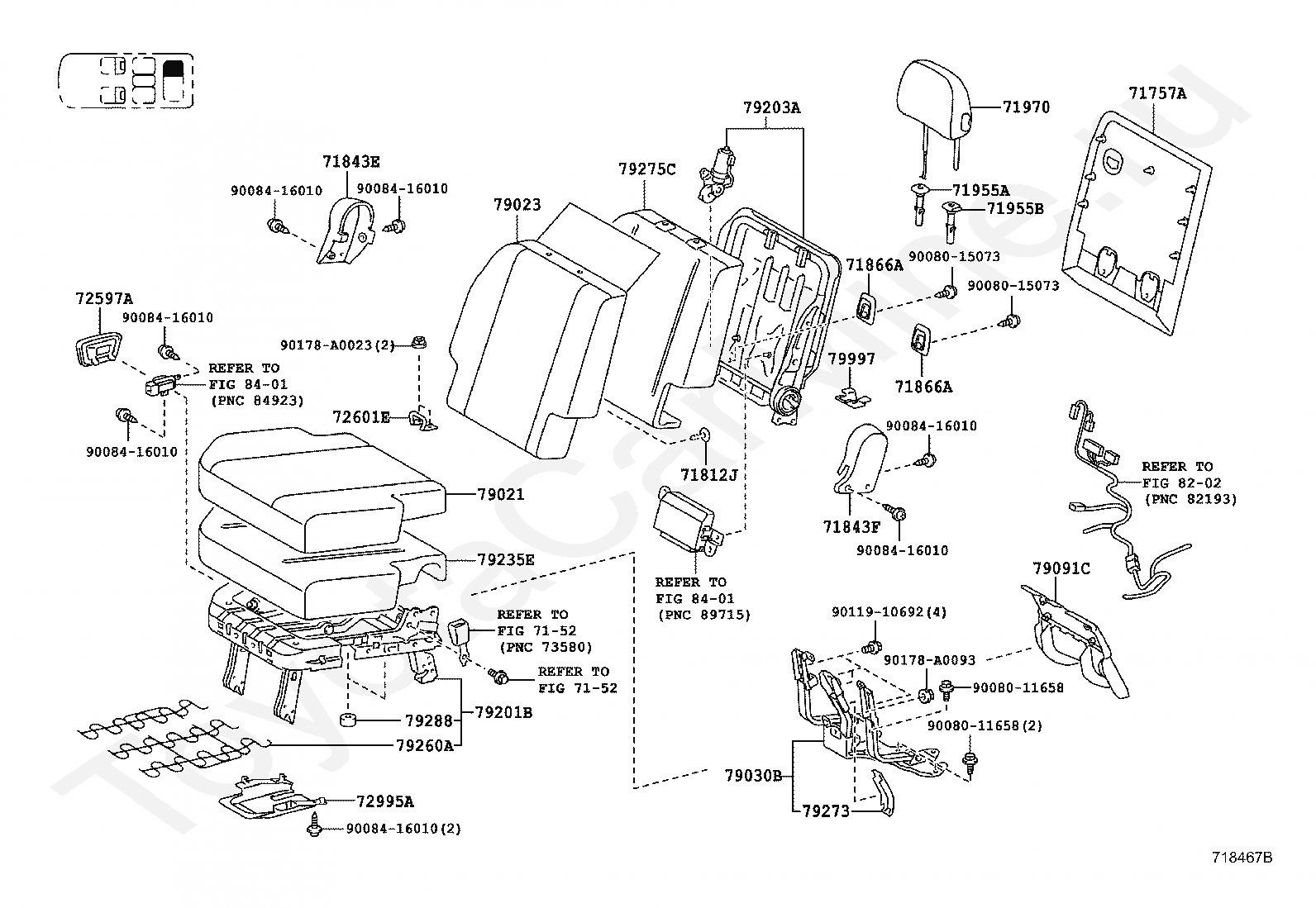

7152

переход к группе запчастей

7152

переход к группе запчастей

71757A

COVER, REAR SEAT BACK BOARD, RH

71812J

CLIP, REAR SEAT COVER

71843E

COVER, REAR SEAT RECLINING, RH (FOR RH SEAT)

71843F

COVER, REAR SEAT RECLINING, LH (FOR RH SEAT)

71866A

BEZEL, REAR SEAT COVER, NO.2

71866A

BEZEL, REAR SEAT COVER, NO.2

71955A

SUPPORT, REAR SEAT HEADREST

71955B

SUPPORT, REAR SEAT HEADREST

71970

HEADREST ASSY, REAR SEAT

72597A

BEZEL, RECLINING REMOTE CONTROL LEVER, RH

72601E

STRIKER SUB-ASSY, REAR SEAT LOCK, NO.2

72995A

COVER, REAR SEAT

79021

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79023

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79030B

LEG ASSY, REAR NO.2 SEAT, RH

79091C

GARNISH SUB-ASSY, REAR SEAT LEG SIDE, RH

79201B

FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH

79203A

FRAME SUB-ASSY, NO.2 SEAT BACK, RH

79235E

PAD, NO.2 SEAT CUSHION, RH

79260A

SPRING ASSY, NO.2 SEAT CUSHION, RH

79273

COVER, NO.2 SEAT HINGE

79275C

PAD, NO.2 SEAT BACK, RH

79288

STOPPER, NO.2 SEAT CUSHION

79997

PROTECTOR, SEAT LEG BOX, NO.1

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

9008011658

Крепеж

9008011658

Крепеж

9008015073

Крепеж

9008015073

Крепеж

9008416010

Крепеж

9008416010

Крепеж

9008416010

Крепеж

9008416010

Крепеж

9008416010

Крепеж

9008416010

Крепеж

9008416010

Крепеж

9011910692

Крепеж

90178A0023

Крепеж

90178A0093

Крепеж

Код

Описание

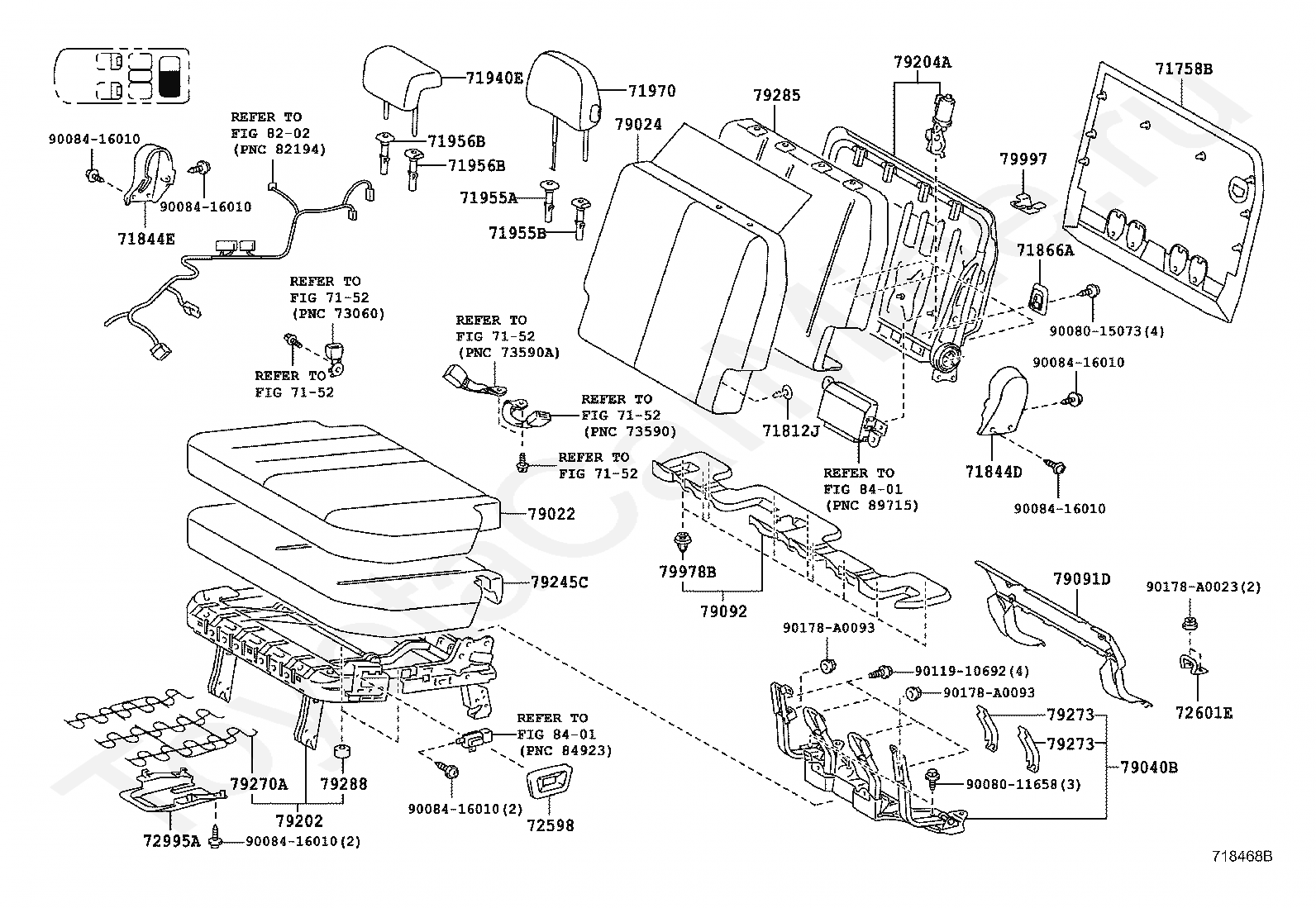

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71758B

COVER, REAR SEAT BACK BOARD, LH

71812J

CLIP, REAR SEAT COVER

71844D

COVER, REAR SEAT RECLINING, LH (FOR LH SEAT)

71844E

COVER, REAR SEAT RECLINING, RH (FOR LH SEAT)

71866A

BEZEL, REAR SEAT COVER, NO.2

71940E

HEADREST ASSY, NO.2 SEAT

71955A

SUPPORT, REAR SEAT HEADREST

71955B

SUPPORT, REAR SEAT HEADREST

71956B

SUPPORT, REAR SEAT HEADREST

71956B

SUPPORT, REAR SEAT HEADREST

71970

HEADREST ASSY, REAR SEAT

72598

BEZEL, RECLINING REMOTE CONTROL LEVER, LH

72601E

STRIKER SUB-ASSY, REAR SEAT LOCK, NO.2

72995A

COVER, REAR SEAT

79022

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79024

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79040B

LEG ASSY, REAR NO.2 SEAT, LH

79091D

GARNISH SUB-ASSY, REAR SEAT LEG SIDE, LH

79092

GARNISH SUB-ASSY, REAR SEAT LEG SIDE, NO.2

79202

FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH

79204A

FRAME SUB-ASSY, NO.2 SEAT BACK, LH

79245C

PAD, NO.2 SEAT CUSHION, LH

79270A

SPRING ASSY, NO.2 SEAT CUSHION, LH

79273

COVER, NO.2 SEAT HINGE

79273

COVER, NO.2 SEAT HINGE

79285

PAD, NO.2 SEAT BACK, LH

79288

STOPPER, NO.2 SEAT CUSHION

79978B

CLIP, REAR SEAT LEG GARNISH COVER

79997

PROTECTOR, SEAT LEG BOX, NO.1

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

9008011658

Крепеж

9008015073

Крепеж

9008416010

Крепеж

9008416010

Крепеж

9008416010

Крепеж

9008416010

Крепеж

9008416010

Крепеж

9008416010

Крепеж

9011910692

Крепеж

90178A0023

Крепеж

90178A0093

Крепеж

90178A0093

Крепеж

Код

Описание

5854

переход к группе запчастей

5854

переход к группе запчастей

5854

переход к группе запчастей

5854

переход к группе запчастей

5854

переход к группе запчастей

5854

переход к группе запчастей

5854

переход к группе запчастей

5854

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

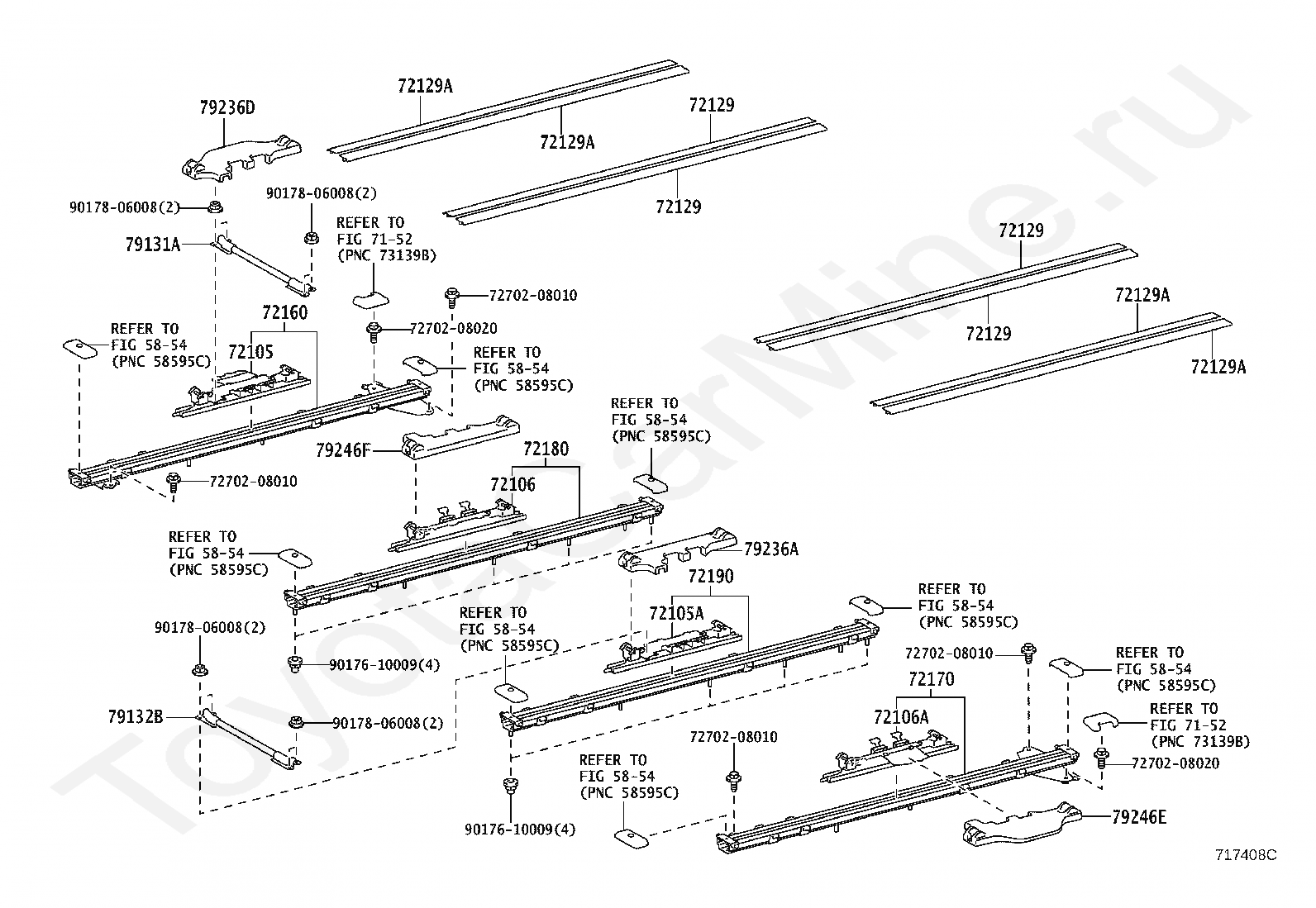

72105

RAIL SUB-ASSY, REAR SEAT TRACK, UPPER RH(FOR RH SEAT)

72105A

RAIL SUB-ASSY, REAR SEAT TRACK, UPPER RH(FOR LH SEAT)

72106

RAIL SUB-ASSY, REAR SEAT TRACK, UPPER LH(FOR RH SEAT)

72106A

RAIL SUB-ASSY, REAR SEAT TRACK, UPPER LH(FOR LH SEAT)

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72129A

PROTECTOR, SEAT TRACK LOWER RAIL, NO.2

72129A

PROTECTOR, SEAT TRACK LOWER RAIL, NO.2

72129A

PROTECTOR, SEAT TRACK LOWER RAIL, NO.2

72129A

PROTECTOR, SEAT TRACK LOWER RAIL, NO.2

72160

TRACK ASSY, REAR SEAT, OUTER RH

72170

TRACK ASSY, REAR SEAT, OUTER LH

72180

TRACK ASSY, REAR SEAT, INNER RH

72190

TRACK ASSY, REAR SEAT INNER, LH

7270208010

Крепеж

7270208010

Крепеж

7270208010

Крепеж

7270208010

Крепеж

7270208020

Крепеж

7270208020

Крепеж

79131A

LEG, NO.1 SEAT, FRONT RH

79132B

LEG, NO.1 SEAT, FRONT LH

79236A

COVER, NO.2 SEAT LEG

79236D

COVER, REAR SEAT LEG, RH (FOR RH SEAT)

79246E

COVER, NO.2 SEAT LEG, REAR LH (FOR LH SEAT)

79246F

COVER, NO.2 REAR SEAT LEG, LH (FOR RH SEAT)

9017610009

Крепеж

9017610009

Крепеж

9017806008

Крепеж

9017806008

Крепеж

9017806008

Крепеж

9017806008

Крепеж

> Запчасти SIENNA > Поиск по каталогу

Купить

Ваше имя
Ваш телефон
Ваша электронная почта
Оставляя свои данные в форме, вы подтверждаете свое согласие с Политикой конфиденциальности
