4702
переход к группе запчастей

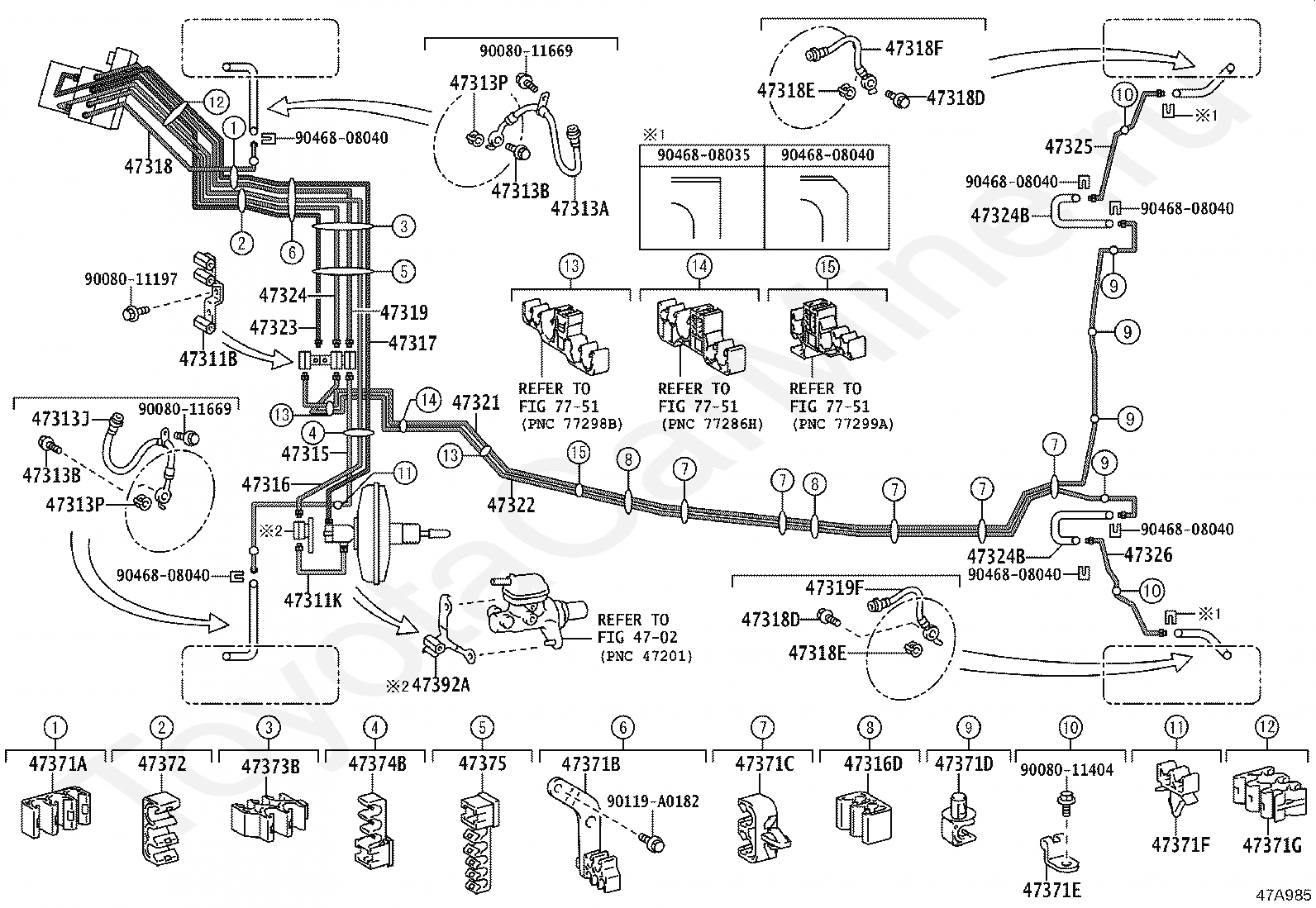

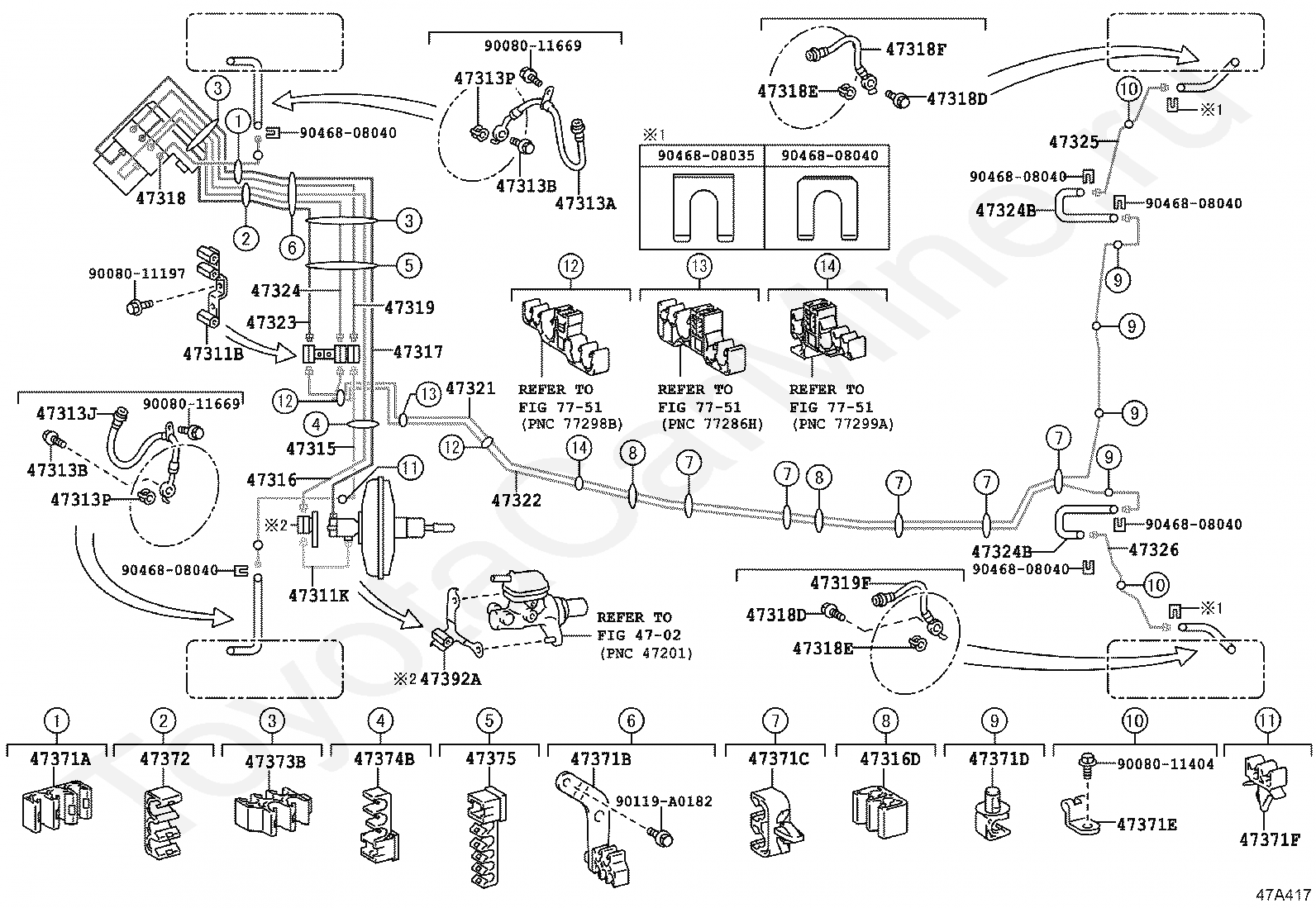

47311B
WAY, NO.1(FOR FRONT BRAKE TUBE)
47311K
TUBE, BRAKE MASTER CYLINDER TO WAY
47313A
HOSE, FLEXIBLE, NO.1(FOR FRONT)
47313B
BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313B
BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313J
HOSE, FLEXIBLE, NO.2(FOR FRONT)
47313P
GASKET(FOR FRONT FLEXIBLE HOSE)
47313P
GASKET(FOR FRONT FLEXIBLE HOSE)
47315
TUBE, FRONT BRAKE, NO.5
47316
TUBE, FRONT BRAKE, NO.6
47316D
GROMMET(FOR REAR BRAKE TUBE)
47317
TUBE, FRONT BRAKE, NO.7
47318
TUBE, FRONT BRAKE, NO.8
47318D
BOLT, UNION(FOR REAR FLEXIBLE HOSE)
47318D
BOLT, UNION(FOR REAR FLEXIBLE HOSE)
47318E
GASKET(FOR REAR FLEXIBLE HOSE)
47318E
GASKET(FOR REAR FLEXIBLE HOSE)
47318F
HOSE, FLEXIBLE(FOR REAR RH)
47319
TUBE, FRONT BRAKE, NO.9
47319F
HOSE, FLEXIBLE(FOR REAR LH)
47321
TUBE, REAR BRAKE, NO.1
47322
TUBE, REAR BRAKE, NO.2
47323
TUBE, REAR BRAKE, NO.3
47324
TUBE, REAR BRAKE, NO.4
47324B
HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)
47324B
HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)
47325
TUBE, REAR BRAKE, NO.5
47326
TUBE, REAR BRAKE, NO.6
47371A
CLAMP, BRAKE TUBE, NO.1
47371B
CLAMP, BRAKE TUBE, NO.6
47371C
CLAMP, BRAKE TUBE, NO.7
47371D
CLAMP, BRAKE TUBE, NO.8
47371E
CLAMP, BRAKE TUBE, NO.9
47371F
CLAMP, BRAKE TUBE, NO.10
47372
CLAMP, BRAKE TUBE, NO.2
47373B
CLAMP, BRAKE TUBE, NO.3
47374B
CLAMP, BRAKE TUBE, NO.4
47375
CLAMP, BRAKE TUBE, NO.5
47392A
WAY, BRAKE TUBE, NO.2
7751
переход к группе запчастей
7751
переход к группе запчастей
7751
переход к группе запчастей
