Каталог

Америка

Модель

SCION IA/YARIS R/IA

VIN

Дата

2018/08

Двигатель

P5 ENGINE

Двигатель #2

1500CC

Кузов

седан

Класс

BASE TYPE

Фрейм

DDF5

КПП

автомат АКПП, 6 скоростей

Опции

4 двери Канада VEHICLE STABILITY CONTROL NORTH AMERICA 3900CC:F TYPE 661W

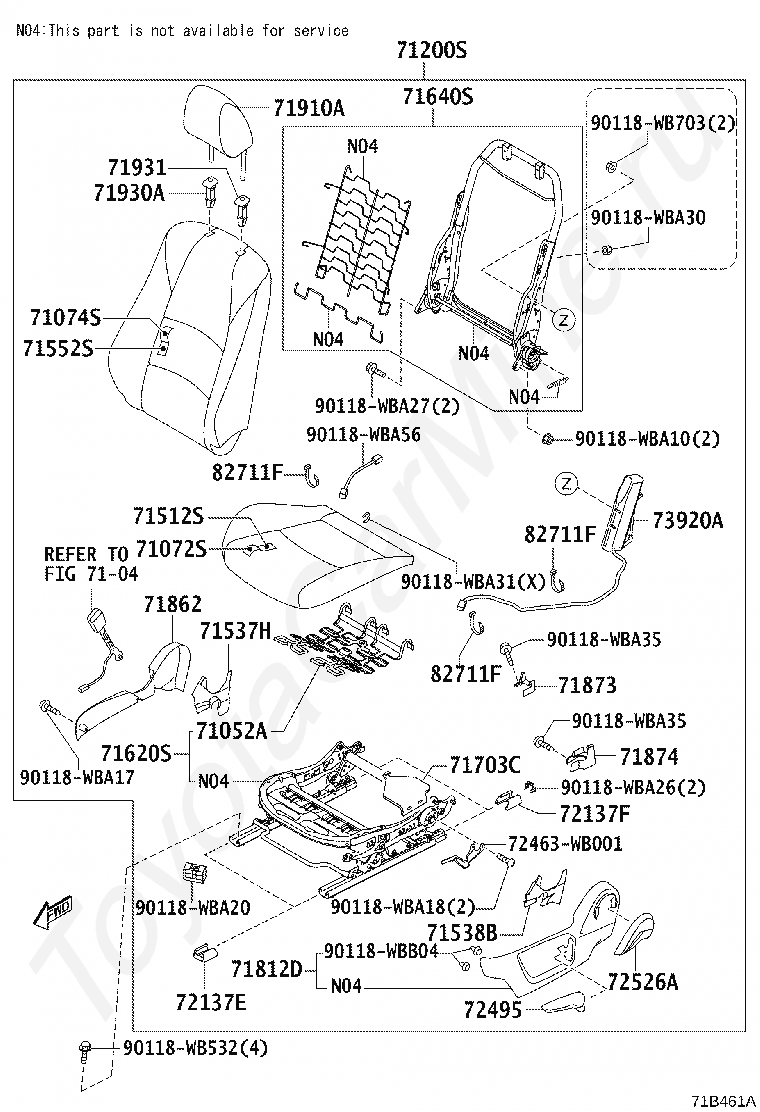

Передние кресла TOYOTA SCION IA/YARIS R/IA

Код

Описание

7104

переход к группе запчастей

71052A

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71200S

SEAT ASSY, FRONT LH

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71537H

PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)

71538B

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71703C

PANEL SUB-ASSY, FRONT SEAT CUSHION

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71910A

HEADREST ASSY, FRONT SEAT

71930A

SUPPORT ASSY, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72137E

COVER, SEAT TRACK, NO.1

72137F

COVER, SEAT TRACK, NO.2

72463WB001

Крепеж

72495

HANDLE, VERTICAL ADJUSTING, LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

73920A

AIR BAG ASSY, FRONT SEAT, LH

82711F

CLAMP, WIRING HARNESS

82711F

CLAMP, WIRING HARNESS

82711F

CLAMP, WIRING HARNESS

90118WB532

Крепеж

90118WB703

Крепеж

90118WBA10

Крепеж

90118WBA17

Крепеж

90118WBA18

Крепеж

90118WBA20

Крепеж

90118WBA26

Крепеж

90118WBA27

Крепеж

90118WBA30

Крепеж

90118WBA31

Крепеж

90118WBA35

Крепеж

90118WBA35

Крепеж

90118WBA56

Крепеж

90118WBB04

Крепеж

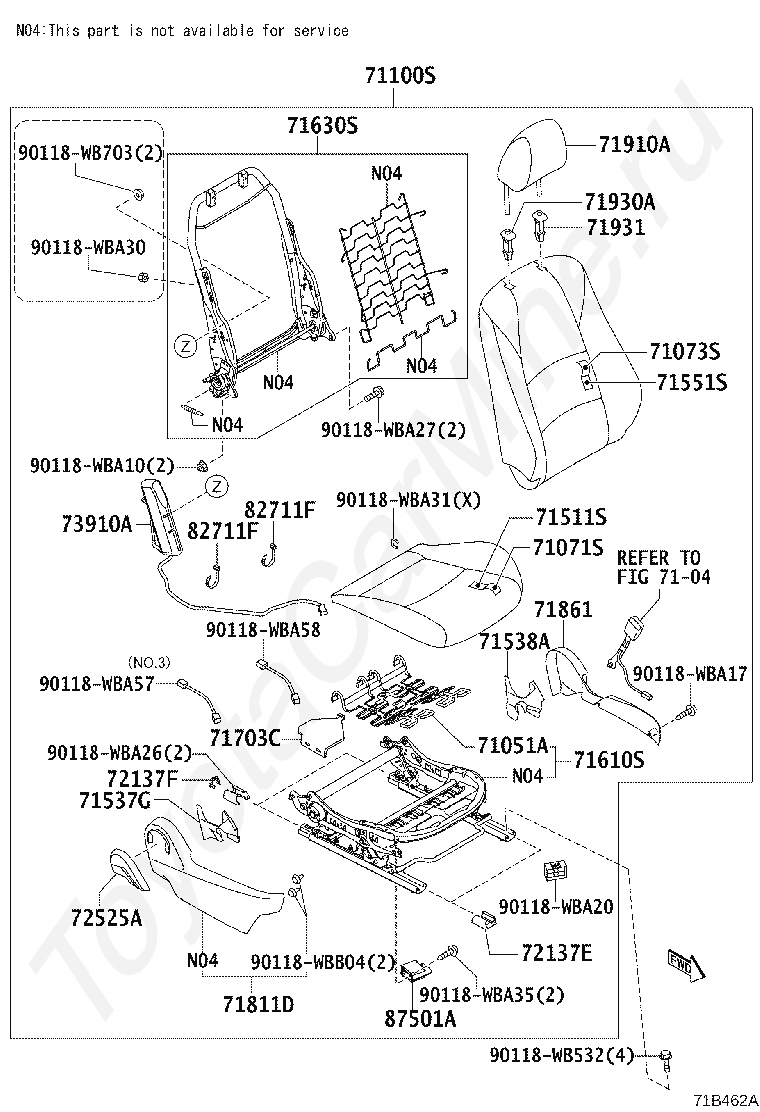

Код

Описание

7104

переход к группе запчастей

71051A

SPRING SUB-ASSY, FRONT SEAT CUSHION, RH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71100S

SEAT ASSY, FRONT RH

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71537G

PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)

71538A

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71703C

PANEL SUB-ASSY, FRONT SEAT CUSHION

71811D

SHIELD, FRONT SEAT CUSHION, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71910A

HEADREST ASSY, FRONT SEAT

71930A

SUPPORT ASSY, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72137E

COVER, SEAT TRACK, NO.1

72137F

COVER, SEAT TRACK, NO.2

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

73910A

AIR BAG ASSY, FRONT SEAT, RH

82711F

CLAMP, WIRING HARNESS

82711F

CLAMP, WIRING HARNESS

87501A

CONTROL SUB-ASSY, SEAT HEATER, RH

90118WB532

Крепеж

90118WB703

Крепеж

90118WBA10

Крепеж

90118WBA17

Крепеж

90118WBA20

Крепеж

90118WBA26

Крепеж

90118WBA27

Крепеж

90118WBA30

Крепеж

90118WBA31

Крепеж

90118WBA35

Крепеж

90118WBA57

Крепеж

90118WBA58

Крепеж

90118WBB04

Крепеж

Код

Описание

4504

переход к группе запчастей

5501

переход к группе запчастей

6401

переход к группе запчастей

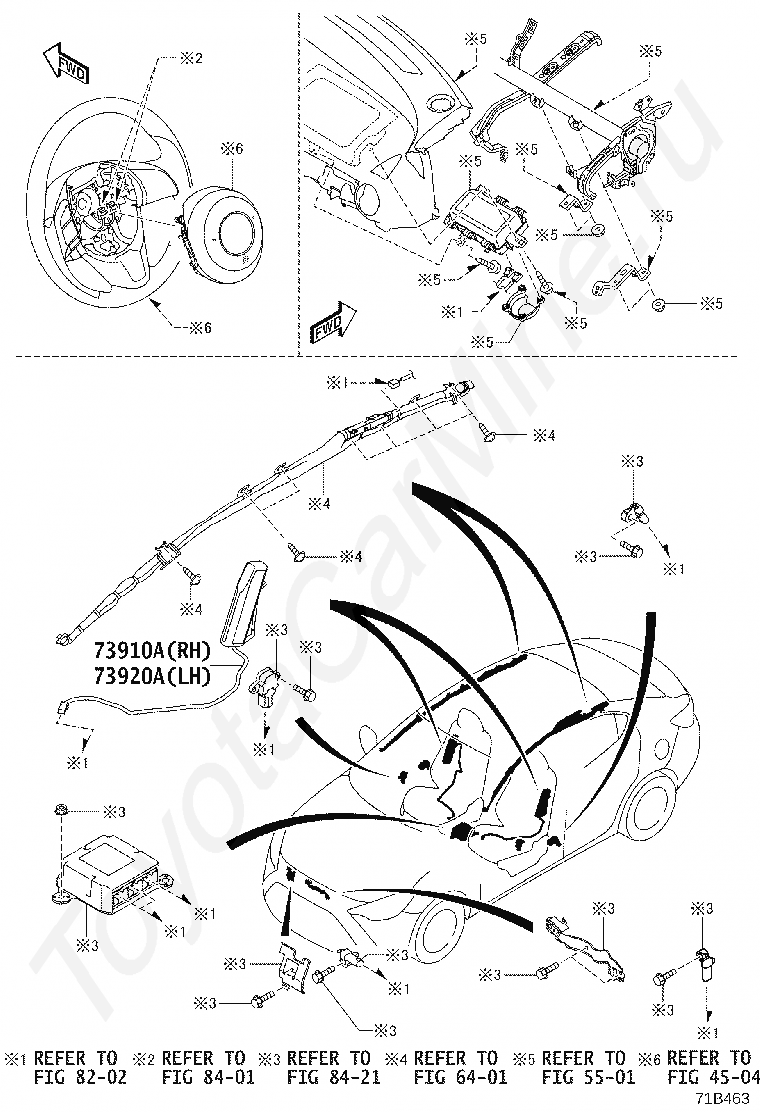

73910A

AIR BAG ASSY, FRONT SEAT, RH

73920A

AIR BAG ASSY, FRONT SEAT, LH

8202

переход к группе запчастей

8401

переход к группе запчастей

8421

переход к группе запчастей

Передние кресла TOYOTA SCION IA/YARIS R/IA
