Каталог

Америка

Модель

SCION IA/YARIS R/IA

VIN

Дата

2018/08

Двигатель

P5 ENGINE

Двигатель #2

1500CC

Кузов

седан

Класс

BASE TYPE

Фрейм

DDF5

КПП

автомат АКПП, 6 скоростей

Опции

4 двери Канада VEHICLE STABILITY CONTROL NORTH AMERICA 3900CC:F TYPE 661W

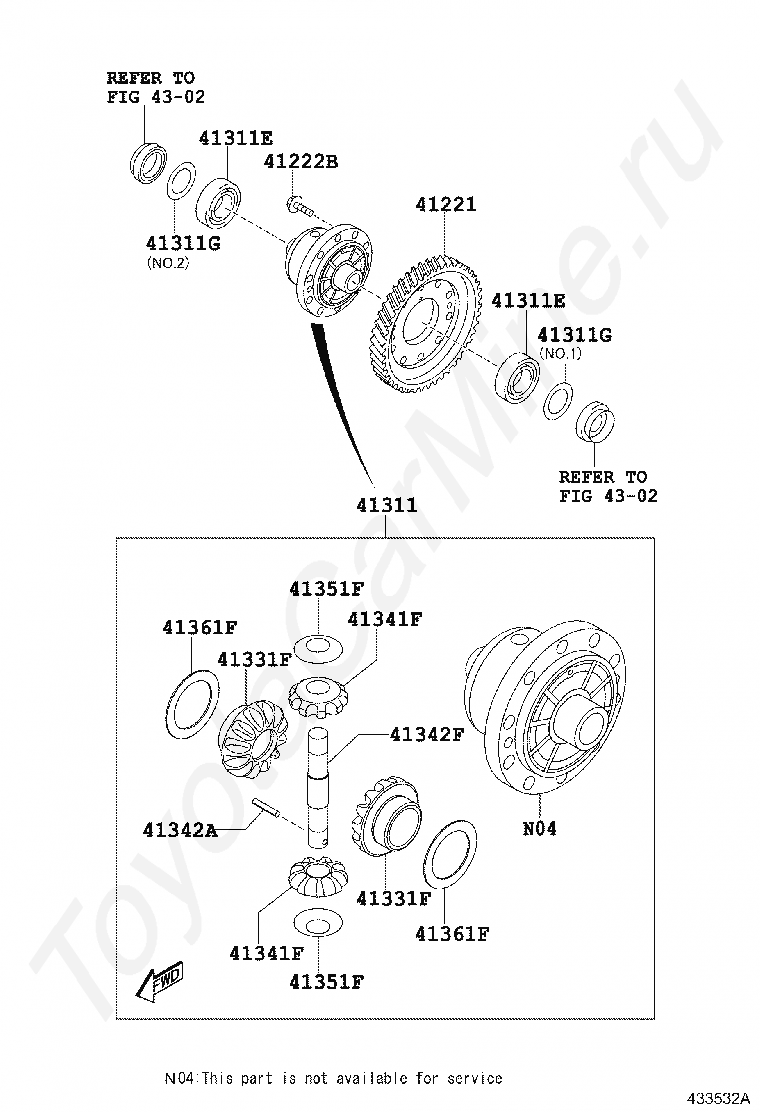

Раздаточная коробка и дифференциал TOYOTA SCION IA/YARIS R/IA

Код

Описание

41221

GEAR, FRONT DIFFERENTIAL RING

41222B

BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

41311

CASE, FRONT DIFFERENTIAL

41311E

BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

41311E

BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

41311G

WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)

41311G

WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)

41331F

GEAR, FRONT DIFFERENTIAL SIDE

41331F

GEAR, FRONT DIFFERENTIAL SIDE

41341F

PINION, FRONT DIFFERENTIAL

41341F

PINION, FRONT DIFFERENTIAL

41342A

PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

41342F

SHAFT, FRONT DIFFERENTIAL PINION, NO.1

41351F

WASHER, FRONT DIFFERENTIAL PINION THRUST

41351F

WASHER, FRONT DIFFERENTIAL PINION THRUST

41361F

WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

41361F

WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

4302

переход к группе запчастей

4302

переход к группе запчастей

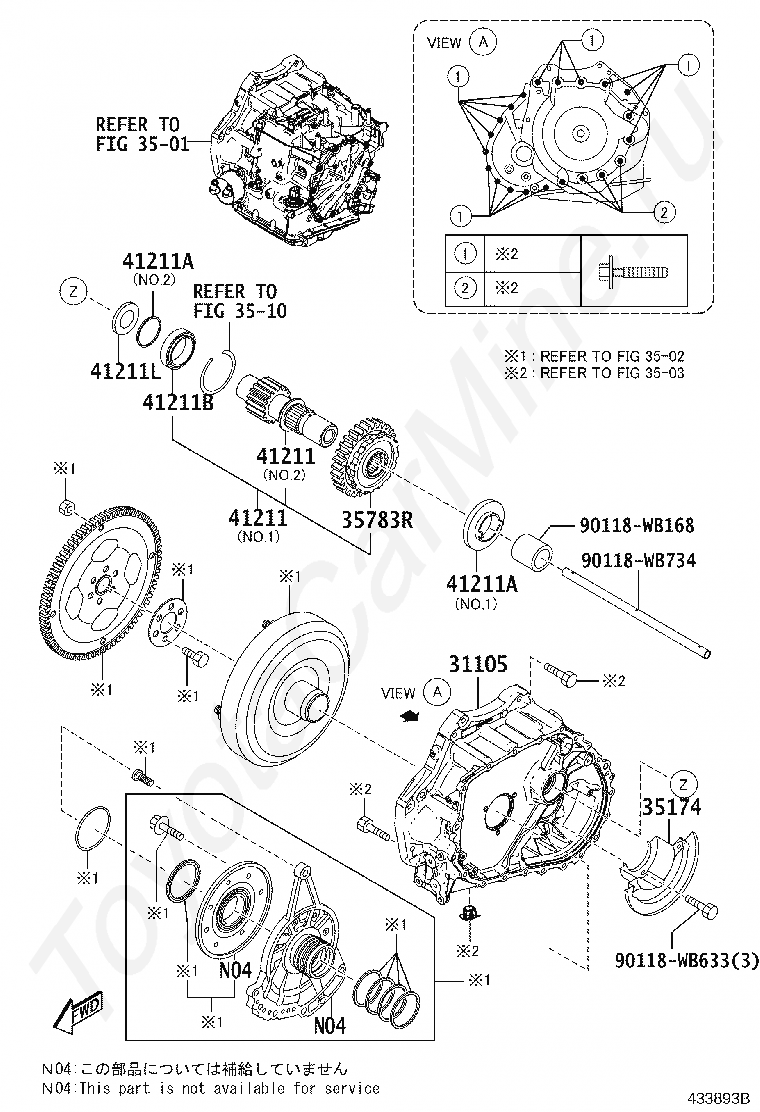

Код

Описание

31105

CASE SUB-ASSY, TRANSAXLE(MTM)

3501

переход к группе запчастей

3510

переход к группе запчастей

35174

SEPARATOR, TRANSAXLE HOUSING OIL

35783R

GEAR, COUNTER DRIVEN

41211

PINION, DIFFERENTIAL DRIVE

41211

PINION, DIFFERENTIAL DRIVE

41211A

BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)

41211A

BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)

41211B

BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)

41211L

SHIM (FOR DIFFERENTIAL DRIVE PINION)

90118WB168

Крепеж

90118WB633

Крепеж

90118WB734

Крепеж

Раздаточная коробка и дифференциал TOYOTA SCION IA/YARIS R/IA
