Каталог

Америка

Модель

SCION IA/YARIS R/IA

VIN

Дата

2018/08

Двигатель

P5 ENGINE

Двигатель #2

1500CC

Кузов

седан

Класс

BASE TYPE

Фрейм

DDF5

КПП

автомат АКПП, 6 скоростей

Опции

4 двери Канада VEHICLE STABILITY CONTROL NORTH AMERICA 3900CC:F TYPE 661W

Коробка АКП TOYOTA SCION IA/YARIS R/IA

Код

Описание

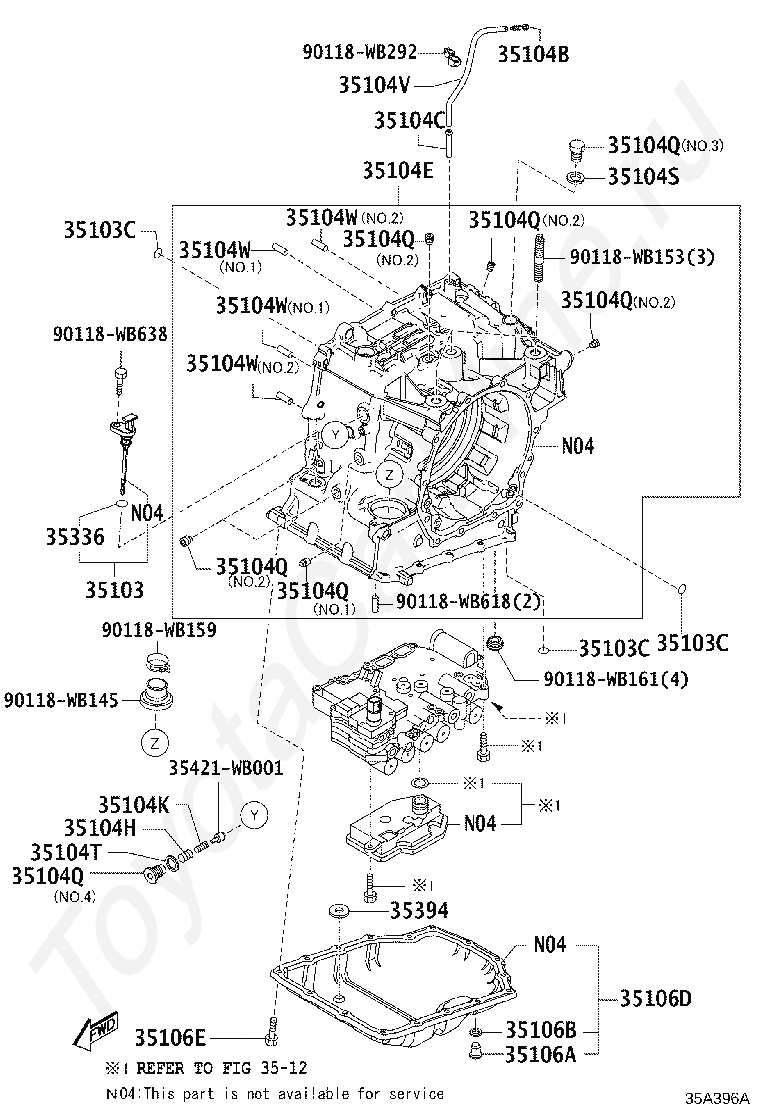

35103

GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

35103C

RING, O

35103C

RING, O

35103C

RING, O

35104B

PLUG, BREATHER, NO.1 (ATM)

35104C

PLUG, BREATHER, NO.2 (ATM)

35104E

CASE SUB-ASSY, AUTOMATIC TRANSAXLE

35104Q

PLUG, NO.1 (FOR TRANSAXLE CASE)

35104Q

PLUG, NO.1 (FOR TRANSAXLE CASE)

35104Q

PLUG, NO.1 (FOR TRANSAXLE CASE)

35104Q

PLUG, NO.1 (FOR TRANSAXLE CASE)

35104Q

PLUG, NO.1 (FOR TRANSAXLE CASE)

35104Q

PLUG, NO.1 (FOR TRANSAXLE CASE)

35104S

RING, O (FOR TRANSAXLE CASE PLUG NO.1)

35104V

HOSE (FOR BREATHER PLUG)

35104W

PIN, STRAIGHT (FOR TRANSAXLE CASE)

35104W

PIN, STRAIGHT (FOR TRANSAXLE CASE)

35104W

PIN, STRAIGHT (FOR TRANSAXLE CASE)

35104W

PIN, STRAIGHT (FOR TRANSAXLE CASE)

35106A

PLUG SUB-ASSY, DRAIN (ATM)

35106B

GASKET, DRAIN PLUG (ATM)

35106D

PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

35106E

BOLT (FOR TRANSAXLE OIL PAN)

35336

RING, O (FOR TRANSMISSION OIL FILLER TUBE)

35394

MAGNET, OIL CLEANER (FOR TRANSMISSION)

90118WB145

Крепеж

90118WB153

Крепеж

90118WB159

Крепеж

90118WB161

Крепеж

90118WB292

Крепеж

90118WB618

Крепеж

90118WB638

Крепеж

90118WBA59

Крепеж

90118WBA64

Крепеж

90118WBA72

Крепеж

90118WBA74

Крепеж

90118WBA75

Крепеж

Код

Описание

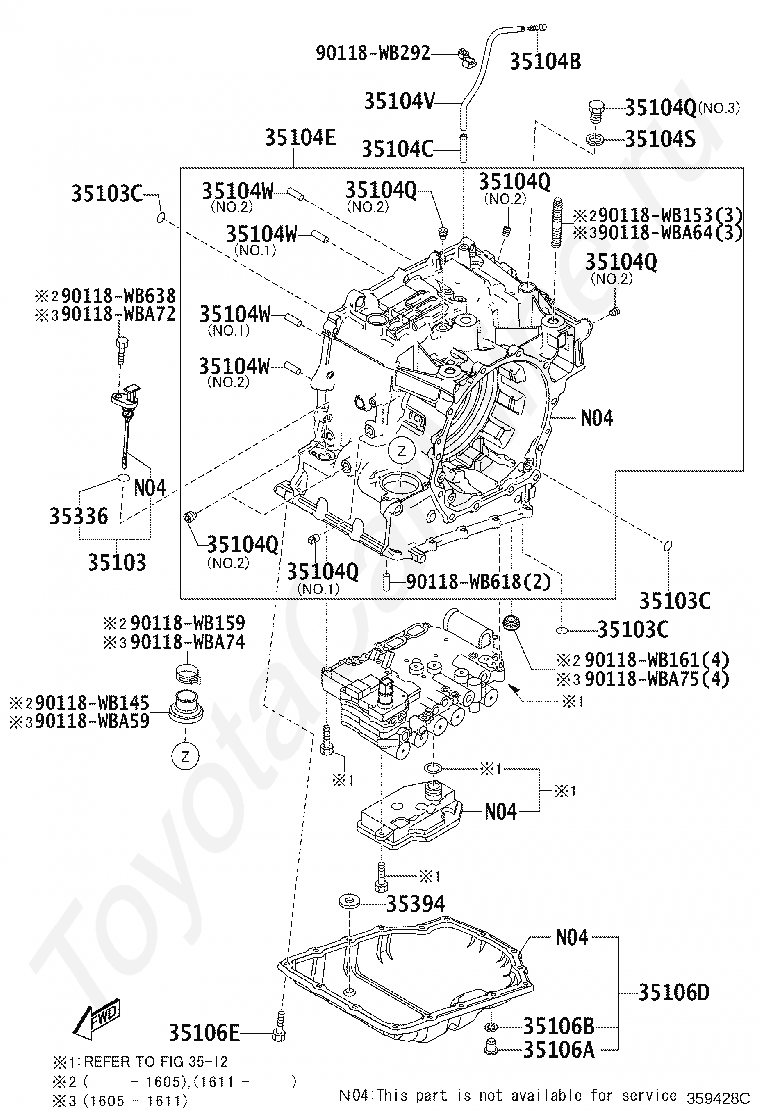

35103

GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

35103C

RING, O

35103C

RING, O

35103C

RING, O

35104B

PLUG, BREATHER, NO.1 (ATM)

35104C

PLUG, BREATHER, NO.2 (ATM)

35104E

CASE SUB-ASSY, AUTOMATIC TRANSAXLE

35104H

SPRING, TORSION(FOR AUTOMATIC TRANSAXLE CASE)

35104K

COMPRESSION SPRING, TRANSAXLE CASE

35104Q

PLUG, NO.1 (FOR TRANSAXLE CASE)

35104Q

PLUG, NO.1 (FOR TRANSAXLE CASE)

35104Q

PLUG, NO.1 (FOR TRANSAXLE CASE)

35104Q

PLUG, NO.1 (FOR TRANSAXLE CASE)

35104Q

PLUG, NO.1 (FOR TRANSAXLE CASE)

35104Q

PLUG, NO.1 (FOR TRANSAXLE CASE)

35104Q

PLUG, NO.1 (FOR TRANSAXLE CASE)

35104S

RING, O (FOR TRANSAXLE CASE PLUG NO.1)

35104T

RING, O (FOR TRANSAXLE CASE PLUG NO.2)

35104V

HOSE (FOR BREATHER PLUG)

35104W

PIN, STRAIGHT (FOR TRANSAXLE CASE)

35104W

PIN, STRAIGHT (FOR TRANSAXLE CASE)

35104W

PIN, STRAIGHT (FOR TRANSAXLE CASE)

35104W

PIN, STRAIGHT (FOR TRANSAXLE CASE)

35106A

PLUG SUB-ASSY, DRAIN (ATM)

35106B

GASKET, DRAIN PLUG (ATM)

35106D

PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

35106E

BOLT (FOR TRANSAXLE OIL PAN)

35336

RING, O (FOR TRANSMISSION OIL FILLER TUBE)

35394

MAGNET, OIL CLEANER (FOR TRANSMISSION)

35421WB001

Крепеж

90118WB145

Крепеж

90118WB153

Крепеж

90118WB159

Крепеж

90118WB161

Крепеж

90118WB292

Крепеж

90118WB618

Крепеж

90118WB638

Крепеж

Код

Описание

1603

переход к группе запчастей

1603

переход к группе запчастей

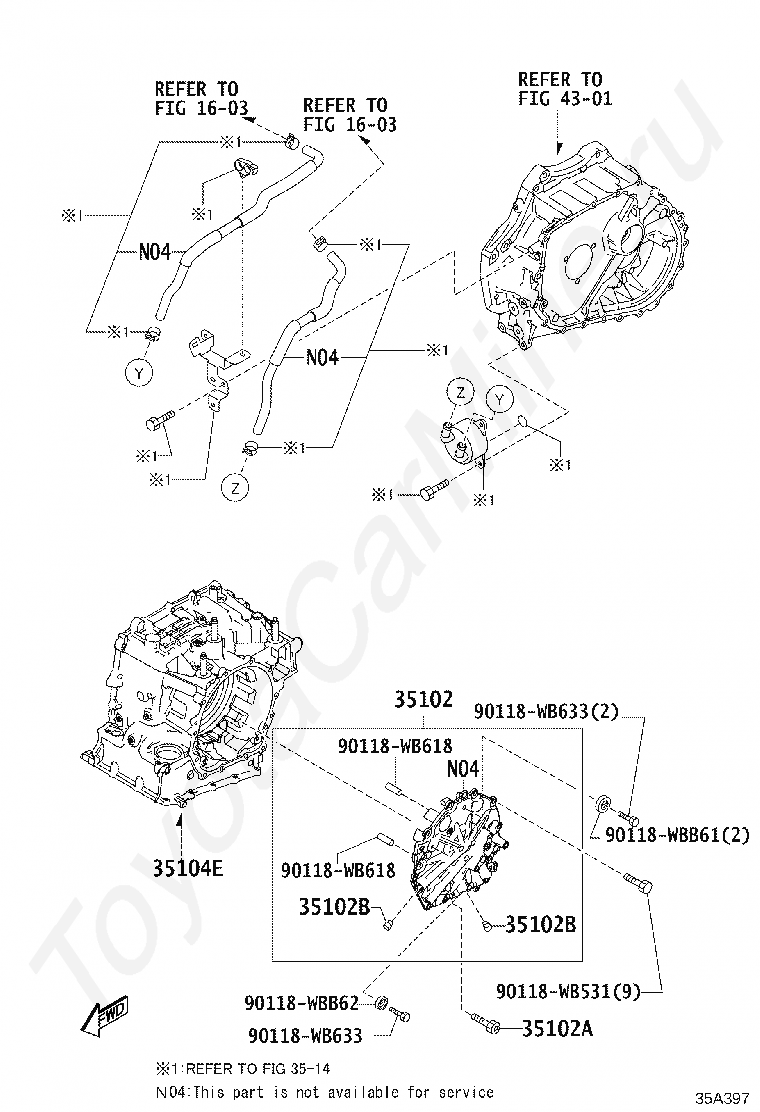

35102

COVER SUB-ASSY, TRANSAXLE REAR

35102A

BOLT (FOR TRANSAXLE REAR COVER SETTING)

35102B

PLUG(FOR TRANSAXLE REAR COVER)

35102B

PLUG(FOR TRANSAXLE REAR COVER)

35104E

CASE SUB-ASSY, AUTOMATIC TRANSAXLE

4301

переход к группе запчастей

90118WB531

Крепеж

90118WB531

Крепеж

90118WB618

Крепеж

90118WB618

Крепеж

Код

Описание

1603

переход к группе запчастей

1603

переход к группе запчастей

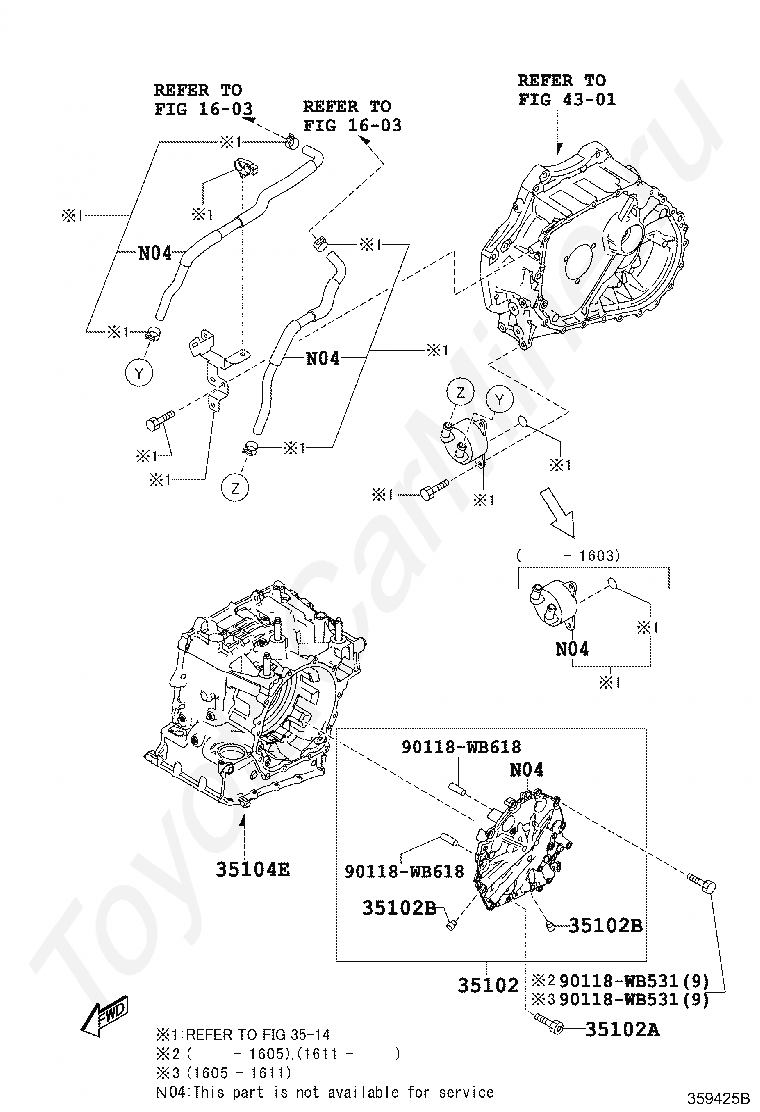

35102

COVER SUB-ASSY, TRANSAXLE REAR

35102A

BOLT (FOR TRANSAXLE REAR COVER SETTING)

35102B

PLUG(FOR TRANSAXLE REAR COVER)

35102B

PLUG(FOR TRANSAXLE REAR COVER)

35104E

CASE SUB-ASSY, AUTOMATIC TRANSAXLE

4301

переход к группе запчастей

90118WB531

Крепеж

90118WB618

Крепеж

90118WB618

Крепеж

90118WB633

Крепеж

90118WB633

Крепеж

90118WBB61

Крепеж

90118WBB62

Крепеж

Код

Описание

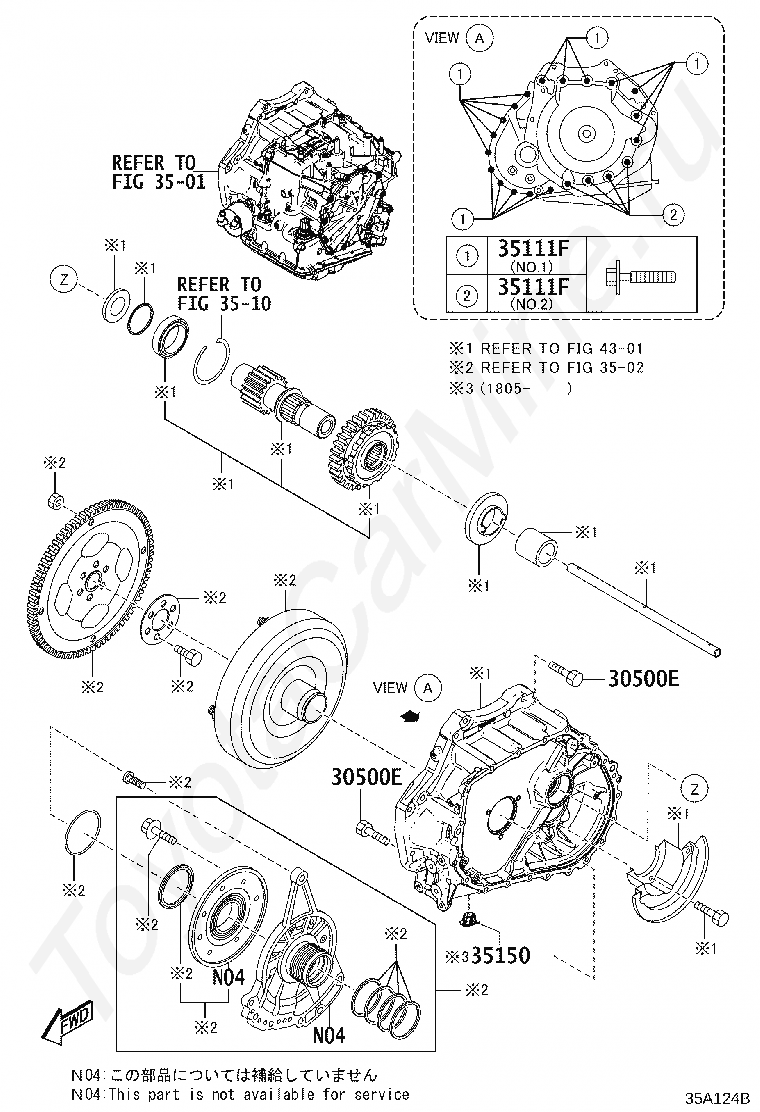

30500E

BOLT(FOR TRANSAXLE & ENGINE SETTING)

30500E

BOLT(FOR TRANSAXLE & ENGINE SETTING)

3501

переход к группе запчастей

3510

переход к группе запчастей

35111F

BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

35111F

BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

35150

PLUG ASSY, TRANSMISSION CASE
