Япония

Модель

SAI

VIN

Дата

2013/08

Двигатель

2,4 литра, 16 клапанов DOHC, EFI

Класс

S TYPE

Фрейм

AZK10

КПП

автомат бесступенчатая АКПП

Опции

573W

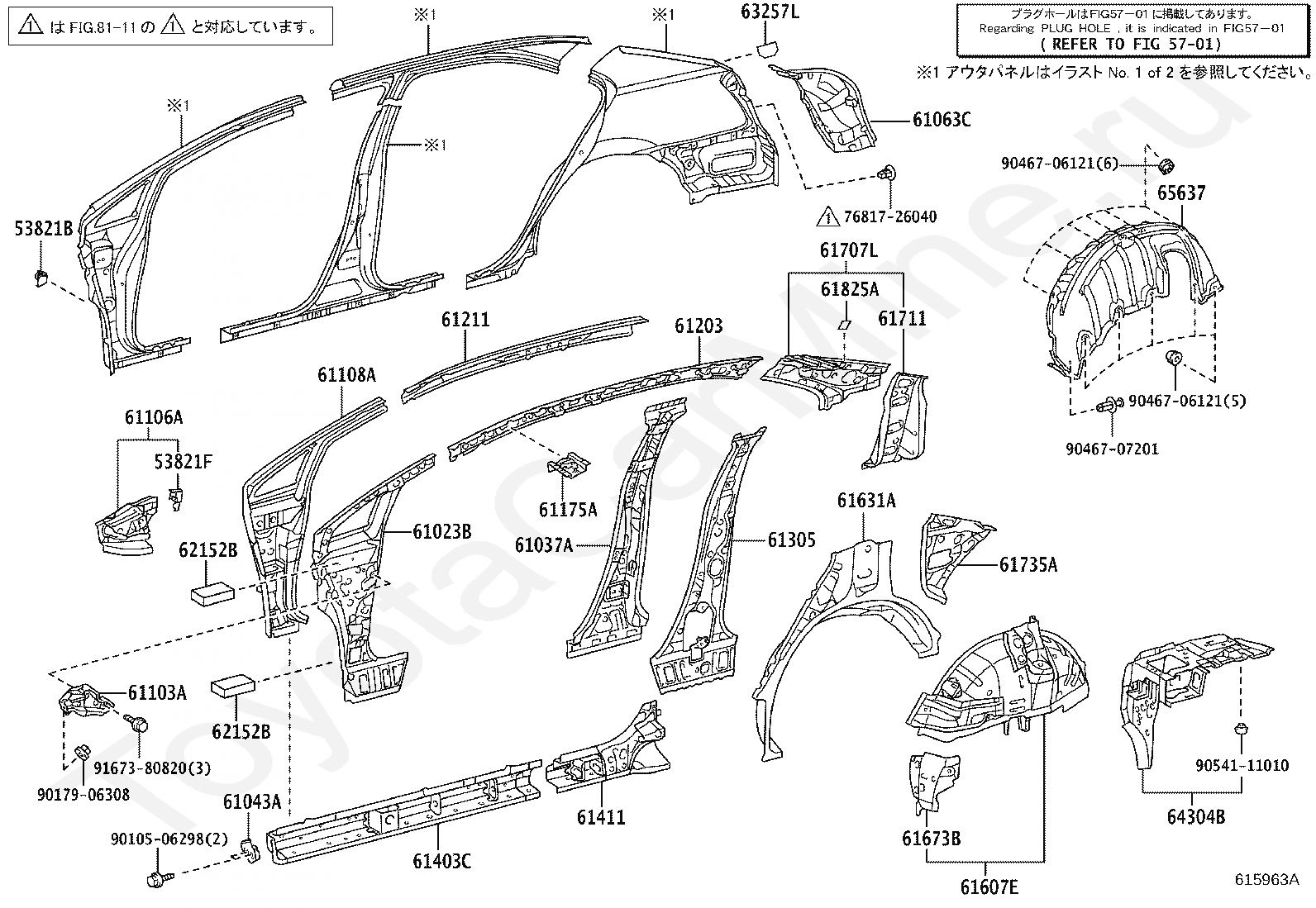

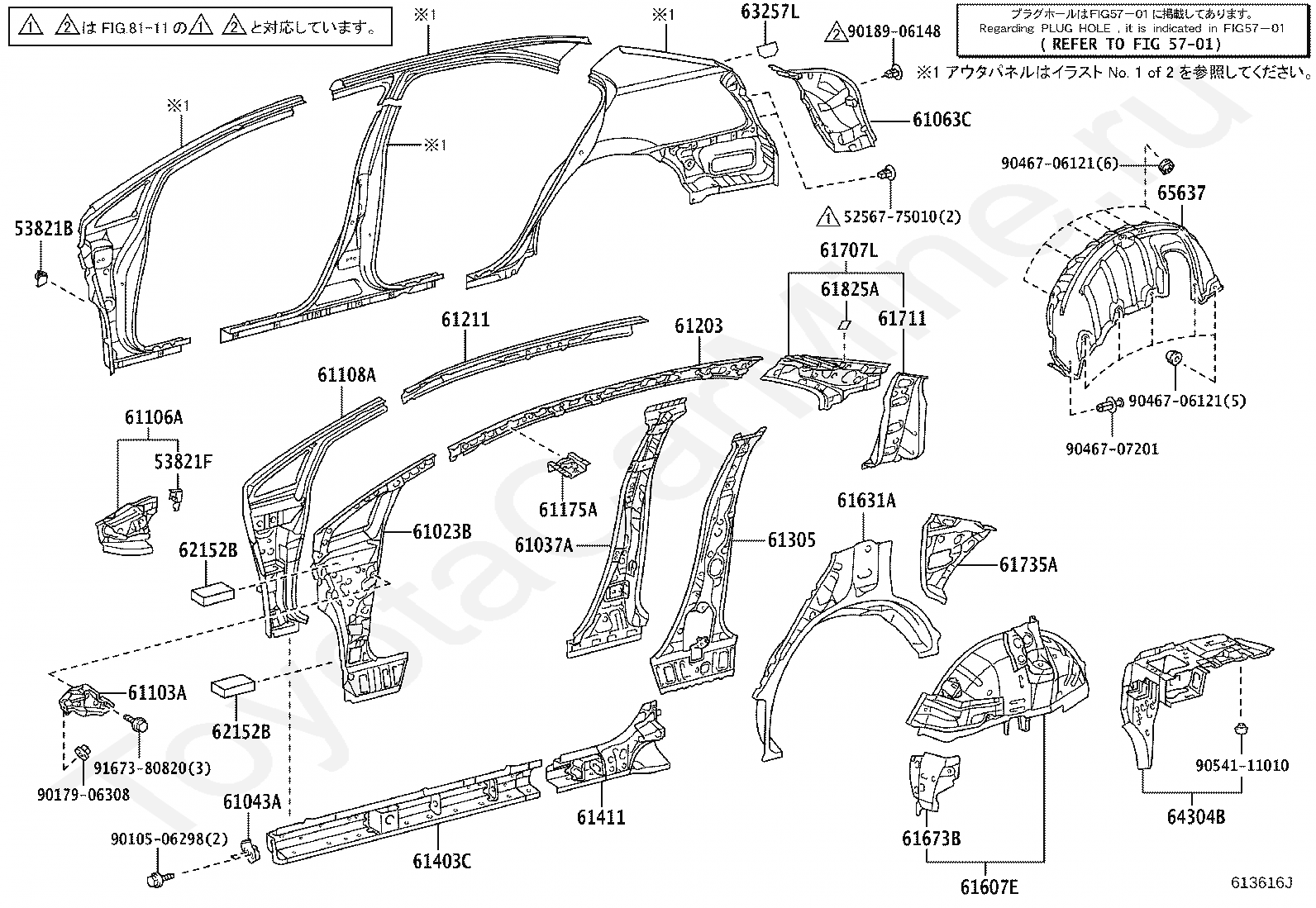

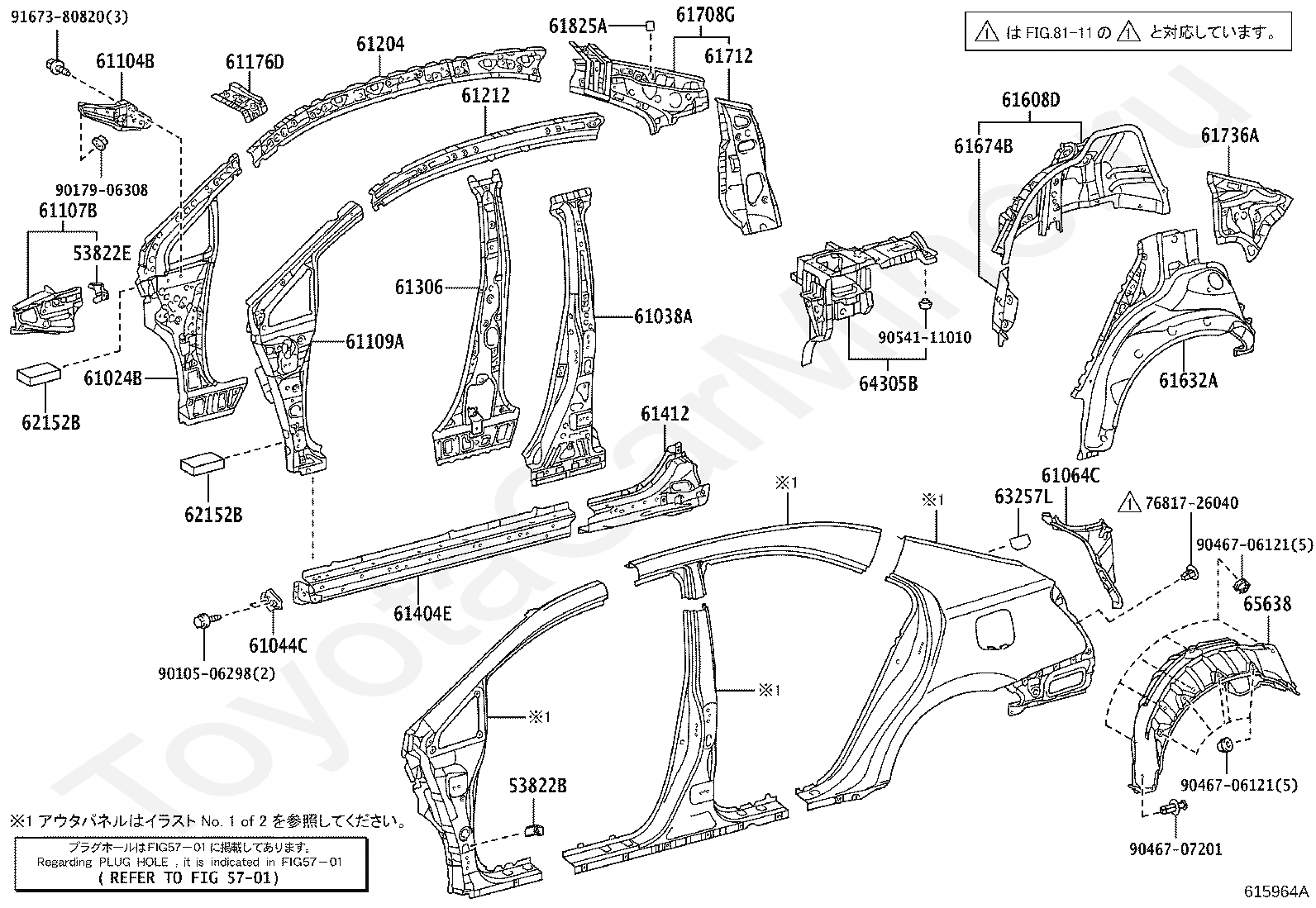

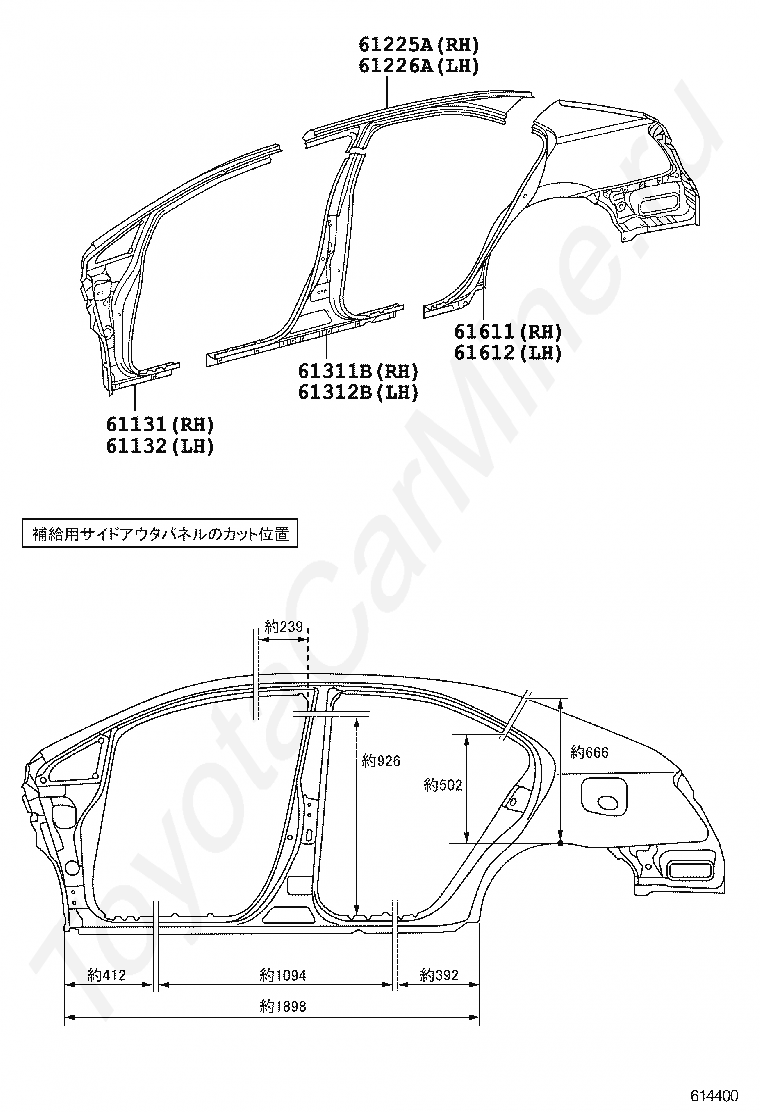

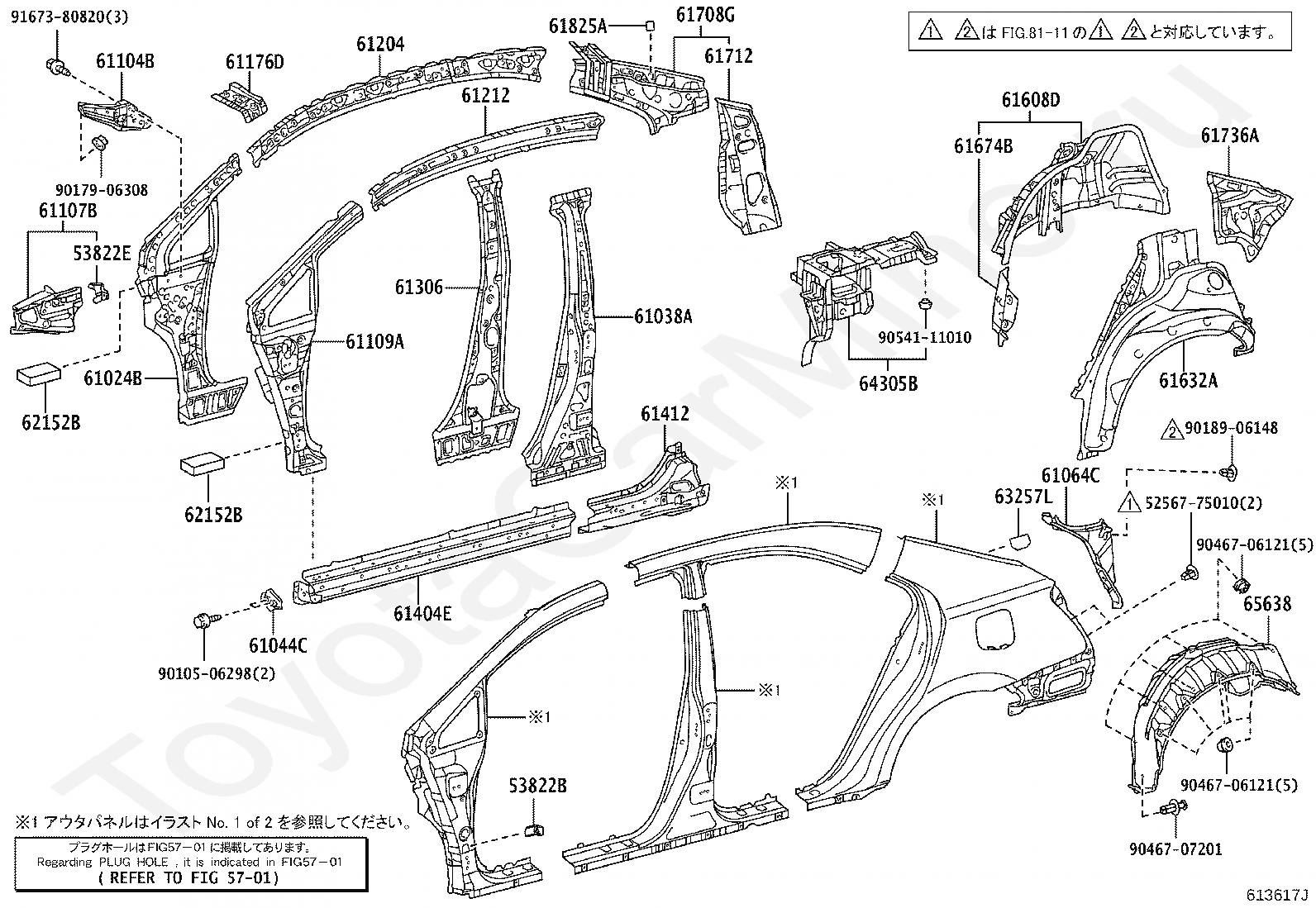

Боковая панель кузова TOYOTA SAI







Код

Описание

61131

PILLAR, FRONT BODY, UPPER OUTER RH

61132

PILLAR, FRONT BODY, UPPER OUTER LH

61225A

RAIL, ROOF SIDE OUTER UPPER NO.1, RH

61226A

RAIL, ROOF SIDE OUTER UPPER NO.1, LH

61311B

PILLAR, CENTER BODY, OUTER RH

61312B

PILLAR, CENTER BODY, OUTER LH

61611

PANEL, QUARTER, RH

61612

PANEL, QUARTER, LH

Код

Описание

5256775010

Крепеж

53821B

BRACKET, FRONT FENDER, REAR RH

53821F

BRACKET, FRONT FENDER, REAR NO.2 RH

5701

переход к группе запчастей

61023B

PILLAR SUB-ASSY, FRONT BODY, INNER RH

61037A

REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

61043A

EXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER RH

61063C

TROUGH SUB-ASSY, LUGGAGE DOOR OPENING, FRONT RH

61103A

REINFORCEMENT SUB-ASSY, COWL SIDE, RH

61106A

REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH

61108A

REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

61175A

REINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH

61203

RAIL SUB-ASSY, ROOF SIDE, INNER RH

61211

RAIL, ROOF SIDE, OUTER RH

61305

REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH

61403C

REINFORCE SUB-ASSY, ROCKER, OUTER RH

61411

PANEL, ROCKER, OUTER RH

61607E

PANEL, QUARTER WHEEL HOUSE, INNER RH

61631A

PANEL, QUARTER WHEEL HOUSE, OUTER RH

61673B

REINFORCEMENT, QUARTER WHEEL HOUSE, INNER RH

61707L

PANEL SUB-ASSY, ROOF SIDE, INNER FRONT RH

61711

PANEL, ROOF SIDE, OUTER RH

61735A

PANEL, ROOF SIDE, INNER REAR RH

61825A

PLATE, NOISE CONTROL, NO.2

62152B

PAD, COWL SIDE SILENCER, NO.2

62152B

PAD, COWL SIDE SILENCER, NO.2

63257L

SEAL, SLIDING ROOF

64304B

REINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH

65637

LINER, REAR WHEEL HOUSE, RH

9010506298

Крепеж

9017906308

Крепеж

9018906148

Крепеж

9046706121

Крепеж

9046706121

Крепеж

9046707201

Крепеж

9054111010

Крепеж

9167380820

Крепеж

Код

Описание

53821B

BRACKET, FRONT FENDER, REAR RH

53821F

BRACKET, FRONT FENDER, REAR NO.2 RH

5701

переход к группе запчастей

61023B

PILLAR SUB-ASSY, FRONT BODY, INNER RH

61037A

REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

61043A

EXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER RH

61063C

TROUGH SUB-ASSY, LUGGAGE DOOR OPENING, FRONT RH

61103A

REINFORCEMENT SUB-ASSY, COWL SIDE, RH

61106A

REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH

61108A

REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

61175A

REINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH

61203

RAIL SUB-ASSY, ROOF SIDE, INNER RH

61211

RAIL, ROOF SIDE, OUTER RH

61305

REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH

61403C

REINFORCE SUB-ASSY, ROCKER, OUTER RH

61411

PANEL, ROCKER, OUTER RH

61607E

PANEL, QUARTER WHEEL HOUSE, INNER RH

61631A

PANEL, QUARTER WHEEL HOUSE, OUTER RH

61673B

REINFORCEMENT, QUARTER WHEEL HOUSE, INNER RH

61707L

PANEL SUB-ASSY, ROOF SIDE, INNER FRONT RH

61711

PANEL, ROOF SIDE, OUTER RH

61735A

PANEL, ROOF SIDE, INNER REAR RH

61825A

PLATE, NOISE CONTROL, NO.2

62152B

PAD, COWL SIDE SILENCER, NO.2

62152B

PAD, COWL SIDE SILENCER, NO.2

63257L

SEAL, SLIDING ROOF

64304B

REINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH

65637

LINER, REAR WHEEL HOUSE, RH

7681726040

Крепеж

9010506298

Крепеж

9017906308

Крепеж

9046706121

Крепеж

9046706121

Крепеж

9046707201

Крепеж

9054111010

Крепеж

9167380820

Крепеж

Код

Описание

5256775010

Крепеж

53822B

BRACKET, FRONT FENDER, REAR LH

53822E

BRACKET, FRONT FENDER, REAR NO.2 LH

5701

переход к группе запчастей

61024B

PILLAR SUB-ASSY, FRONT BODY, INNER LH

61038A

REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

61044C

EXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER LH

61064C

TROUGH SUB-ASSY, LUGGAGE DOOR OPENING, FRONT LH

61104B

REINFORCEMENT SUB-ASSY, COWL SIDE, LH

61107B

REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH

61109A

REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

61176D

REINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 LH

61204

RAIL SUB-ASSY, ROOF SIDE, INNER LH

61212

RAIL, ROOF SIDE, OUTER LH

61306

REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH

61404E

REINFORCE SUB-ASSY, ROCKER, OUTER LH

61412

PANEL, ROCKER, OUTER LH

61608D

PANEL, QUARTER WHEEL HOUSE, INNER LH

61632A

PANEL, QUARTER WHEEL HOUSE, OUTER LH

61674B

REINFORCEMENT, QUARTER WHEEL HOUSE, INNER LH

61708G

PANEL SUB-ASSY, ROOF SIDE, INNER FRONT LH

61712

PANEL, ROOF SIDE, OUTER LH

61736A

PANEL, ROOF SIDE, INNER REAR LH

61825A

PLATE, NOISE CONTROL, NO.2

62152B

PAD, COWL SIDE SILENCER, NO.2

62152B

PAD, COWL SIDE SILENCER, NO.2

63257L

SEAL, SLIDING ROOF

64305B

REINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, LH

65638

LINER, REAR WHEEL HOUSE, LH

9010506298

Крепеж

9017906308

Крепеж

9018906148

Крепеж

9046706121

Крепеж

9046706121

Крепеж

9046707201

Крепеж

9054111010

Крепеж

9167380820

Крепеж

Код

Описание

53822B

BRACKET, FRONT FENDER, REAR LH

53822E

BRACKET, FRONT FENDER, REAR NO.2 LH

5701

переход к группе запчастей

61024B

PILLAR SUB-ASSY, FRONT BODY, INNER LH

61038A

REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

61044C

EXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER LH

61064C

TROUGH SUB-ASSY, LUGGAGE DOOR OPENING, FRONT LH

61104B

REINFORCEMENT SUB-ASSY, COWL SIDE, LH

61107B

REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH

61109A

REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

61176D

REINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 LH

61204

RAIL SUB-ASSY, ROOF SIDE, INNER LH

61212

RAIL, ROOF SIDE, OUTER LH

61306

REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH

61404E

REINFORCE SUB-ASSY, ROCKER, OUTER LH

61412

PANEL, ROCKER, OUTER LH

61608D

PANEL, QUARTER WHEEL HOUSE, INNER LH

61632A

PANEL, QUARTER WHEEL HOUSE, OUTER LH

61674B

REINFORCEMENT, QUARTER WHEEL HOUSE, INNER LH

61708G

PANEL SUB-ASSY, ROOF SIDE, INNER FRONT LH

61712

PANEL, ROOF SIDE, OUTER LH

61736A

PANEL, ROOF SIDE, INNER REAR LH

61825A

PLATE, NOISE CONTROL, NO.2

62152B

PAD, COWL SIDE SILENCER, NO.2

62152B

PAD, COWL SIDE SILENCER, NO.2

63257L

SEAL, SLIDING ROOF

64305B

REINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, LH

65638

LINER, REAR WHEEL HOUSE, LH

7681726040

Крепеж

9010506298

Крепеж

9017906308

Крепеж

9046706121

Крепеж

9046706121

Крепеж

9046707201

Крепеж

9054111010

Крепеж

9167380820

Крепеж
