Каталог

Ближний Восток

Модель

REIZ

VIN

Дата

2007/10

Двигатель

2,5 литра, 24 клапана, DOHC, EFI

Кузов

седан

Класс

2.5V TYPE

Фрейм

GRX122

КПП

автомат АКПП, 6 скоростей

Опции

левый руль Китай 409W

Реле и кнопки TOYOTA REIZ







Код

Описание

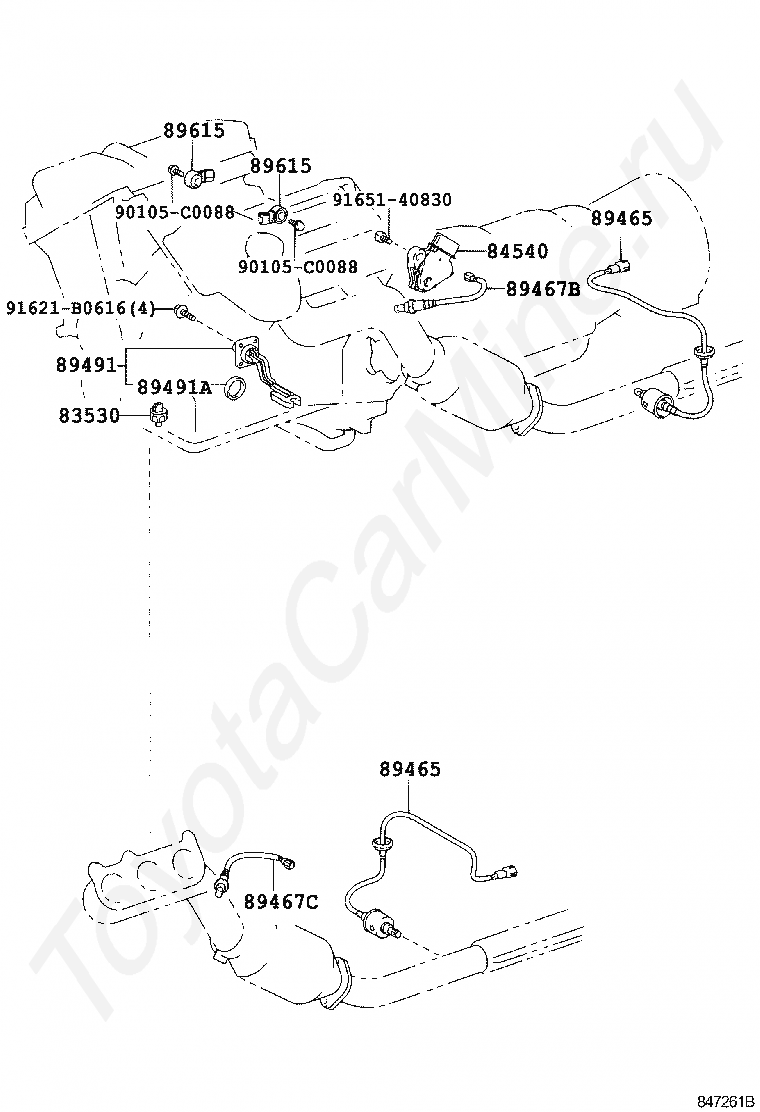

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

84540

SWITCH ASSY, NEUTRAL START

89465

SENSOR, OXYGEN

89465

SENSOR, OXYGEN

89467B

SENSOR, AIR FUEL RATIO

89467C

SENSOR, AIR FUEL RATIO, NO.2

89491

SENSOR, ENGINE OIL LEVEL

89491A

GASKET, ENGINE OIL LEVEL SENSOR

89615

SENSOR, KNOCK CONTROL

89615

SENSOR, KNOCK CONTROL

90105C0088

Крепеж

90105C0088

Крепеж

91621B0616

Крепеж

9165140830

Крепеж

Код

Описание

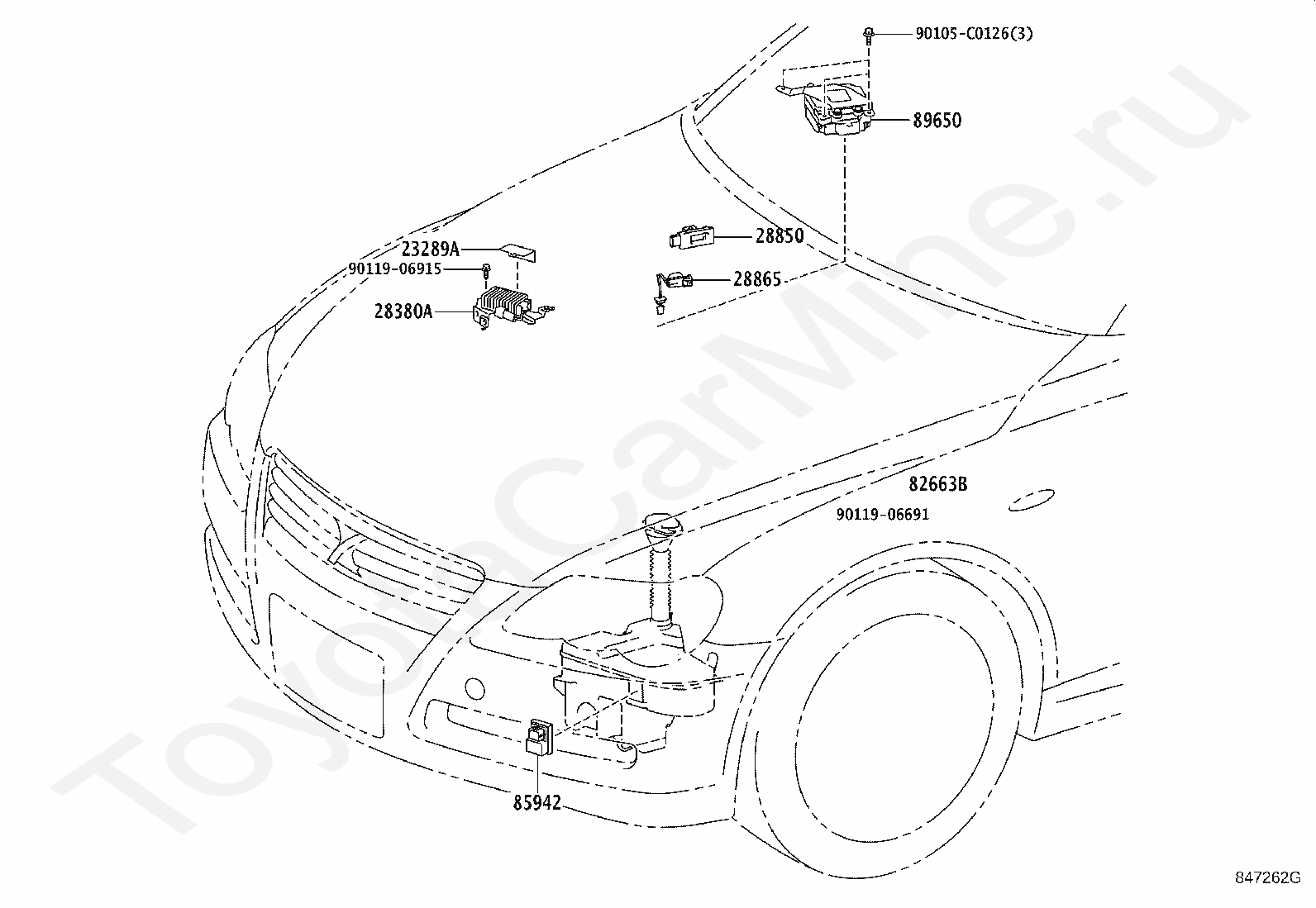

23289A

COVER, FUEL PUMP RESISTOR

28380A

RESISTER, FUEL PUMP

28850

SENSOR ASSY, BATTERY CURRENT

28865

SENSOR, BATTERY THERMOMETER

82663B

COVER, RELAY BLOCK, LOWER, NO.3

85942

RELAY, HEADLAMP CLEANER CONTROL

89650

COMPUTER ASSY, POWER STEERING

90105C0126

Крепеж

9011906691

Крепеж

9011906915

Крепеж

Код

Описание

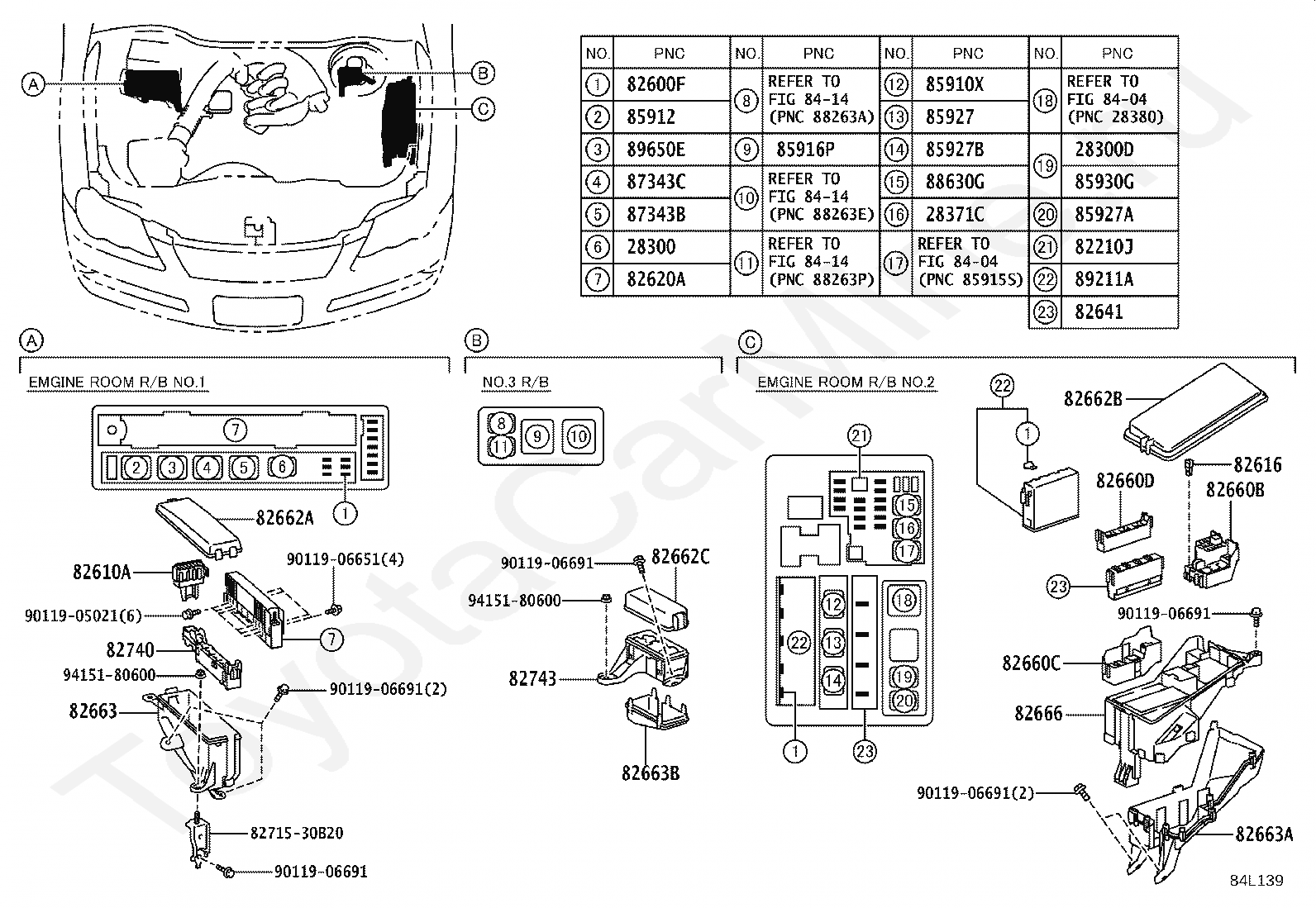

28300

RELAY ASSY, STARTER

28300D

RELAY, STARTER CUT

28371C

RELAY, IGNITION, NO.2

82210J

FUSIBLE LINK

82600F

FUSE, FUSE BLOCK

82610A

BLOCK ASSY, FUSE

82616

PULLER, FUSE

82620A

BLOCK ASSY, FUSIBLE LINK

82641

RELAY, INTEGRATION NO.1

82660B

BLOCK ASSY, RELAY

82660C

BLOCK ASSY, RELAY

82660D

BLOCK ASSY, RELAY

82662A

COVER, RELAY BLOCK, UPPER, NO.1

82662B

COVER, RELAY BLOCK, UPPER, NO.2

82662C

COVER, RELAY BLOCK, UPPER, NO.3

82663

COVER, RELAY BLOCK, LOWER

82663A

COVER, RELAY BLOCK, LOWER, NO.2

82663B

COVER, RELAY BLOCK, LOWER, NO.3

82666

HOLDER, CONNECTOR

8271530B20

Крепеж

82740

BLOCK ASSY, ENGINE ROOM RELAY

82743

BLOCK, ENGINE ROOM RELAY, NO.3

8404

переход к группе запчастей

8404

переход к группе запчастей

8414

переход к группе запчастей

8414

переход к группе запчастей

8414

переход к группе запчастей

85910X

RELAY, HEATER MIRROR

85912

RELAY, DEFOGGER

85916P

RELAY, HEADLAMP

85927

RELAY, COOLING FAN

85927A

RELAY, COOLING FAN, NO.2

85927B

RELAY, COOLING FAN, NO.3

85930G

RELAY, ACC

87343B

RELAY, HEATER SUB, NO.1(FOR GLOW PLUG HEATER)

87343C

RELAY, HEATER SUB, NO.2(FOR GLOW PLUG HEATER)

88630G

RELAY ASSY, COOLER

89211A

COMPUTER, MULTIPLEX NETWORK BODY

89650E

RELAY, ELECTRIC POWER STEERING

9011905021

Крепеж

9011906651

Крепеж

9011906691

Крепеж

9011906691

Крепеж

9011906691

Крепеж

9011906691

Крепеж

9011906691

Крепеж

9415180600

Крепеж

9415180600

Крепеж

Код

Описание

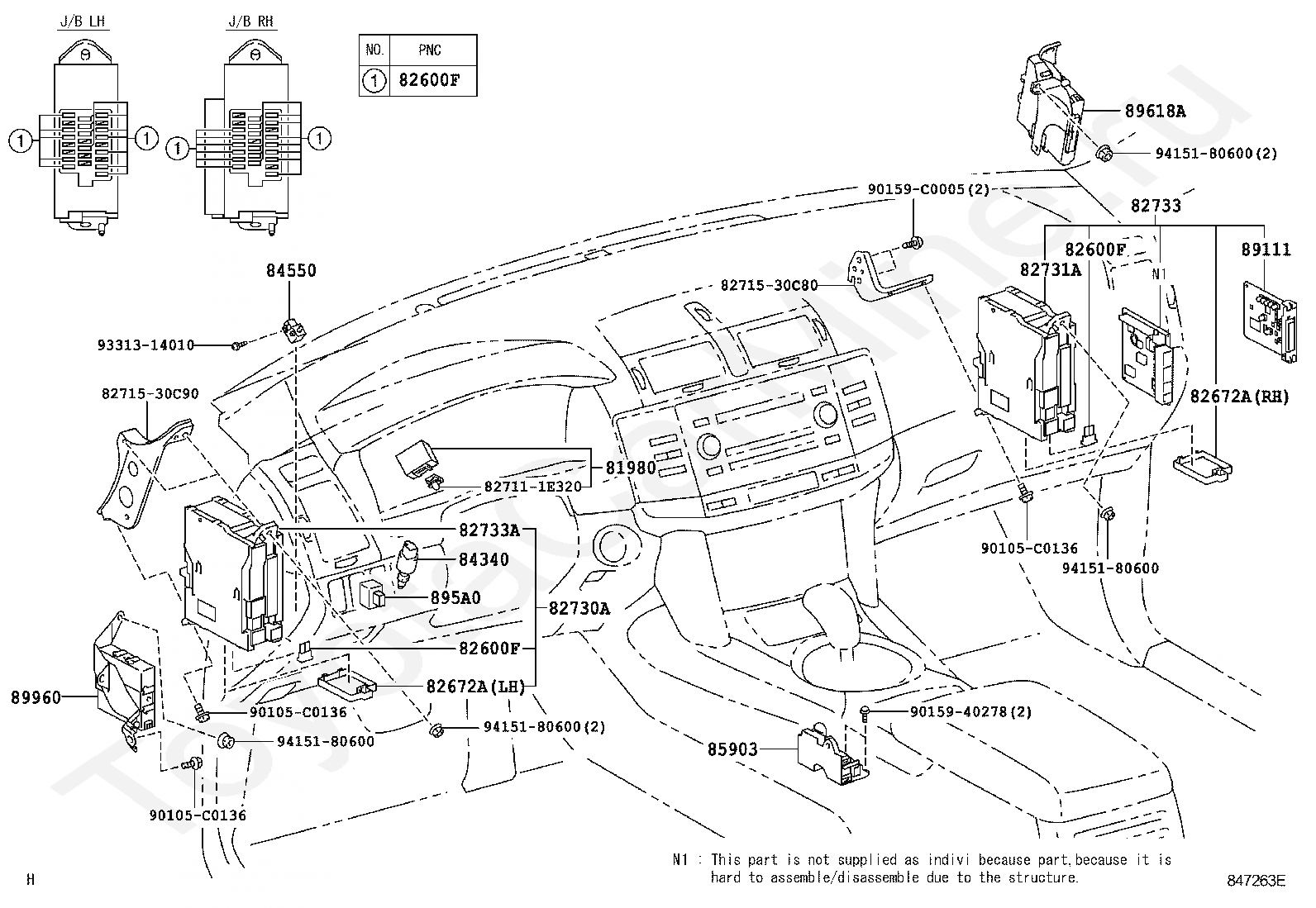

81980

FLASHER ASSY, TURN SIGNAL

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82672A

COVER, JUNCTION BLOCK

82672A

COVER, JUNCTION BLOCK

827111E320

Крепеж

8271530C80

Крепеж

8271530C90

Крепеж

82730A

BLOCK ASSY, DRIVER SIDE JUNCTION

82731A

BLOCK, COWL SIDE JUNCTION, RH

82733

BLOCK, PASSENGER SIDE JUNCTION

82733A

BLOCK, COWL SIDE JUNCTION, LH

84340

SWITCH ASSY, STOP LAMP

84550

SWITCH ASSY, PARKING BRAKE

85903

COMPUTER SUB-ASSY, SHIFT LOCK CONTROL

89111

COMPUTER, NETWORK GATEWAY

895A0

RELAY ASSY, STOP LAMP CONTROL

89618A

COMPUTER, POWER SOURCE CONTROL

89960

COMPUTER ASSY, HEADLAMP LEVELING

90105C0136

Крепеж

90105C0136

Крепеж

90105C0136

Крепеж

9015940278

Крепеж

90159C0005

Крепеж

9331314010

Крепеж

9415180600

Крепеж

9415180600

Крепеж

9415180600

Крепеж

9415180600

Крепеж

Код

Описание

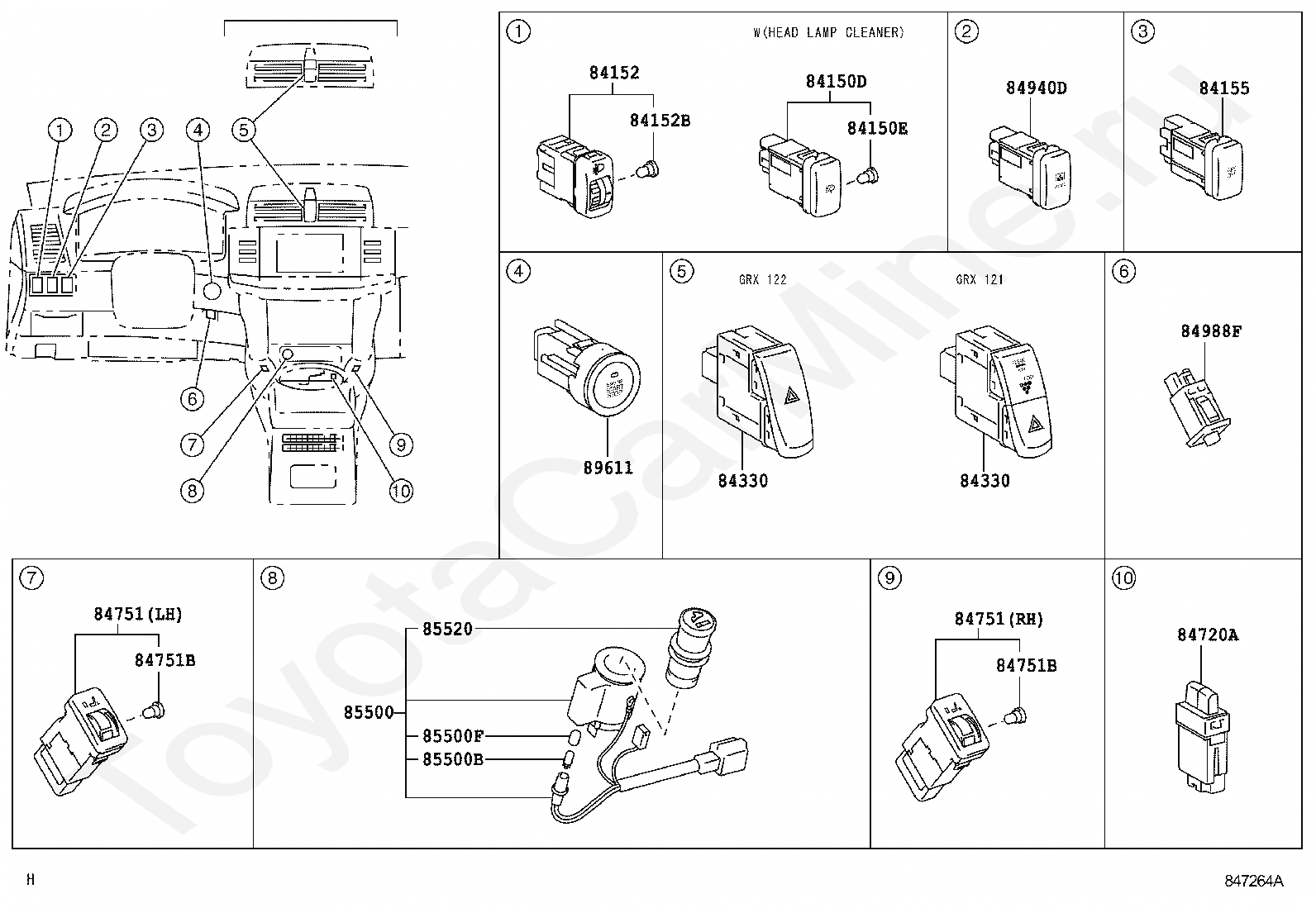

84150D

SWITCH ASSY, HEADLAMP CLEANER

84150E

BULB, HEADLAMP CLEANER SWITCH

84152

SWITCH, HEADLAMP LEVELING

84152B

BULB (FOR HEADLAMP LEVELING SWITCH)

84155

SWITCH, HEADLAMP SWIVEL MAIN

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84720A

SWITCH ASSY, PATTERN SELECT, NO.1

84751

SWITCH, SEAT HEATER

84751

SWITCH, SEAT HEATER

84751B

BULB, SEAT HEATER SWITCH

84751B

BULB, SEAT HEATER SWITCH

84940D

SWITCH ASSY, REAR SUN SHADE

84988F

SWITCH, TRACTION CONTROL

85500

LIGHTER ASSY, CIGARETTE

85500B

BULB, CIGARETTE LIGHTER

85500F

CAP, CIGARETTE LIGHTER BULB

85520

KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER

89611

SWITCH, PUSH START

Код

Описание

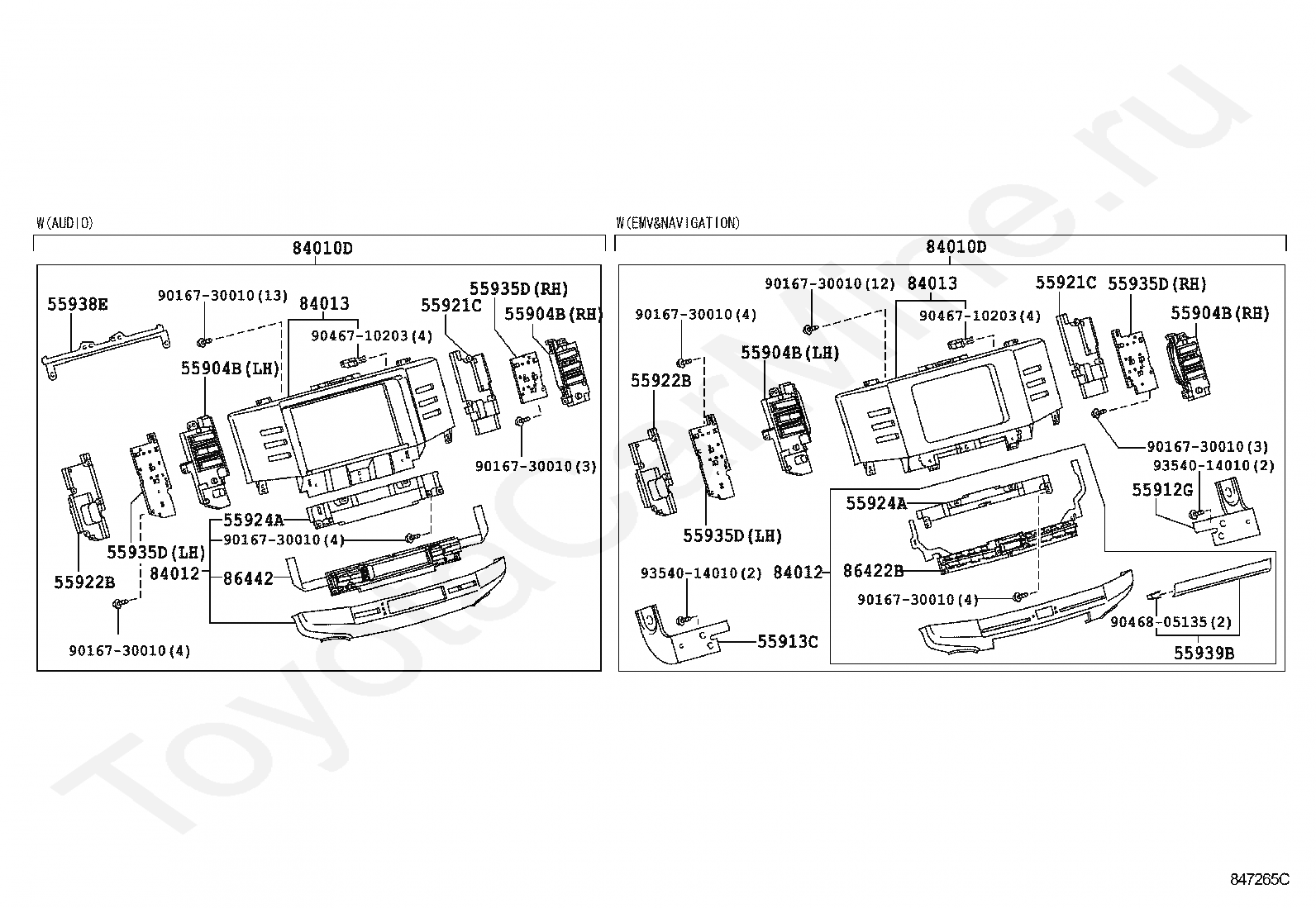

55904B

HOUSING SUB-ASSY, HEATER CONTROL

55904B

HOUSING SUB-ASSY, HEATER CONTROL

55904B

HOUSING SUB-ASSY, HEATER CONTROL

55904B

HOUSING SUB-ASSY, HEATER CONTROL

55912G

BRACKET, HEATER CONTROL BASE, RH

55913C

BRACKET, HEATER CONTROL BASE, LH

55921C

RETAINER, HEATER CONTROL, RH

55921C

RETAINER, HEATER CONTROL, RH

55922B

RETAINER, HEATER CONTROL, LH

55922B

RETAINER, HEATER CONTROL, LH

55924A

RETAINER, HEATER CONTROL, LOWER

55924A

RETAINER, HEATER CONTROL, LOWER

55935D

CIRCUIT, CENTER CLUSTER MODULE

55935D

CIRCUIT, CENTER CLUSTER MODULE

55935D

CIRCUIT, CENTER CLUSTER MODULE

55935D

CIRCUIT, CENTER CLUSTER MODULE

55938E

BRACKET, HEATER CONTROL

55939B

ORNAMENT, HEATER CONTROL

84010D

CONTROL & PANEL ASSY, INTEGRATION

84010D

CONTROL & PANEL ASSY, INTEGRATION

84012

CONTROL & PANEL SUB-ASSY, INTEGRATION

84012

CONTROL & PANEL SUB-ASSY, INTEGRATION

84013

PANEL SUB-ASSY, INTEGRATION

84013

PANEL SUB-ASSY, INTEGRATION

86422B

BOARD, NAVIGATION SWITCH

86442

BOARD, HEATER CONTROL SWITCH

9016730010

Крепеж

9016730010

Крепеж

9016730010

Крепеж

9016730010

Крепеж

9016730010

Крепеж

9016730010

Крепеж

9016730010

Крепеж

9016730010

Крепеж

9046710203

Крепеж

9046710203

Крепеж

9046805135

Крепеж

9354014010

Крепеж

9354014010

Крепеж

Код

Описание

4501

переход к группе запчастей

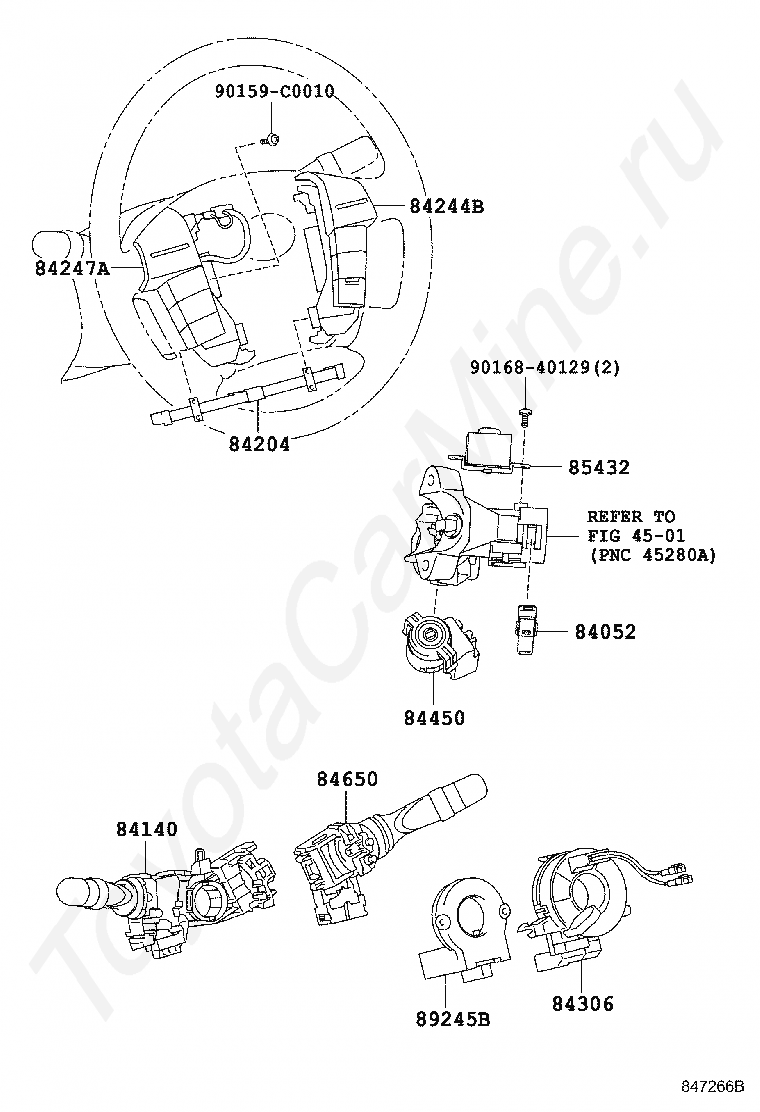

84052

SWITCH ASSY, UN-LOCK WARNING

84140

SWITCH ASSY, HEADLAMP DIMMER

84204

CABLE SUB-ASSY, STEERING PAD SWITCH

84244B

SWITCH, STEERING PAD, RH

84247A

SWITCH, STEERING PAD, LH

84306

CABLE SUB-ASSY, SPIRAL

84450

SWITCH ASSY, IGNITION OR STARTER

84650

SWITCH ASSY, WINDSHIELD WIPER

85432

SOLENOID, KEY INTER LOCK

89245B

SENSOR, STEERING

90159C0010

Крепеж

9016840129

Крепеж

Код

Описание

84921A

KNOB, POWER SEAT SWITCH (FOR RECLINING)

84921A

KNOB, POWER SEAT SWITCH (FOR RECLINING)

84921B

KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)

84921B

KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)

84922A

SWITCH, FRONT POWER SEAT(FOR LUMBAR)

84922B

SWITCH, FRONT POWER SEAT, RH

84922C

SWITCH, FRONT POWER SEAT, LH

84928

SWITCH, SEAT VARIABLE CUSHION

84928

SWITCH, SEAT VARIABLE CUSHION

90162C0001

Крепеж

90162C0001

Крепеж

90167C0001

Крепеж

90167C0001

Крепеж

90167C0001

Крепеж

90167C0003

Крепеж

90167C0003

Крепеж

Код

Описание

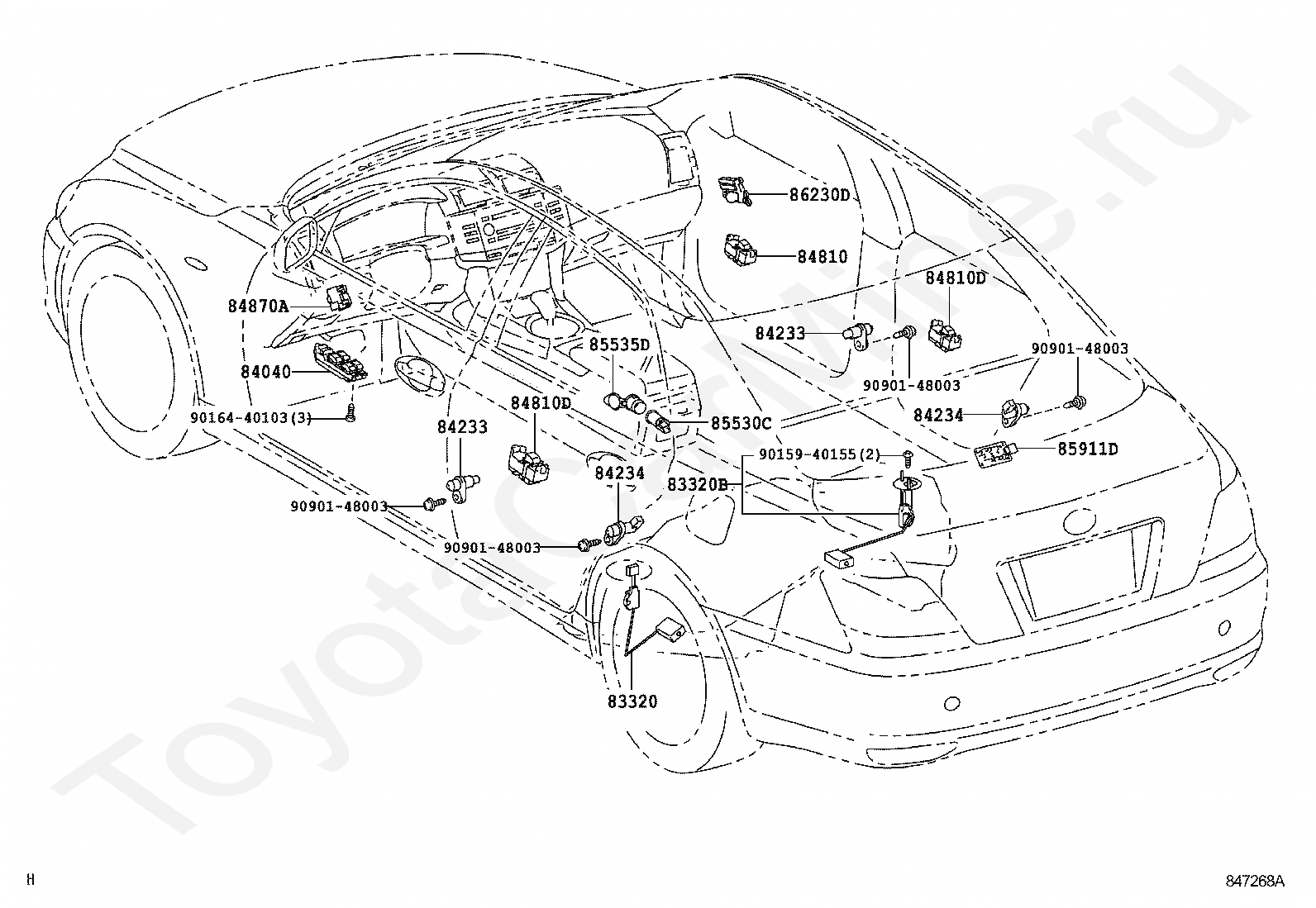

83320

GAGE ASSY, FUEL SENDER

83320B

GAGE ASSY, FUEL SENDER, NO.2

84040

MASTER SWITCH ASSY,MULTIPLEX NETWORK

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84870A

SWITCH ASSY, OUTER MIRROR

85530C

SOCKET ASSY, POWER OUTLET, CENTER

85535D

COVER, POWER OUTLET SOCKET, CENTER

85911D

RELAY, REAR SUNSHADE

86230D

CONTROLLER ASSY, STEREO COMPONENT

9015940155

Крепеж

9016440103

Крепеж

9090148003

Крепеж

9090148003

Крепеж

9090148003

Крепеж

9090148003

Крепеж
