Европа

Модель

RAV4

VIN

Дата

1995/04

Двигатель

2 литра, 16 клапанов, DOHC, EFI

Кузов

HARD TOP SERIES

Фрейм

SXA11

КПП

автомат

Опции

правый руль Австралия 5 дверей

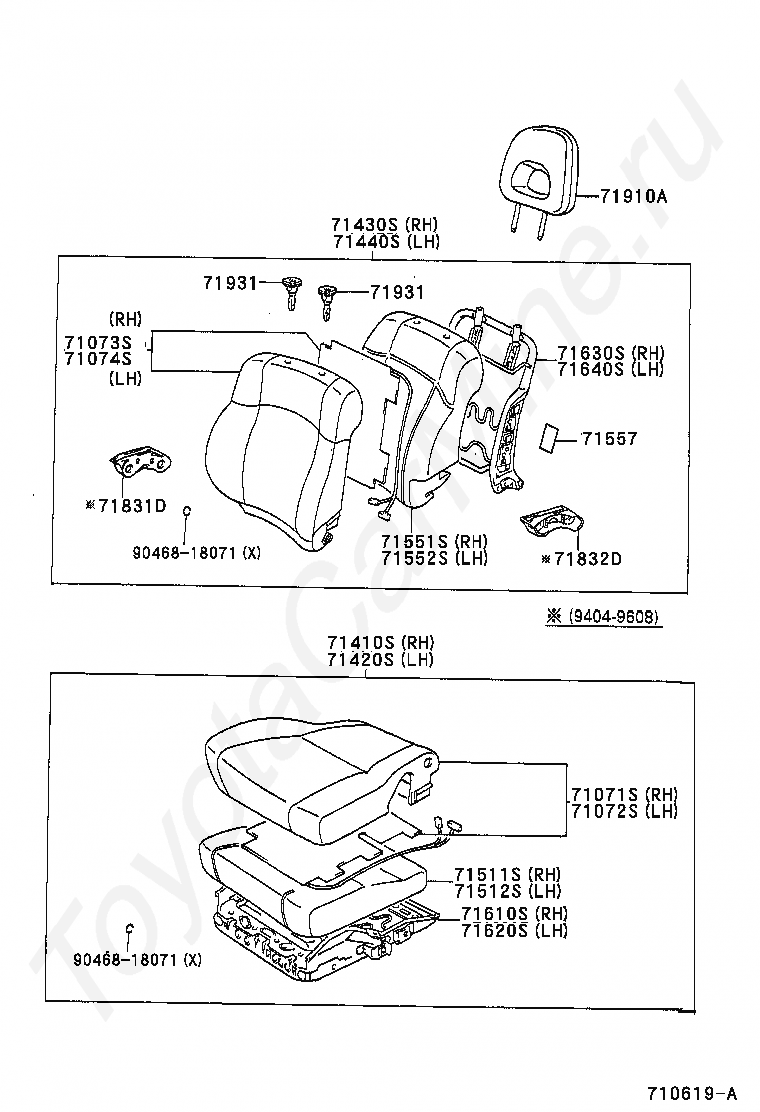

Кресла TOYOTA RAV4







Код

Описание

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71557

CLOTH, FRONT SEAT BACK UNDER

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71831D

COVER, FRONT SEAT HINGE, RH

71832D

COVER, FRONT SEAT HINGE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

9046818071

Крепеж

9046818071

Крепеж

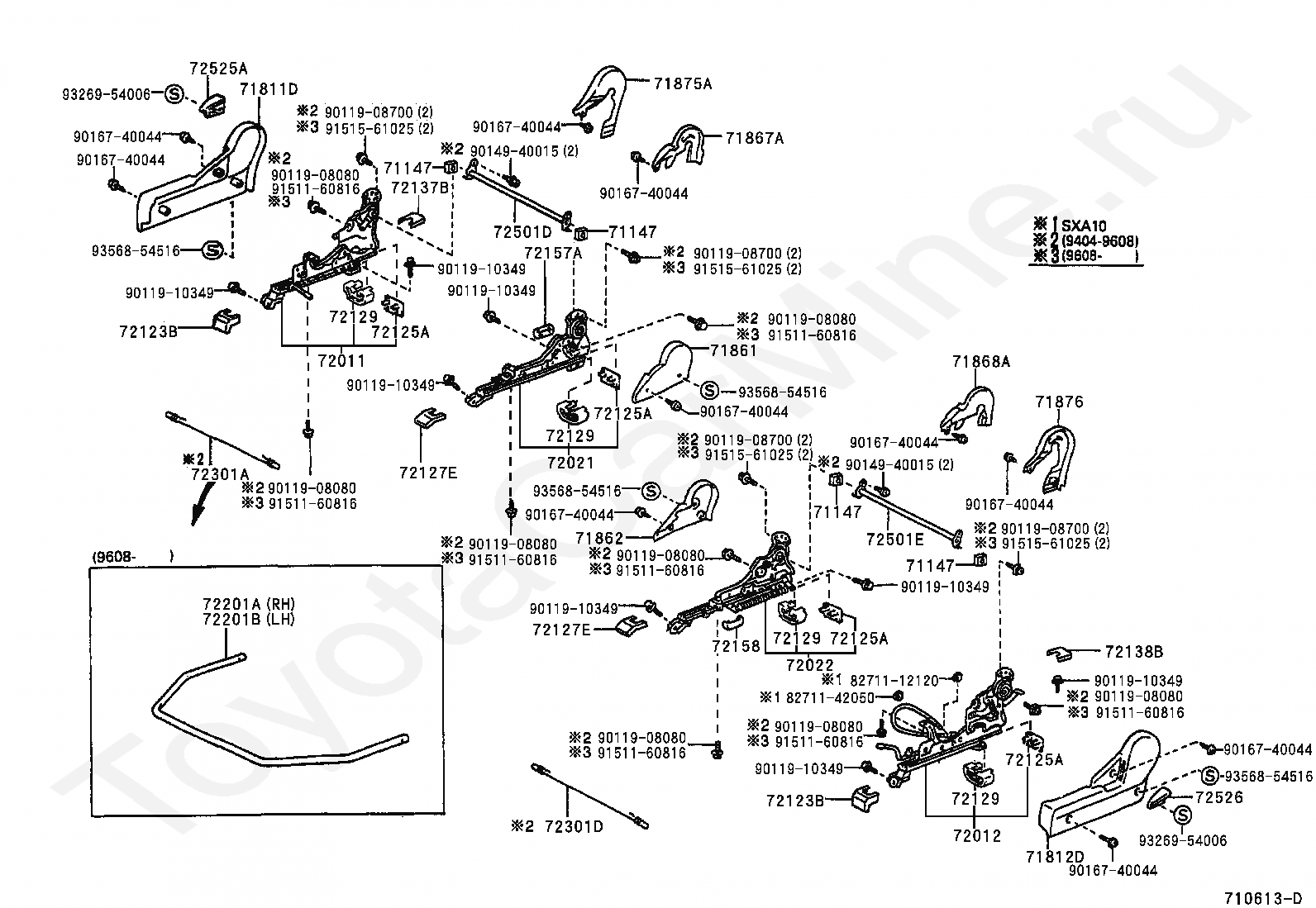

Код

Описание

71147

SILENCER, SEAT SPRING

71147

SILENCER, SEAT SPRING

71147

SILENCER, SEAT SPRING

71147

SILENCER, SEAT SPRING

71811D

SHIELD, FRONT SEAT CUSHION, RH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71867A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH

71868A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

72011

ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH

72012

ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH

72021

ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH

72022

ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH

72123B

COVER, SEAT TRACK BRACKET, OUTER FRONT

72123B

COVER, SEAT TRACK BRACKET, OUTER FRONT

72125A

COVER, SEAT TRACK, UPPER REAR

72125A

COVER, SEAT TRACK, UPPER REAR

72125A

COVER, SEAT TRACK, UPPER REAR

72125A

COVER, SEAT TRACK, UPPER REAR

72127E

COVER, SEAT TRACK BRACKET, INNER FRONT

72127E

COVER, SEAT TRACK BRACKET, INNER FRONT

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72137B

COVER, SEAT TRACK, RH

72138B

COVER, SEAT TRACK, LH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72201A

HANDLE SUB-ASSY, SEAT TRACK RH

72201B

HANDLE SUB-ASSY, SEAT TRACK LH

72301A

WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH

72301D

WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH

72501D

PIPE SUB-ASSY, RECLINING CONNECTING, RH

72501E

PIPE SUB-ASSY, RECLINING CONNECTING, LH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

8271112120

Крепеж

8271142050

Крепеж

9011908080

Крепеж

9011908080

Крепеж

9011908080

Крепеж

9011908080

Крепеж

9011908080

Крепеж

9011908080

Крепеж

9011908080

Крепеж

9011908080

Крепеж

9011908700

Крепеж

9011908700

Крепеж

9011908700

Крепеж

9011908700

Крепеж

9011910349

Крепеж

9011910349

Крепеж

9011910349

Крепеж

9011910349

Крепеж

9011910349

Крепеж

9011910349

Крепеж

9011910349

Крепеж

9011910349

Крепеж

9014940015

Крепеж

9014940015

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9151160816

Крепеж

9151160816

Крепеж

9151160816

Крепеж

9151160816

Крепеж

9151160816

Крепеж

9151160816

Крепеж

9151160816

Крепеж

9151160816

Крепеж

9151561025

Крепеж

9151561025

Крепеж

9151561025

Крепеж

9151561025

Крепеж

9326954006

Крепеж

9326954006

Крепеж

9356854516

Крепеж

9356854516

Крепеж

9356854516

Крепеж

9356854516

Крепеж

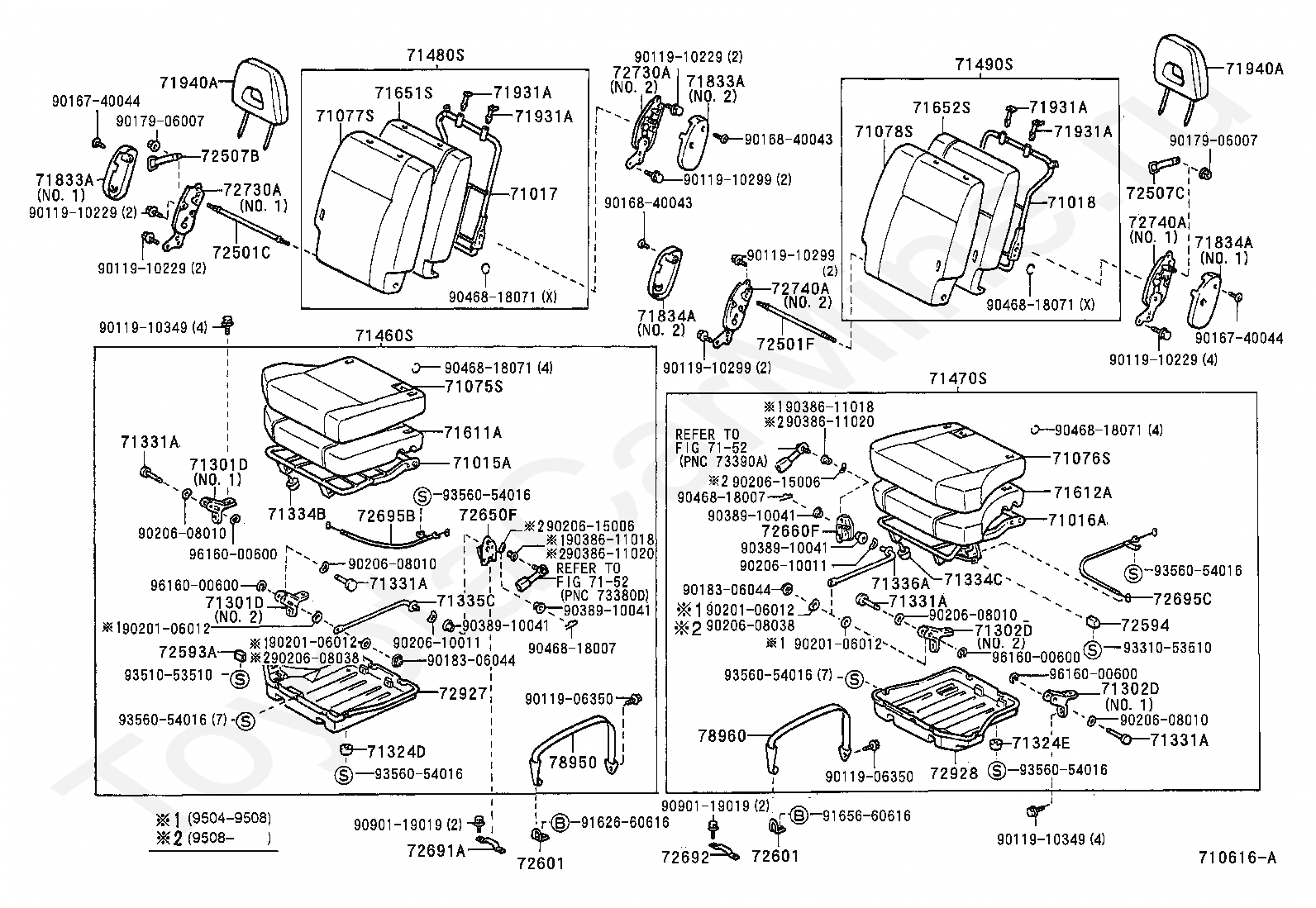

Код

Описание

71015A

FRAME SUB-ASSY, REAR SEAT CUSHION, RH

71016A

FRAME SUB-ASSY, REAR SEAT CUSHION, LH

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

71038

HINGE SUB-ASSY, CENTER SEAT BACK, LH

71039

HINGE SUB-ASSY, REAR SEAT CUSHION LEG, LH

71075S

COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

71076S

COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71301D

HINGE SUB-ASSY, REAR SEAT, RH

71302D

HINGE SUB-ASSY, REAR SEAT, LH

71321B

HINGE, REAR SEAT CUSHION, RH

71322C

HINGE, REAR SEAT CUSHION, LH

71324D

CUSHION, REAR SEAT, RH

71324E

CUSHION, REAR SEAT, LH

71328D

WIRE, REAR SEAT CUSHION SUPPORT

71328E

WIRE, REAR SEAT CUSHION SUPPORT

71331A

PIN, REAR SEAT HINGE

71331A

PIN, REAR SEAT HINGE

71331A

PIN, REAR SEAT HINGE

71331A

PIN, REAR SEAT HINGE

71334B

STOPPER, REAR SEAT LEG, RH

71334B

STOPPER, REAR SEAT LEG, RH

71334C

STOPPER, REAR SEAT LEG, LH

71334C

STOPPER, REAR SEAT LEG, LH

71335C

STAY, REAR SEAT CUSHION LINK, RH

71336A

STAY, REAR SEAT CUSHION LINK, LH

71393A

BAND, REAR SEAT CUSHION, RH

71393B

BAND, REAR SEAT CUSHION, LH

71460S

CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE)

71470S

CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

71480S

BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)

71485

COVER, REAR SEAT HINGE

71485

COVER, REAR SEAT HINGE

71490S

BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

71611A

PAD, REAR SEAT CUSHION, RH

71612A

PAD, REAR SEAT CUSHION, LH

71629

COVER, REAR SEAT CUSHION HINGE

71639

COVER, REAR SEAT CUSHION HINGE, LH

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71940A

HEADREST ASSY, REAR SEAT

7195590K0001

Крепеж

7195590K0001

Крепеж

72501C

PIPE SUB-ASSY, RECLINING CONNECTING

72501F

PIPE SUB-ASSY, RECLINING CONNECTING

72507B

HANDLE SUB-ASSY, RECLINING RELEASE, RH

72507C

HANDLE SUB-ASSY, RECLINING RELEASE, LH

72601

STRIKER SUB-ASSY, REAR SEAT LOCK

72601

STRIKER SUB-ASSY, REAR SEAT LOCK

72650F

LOCK ASSY, REAR SEAT, RH

72660F

LOCK ASSY, REAR SEAT, LH

72691A

STRIKER, REAR SEAT CUSHION LOCK, NO.1

72692

STRIKER, REAR SEAT CUSHION LOCK, NO.2

72730A

ADJUSTER ASSY, REAR SEAT RECLINING, RH

72730A

ADJUSTER ASSY, REAR SEAT RECLINING, RH

72740A

ADJUSTER ASSY, REAR SEAT RECLINING, LH

72740A

ADJUSTER ASSY, REAR SEAT RECLINING, LH

72927

COVER, REAR SEAT CUSHION UNDER, RH

72928

COVER, REAR SEAT CUSHION UNDER, LH

9010506156

Крепеж

9010506156

Крепеж

9011906350

Крепеж

9011906350

Крепеж

9011910229

Крепеж

9011910229

Крепеж

9011910229

Крепеж

9011910229

Крепеж

9011910229

Крепеж

9011910229

Крепеж

9011910229

Крепеж

9011910299

Крепеж

9011910349

Крепеж

9011910349

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016840043

Крепеж

9016840043

Крепеж

9016840043

Крепеж

9016840043

Крепеж

9017906007

Крепеж

9017906007

Крепеж

9018306044

Крепеж

9018306044

Крепеж

9020608010

Крепеж

9020608010

Крепеж

9020608010

Крепеж

9020608010

Крепеж

9020608038

Крепеж

9020608038

Крепеж

9020610011

Крепеж

9020610011

Крепеж

9020615006

Крепеж

9020615006

Крепеж

9038611020

Крепеж

9038611020

Крепеж

9038910041

Крепеж

9038910041

Крепеж

9038910041

Крепеж

9038910041

Крепеж

9046818007

Крепеж

9046818007

Крепеж

9046818071

Крепеж

9046818071

Крепеж

9046818071

Крепеж

9046818071

Крепеж

9090119019

Крепеж

9356054016

Крепеж

9356054016

Крепеж

9356054016

Крепеж

9356054016

Крепеж

9356054016

Крепеж

9356854516

Крепеж

9616000600

Крепеж

9616000600

Крепеж

9616000600

Крепеж

9616000600

Крепеж

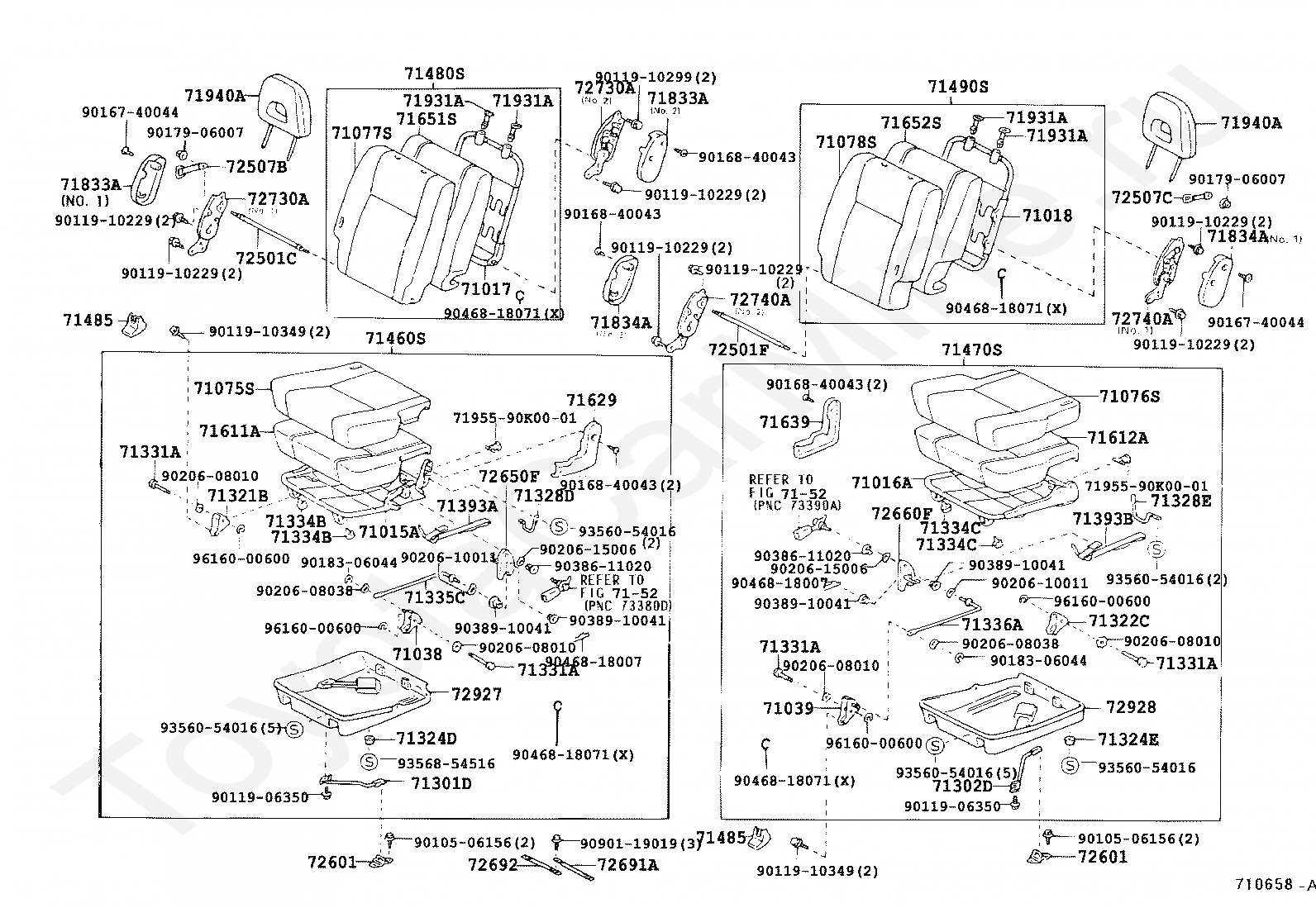

Код

Описание

71015A

FRAME SUB-ASSY, REAR SEAT CUSHION, RH

71016A

FRAME SUB-ASSY, REAR SEAT CUSHION, LH

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

71075S

COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

71076S

COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71301D

HINGE SUB-ASSY, REAR SEAT, RH

71301D

HINGE SUB-ASSY, REAR SEAT, RH

71302D

HINGE SUB-ASSY, REAR SEAT, LH

71302D

HINGE SUB-ASSY, REAR SEAT, LH

71324D

CUSHION, REAR SEAT, RH

71324E

CUSHION, REAR SEAT, LH

71331A

PIN, REAR SEAT HINGE

71331A

PIN, REAR SEAT HINGE

71331A

PIN, REAR SEAT HINGE

71331A

PIN, REAR SEAT HINGE

71334B

STOPPER, REAR SEAT LEG, RH

71334C

STOPPER, REAR SEAT LEG, LH

71335C

STAY, REAR SEAT CUSHION LINK, RH

71336A

STAY, REAR SEAT CUSHION LINK, LH

71460S

CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE)

71470S

CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

71480S

BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)

71490S

BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

71611A

PAD, REAR SEAT CUSHION, RH

71612A

PAD, REAR SEAT CUSHION, LH

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71940A

HEADREST ASSY, REAR SEAT

72501C

PIPE SUB-ASSY, RECLINING CONNECTING

72501F

PIPE SUB-ASSY, RECLINING CONNECTING

72507B

HANDLE SUB-ASSY, RECLINING RELEASE, RH

72507C

HANDLE SUB-ASSY, RECLINING RELEASE, LH

72593A

KNOB, REMOTE CONTROL LEVER, RH

72594

KNOB, REMOTE CONTROL LEVER, LH

72601

STRIKER SUB-ASSY, REAR SEAT LOCK

72601

STRIKER SUB-ASSY, REAR SEAT LOCK

72650F

LOCK ASSY, REAR SEAT, RH

72660F

LOCK ASSY, REAR SEAT, LH

72691A

STRIKER, REAR SEAT CUSHION LOCK, NO.1

72692

STRIKER, REAR SEAT CUSHION LOCK, NO.2

72695B

CABLE, REAR SEAT LOCK CONTROL, RH

72695C

CABLE, REAR SEAT LOCK CONTROL, LH

72730A

ADJUSTER ASSY, REAR SEAT RECLINING, RH

72730A

ADJUSTER ASSY, REAR SEAT RECLINING, RH

72740A

ADJUSTER ASSY, REAR SEAT RECLINING, LH

72740A

ADJUSTER ASSY, REAR SEAT RECLINING, LH

72927

COVER, REAR SEAT CUSHION UNDER, RH

72928

COVER, REAR SEAT CUSHION UNDER, LH

78950

BAND ASSY, FOLD SEAT STOPPER, NO.1

78960

BAND ASSY, FOLD SEAT STOPPER, NO.2

9011906350

Крепеж

9011906350

Крепеж

9011910229

Крепеж

9011910229

Крепеж

9011910229

Крепеж

9011910229

Крепеж

9011910299

Крепеж

9011910299

Крепеж

9011910299

Крепеж

9011910349

Крепеж

9011910349

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016840043

Крепеж

9016840043

Крепеж

9017906007

Крепеж

9017906007

Крепеж

9018306044

Крепеж

9018306044

Крепеж

9020106012

Крепеж

9020106012

Крепеж

9020106012

Крепеж

9020106012

Крепеж

9020608010

Крепеж

9020608010

Крепеж

9020608010

Крепеж

9020608010

Крепеж

9020608038

Крепеж

9020608038

Крепеж

9020610011

Крепеж

9020610011

Крепеж

9020615006

Крепеж

9020615006

Крепеж

9038611018

Крепеж

9038611018

Крепеж

9038611020

Крепеж

9038611020

Крепеж

9038910041

Крепеж

9038910041

Крепеж

9038910041

Крепеж

9038910041

Крепеж

9046818007

Крепеж

9046818007

Крепеж

9046818071

Крепеж

9046818071

Крепеж

9046818071

Крепеж

9046818071

Крепеж

9090119019

Крепеж

9090119019

Крепеж

9162660616

Крепеж

9165660616

Крепеж

9331053510

Крепеж

9351053510

Крепеж

9356054016

Крепеж

9356054016

Крепеж

9356054016

Крепеж

9356054016

Крепеж

9356054016

Крепеж

9356054016

Крепеж

9616000600

Крепеж

9616000600

Крепеж

9616000600

Крепеж

9616000600

Крепеж

> Запчасти RAV4 > Поиск по каталогу

Купить

Ваше имя
Ваш телефон
Ваша электронная почта
Оставляя свои данные в форме, вы подтверждаете свое согласие с Политикой конфиденциальности
