2211
переход к группе запчастей

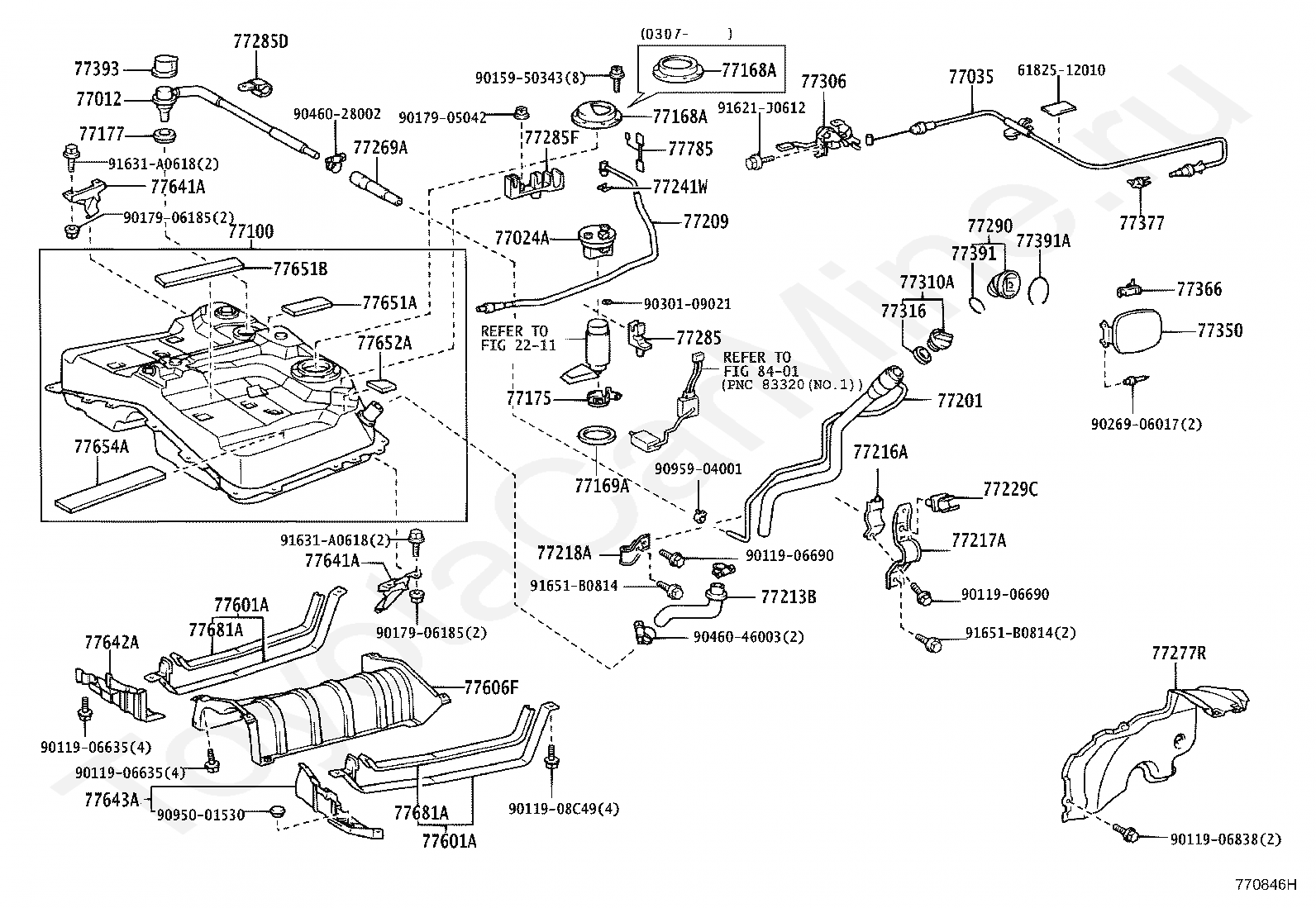

77012
TUBE SUB-ASSY, FUEL TANK BREATHER
77024A
PLATE SUB-ASSY, FUEL SUCTION
77035
CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77168A
PLATE, FUEL TANK VENT TUBE SET
77168A
PLATE, FUEL TANK VENT TUBE SET
77169A
GASKET, FUEL SUCTION TUBE SET
77175
SUPPORT, FUEL SUCTION, NO.2
77177
GASKET, CHECK VALVE
77201
PIPE SUB-ASSY, FUEL TANK INLET
77209
CONNECTOR SUB-ASSY, FUEL TUBE
77213B
HOSE, FUEL TANK TO FILLER PIPE
77216A
SUPPORT, FUEL TANK FILLER PIPE, NO.1
77217A
SUPPORT, FUEL TANK FILLER PIPE, NO.2
77218A
SUPPORT, FUEL TANK FILLER PIPE, NO.3
77229C
CLAMP, BREATHER TUBE
77269A
HOSE, FUEL TANK BREATHER
77277R
PROTECTOR, FUEL TANK FILLER PIPE
77285D
CLAMP, FUEL TUBE, NO.1
77285F
CLAMP, FUEL TUBE, NO.1
77290
SHIELD ASSY, FUEL TANK FILLER PIPE
77306
LEVER SUB-ASSY, FUEL LID LOCK OPEN
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77350
LID ASSY, FUEL FILLER OPENING
77366
SPRING, FUEL FILLER OPENING LID HINGE
77377
RETAINER, FUEL FILLER OPENING LID LOCK
77391
RING, FUEL INLET BOX
77391A
RING, FUEL INLET BOX
77393
PROTECTOR, CHECK VALVE
77601A
BAND SUB-ASSY, FUEL TANK, NO.1
77601A
BAND SUB-ASSY, FUEL TANK, NO.1
77606F
CASE SUB-ASSY, FUEL TANK COVER VENT
77641A
PROTECTOR, FUEL TANK, NO.1
77641A
PROTECTOR, FUEL TANK, NO.1
77642A
PROTECTOR, FUEL TANK, NO.2
77643A
PROTECTOR, FUEL TANK, NO.3
77651A
CUSHION, FUEL TANK, NO.1
77651B
CUSHION, FUEL TANK
77652A
CUSHION, FUEL TANK, NO.2
77654A
CUSHION, FUEL TANK, NO.4
77681A
SEAT, FUEL TANK BAND
77681A
SEAT, FUEL TANK BAND
8401
переход к группе запчастей
