Япония

Модель

RAV4/VANGUARD

VIN

Дата

2008/08

Двигатель

2,4 литра, 16 клапанов DOHC, EFI

Класс

240S TYPE

Фрейм

ACA38

КПП

автомат бесступенчатая АКПП

Опции

VANGUARD 5-местный 338W

Реле и кнопки TOYOTA RAV4/VANGUARD

Код

Описание

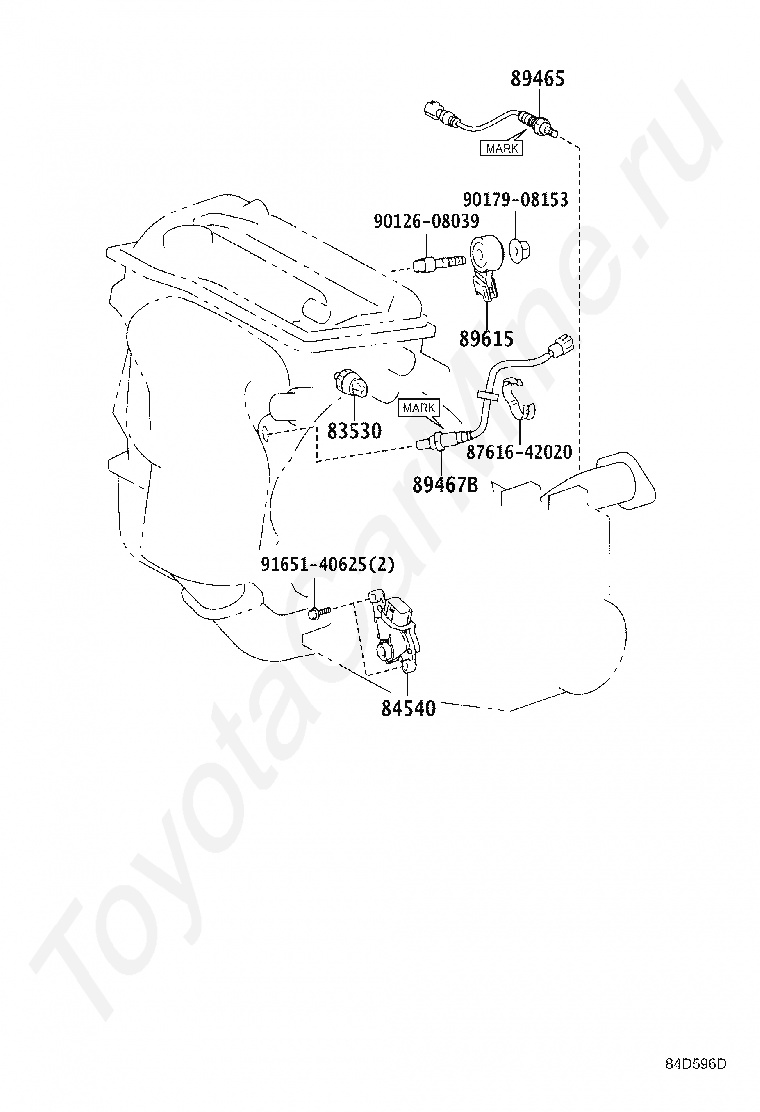

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

84540

SWITCH ASSY, NEUTRAL START

8761642020

Крепеж

89465

SENSOR, OXYGEN

89467B

SENSOR, AIR FUEL RATIO

89615

SENSOR, KNOCK CONTROL

9012608039

Крепеж

9017908153

Крепеж

9165140625

Крепеж

Код

Описание

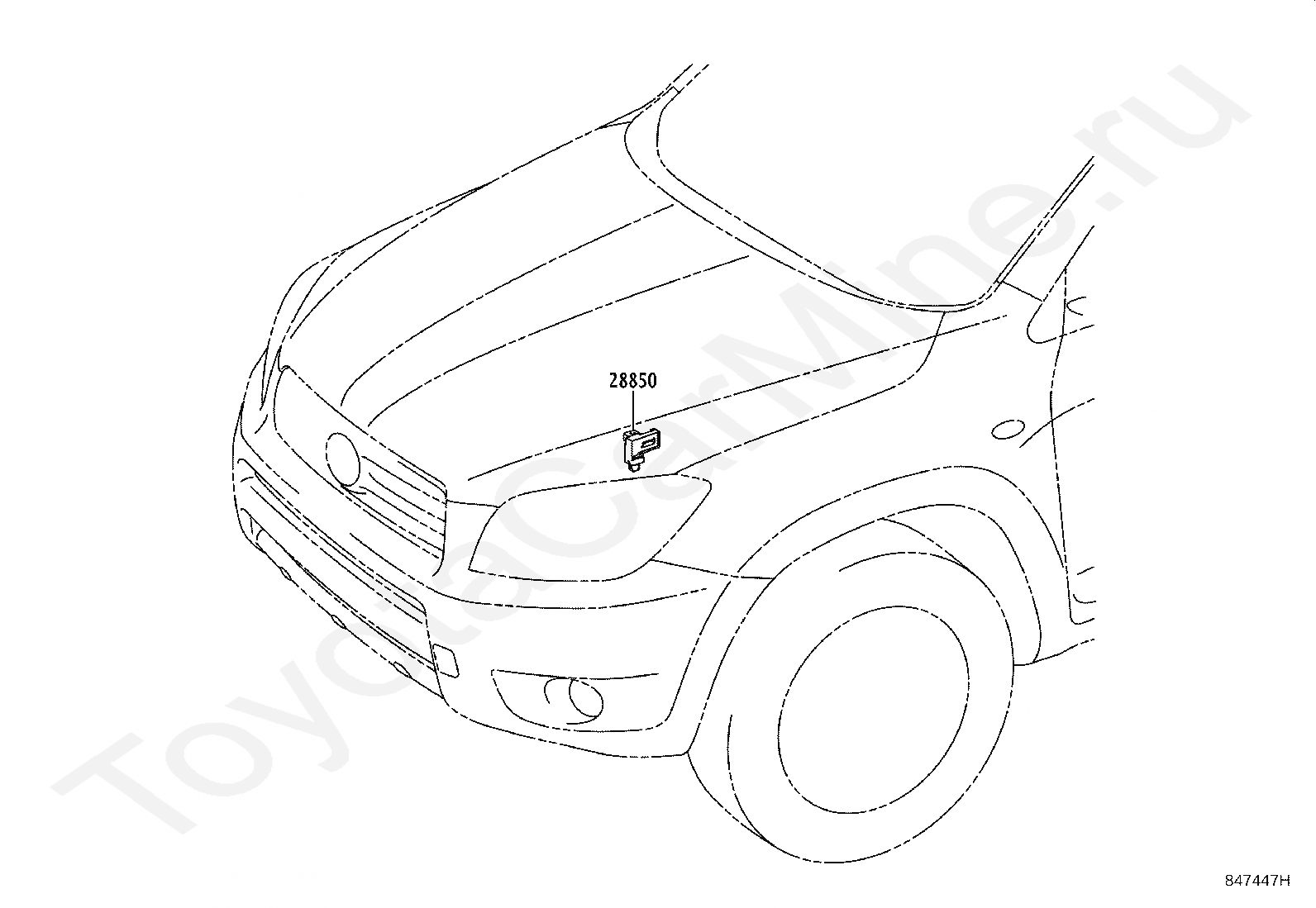

28850

SENSOR ASSY, BATTERY CURRENT

Код

Описание

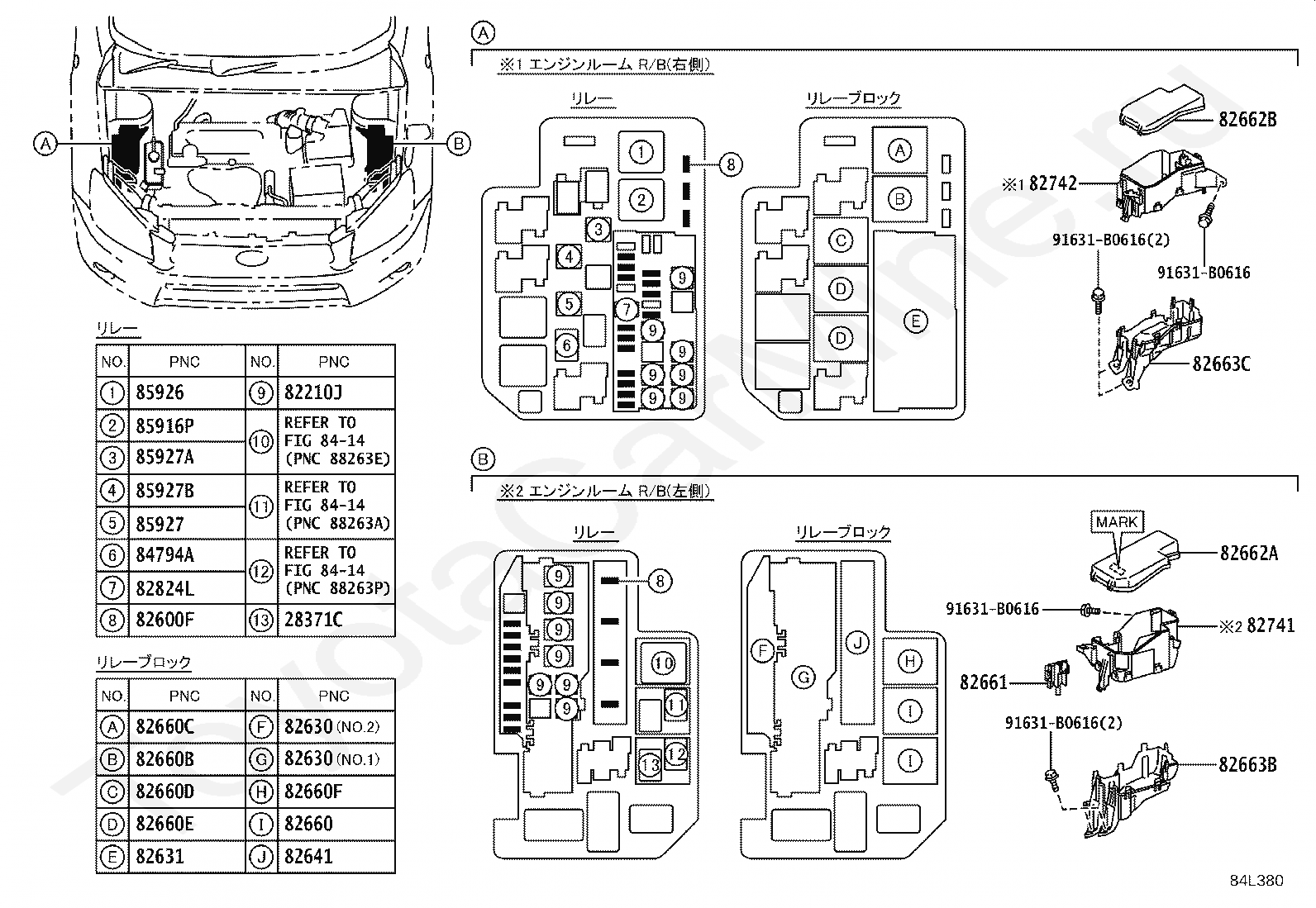

28371C

RELAY, IGNITION, NO.2

82210J

FUSIBLE LINK

82600F

FUSE, FUSE BLOCK

82630

HOLDER ASSY, FUSE

82630

HOLDER ASSY, FUSE

82631

HOLDER, FUSE

82641

RELAY, INTEGRATION NO.1

82660

BLOCK ASSY, RELAY, ENGINE ROOM

82660B

BLOCK ASSY, RELAY

82660C

BLOCK ASSY, RELAY

82660D

BLOCK ASSY, RELAY

82660E

BLOCK ASSY, RELAY

82660F

BLOCK ASSY, RELAY

82661

COVER, RELAY BLOCK, NO.1

82662A

COVER, RELAY BLOCK, UPPER, NO.1

82662B

COVER, RELAY BLOCK, UPPER, NO.2

82663B

COVER, RELAY BLOCK, LOWER, NO.3

82663C

COVER, RELAY BLOCK LOWER, NO.4

82741

BLOCK, ENGINE ROOM RELAY

82742

BLOCK, ENGINE ROOM RELAY, NO.2

82824L

PIN, SHORT

8414

переход к группе запчастей

8414

переход к группе запчастей

8414

переход к группе запчастей

84794A

RELAY, FR WIPER DEICER

85916P

RELAY, HEADLAMP

85926

RELAY, HEADLAMP DIMMER

85927

RELAY, COOLING FAN

85927A

RELAY, COOLING FAN, NO.2

85927B

RELAY, COOLING FAN, NO.3

91631B0616

Крепеж

91631B0616

Крепеж

91631B0616

Крепеж

91631B0616

Крепеж

Код

Описание

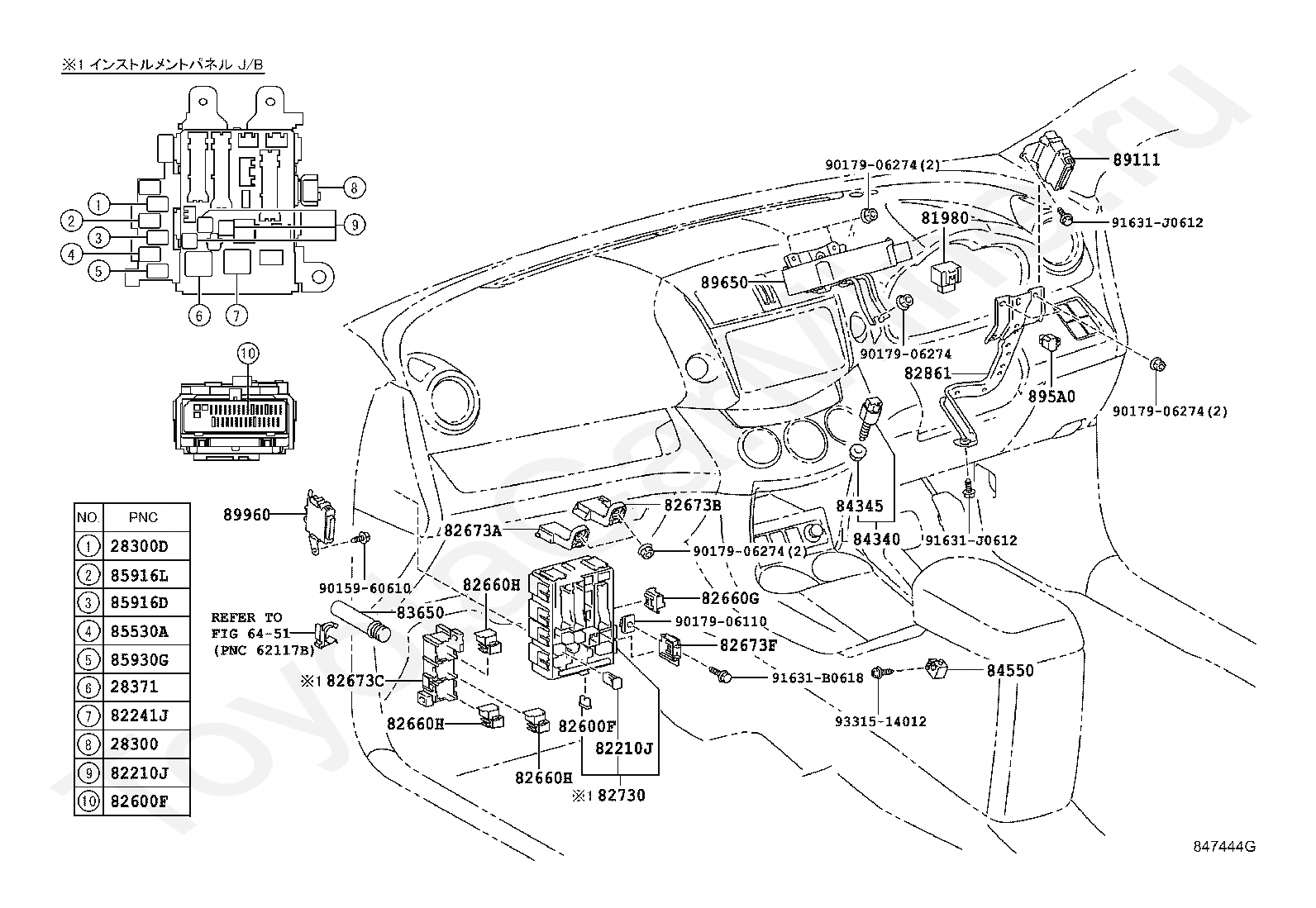

28300

RELAY ASSY, STARTER

28300D

RELAY, STARTER CUT

28371

RELAY, IGNITION, NO.1

6451

переход к группе запчастей

81980

FLASHER ASSY, TURN SIGNAL

82210J

FUSIBLE LINK

82210J

FUSIBLE LINK

82241J

PIN, SHORT

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82660G

BLOCK ASSY, RELAY

82660H

BLOCK ASSY, RELAY

82660H

BLOCK ASSY, RELAY

82660H

BLOCK ASSY, RELAY

82673A

BRACKET, JUNCTION BLOCK

82673B

BRACKET, JUNCTION BLOCK

82673C

BRACKET, JUNCTION BLOCK

82673F

BRACKET, JUNCTION BLOCK

82730

BLOCK ASSY, INSTRUMENT PANEL JUNCTION

82861

BRACKET, COMPUTER INTEGRATION, NO.1

83650

FUSEE

84340

SWITCH ASSY, STOP LAMP

84345

ADJUSTER, STOP LAMP SWITCH MOUNTING

84550

SWITCH ASSY, PARKING BRAKE

85530A

RELAY, POWER OUTLET SOCKET

85916D

RELAY, FOG LAMP

85916L

RELAY, REAR FOG LAMP

85930G

RELAY, ACC

89111

COMPUTER, NETWORK GATEWAY

895A0

RELAY ASSY, STOP LAMP CONTROL

89650

COMPUTER ASSY, POWER STEERING

89960

COMPUTER ASSY, HEADLAMP LEVELING

9015960610

Крепеж

9017906110

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9017906274

Крепеж

91631B0618

Крепеж

91631J0612

Крепеж

91631J0612

Крепеж

9331514012

Крепеж

Код

Описание

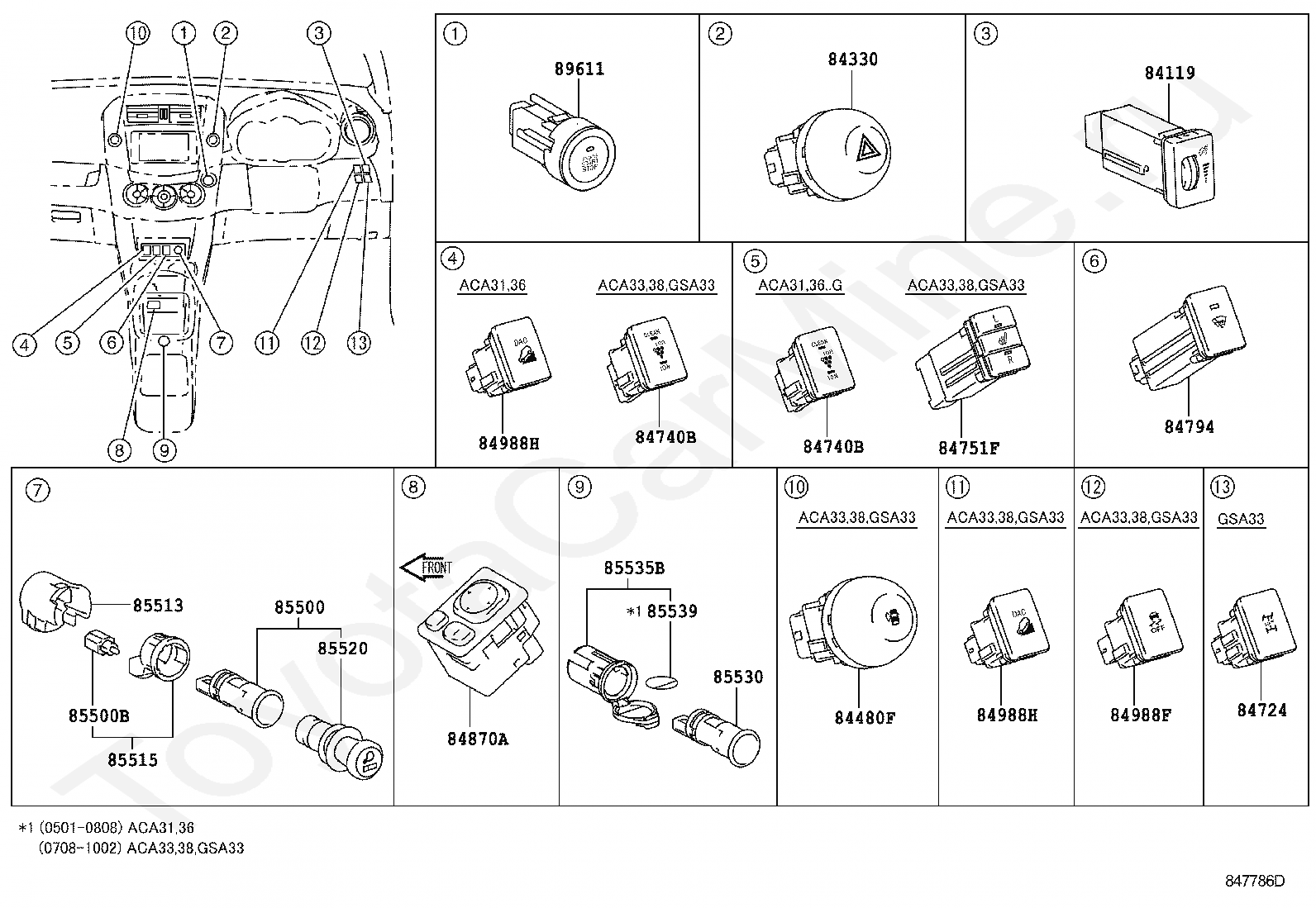

84119

RHEOSTAT, LIGHT CONTROL

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84480F

SWITCH ASSY, MAIN

84724

SWITCH, 4 WHEEL DRIVE CONTROL

84740B

SWITCH ASSY, AIR PURIFIER

84740B

SWITCH ASSY, AIR PURIFIER

84751F

SWITCH, SEAT HEATER

84794

SWITCH, FR WIPER DEICER

84870A

SWITCH ASSY, OUTER MIRROR

84988F

SWITCH, TRACTION CONTROL

84988H

SWITCH, DOWNHILL ASSIST CONTROL

84988H

SWITCH, DOWNHILL ASSIST CONTROL

85500

LIGHTER ASSY, CIGARETTE

85500B

BULB, CIGARETTE LIGHTER

85513

COVER, CIGARETTE LIGHTER

85515

STAY, CIGARETTE LIGHTER BEZEL

85520

KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER

85530

SOCKET ASSY, POWER OUTLET, NO.1

85535B

COVER, POWER OUTLET SOCKET, NO.1

85539

LABEL, POWER OUTLET NOTICE

89611

SWITCH, PUSH START

Код

Описание

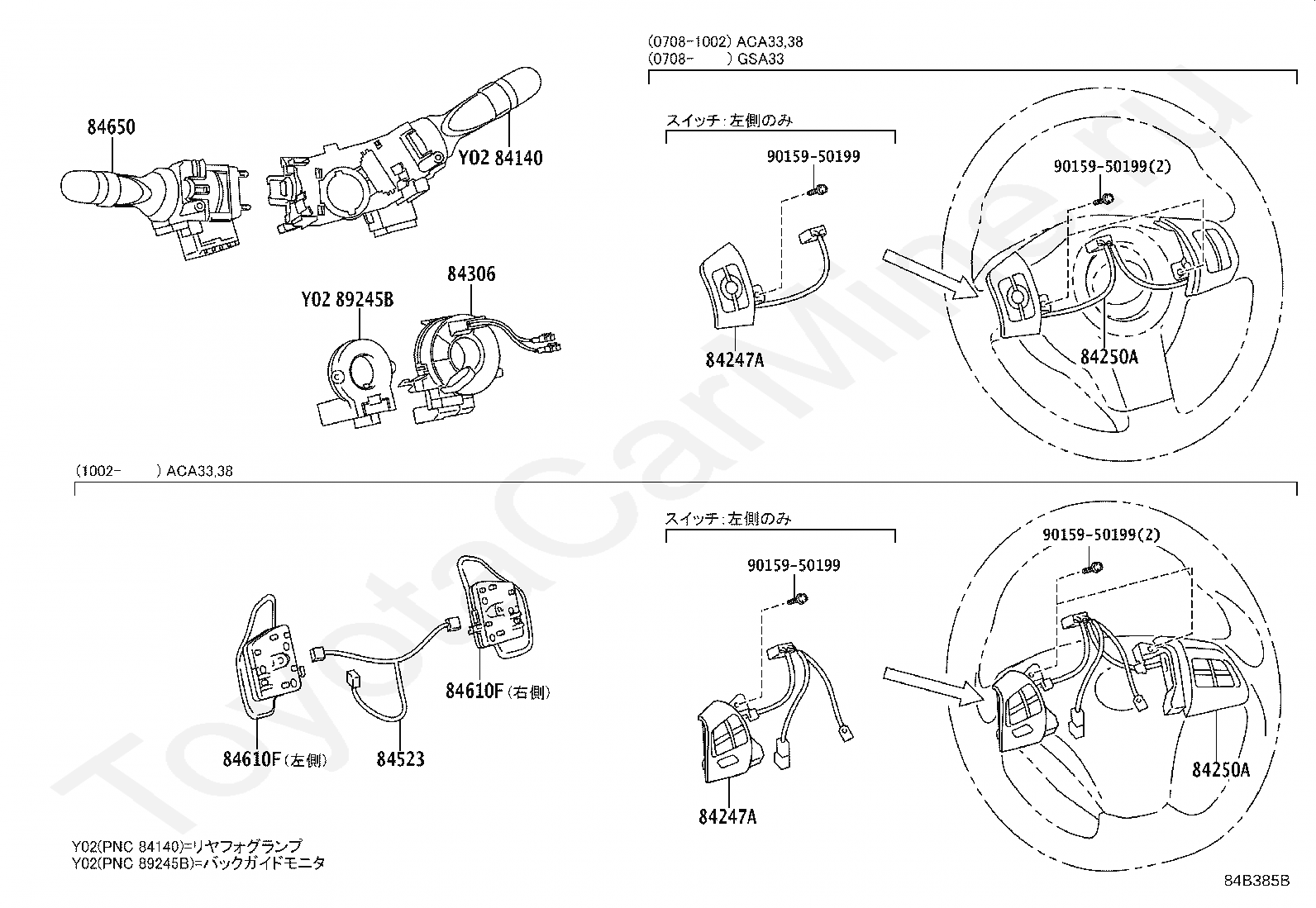

84140

SWITCH ASSY, HEADLAMP DIMMER

84247A

SWITCH, STEERING PAD, LH

84247A

SWITCH, STEERING PAD, LH

84250A

SWITCH ASSY, STEERING PAD

84250A

SWITCH ASSY, STEERING PAD

84306

CABLE SUB-ASSY, SPIRAL

84523

WIRE, SWITCH NO.1

84610F

SWITCH ASSY, TRANSMISSION SHIFT

84610F

SWITCH ASSY, TRANSMISSION SHIFT

84650

SWITCH ASSY, WINDSHIELD WIPER

89245B

SENSOR, STEERING

9015950199

Крепеж

9015950199

Крепеж

9015950199

Крепеж

9015950199

Крепеж

Код

Описание

7151

переход к группе запчастей

7151

переход к группе запчастей

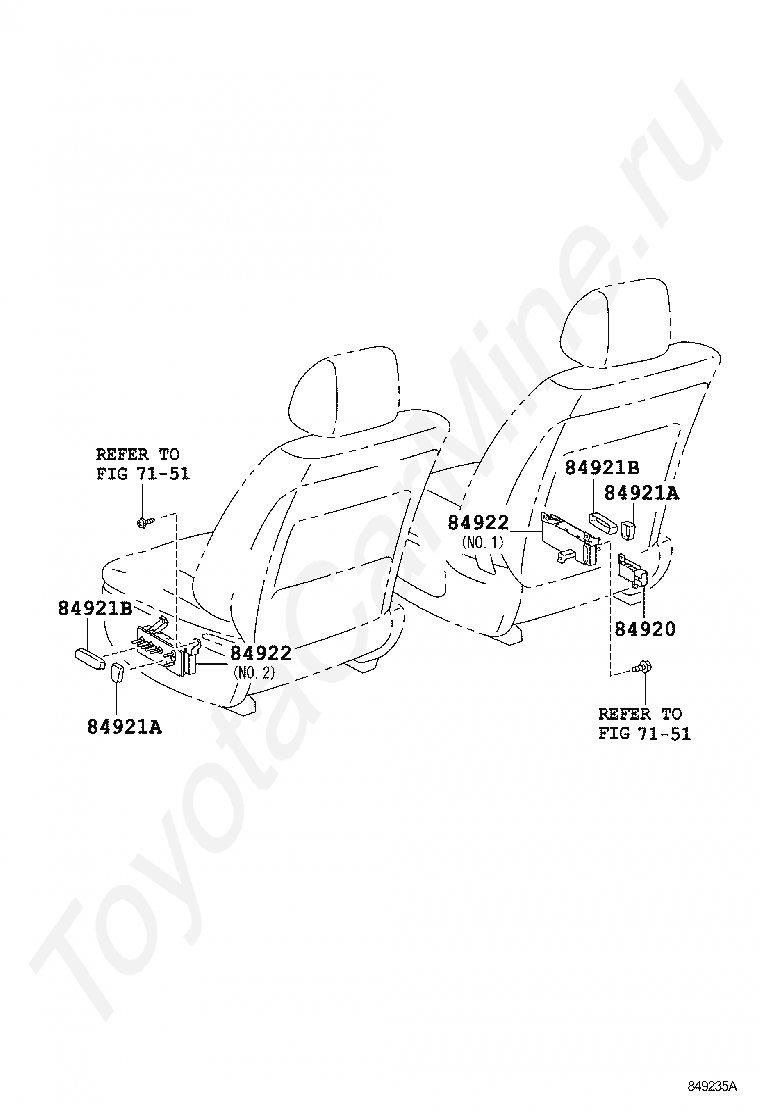

84920

SWITCH ASSY, POWER SEAT

84921A

KNOB, POWER SEAT SWITCH (FOR RECLINING)

84921A

KNOB, POWER SEAT SWITCH (FOR RECLINING)

84921B

KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)

84921B

KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)

84922

SWITCH, FRONT POWER SEAT

84922

SWITCH, FRONT POWER SEAT

Код

Описание

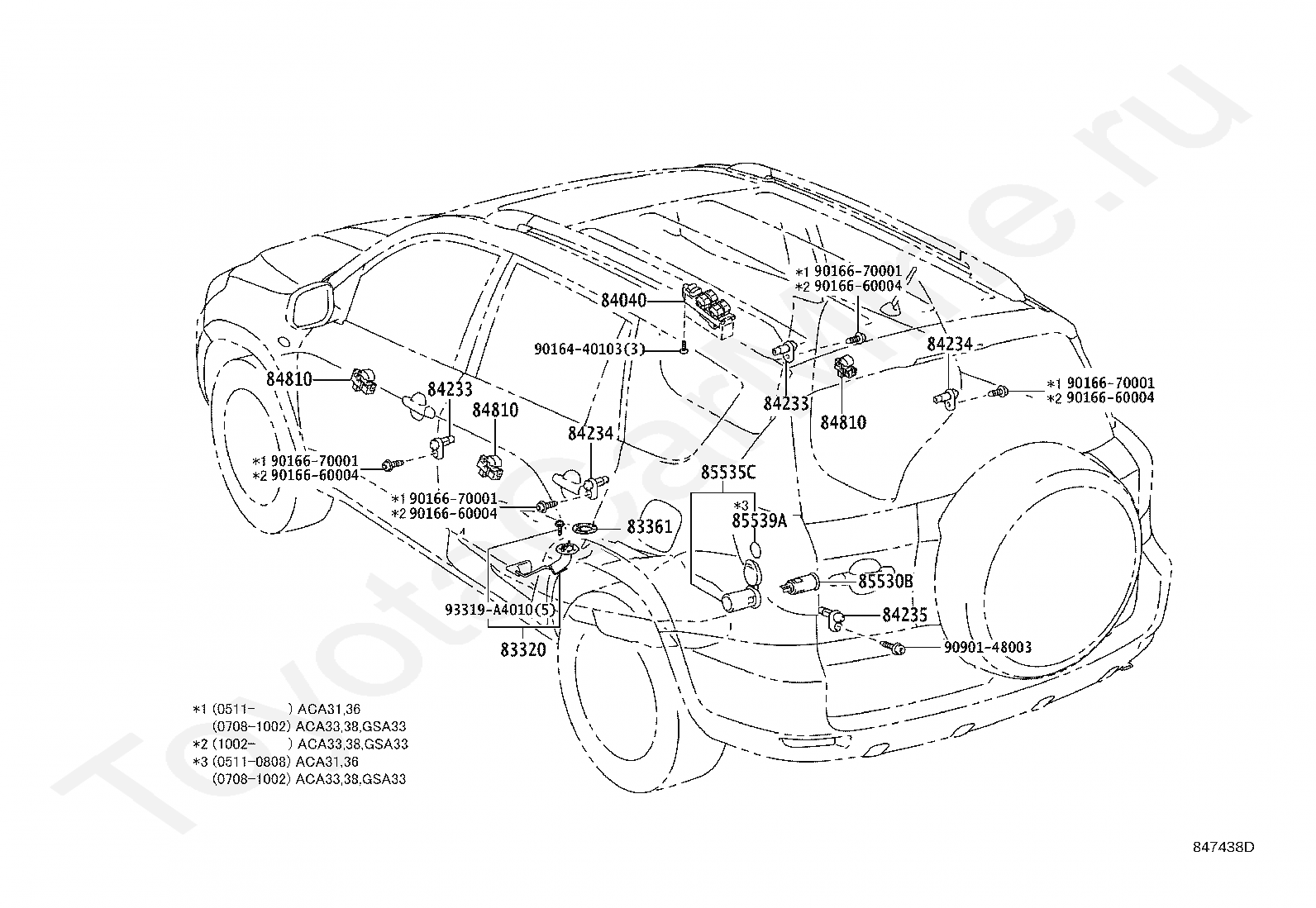

83320

GAGE ASSY, FUEL SENDER

83361

GASKET, FUEL SENDER GAGE

84040

MASTER SWITCH ASSY,MULTIPLEX NETWORK

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84235

SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR)

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810

SWITCH ASSY, POWER WINDOW REGULATOR

85530B

SOCKET ASSY, POWER OUTLET, REAR NO.1

85535C

COVER, POWER OUTLET SOCKET, REAR

85539A

LABEL, POWER OUTLET NOTICE, REAR

9016440103

Крепеж

9016660004

Крепеж

9016660004

Крепеж

9016660004

Крепеж

9016660004

Крепеж

9016670001

Крепеж

9016670001

Крепеж

9016670001

Крепеж

9016670001

Крепеж

9090148003

Крепеж

93319A4010

Крепеж

Реле и кнопки TOYOTA RAV4/VANGUARD
