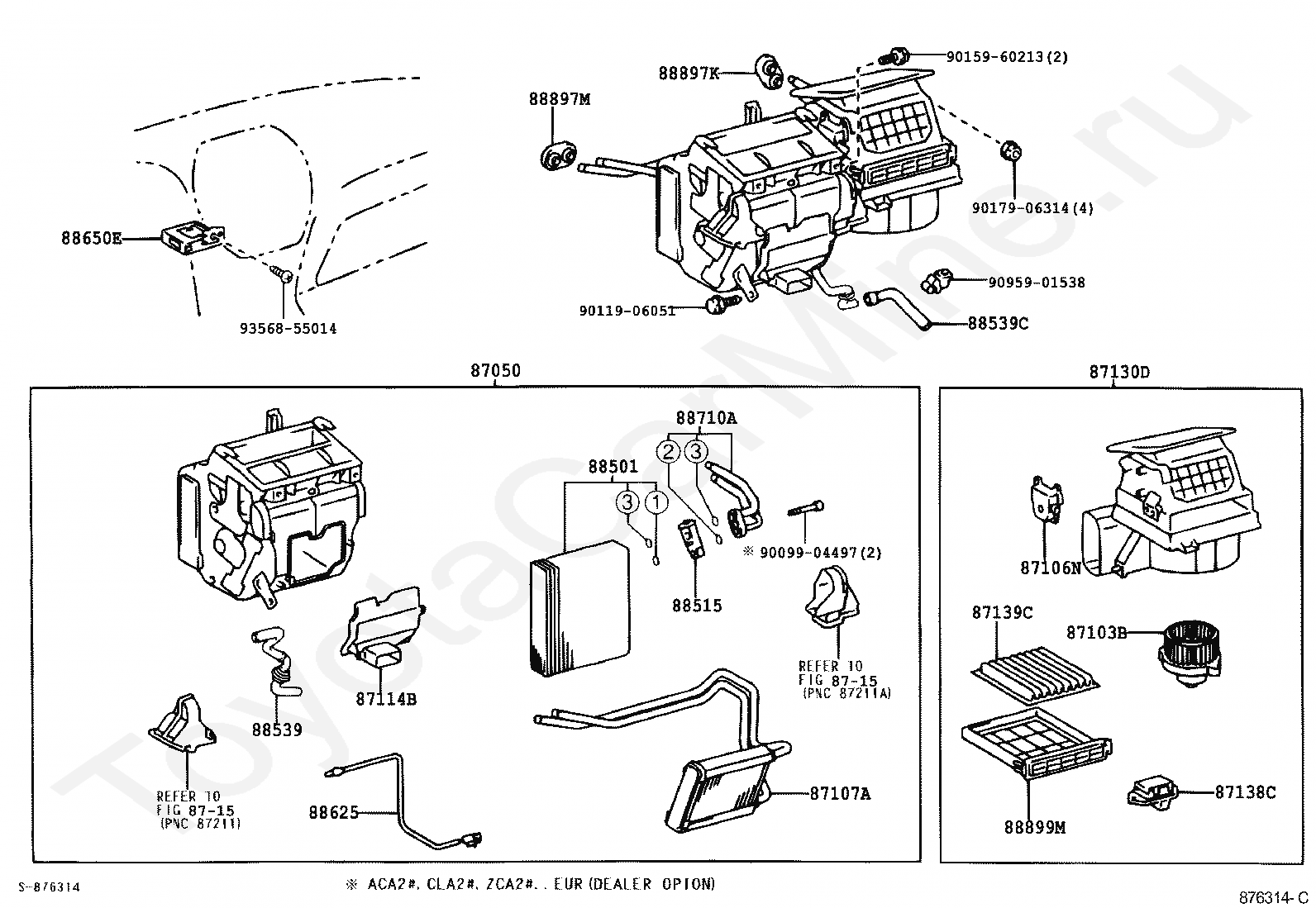

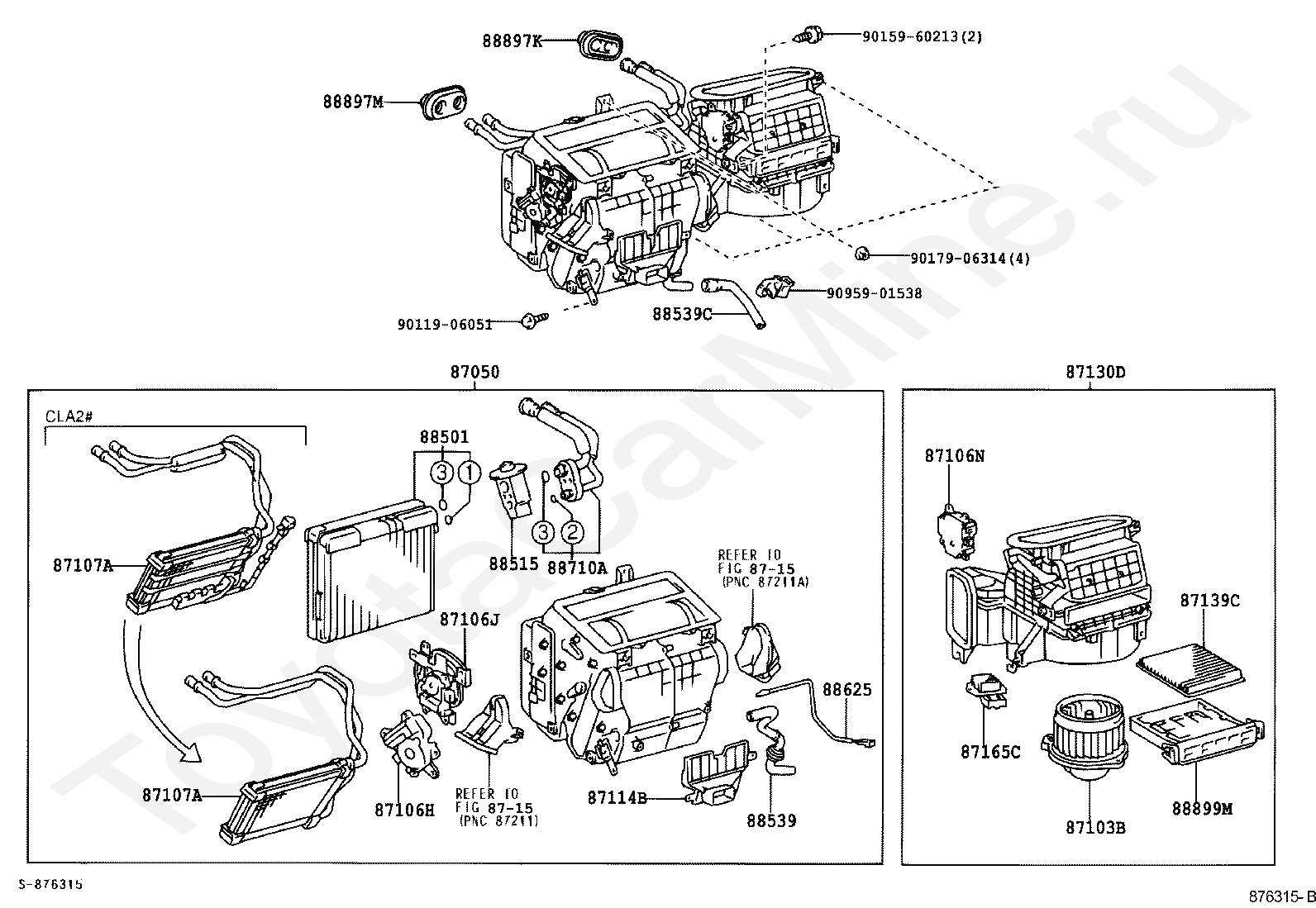

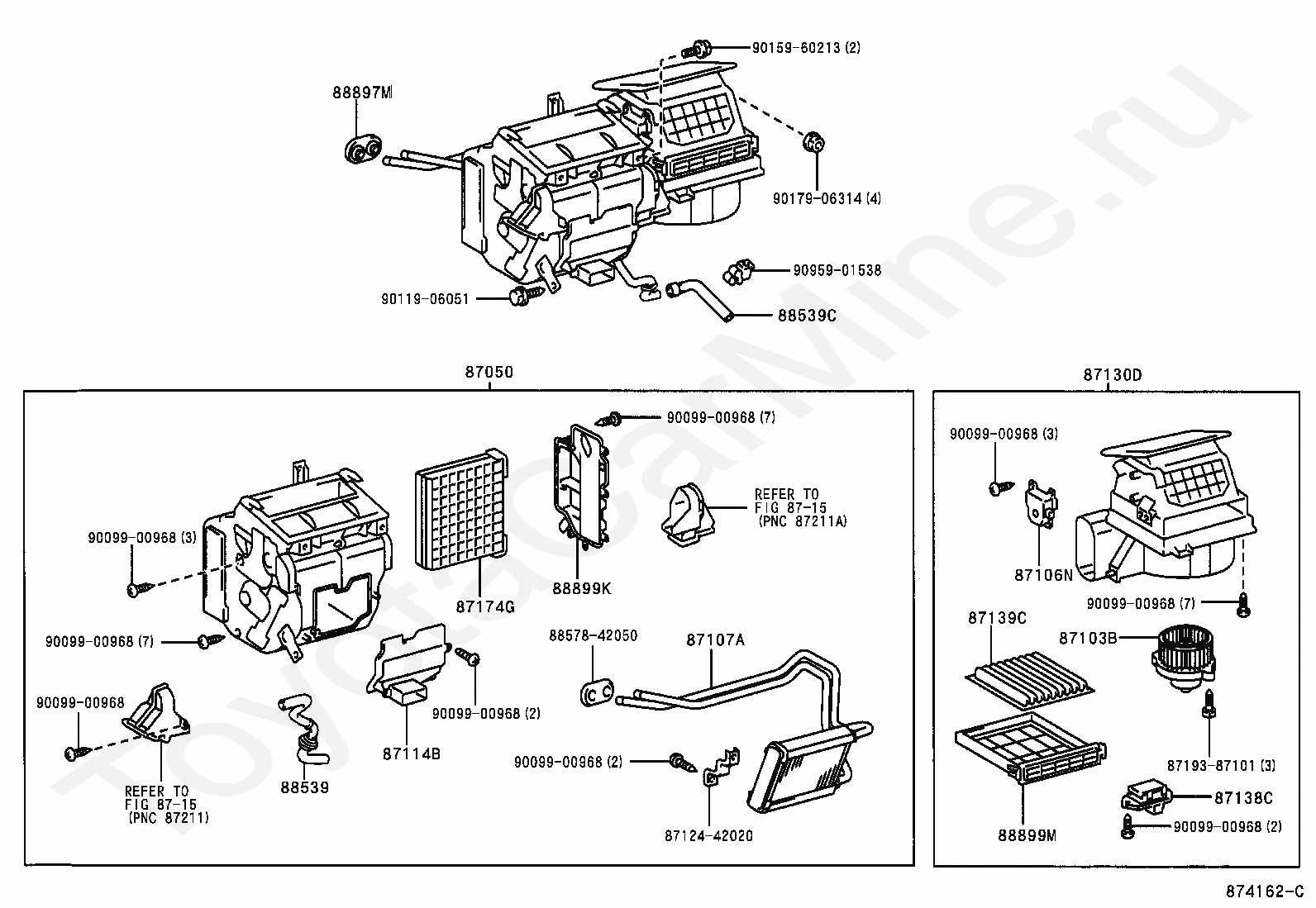

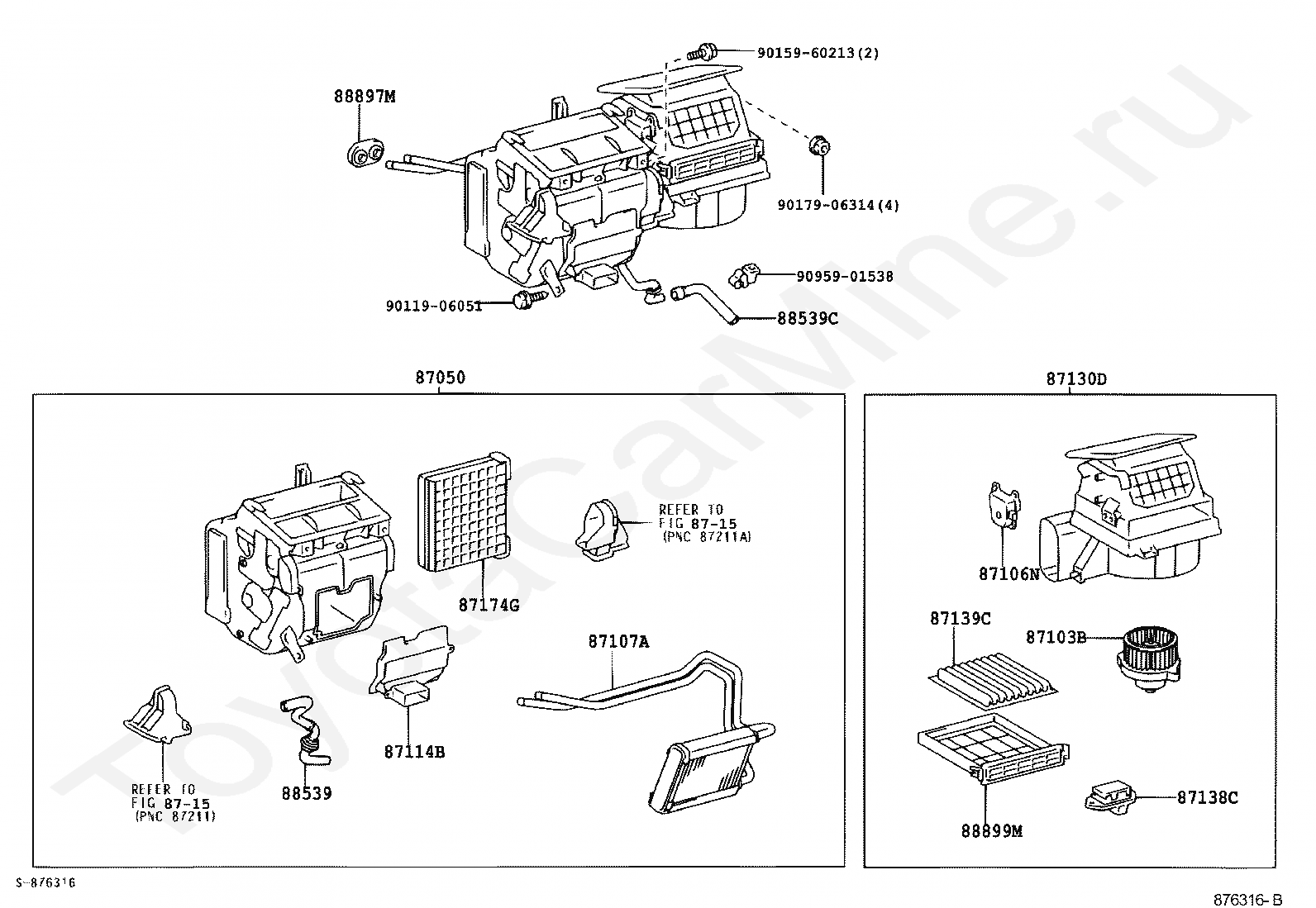

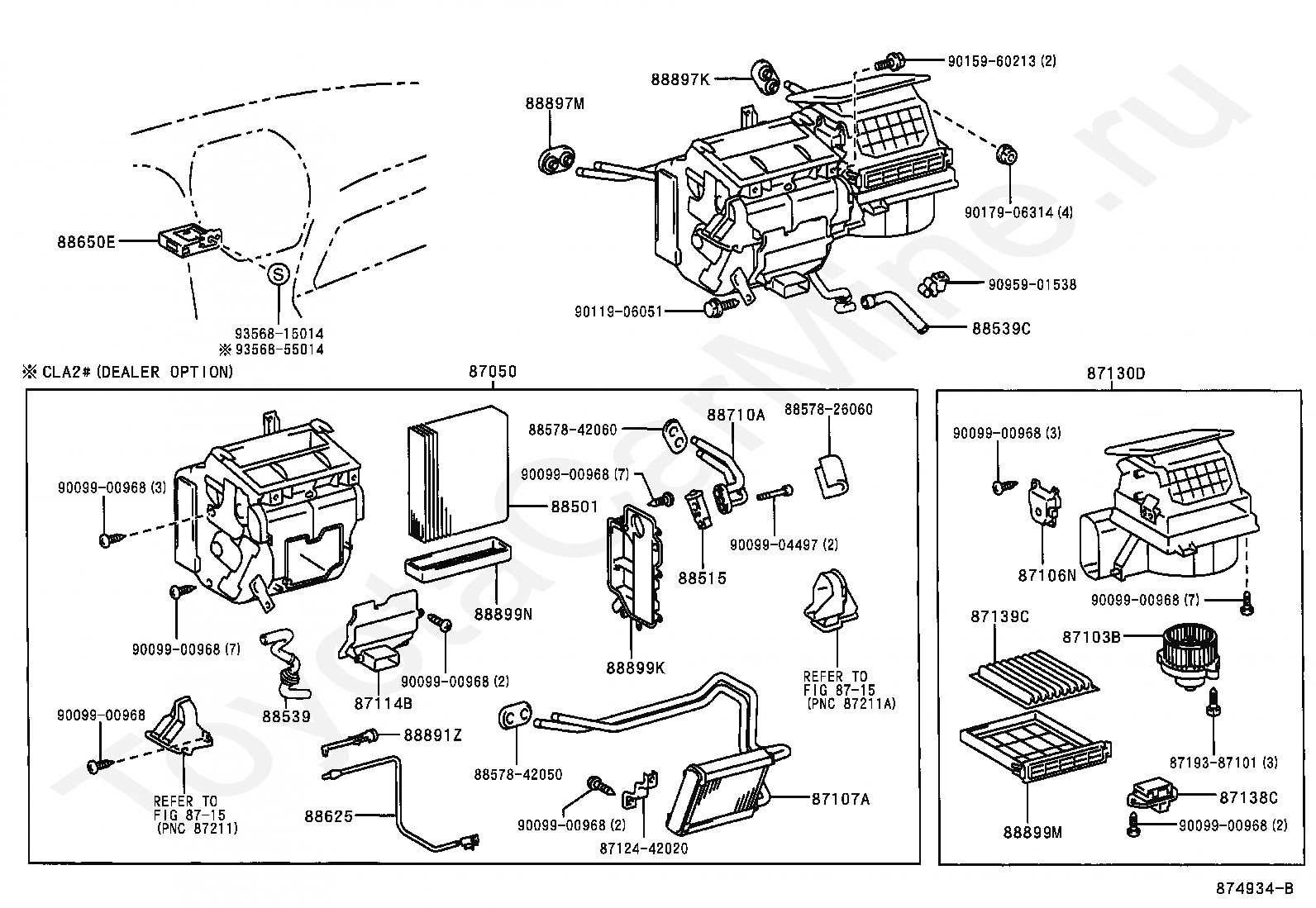

87050
RADIATOR ASSY, AIR CONDITIONER
87103B
MOTOR SUB-ASSY, BLOWER W/FAN
87106H
SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106J
SERVO SUB-ASSY, DAMPER(FOR MODE)
87106N
SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87107A
UNIT SUB-ASSY, HEATER RADIATOR
87107A
UNIT SUB-ASSY, HEATER RADIATOR
8715
переход к группе запчастей
8715
переход к группе запчастей
87165C
CONTROL, BLOWER MOTOR
88501
EVAPORATOR SUB-ASSY, COOLER, NO.1
88515
VALVE, COOLER EXPANSION
88539
HOSE, COOLER UNIT DRAIN, NO.1
88539C
HOSE, COOLER UNIT DRAIN, NO.2
88625
THERMISTOR, COOLER, NO.1
88710A
TUBE ASSY, AIR CONDITIONER
88897K
GROMMET, (FOR COOLER PIPE)
88897M
GROMMET (FOR HEATER PIPE)
88899M
PLATE, COVER(FOR AIR FILTER)
