Америка

Модель

RAV4 (JPP)

VIN

Дата

2008/08

Двигатель

2,5 литра, 16 клапанов DOHC, EFI

Класс

LIMITED TYPE

Фрейм

ASA33

КПП

автомат АКПП, 4 ступени

Опции

JAPAN PRODUCT Канада 426W

Реле и кнопки TOYOTA RAV4 (JPP)

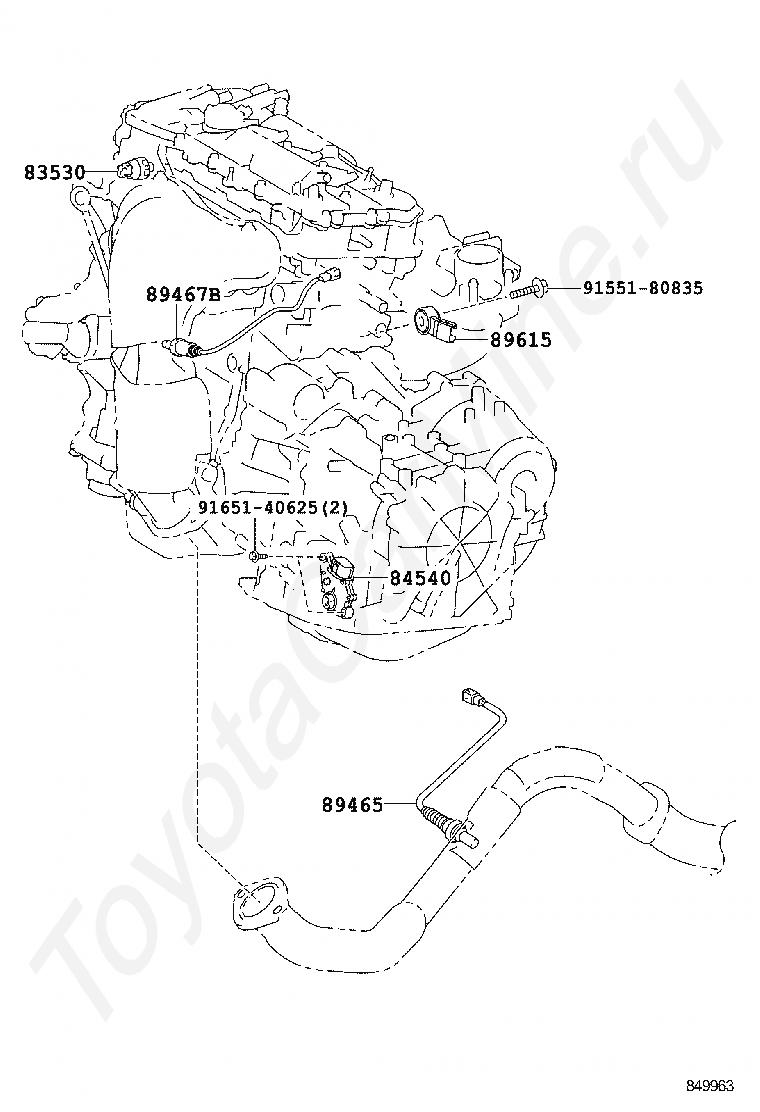

Код

Описание

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

84540

SWITCH ASSY, NEUTRAL START

89465

SENSOR, OXYGEN

89467B

SENSOR, AIR FUEL RATIO

89615

SENSOR, KNOCK CONTROL

9155180835

Крепеж

9165140625

Крепеж

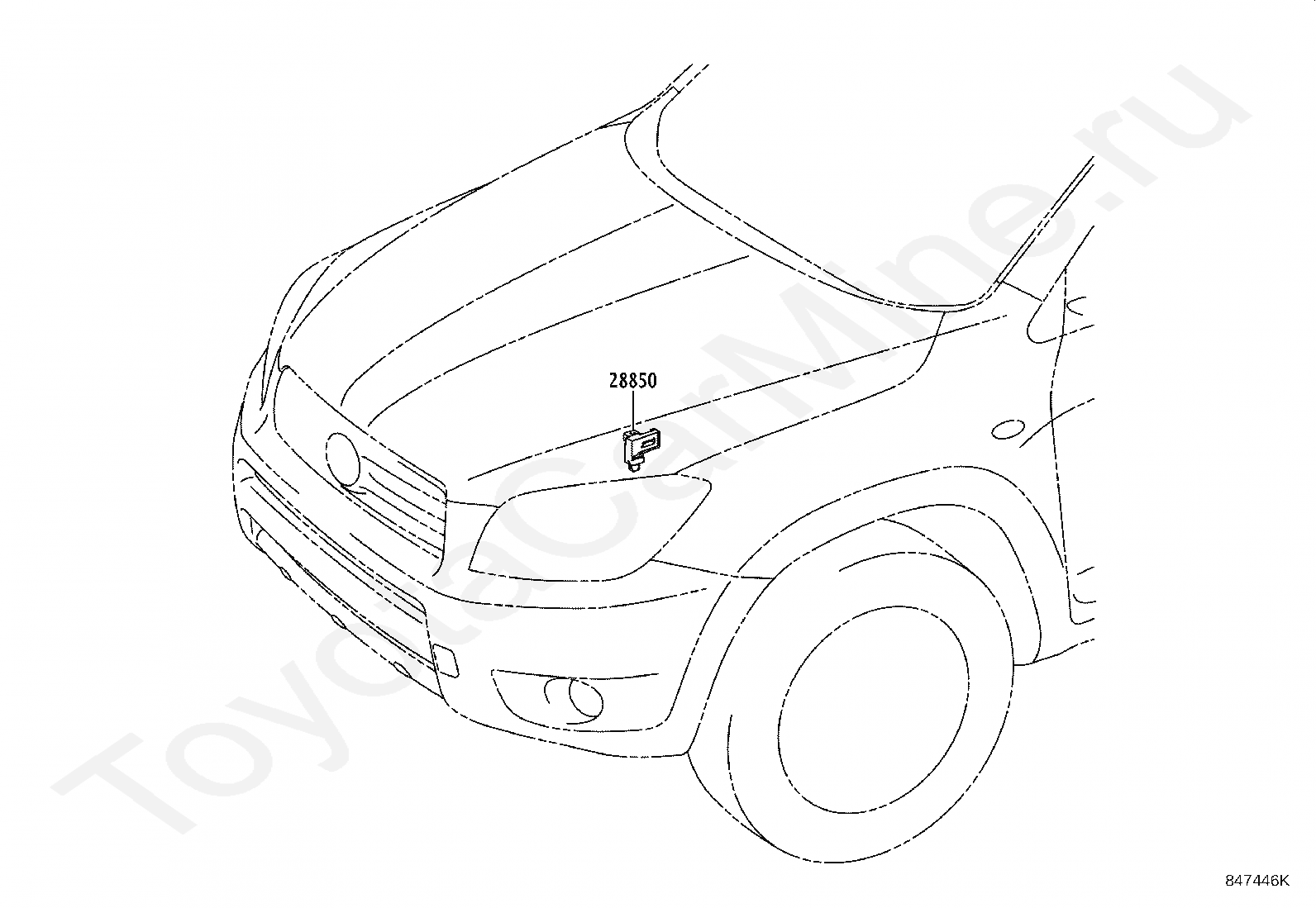

Код

Описание

28850

SENSOR ASSY, BATTERY CURRENT

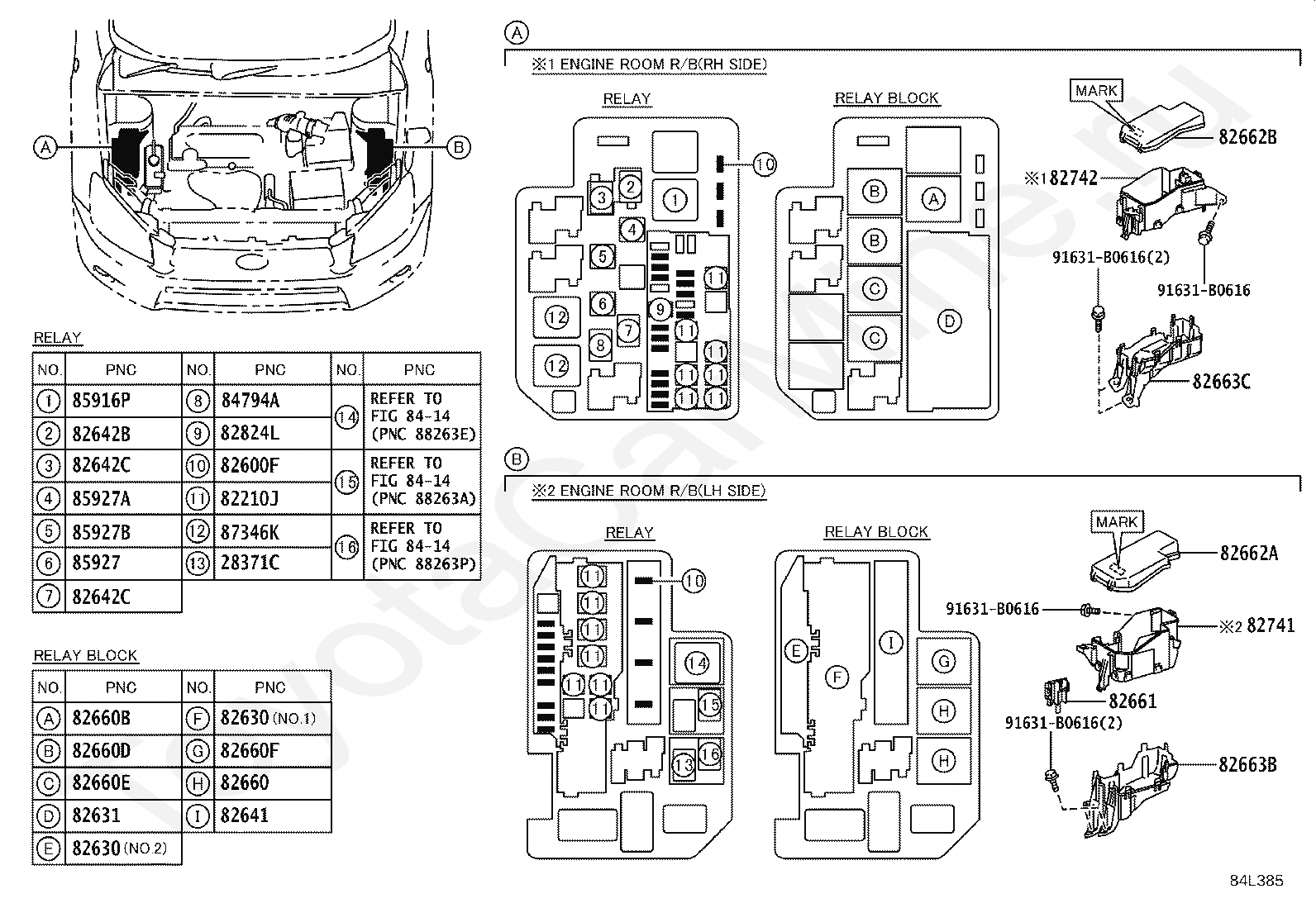

Код

Описание

28371C

RELAY, IGNITION, NO.2

82210J

FUSIBLE LINK

82600F

FUSE, FUSE BLOCK

82630

HOLDER ASSY, FUSE

82630

HOLDER ASSY, FUSE

82631

HOLDER, FUSE

82641

RELAY, INTEGRATION NO.1

82642B

RELAY, DAY TIME RUNNING LIGHT, NO.1

82642C

RELAY, DAY TIME RUNNING LIGHT, NO.2

82642C

RELAY, DAY TIME RUNNING LIGHT, NO.2

82660

BLOCK ASSY, RELAY, ENGINE ROOM

82660B

BLOCK ASSY, RELAY

82660D

BLOCK ASSY, RELAY

82660E

BLOCK ASSY, RELAY

82660F

BLOCK ASSY, RELAY

82661

COVER, RELAY BLOCK, NO.1

82662A

COVER, RELAY BLOCK, UPPER, NO.1

82662B

COVER, RELAY BLOCK, UPPER, NO.2

82663B

COVER, RELAY BLOCK, LOWER, NO.3

82663C

COVER, RELAY BLOCK LOWER, NO.4

82741

BLOCK, ENGINE ROOM RELAY

82742

BLOCK, ENGINE ROOM RELAY, NO.2

82824L

PIN, SHORT

8414

переход к группе запчастей

8414

переход к группе запчастей

8414

переход к группе запчастей

84794A

RELAY, FR WIPER DEICER

85916P

RELAY, HEADLAMP

85927

RELAY, COOLING FAN

85927A

RELAY, COOLING FAN, NO.2

85927B

RELAY, COOLING FAN, NO.3

87346K

RELAY, PTC HEATER

91631B0616

Крепеж

91631B0616

Крепеж

91631B0616

Крепеж

91631B0616

Крепеж

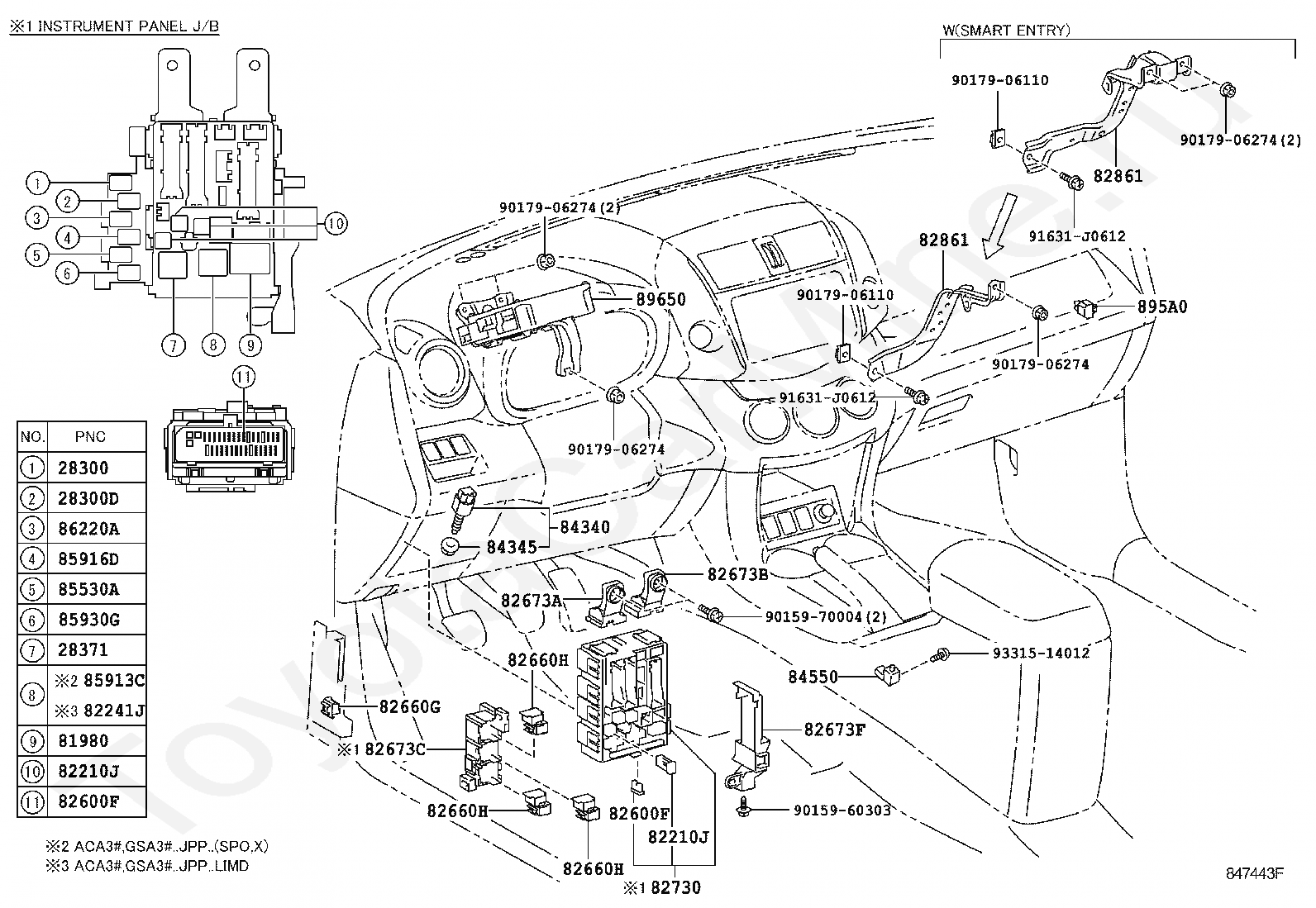

Код

Описание

28300

RELAY ASSY, STARTER

28300D

RELAY, STARTER CUT

28371

RELAY, IGNITION, NO.1

81980

FLASHER ASSY, TURN SIGNAL

82210J

FUSIBLE LINK

82210J

FUSIBLE LINK

82241J

PIN, SHORT

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82660G

BLOCK ASSY, RELAY

82660H

BLOCK ASSY, RELAY

82660H

BLOCK ASSY, RELAY

82660H

BLOCK ASSY, RELAY

82673A

BRACKET, JUNCTION BLOCK

82673B

BRACKET, JUNCTION BLOCK

82673C

BRACKET, JUNCTION BLOCK

82673F

BRACKET, JUNCTION BLOCK

82730

BLOCK ASSY, INSTRUMENT PANEL JUNCTION

82861

BRACKET, COMPUTER INTEGRATION, NO.1

82861

BRACKET, COMPUTER INTEGRATION, NO.1

84340

SWITCH ASSY, STOP LAMP

84345

ADJUSTER, STOP LAMP SWITCH MOUNTING

84550

SWITCH ASSY, PARKING BRAKE

85530A

RELAY, POWER OUTLET SOCKET

85913C

RELAY, HEATER, NO.1

85916D

RELAY, FOG LAMP

85930G

RELAY, ACC

86220A

RELAY, INVERTER

895A0

RELAY ASSY, STOP LAMP CONTROL

89650

COMPUTER ASSY, POWER STEERING

9015960303

Крепеж

9015970004

Крепеж

9017906110

Крепеж

9017906110

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9017906274

Крепеж

91631J0612

Крепеж

91631J0612

Крепеж

9331514012

Крепеж

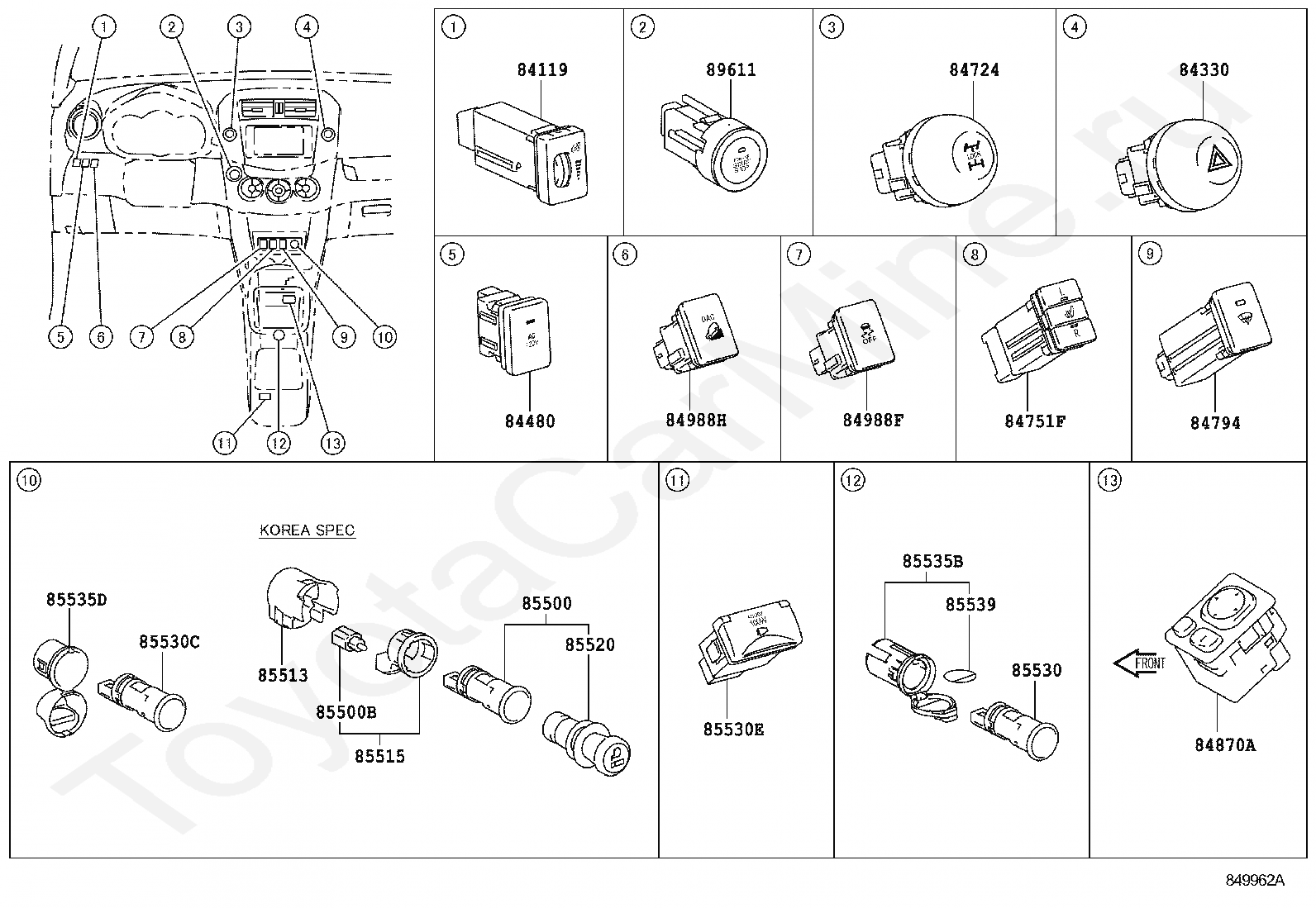

Код

Описание

84119

RHEOSTAT, LIGHT CONTROL

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84480

SWITCH ASSY, MAIN

84724

SWITCH, 4 WHEEL DRIVE CONTROL

84751F

SWITCH, SEAT HEATER

84794

SWITCH, FR WIPER DEICER

84870A

SWITCH ASSY, OUTER MIRROR

84988F

SWITCH, TRACTION CONTROL

84988H

SWITCH, DOWNHILL ASSIST CONTROL

85500

LIGHTER ASSY, CIGARETTE

85500B

BULB, CIGARETTE LIGHTER

85513

COVER, CIGARETTE LIGHTER

85515

STAY, CIGARETTE LIGHTER BEZEL

85520

KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER

85530

SOCKET ASSY, POWER OUTLET, NO.1

85530C

SOCKET ASSY, POWER OUTLET, CENTER

85530E

SOCKET ASSY, POWER OUTLET, NO.3

85535B

COVER, POWER OUTLET SOCKET, NO.1

85535D

COVER, POWER OUTLET SOCKET, CENTER

85539

LABEL, POWER OUTLET NOTICE

89611

SWITCH, PUSH START

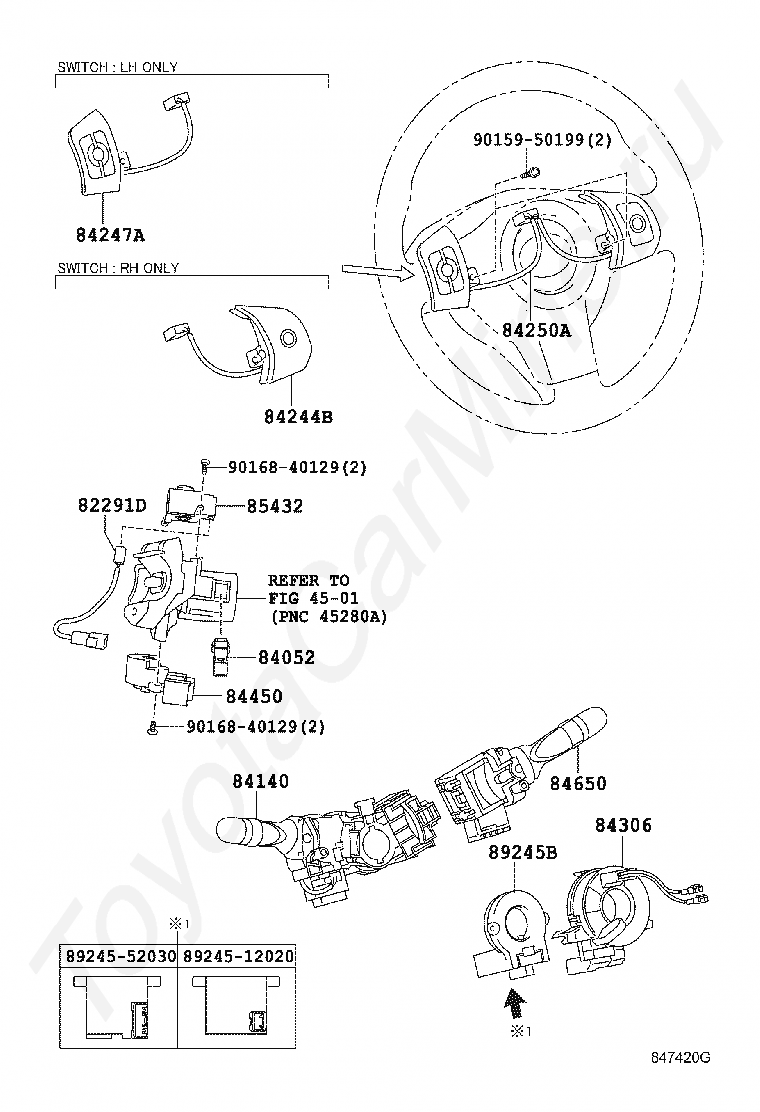

Код

Описание

4501

переход к группе запчастей

82291D

WIRE, TO SOLENOID

84052

SWITCH ASSY, UN-LOCK WARNING

84140

SWITCH ASSY, HEADLAMP DIMMER

84244B

SWITCH, STEERING PAD, RH

84247A

SWITCH, STEERING PAD, LH

84250A

SWITCH ASSY, STEERING PAD

84306

CABLE SUB-ASSY, SPIRAL

84450

SWITCH ASSY, IGNITION OR STARTER

84650

SWITCH ASSY, WINDSHIELD WIPER

85432

SOLENOID, KEY INTER LOCK

89245B

SENSOR, STEERING

9015950199

Крепеж

9016840129

Крепеж

9016840129

Крепеж

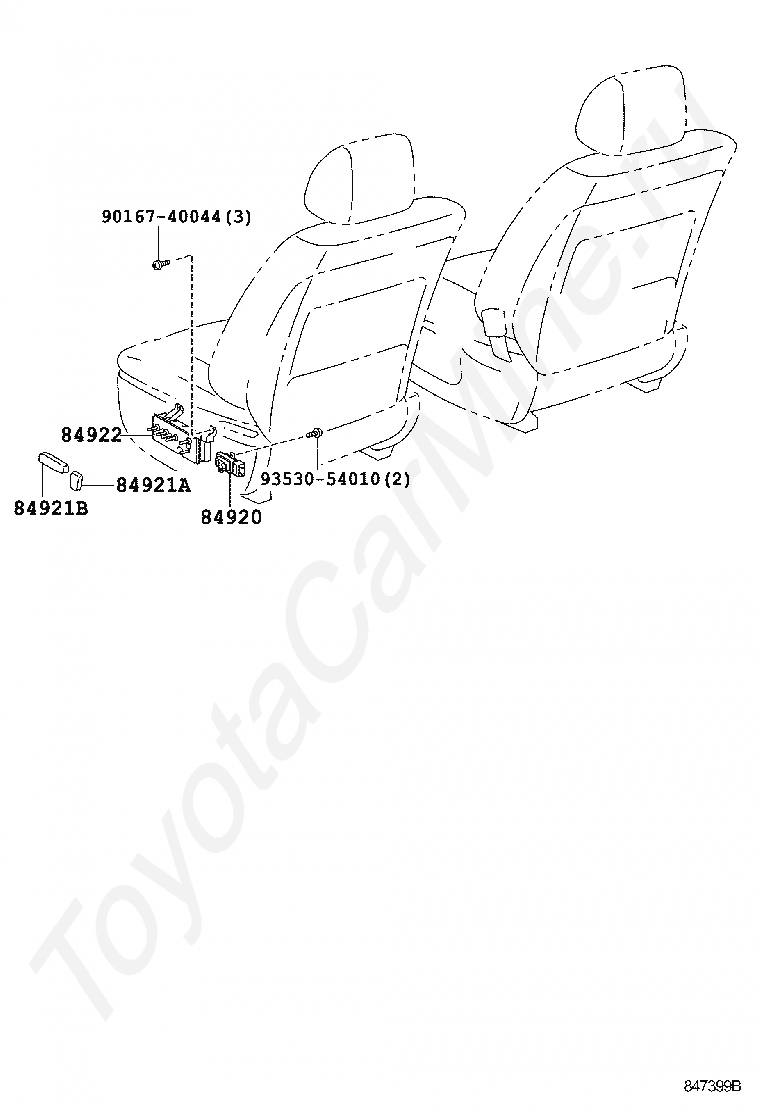

Код

Описание

84920

SWITCH ASSY, POWER SEAT

84921A

KNOB, POWER SEAT SWITCH (FOR RECLINING)

84921B

KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)

84922

SWITCH, FRONT POWER SEAT

9016740044

Крепеж

9353054010

Крепеж

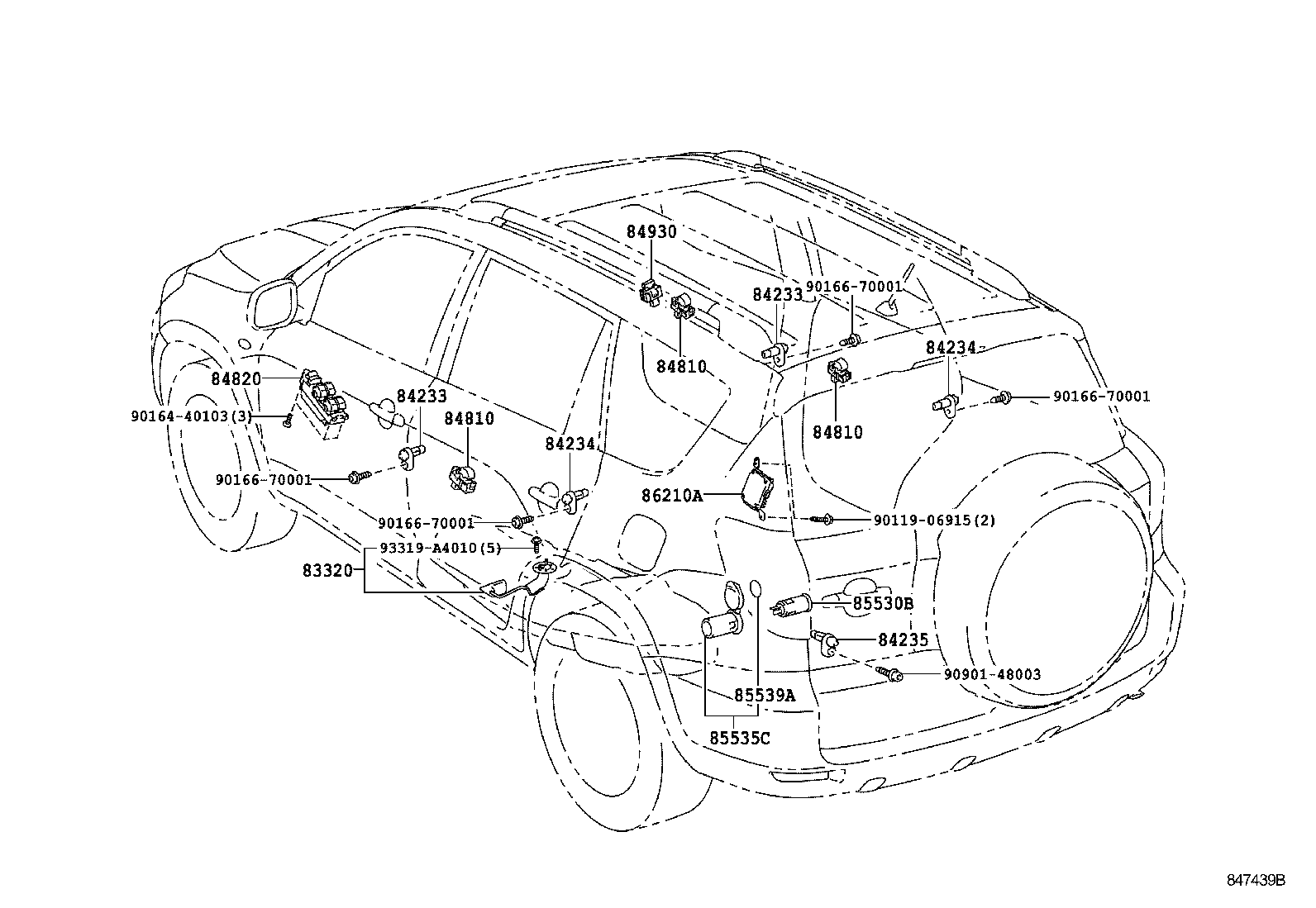

Код

Описание

83320

GAGE ASSY, FUEL SENDER

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84235

SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR)

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84820

MASTER SWITCH ASSY, POWER WINDOW REGULATOR

84930

SWITCH ASSY, DOOR CONTROL

85530B

SOCKET ASSY, POWER OUTLET, REAR NO.1

85535C

COVER, POWER OUTLET SOCKET, REAR

85539A

LABEL, POWER OUTLET NOTICE, REAR

86210A

INVERTER ASSY, VOLTAGE

9011906915

Крепеж

9016440103

Крепеж

9016670001

Крепеж

9016670001

Крепеж

9016670001

Крепеж

9016670001

Крепеж

9090148003

Крепеж

93319A4010

Крепеж
